  1. Experiment 14 Preparation of Acetylsalicylic Acid

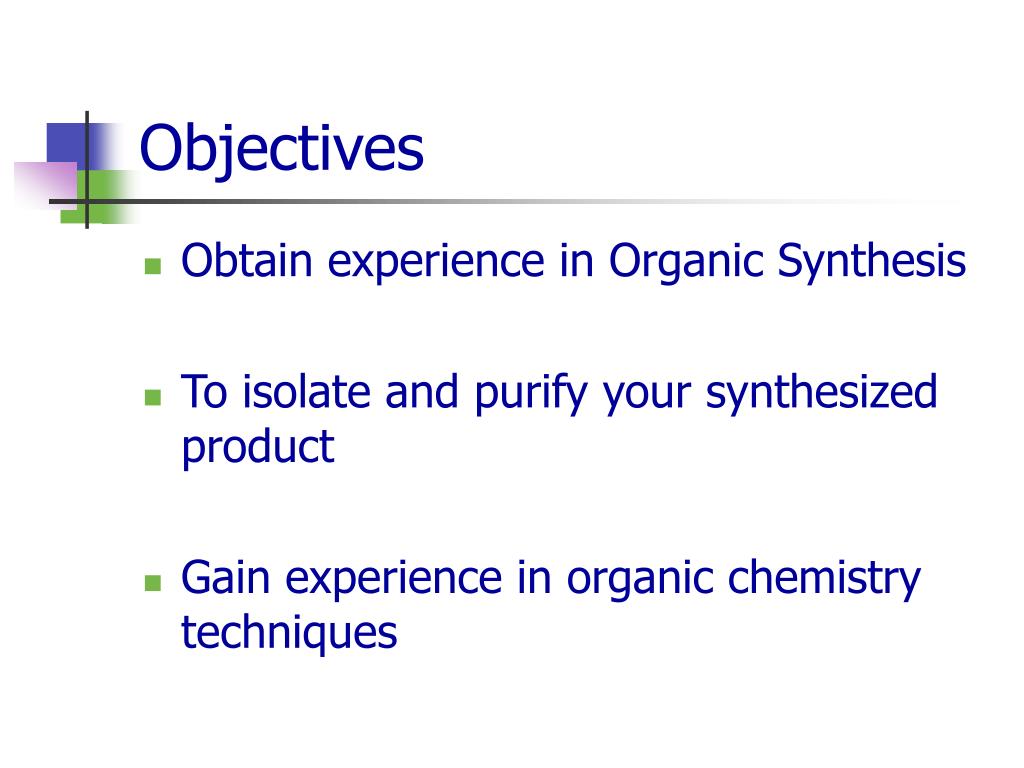

  2. Objectives • Obtain experience in Organic Synthesis • To isolate and purify your synthesized product • Gain experience in organic chemistry techniques

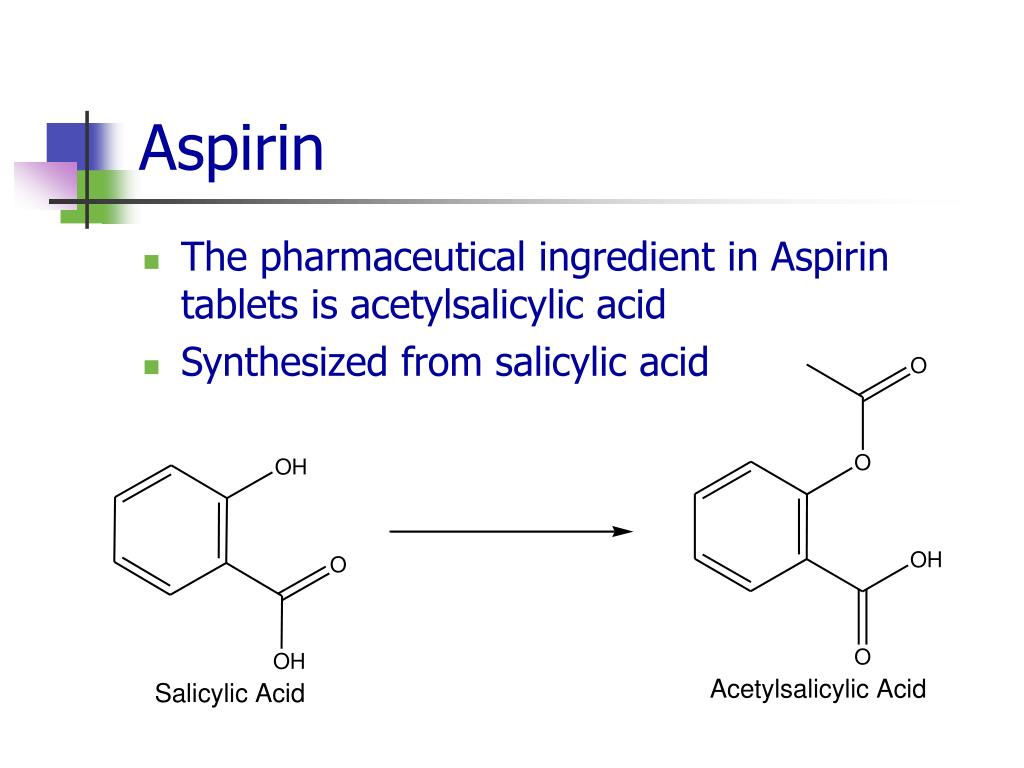

  3. Aspirin • The pharmaceutical ingredient in Aspirin tablets is acetylsalicylic acid • Synthesized from salicylic acid

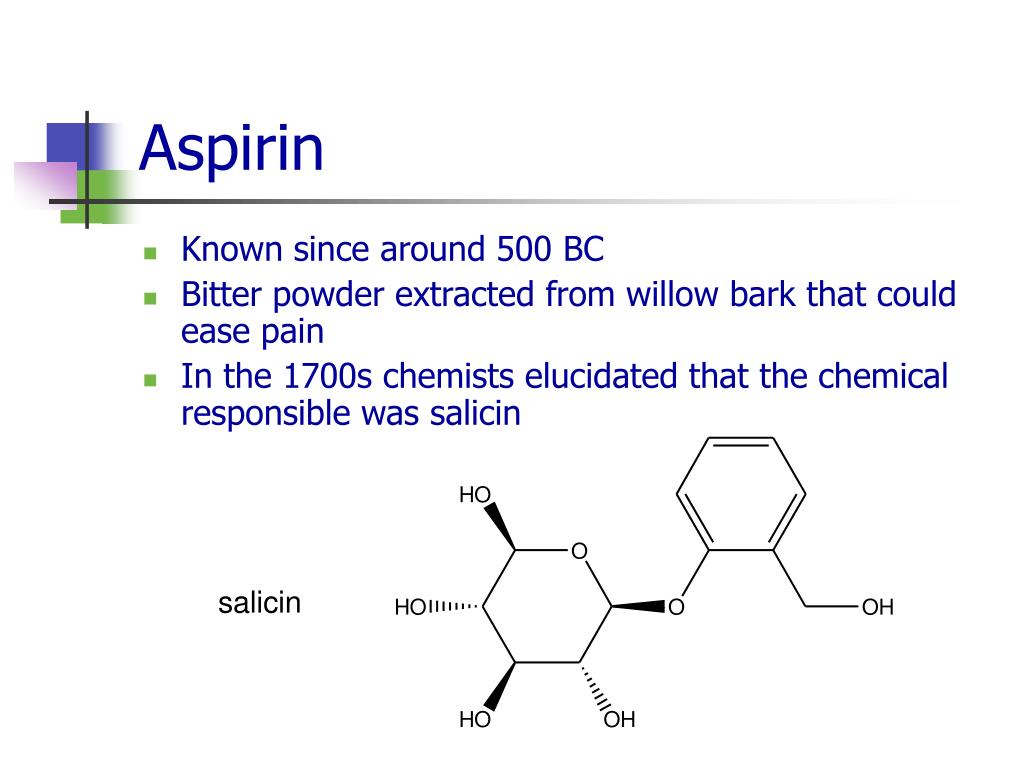

  4. Aspirin • Known since around 500 BC • Bitter powder extracted from willow bark that could ease pain • In the 1700s chemists elucidated that the chemical responsible was salicin

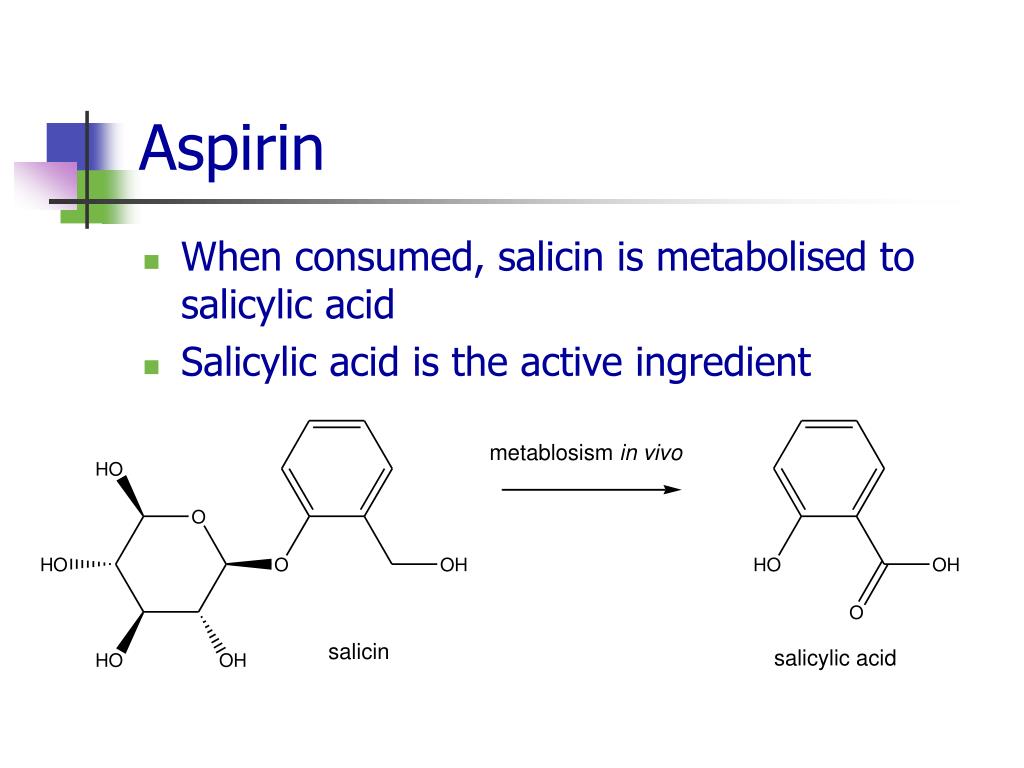

  5. Aspirin • When consumed, salicin is metabolised to salicylic acid • Salicylic acid is the active ingredient

  6. Aspirin • In 1829 Leroux showed that the active ingredient was salicylic acid • Used for years to treat pain, swelling and fevers • However not ideal as caused irritation to user’s stomach • High doses caused bleeding

  7. Aspirin • Hoffmann reasoned the irritation was due to the phenol group • Converted salicylic acid to acetylsalicylic acid • Derivative reduced fever, pains and swelling, was less irritating • Worked even better than salicylic acid

  8. How does Aspirin work? • Dr. J.Vane – won 1982 Nobel Prize for Medicine for his discovery • Pain signals are relayed to the brain from nerve endings by chemicals called prostaglandins • Aspirin inhibits the synthesis of these neurotransmitters by an enzyme called cyclooxygenase-2

  9. How does Aspirin work? • Cyclooxygenase-2 is responsible for pain transmission • Cyclooxygenase-1 is responsible for maintenance of the gastric lining • Aspirin affects both enzymes • Lead to development of other pain killing drugs

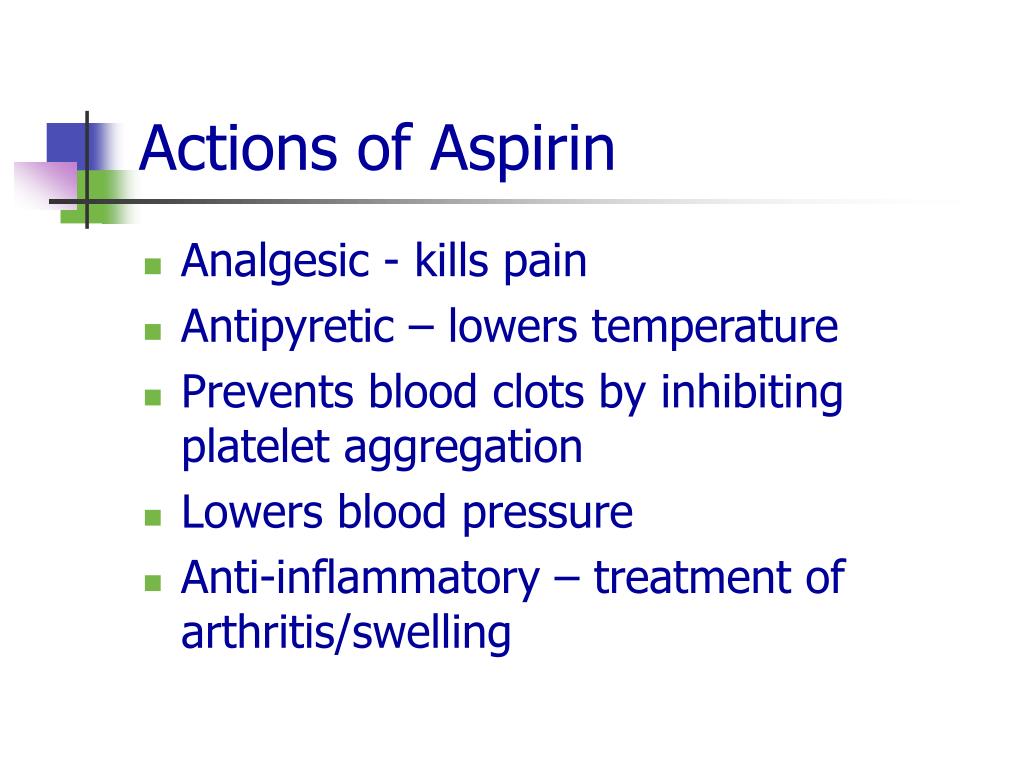

  10. Actions of Aspirin • Analgesic - kills pain • Antipyretic – lowers temperature • Prevents blood clots by inhibiting platelet aggregation • Lowers blood pressure • Anti-inflammatory – treatment of arthritis/swelling

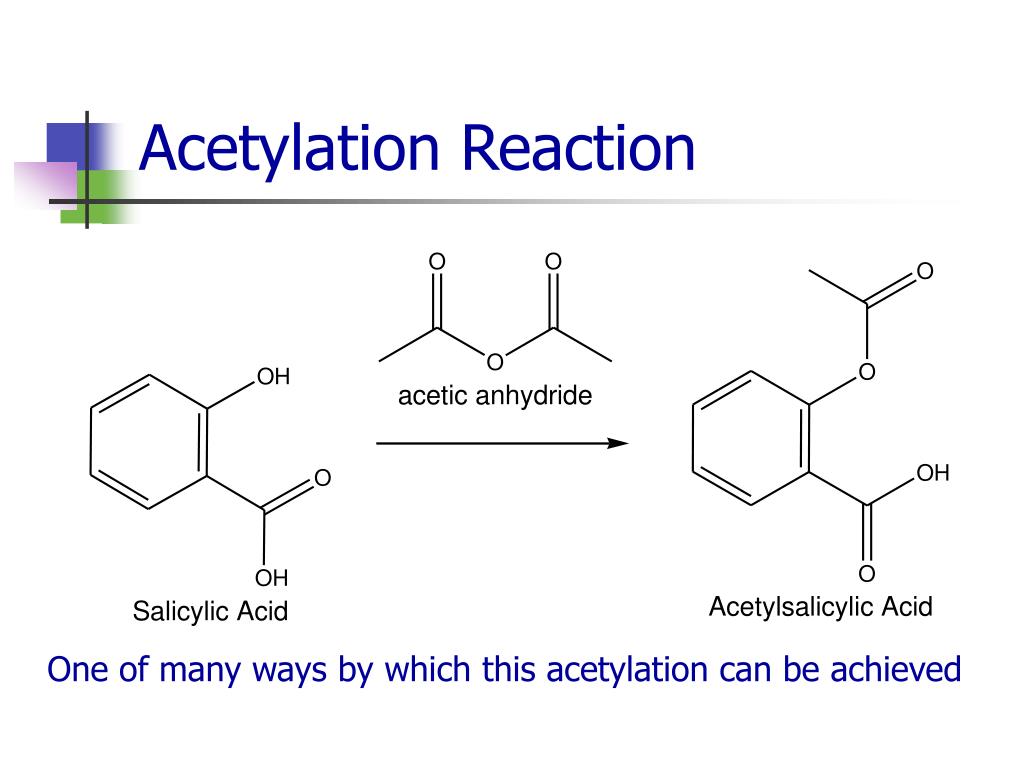

  11. Acetylation Reaction One of many ways by which this acetylation can be achieved

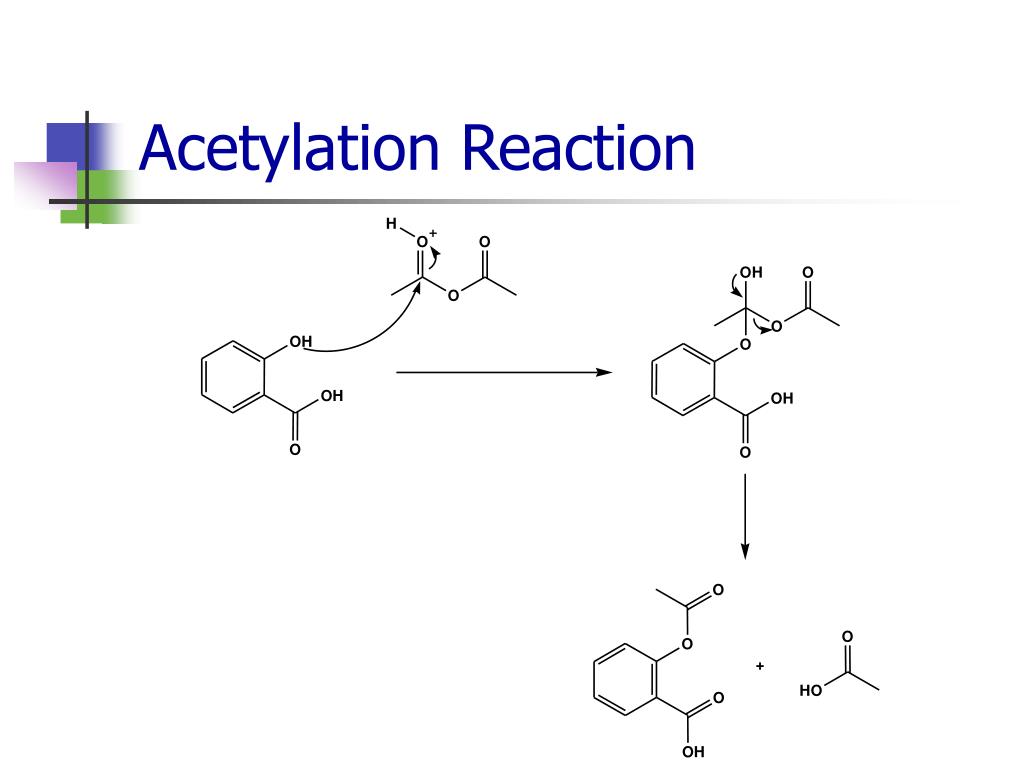

  12. Acetylation Reaction

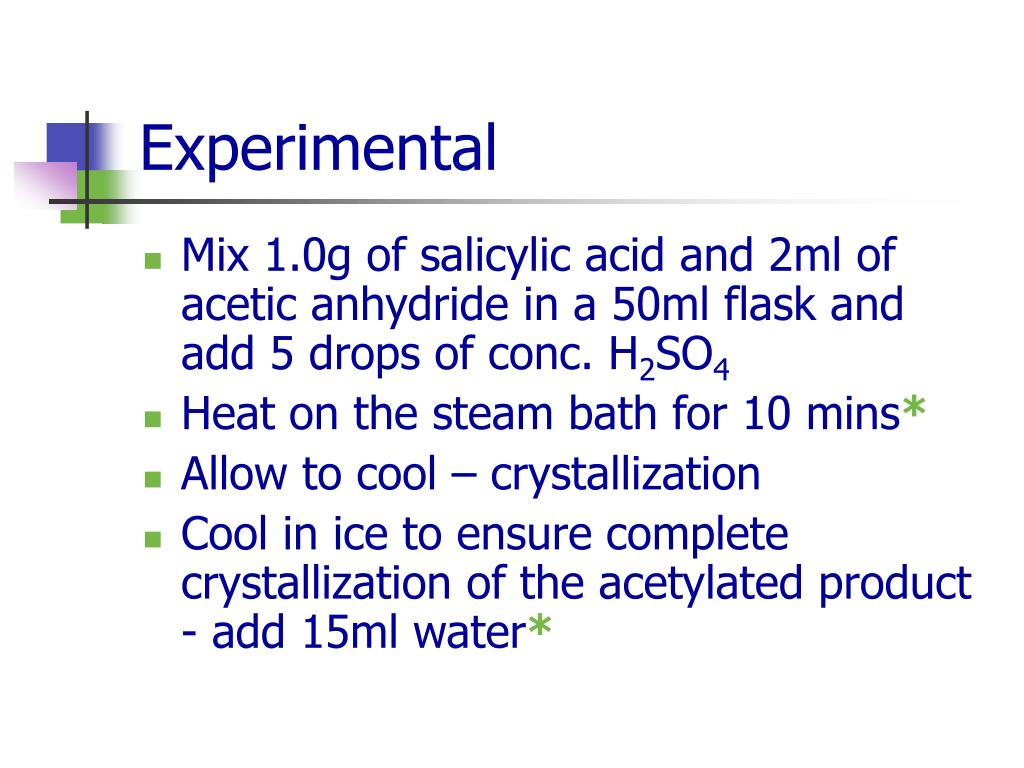

  13. Experimental • Mix 1.0g of salicylic acid and 2ml of acetic anhydride in a 50ml flask and add 5 drops of conc. H2SO4 • Heat on the steam bath for 10 mins* • Allow to cool – crystallization • Cool in ice to ensure complete crystallization of the acetylated product - add 15ml water*

  14. Experimental • Isolate the crystals on the Hirsch funnel • Wash with cold water (5-10ml) • Transfer crystals to a beaker • Add 15ml of 5% aq NaHCO3* • Filter the solution of the sodium salt of aspirin through a fluted filter paper

  15. Experimental • Pour solution on to 5ml of 3M HCl • Acetylsalicylic acid precipitates • Filter the crystals on the Hirsch funnel • Recrystalize from ethanol/water soln. • Isolate crystals, allow to dry, get melting point and % yield
