Presentation Transcript

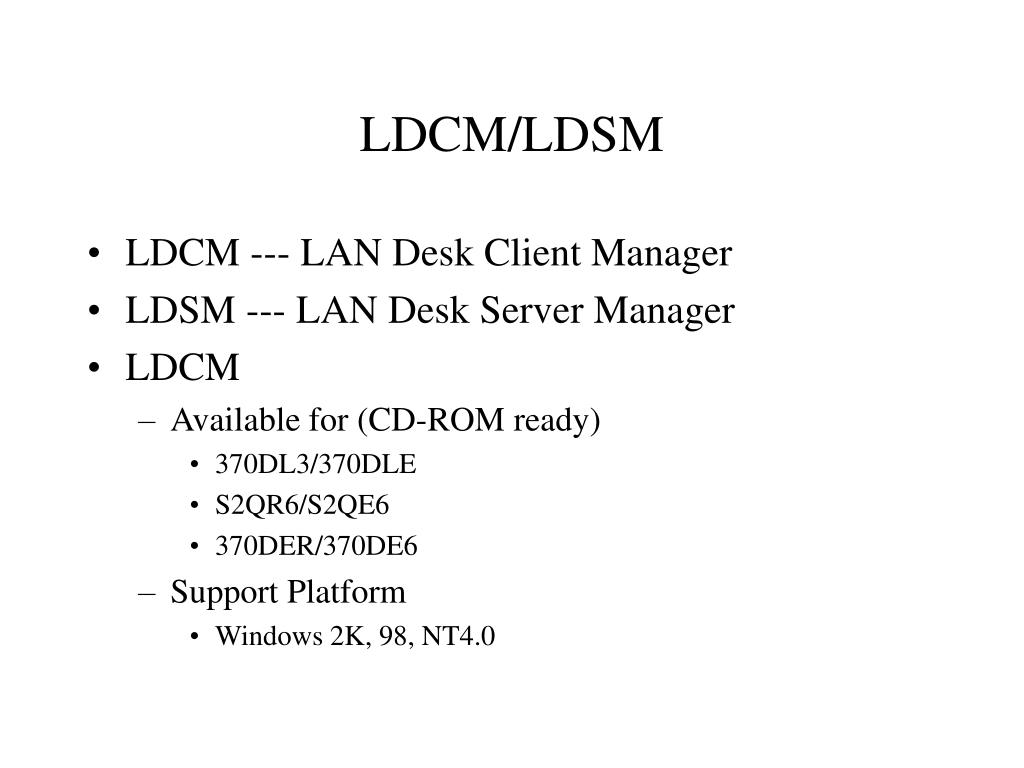

  1. LDCM/LDSM • LDCM --- LAN Desk Client Manager • LDSM --- LAN Desk Server Manager • LDCM • Available for (CD-ROM ready) • 370DL3/370DLE • S2QR6/S2QE6 • 370DER/370DE6 • Support Platform • Windows 2K, 98, NT4.0

  2. LDCM --- Example

  3. LDCM --- How does LDCM do • Internet based

  4. LDCM --- What can LDCM do? • Health monitoring • Temperature • CPU • Environment • Voltage • Power supply • CPU voltage • Fan speed • CPU Fan • Chassis Fan

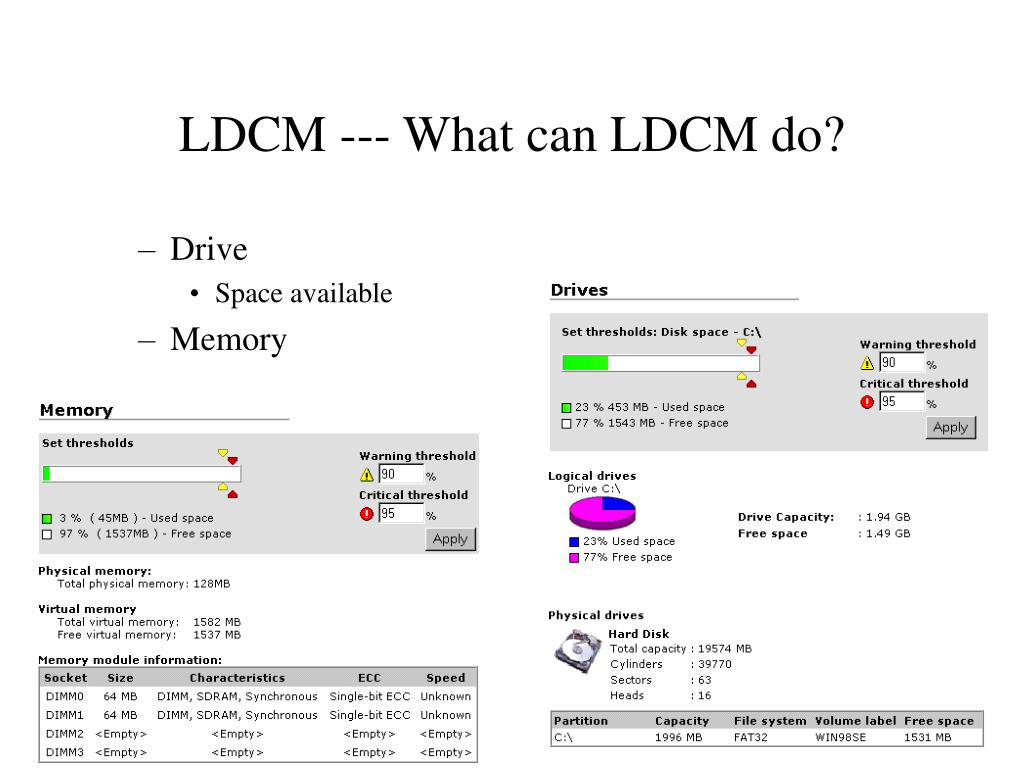

  5. LDCM --- What can LDCM do? • Drive • Space available • Memory

  6. LDCM --- What can LDCM do? • Critical condition alert (Notification) Normal Warning

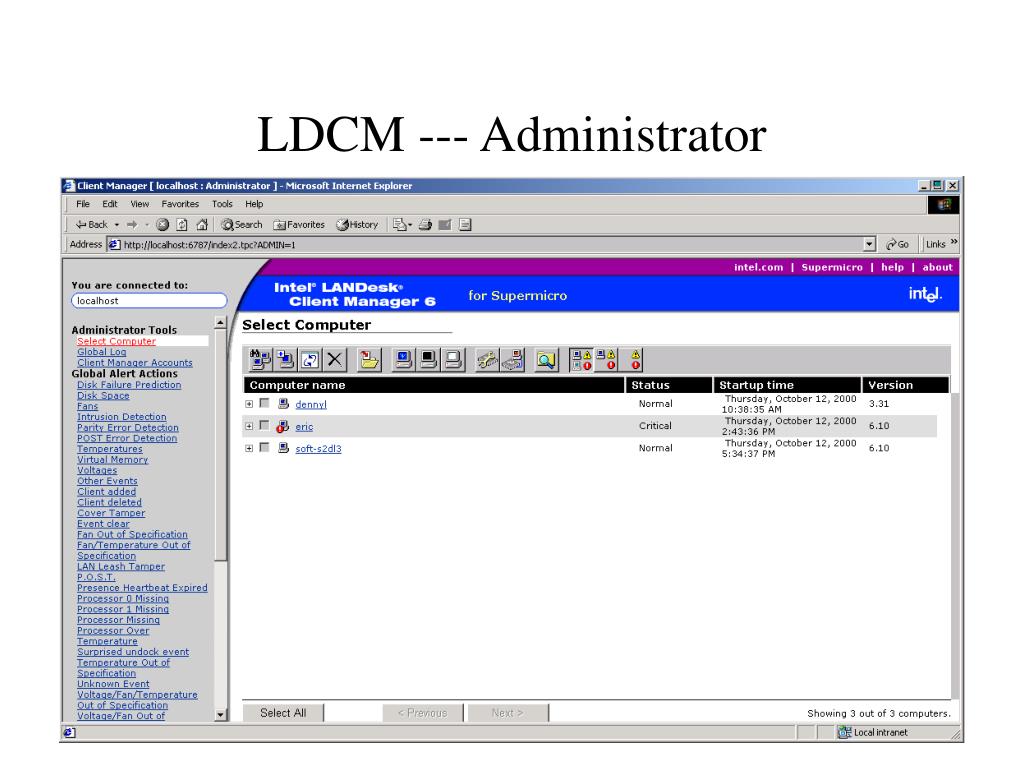

  7. LDCM --- Administrator

  8. LDCM --- Administrator • Monitor client health information • Remote boot/shutdown/reset client LDSM • Remote control --- something like PcAnywhere • Redirect server’s mouse, keyboard, and monitor • AMS2 --- Alert Management System2 • Sending Alert whenever an event occurs

  9. LDSM • Available for NT, 2K, NetWare, RedHat, Linux • Remote control --- IRMC (Intel Remote Management Card) • An Intel 386 processor with 6MB RAM • An integrated 10M network adapter • An external serial port to connect to an external modem • An external DC adapter port for use with a 12-volt external power adapter • An optional rechargeable battery pack to power the IRMC if all other power sources fails.

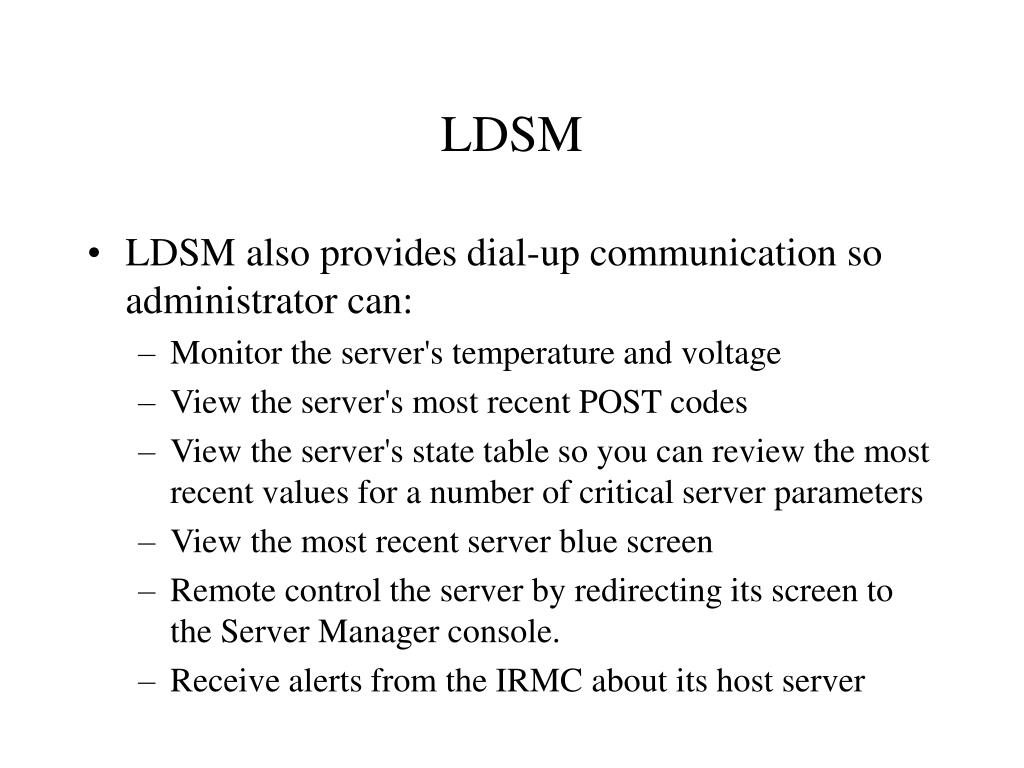

  10. LDSM • LDSM also provides dial-up communication so administrator can: • Monitor the server's temperature and voltage • View the server's most recent POST codes • View the server's state table so you can review the most recent values for a number of critical server parameters • View the most recent server blue screen • Remote control the server by redirecting its screen to the Server Manager console. • Receive alerts from the IRMC about its host server

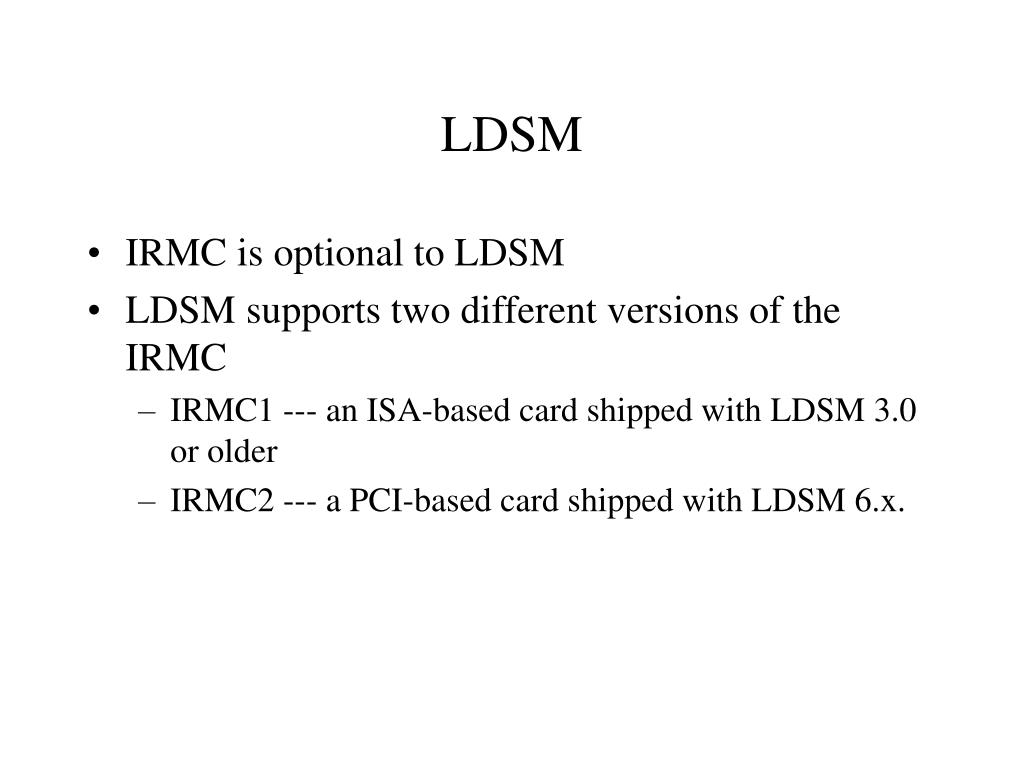

  11. LDSM • IRMC is optional to LDSM • LDSM supports two different versions of the IRMC • IRMC1 --- an ISA-based card shipped with LDSM 3.0 or older • IRMC2 --- a PCI-based card shipped with LDSM 6.x.

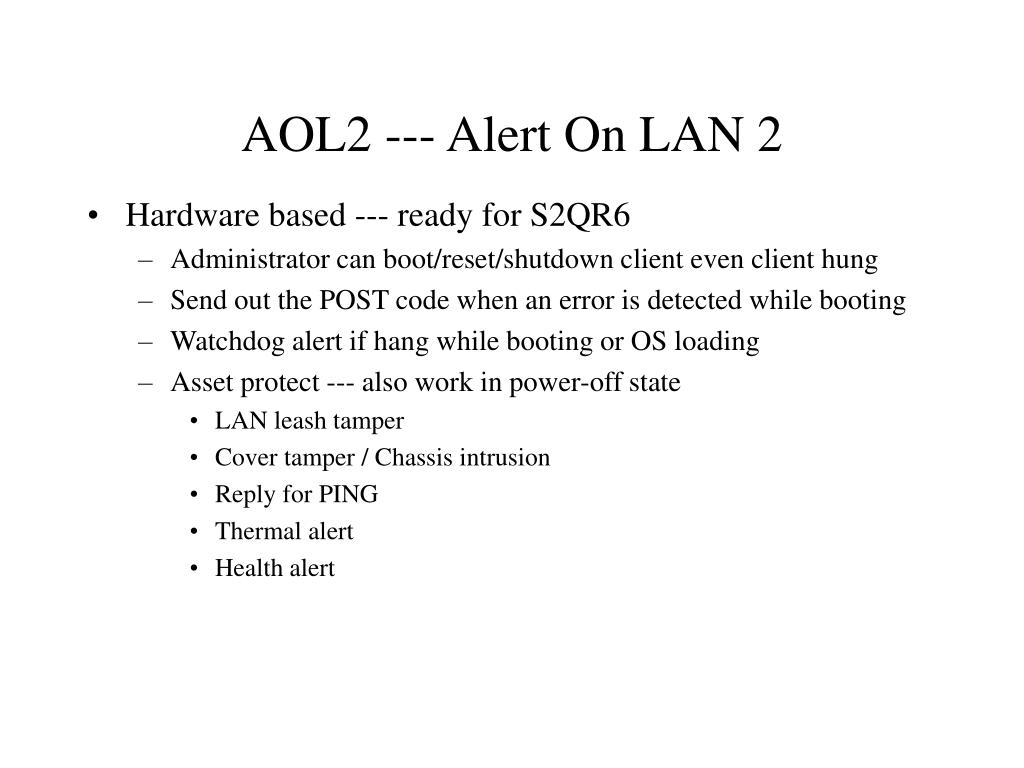

  12. AOL2 --- Alert On LAN 2 • Hardware based --- ready for S2QR6 • Administrator can boot/reset/shutdown client even client hung • Send out the POST code when an error is detected while booting • Watchdog alert if hang while booting or OS loading • Asset protect --- also work in power-off state • LAN leash tamper • Cover tamper / Chassis intrusion • Reply for PING • Thermal alert • Health alert
