  1. Groundbearing Floors - 2 examples

  2. Page 1- Typical Ground Floor - 1970s to 1980s DPC 1. Cavity fill & backfill 2. Hardcore and blinding 3. Damp Proof membrane 4. Concrete slab 5. Build walls 6. Floor screed

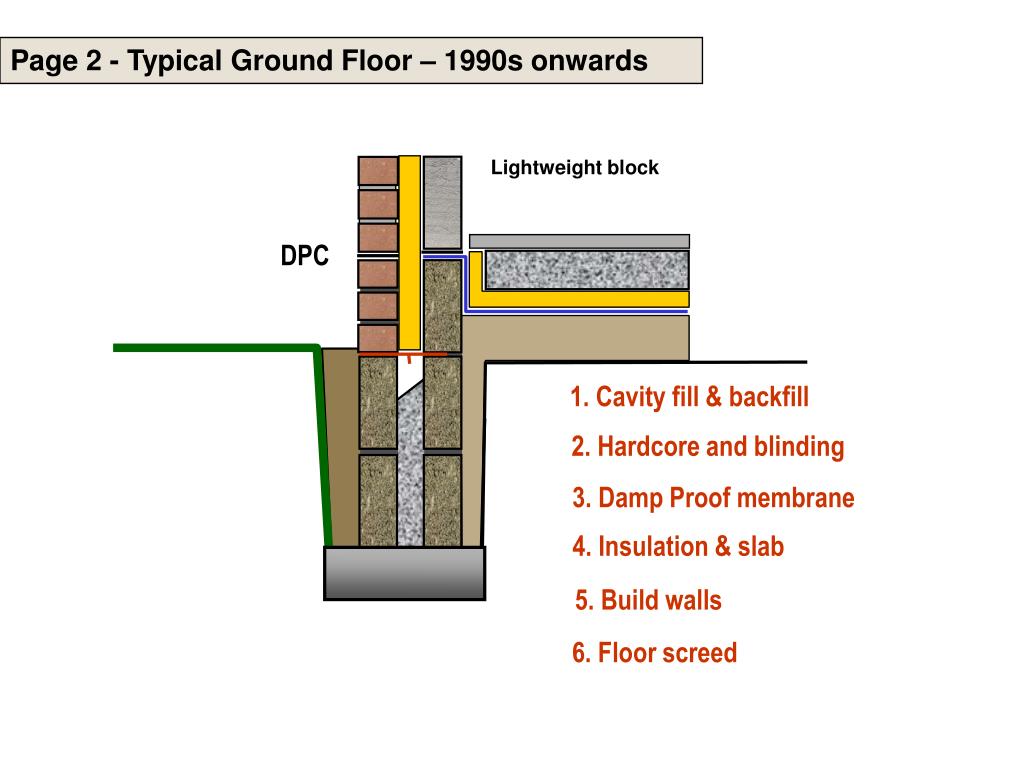

  3. Page 2 - Typical Ground Floor – 1990s onwards Lightweight block DPC 1. Cavity fill & backfill 2. Hardcore and blinding 3. Damp Proof membrane 4. Insulation & slab 5. Build walls 6. Floor screed
