Carry-Skip Adders

Carry-Skip Adders. Generalization of Manchester Adders With CMOS Implementation – Carry Skip speed Comparable to CLA Less Area/Power Based on Observation that Carry Process Can “Skip” Stage for Which x i  y i (that is p i = x i  y i = 1)

solomon-robertson
Télécharger la présentation

Carry-Skip Adders

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Carry-Skip Adders • Generalization of Manchester Adders • With CMOS Implementation – Carry Skip speed Comparable to CLA • Less Area/Power • Based on Observation that Carry Process Can “Skip” Stage for Which xi  yi (that is pi = xiyi = 1) • Adder of n stages Divided into Stages of Selected Lengths • With Simple Ripple Carry • Each Group Generates “Group Carry-Propagate”=1 if all pi=1 in Each Group • This Signal Allows Incoming Carry to “Skip” Stages within Group and Generate Carry-out

  2. Fixed Block Width Carry-Skip Adders

  3. Carry-Skip Adder-Group Carry GCin cin cin GCout P1 P0 P2 GCin•P[2:0]

  4. Fixed Block Width Carry-Skip Propagation Delay

  5. Variable Sized Blocks

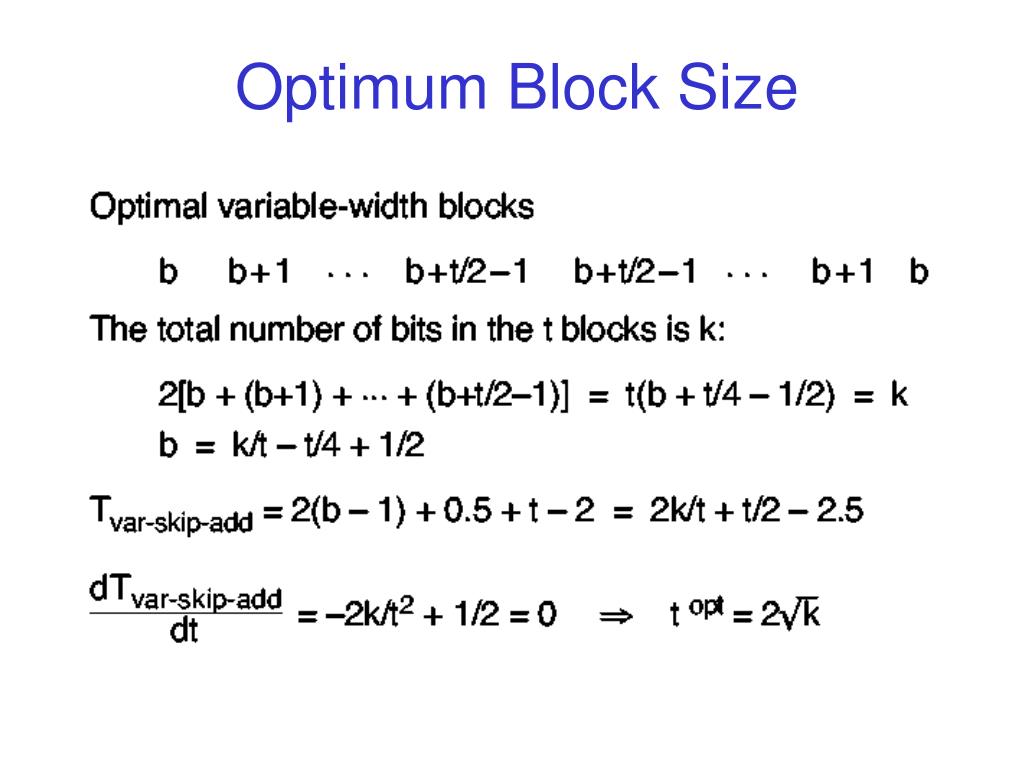

  6. Optimum Block Size

  7. Optimum Block Size

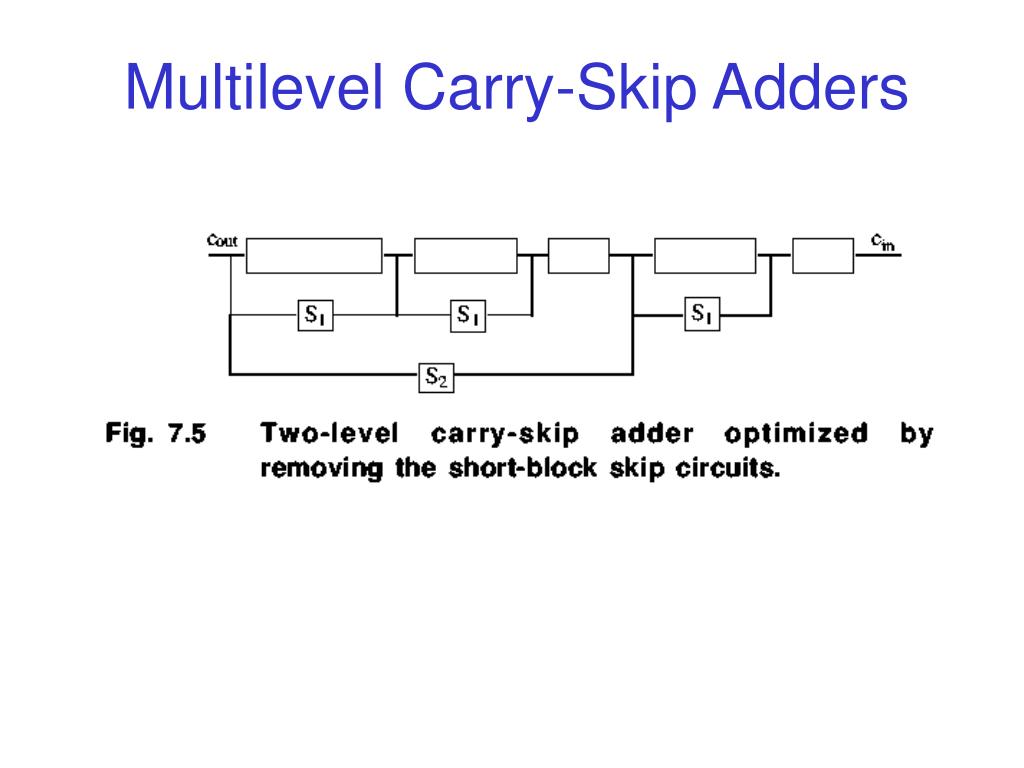

  8. Multilevel Carry-Skip Adders

  9. Multilevel Carry-Skip Adders

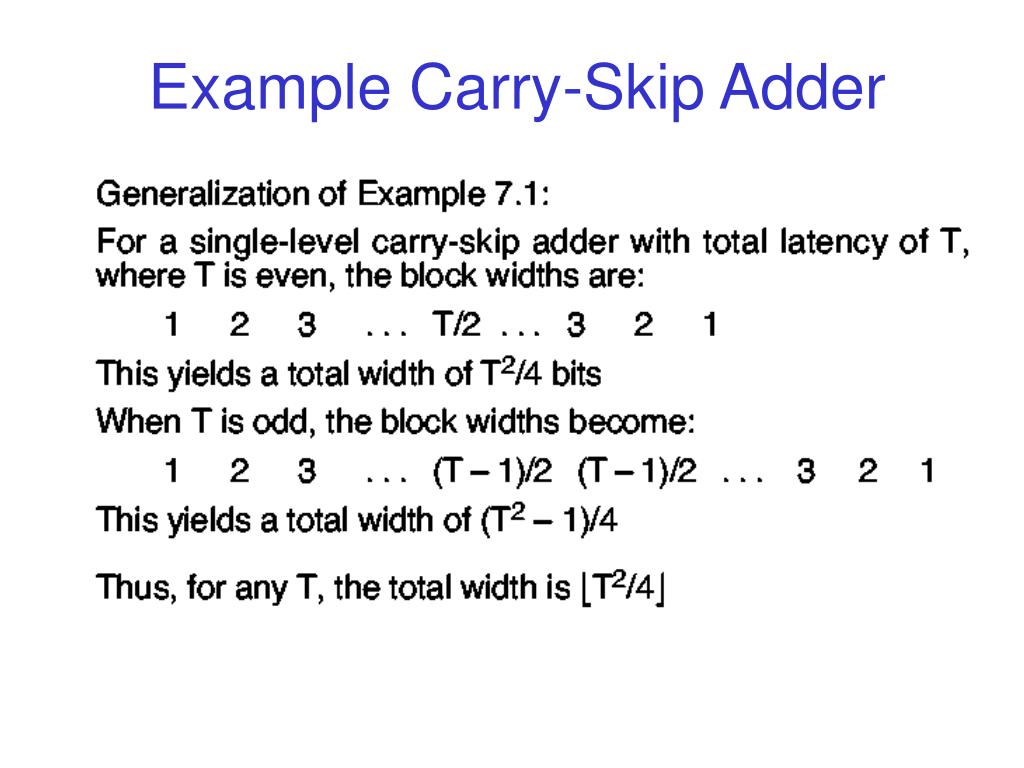

  10. Example Carry-Skip Adder

  11. Example Carry-Skip Adder

  12. Example Carry-Skip Adder

  13. Example Carry-Skip Adder

  14. Example Carry-Skip Adder

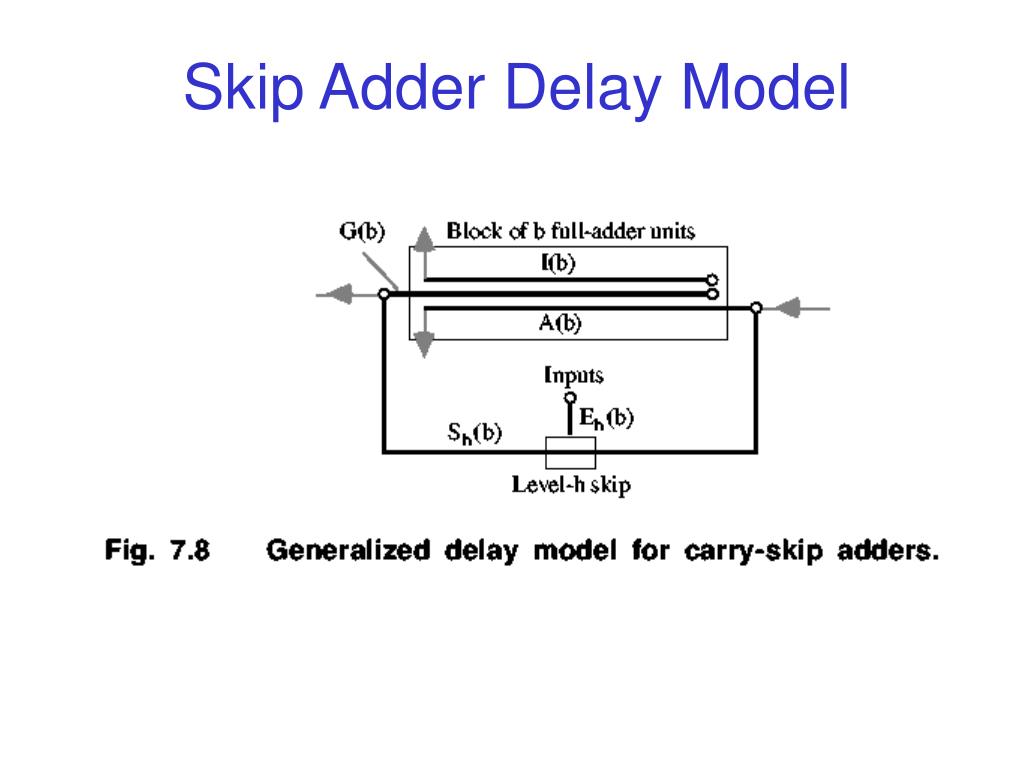

  15. Skip Adder Delay Model

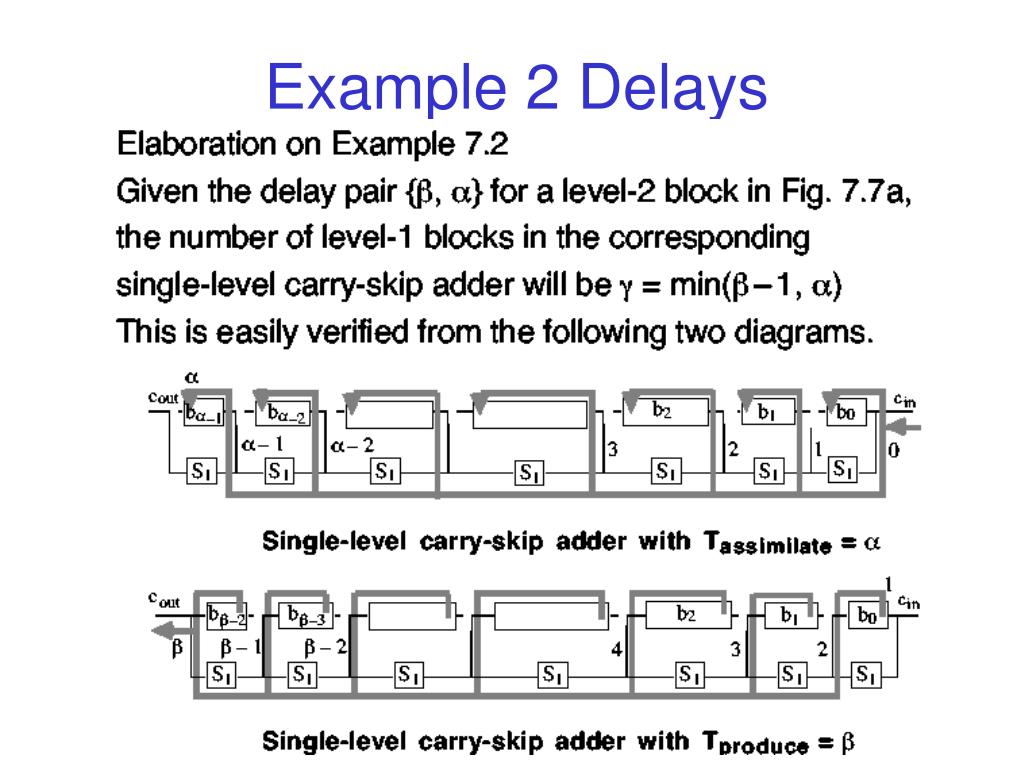

  16. Example 2 Delays

  17. Example 2 Delays
