Presentation Transcript

  1. Neurons • Neurons and neuroglia (multiple sclerosis and neuroglia) • Where are neurons in the body? • Types of neurons and their functions • How do neurons work? • Action potentials • Synapses

  2. Cell body with nucleus Axon (carries message) Note Schwann cells Dendrites (bring stimulus to cell body) Axonal terminus The Basics of a Neuron

  3. Neurons and neuroglial cells • Axon in peripheral nervous system with myelin sheeth formed by Schwann cells • Provides for insulation and allows for saltatory propagation of action potentials

  4. Neuroglial cells in CNS

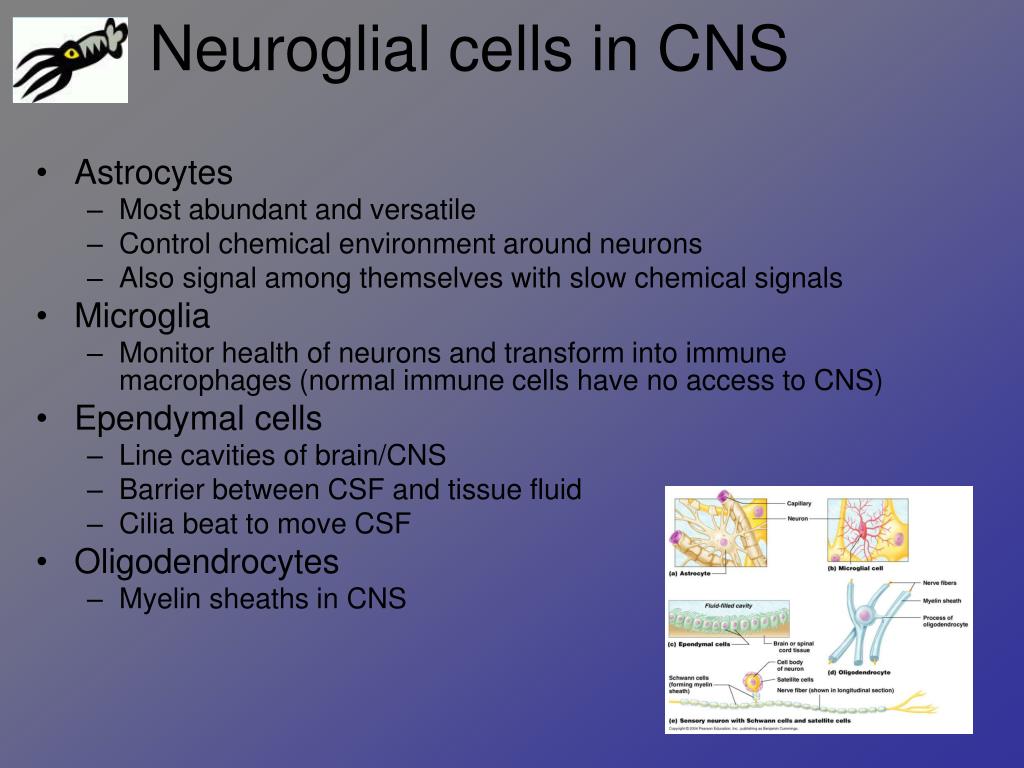

  5. Neuroglial cells in CNS • Astrocytes • Most abundant and versatile • Control chemical environment around neurons • Also signal among themselves with slow chemical signals • Microglia • Monitor health of neurons and transform into immune macrophages (normal immune cells have no access to CNS) • Ependymal cells • Line cavities of brain/CNS • Barrier between CSF and tissue fluid • Cilia beat to move CSF • Oligodendrocytes • Myelin sheaths in CNS

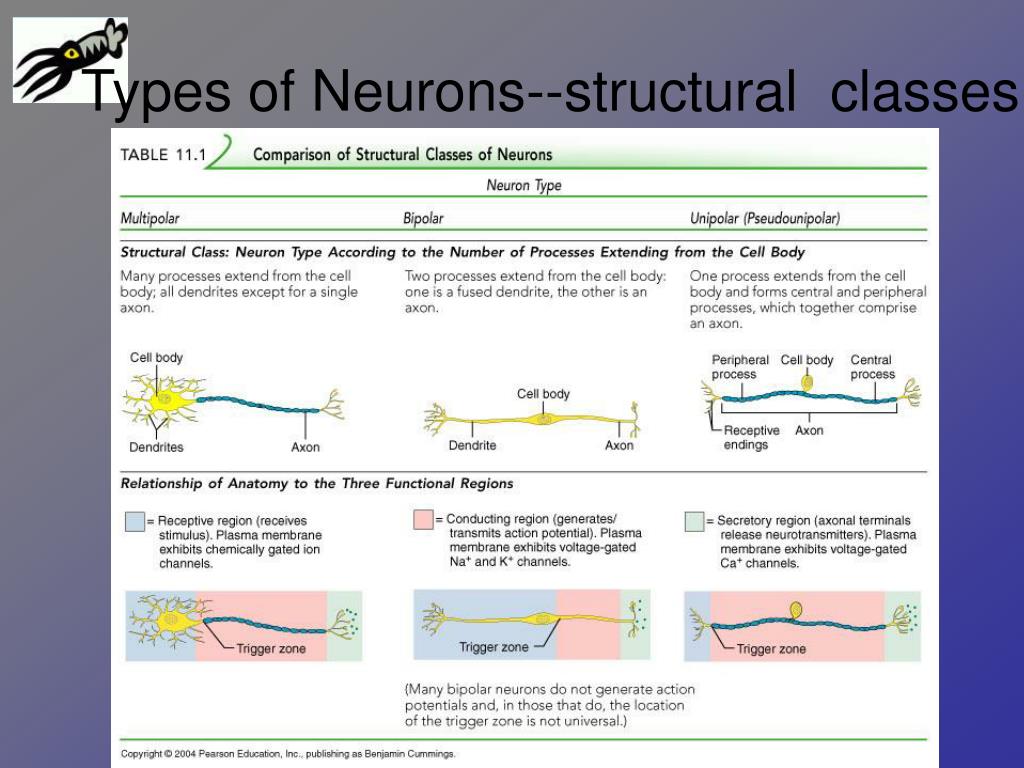

  6. Types of Neurons--structural classes

  7. Types of Neurons—where in body

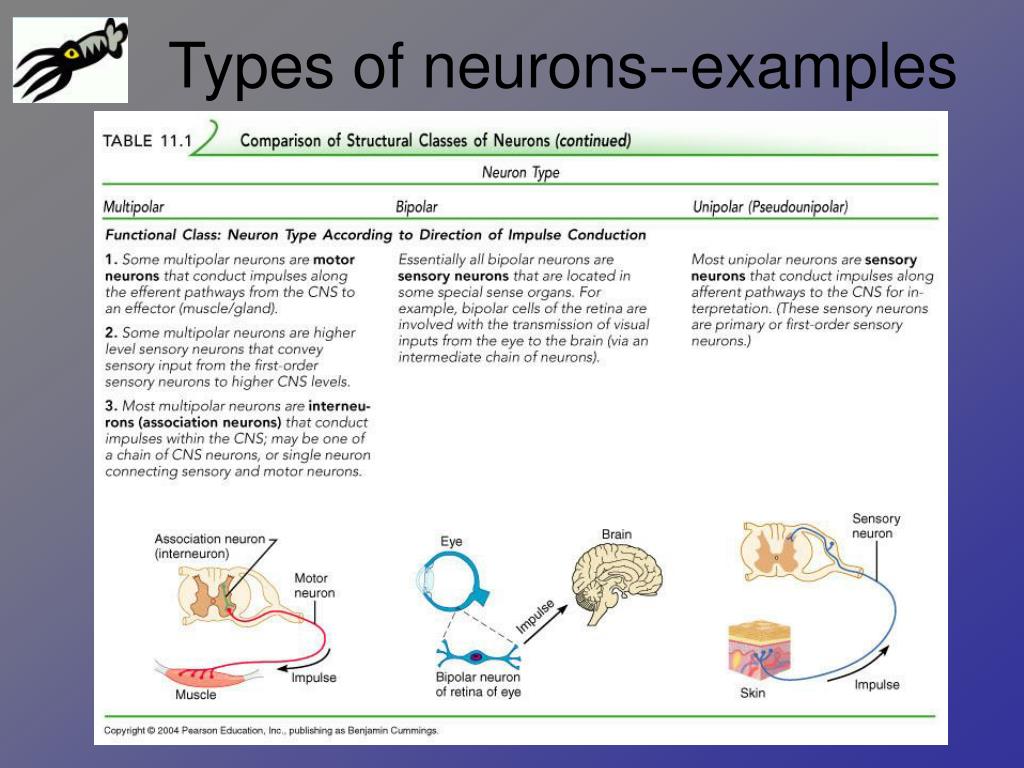

  8. Types of neurons--examples

  9. How do neurons work—action potentials

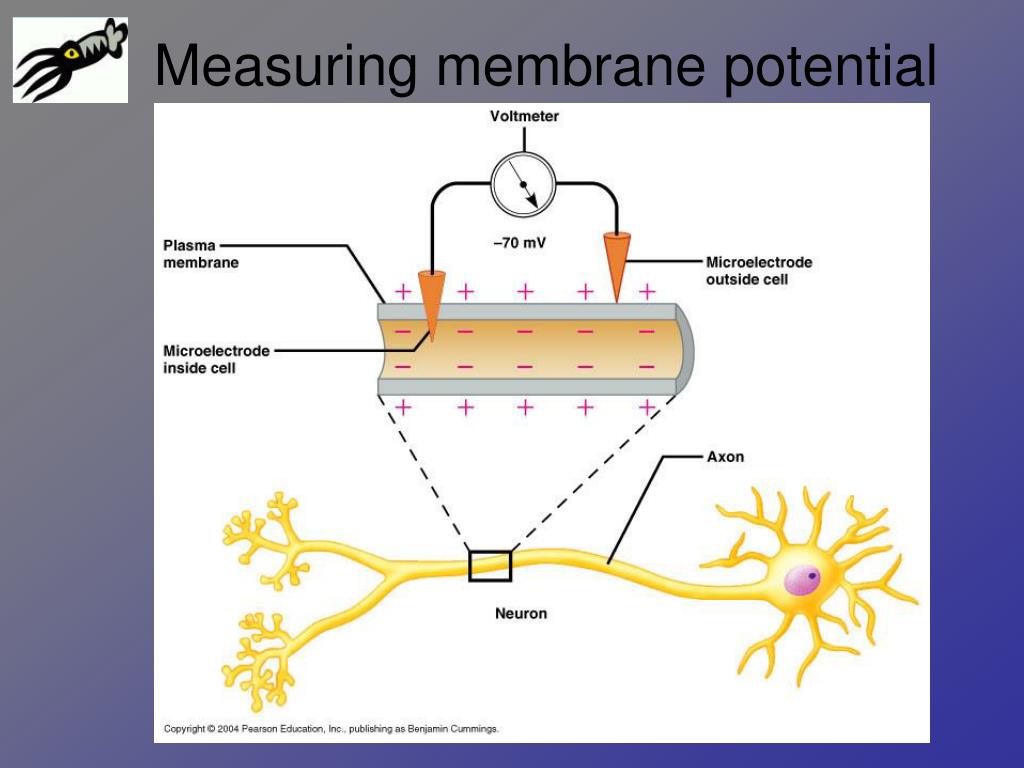

  10. Measuring membrane potential

  11. Diffusion and action potential

  12. Saltatory conduction and role of Schwann cells

  13. What happens at the end—chemical synapse • Neuro-muscular junction is synapse between motor unit and muscle cell (motor unit)
