  1. Microcontroller Talk – CRES-ARC microcontrollers_cres_arc.ppt

  2. Topics To Touch On • History of microcontrollers • What are microcontrollers • How you can work with microcontrollers • Overview of the W8ZPF “Voter ID” project microcontrollers_cres_arc.ppt

  3. History Of Microcontrollers • Microprocessors came before Microcontrollers • November 1971 • Intel introduced the world's first single chip microprocessor, the Intel 4004 • April of 1972 • First 8-bit microprocessor appeared on the market under a name 8008 • April of 1974 • 8080 became available • Addressed 64Kb of memory, had 75 instructions, and cost $360 • MOS Technology - WESCON exhibit ( 1975) • a pivotal event in the history of microprocessors • Announced the 6501 and 6502 at $25 each microcontrollers_cres_arc.ppt

  4. What Are Microcontrollers? • Microprocessor – Microcontrollerwhat's the diff? • Microprocessorscan not stand alone • instruction decoder, ALU, address/data/ctl. busses, timing logic, (CPU) • Has no capability to interact with the outside world • memory, I/O ports, UARTS, etc. must be added to make it useful • Microcontrollersare small computing systems on a single chip • Central Processing Unit (CPU) • Program memory • Random Access Memory (RAM) • EEPROM - Electrically Erasable Programmable Read Only Memory • A variety of peripheral devices • USARTs, Timer/Counters, ADC, DAC, I/O Ports, CANs, SPIs, etc., etc. microcontrollers_cres_arc.ppt

  5. What Are Microcontrollers?So, what’s all the excitement about? • They are inexpensive- even in single pieces • You can design complex functionality in a small package • Microcontrollers can be viewed as a universal building block • There are a lot of free tools to work with Microcontrollers • And – The thing I like the best - Next Slide! microcontrollers_cres_arc.ppt

  6. What Are Microcontrollers? microcontrollers_cres_arc.ppt

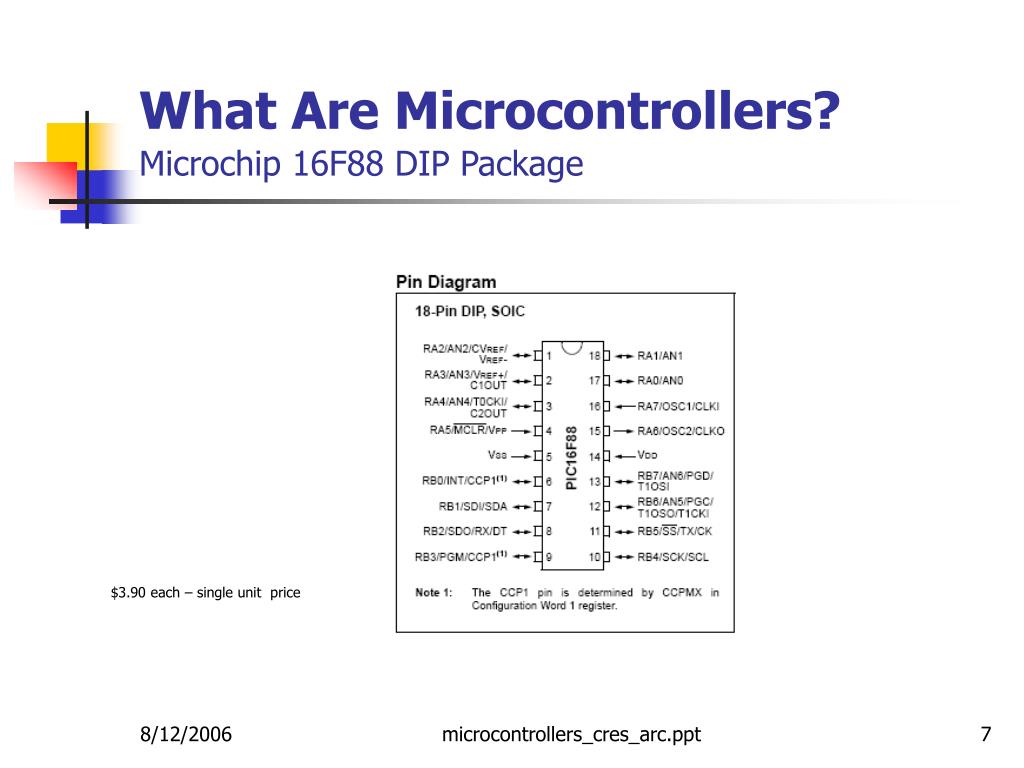

  7. What Are Microcontrollers?Microchip 16F88 DIP Package $3.90 each – single unit price microcontrollers_cres_arc.ppt

  8. What Are Microcontrollers? 16F88 INTERNAL VIEW (Harvard Architecture) Has 35 instructions Datasheet – 214 pages microcontrollers_cres_arc.ppt

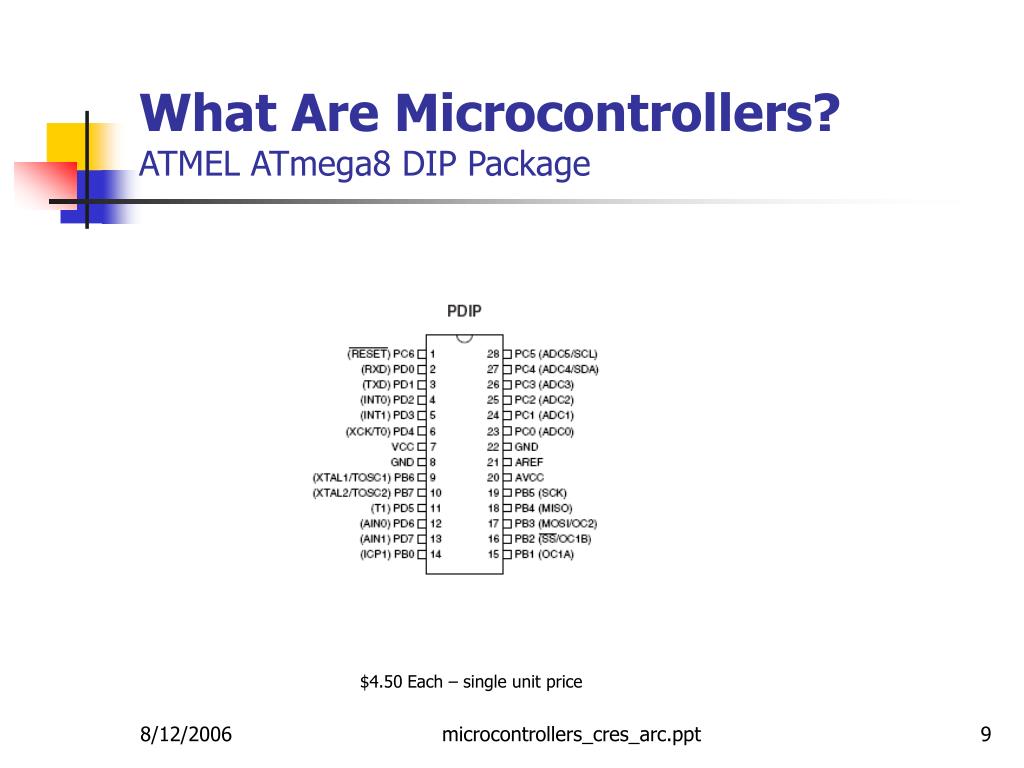

  9. What Are Microcontrollers?ATMEL ATmega8 DIP Package $4.50 Each – single unit price microcontrollers_cres_arc.ppt

  10. What Are Microcontrollers? Atmega8 INTERNAL VIEW (Harvard Architecture) Has 130 instructions Datasheet – 302 pages microcontrollers_cres_arc.ppt

  11. How you can work with microcontrollers • So what’s the catch? • If you are new to software development • You need to think in a new paradigm • Start small and learn the basics first • You can work with microcontrollers on a couple of levels • Walk before you attempt to run microcontrollers_cres_arc.ppt

  12. How you can work with microcontrollers • Ok – So What Do Microcontrollers Do? • Well – out of the box – it does nothing! • But you can make it do fantastic things • Just add software microcontrollers_cres_arc.ppt

  13. How you can work with microcontrollersHow To Get Started • Select a controller family • Based on your goals • Availability of free stuff • set-up a development environment • Not a trivial task for the beginner • You need a way to load programs • Then are you ready to start! microcontrollers_cres_arc.ppt

  14. The W8ZPF “Voter Controller” • A real project • What are we trying to accomplish • Interface to the repeater system • Microcontroller Selection • Development Environment • Software Design • The Final Board (observations) microcontrollers_cres_arc.ppt

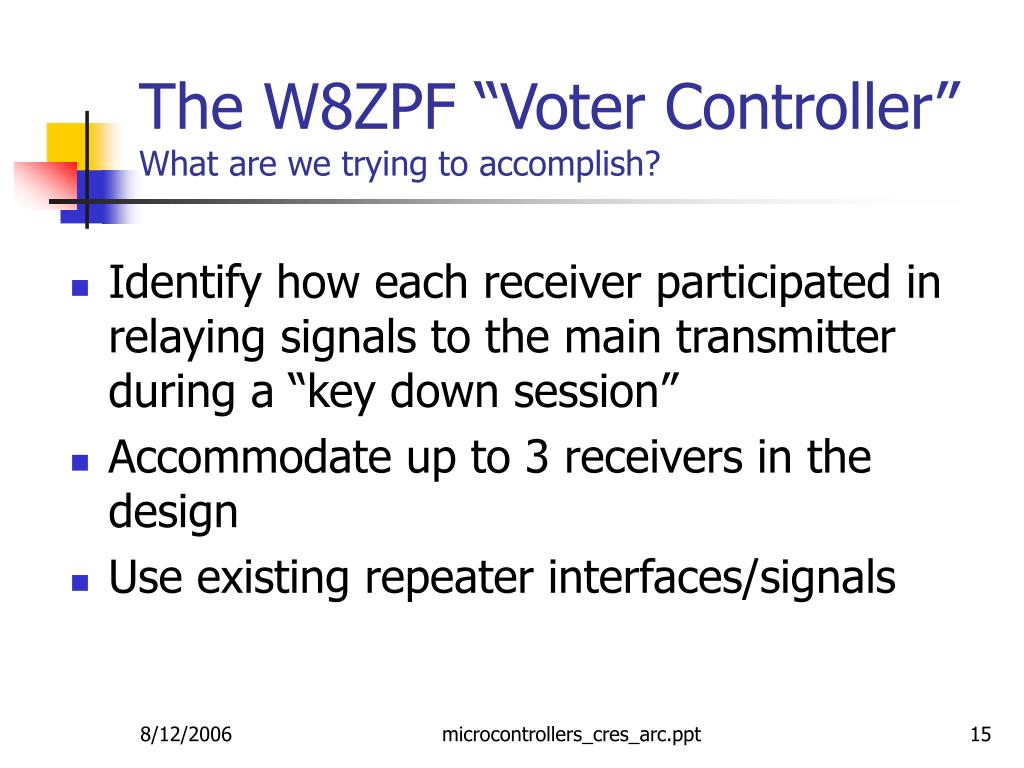

  15. The W8ZPF “Voter Controller” What are we trying to accomplish? • Identify how each receiver participated in relaying signals to the main transmitter during a “key down session” • Accommodate up to 3 receivers in the design • Use existing repeater interfaces/signals microcontrollers_cres_arc.ppt

  16. The W8ZPF “Voter Controller”Simplified Interface Diagram Current Repeater Controller Current Voter Card New “Voter” Microcontroller * CORE (H) RX1 Voted (^) CD ID (M/R) RX1(H) RX2 Voted (^) =>90% of the time – High Pitch CW ID (M/R) (“VOTED”)** RX2 (H) RX3 Voted (^) RX3 (H) RX1 Dominant (^) Sample every 100ms When CORE is active < 90% of the time – Low Pitch CW ID (M/R)** (“DOMINANT”) RX1 Dominant (^) RX1 Dominant (^) *Controller “remembers” last transition ** ACTUALLY 88.8 % Calculate output when CORE goes inactive Inputs, Outputs, & Transformation microcontrollers_cres_arc.ppt

  17. The W8ZPF “Voter Controller”INTERFACE FOR THE VOTER CONTROLLER PROJECT CORE LINE Active Idle Accumulate Data (100ms) Ignore RX inputs 1 or 0 Output lines retain previous data until core goes active again RX1 – RX3 output lines (active high) All output lines are cleared after core goes active for debounce time. There are 6 output lines 3 -> rx1 - rx3 “voted” 3-> rx1 - rx3 “dominant” microcontrollers_cres_arc.ppt Version 1.0 - wje

  18. The W8ZPF “Voter Controller”Microcontroller Selection • Looked at 2 controllers For This Project • Microchip 16F88 • Atmel Atmega8 • Basic software structure was implemented using both • Either would have done the job • So how did I choose? microcontrollers_cres_arc.ppt

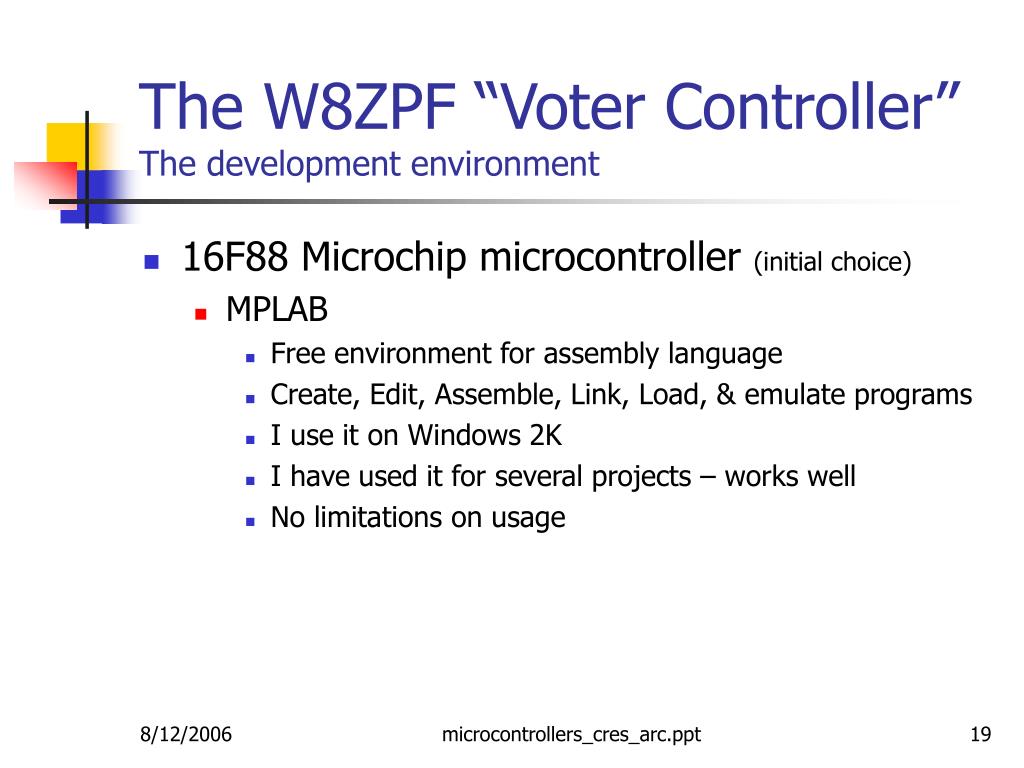

  19. The W8ZPF “Voter Controller” The development environment • 16F88 Microchip microcontroller (initial choice) • MPLAB • Free environment for assembly language • Create, Edit, Assemble, Link, Load, & emulate programs • I use it on Windows 2K • I have used it for several projects – works well • No limitations on usage microcontrollers_cres_arc.ppt

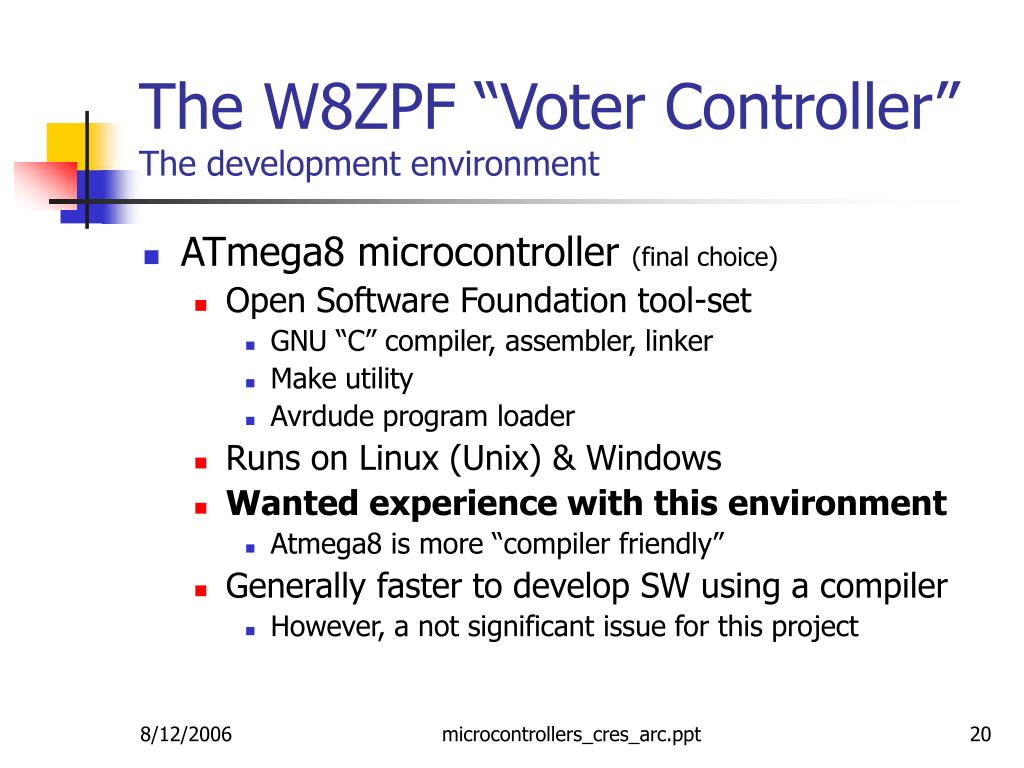

  20. The W8ZPF “Voter Controller” The development environment • ATmega8 microcontroller (final choice) • Open Software Foundation tool-set • GNU “C” compiler, assembler, linker • Make utility • Avrdude program loader • Runs on Linux (Unix) & Windows • Wanted experience with this environment • Atmega8 is more “compiler friendly” • Generally faster to develop SW using a compiler • However, a not significant issue for this project microcontrollers_cres_arc.ppt

  21. The W8ZPF “Voter Controller” The development environment This is what it physically looks like ATmega8 Development board (Spark Fun) Serial port (program flash memory) LINUX environment (FC3  FC5) Final board microcontrollers_cres_arc.ppt

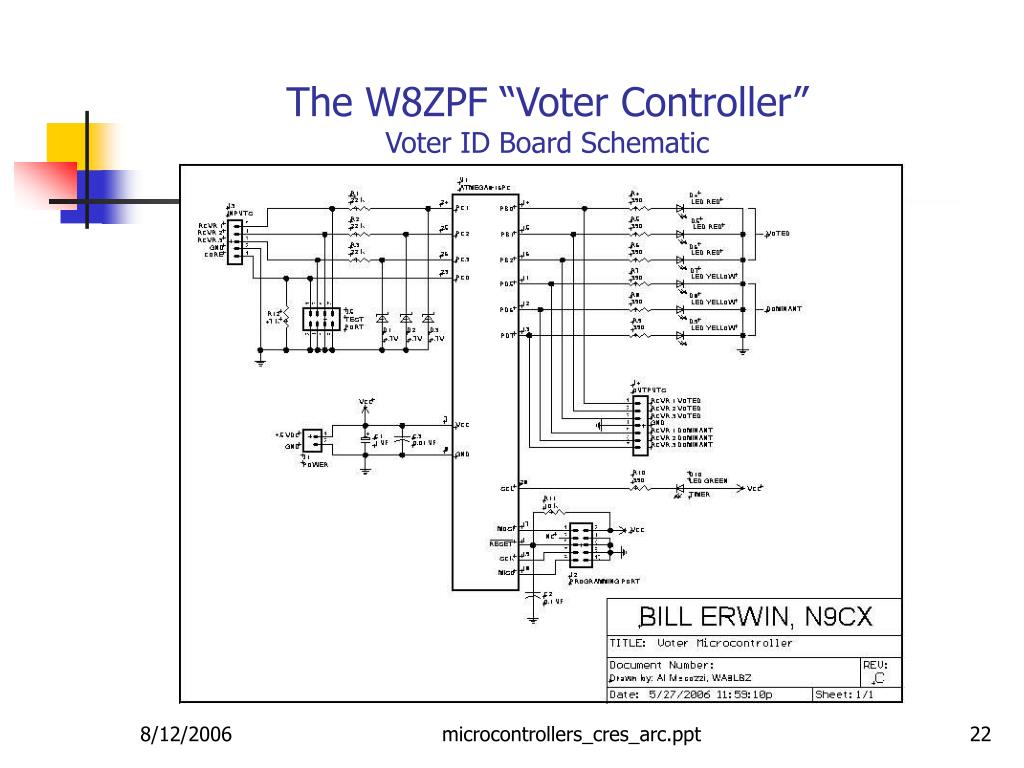

  22. The W8ZPF “Voter Controller”Voter ID Board Schematic microcontrollers_cres_arc.ppt

  23. The W8ZPF “Voter Controller”The Microcontroller Board microcontrollers_cres_arc.ppt

  24. The W8ZPF “Voter Controller” The Software Design • This is where it gets a bit philosophical • I think of it in these terms • Software is a solution to a problem • Must understand the problem first • Then think about strategies to solve it microcontrollers_cres_arc.ppt

  25. The W8ZPF “Voter Controller” The Software Design – How does one start? LAYERED MONOLYTH TOP DOWN COLABORATING PARTS BOTTOM UP VARIOUS SOFTWARE STRATEGIES microcontrollers_cres_arc.ppt

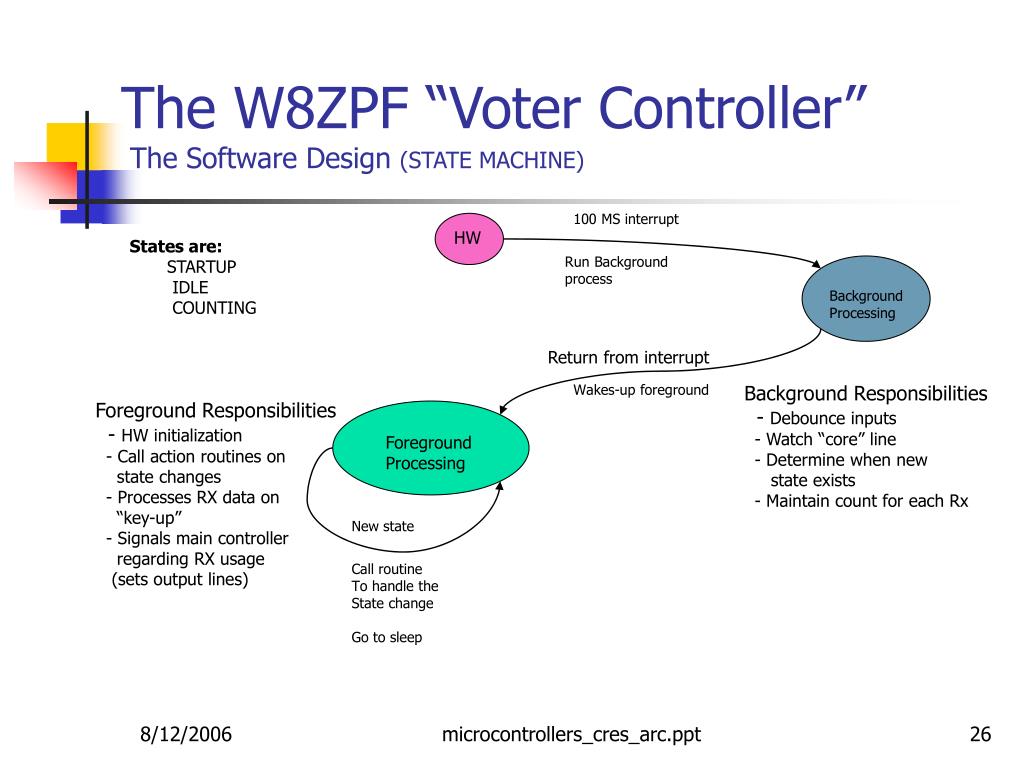

  26. The W8ZPF “Voter Controller” The Software Design (STATE MACHINE) 100 MS interrupt HW States are: STARTUP IDLE COUNTING Run Background process Background Processing Return from interrupt Wakes-up foreground Background Responsibilities - Debounce inputs - Watch “core” line - Determine when new state exists - Maintain count for each Rx Foreground Responsibilities - HW initialization - Call action routines on state changes - Processes RX data on “key-up” - Signals main controller regarding RX usage (sets output lines) Foreground Processing New state Call routine To handle the State change Go to sleep microcontrollers_cres_arc.ppt

  27. The W8ZPF “Voter Controller” The Software Design (STATE MACHINE) • Source File Statistics • main.c 155 lines • main.h 17 lines • init_timer1.c 30 lines • init_io.c 103 lines • interrupt.c 118 lines • Makefile 328 lines microcontrollers_cres_arc.ppt

  28. The W8ZPF “Voter Controller” The Software Design (STATE MACHINE) • More Statistics (Decimal) RESOURCEUSED/AVAILABLE • Text size 1462/8K Bytes (program instructions/tables, etc) • Data size 37/512 Bytes (variables) • TOTAL 1499 Bytes (5DBh) Used • 512 Bytes of EEPROM – none used microcontrollers_cres_arc.ppt

  29. The W8ZPF “Voter Controller” main.h file – variable declarations #ifdef LOCAL #define LOCAL #define EXTERN #include main.h #else #define EXTERN extern #endif enum { NO, YES }; enum { STARTUP, COUNTING, IDLE }; EXTERN unsigned char state; EXTERN unsigned char new_state; EXTERN int16_t rx1_count; EXTERN int16_t rx2_count; EXTERN int16_t rx3_count; microcontrollers_cres_arc.ppt

  30. The W8ZPF “Voter Controller” This is the main loop (part of it anyway) of the foreground “state machine” code while(1){ if(new_state == YES ){ new_state = NO; cli(); switch(state){ case COUNTING: // clear out old receiver counts on this state change rx1_count = 0; rx2_count = 0; rx3_count = 0; //clear all "voted" output lines to the repeater PORTB &= ~(_BV(PB0)); PORTB &= ~(_BV(PB1)); PORTB &= ~(_BV(PB2)); //clear all "dominant" output lines to the repeater PORTD &= ~(_BV(PD5)); PORTD &= ~(_BV(PD6)); PORTD &= ~(_BV(PD7)); break; case IDLE: /* Calculate results, set output lines accordingly **** This is long & will not show details here *** */ break; case STARTUP: // Do initialization here break; } sei(); } sleep_mode(); } Fragment of code from main.c microcontrollers_cres_arc.ppt

  31. The W8ZPF “Voter Controller” • THE END !! microcontrollers_cres_arc.ppt
