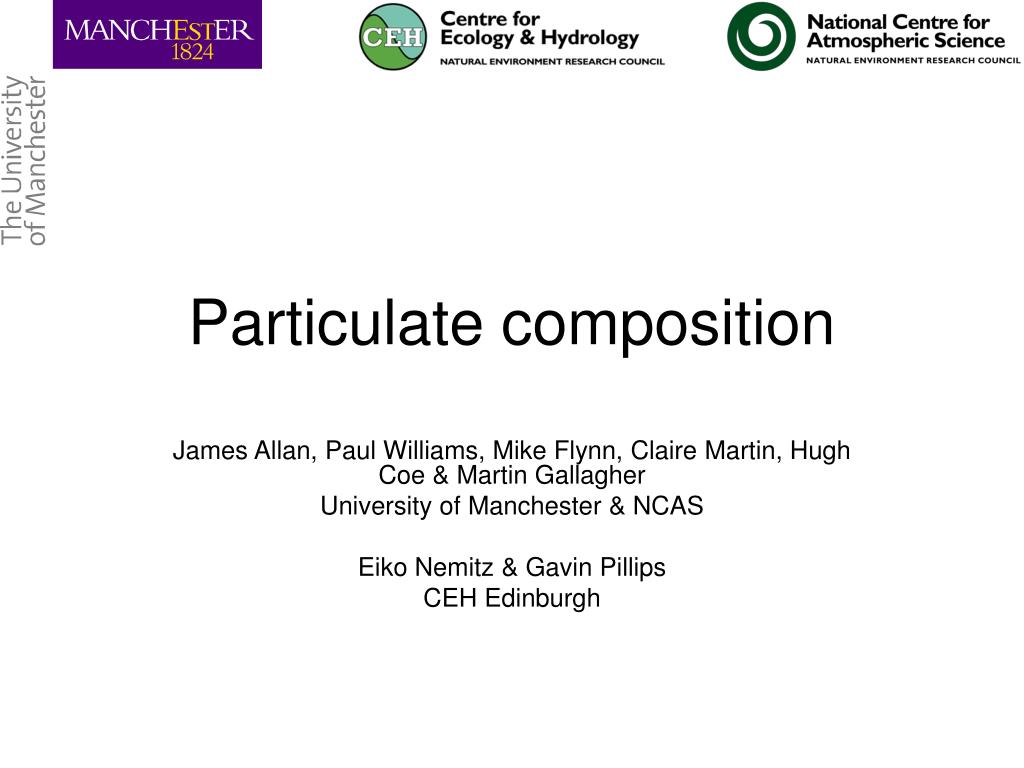

  1. Particulate composition James Allan, Paul Williams, Mike Flynn, Claire Martin, Hugh Coe & Martin Gallagher University of Manchester & NCAS Eiko Nemitz & Gavin Pillips CEH Edinburgh

  2. Rationale • The chemical composition of particulates affects its toxicity • The composition also has implications for acid deposition and climate forcing • Studying the detailed composition gives important insights into sources and processes of particulates in the urban atmosphere

  3. Measurement sites(REPARTEE I & II) Regent’s Park BT Tower

  4. Instruments used • Filter samplers • Offline analysis of inorganic ions • ECN Gradient System for Reactive Aerosols and Gases with Online Registration (GRAEGOR) • Online analysis of inorganic ions and soluble gases • Aerodyne Aerosol Mass Spectrometer (AMS) • Online analysis of nonrefractory particulates.

  5. GRAEGOR Thomas et al., Environ. Sci. Technol., 43, 1412–1418, 2009

  6. AMS DeCarlo et al., Anal. Chem., 78, 8281-8289, 2006; Canagaratna et al., Mass Spectrom. Rev., 26, 185-222, 2007.

  7. REPARTEE-I PM10 Composition BT Tower (GRAEGOR)

  8. REPARTEE-II PM10 Composition BT Tower (GRAEGOR)

  9. REPARTEE-I Aerosol Components BT TowerBold: GRAEGOR PM10 Fine: AMS NR-PM1 Steps: Filter PM10

  10. Filter vs. GRAEGOR  The filter loses 50% of fine NH4NO3 during peak concentrations.

  11. AMS Comparison REPARTEE-II

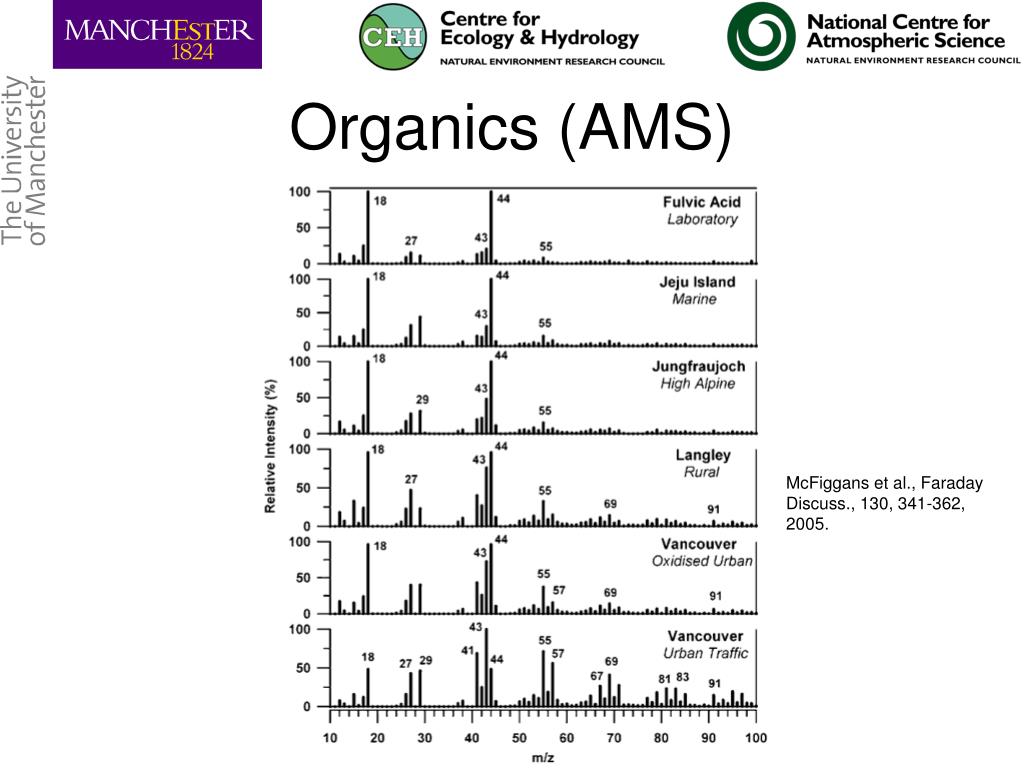

  12. Organics (AMS) McFiggans et al., Faraday Discuss., 130, 341-362, 2005.

  13. PMF analysis Paatero, Chemometr. Intell. Lab., 37, 23-35, 1997; Lanz et al., Atmos. Chem. Phys., 7, 1503-1522, 2007; Ulbrich, et al., Atmos. Chem. Phys., 9, 2891-2918, 2009.

  14. Types: • Oxygenated (OOA) • Hydrocarbon-like (HOA) • Cooking (COA) • Solid fuel (SFOA) Allan et al., Atmos. Chem. Phys., 10, 647-668, 2010.

  15. Cooking Aerosols Heated cooking oil baths Mohr et al. (2009) Katrib et al. (2004) and Alfarra (2004)

  16. Diurnal profiles

  17. Grid-scale emission factors REPARTEE 1 (relative to NOx) Manchester (relative to CO) CO (ppm) SFOA (µg m-3) HOA (µg m-3) HOA: 31.6 µg m-3 ppm-1 Mass emission ratio (MER): 0.026 (as NO) HOA: 20.5 µg m-3 ppm-1 MER: 0.018 SFOA: 24.7 µg m-3 ppm-1 MER: 0.021

  18. Summary & Conclusions • Chemical composition of particulates was measured in multiple locations with multiple instruments during the REPARTEE experiments • The use of online instrumentation gives much better time resolution in the data and avoids many problems associated with offline analysis • Analysis of the high-resolution composition data sheds light on many urban aerosol sources and processes • This is further enhanced by the use of multiple measurement sites, instruments and data collection methods • Stay tuned for the next presentation…

  19. Acknowledgements • This work was partly supported by the NERC CityFlux project (ref. NE/B504865/1) and the BOC Foundation. • C. L. Martin was supported by a NERC studentship (ref. NER/S/A/2005/13219) • Many thanks to The Royal Parks and BT for access to the measurement sites
