  1. PART 3TRAINING OUTPUT LED Dosen : DwisnantoPutro, ST, M.Eng

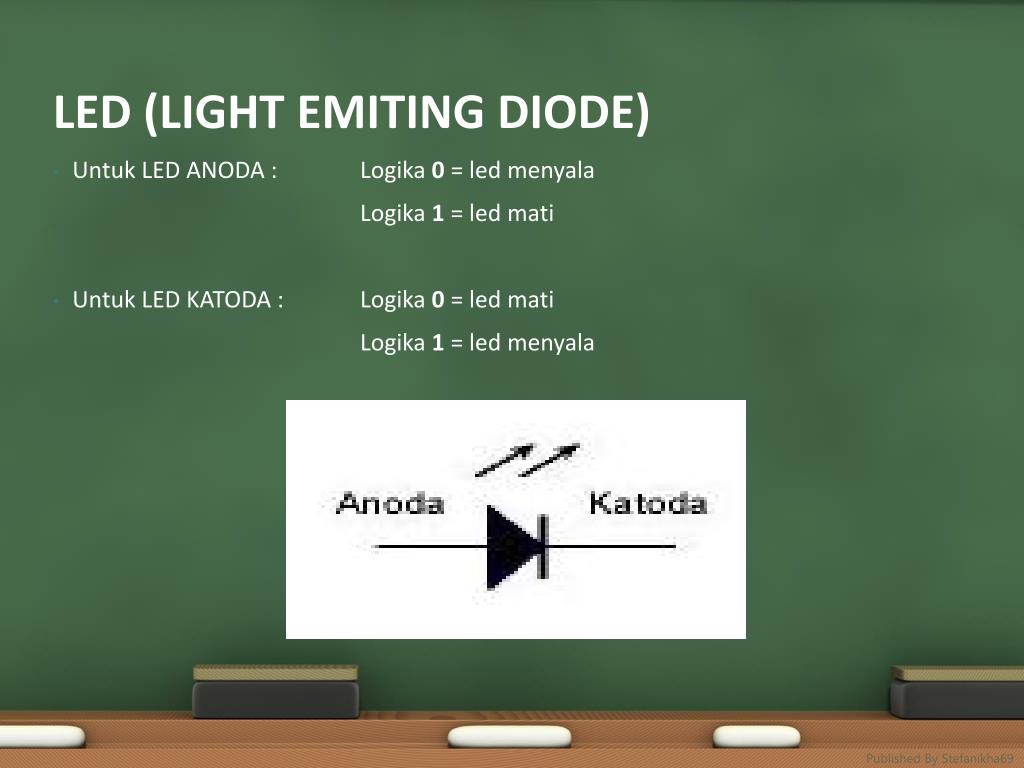

  2. LED (LIGHT EMITING DIODE) • Untuk LED ANODA : Logika0 = led menyala Logika1 = led mati • Untuk LED KATODA : Logika0 = led mati Logika1 = led menyala Published By Stefanikha69

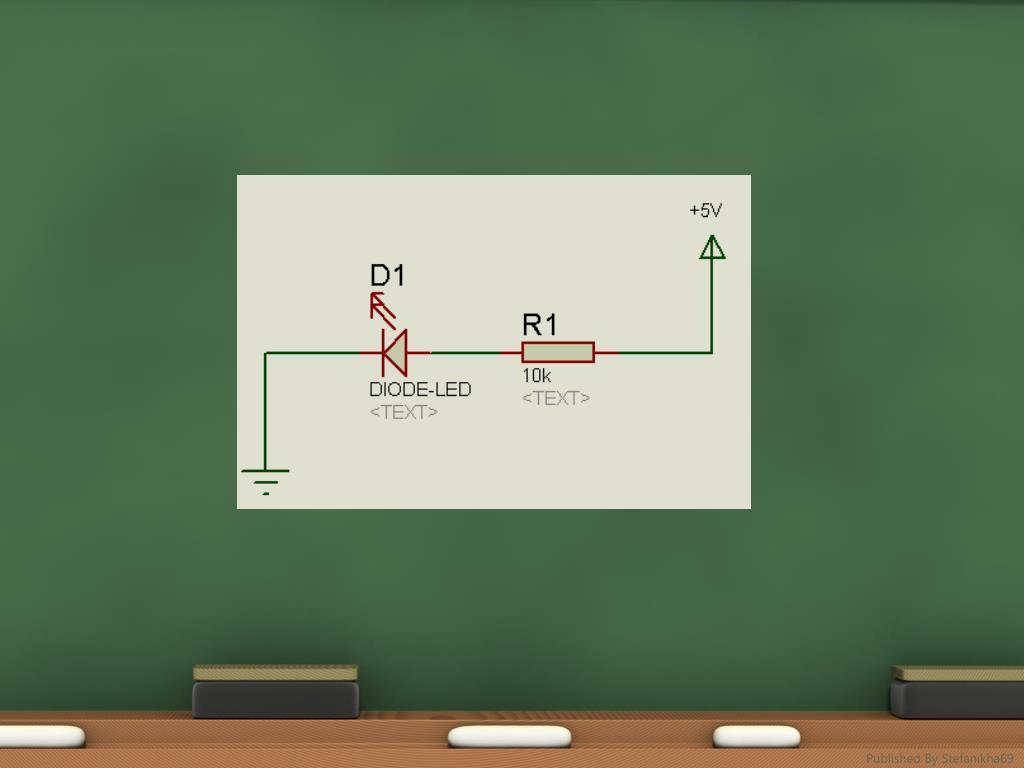

  3. Published By Stefanikha69

  4. Published By Stefanikha69

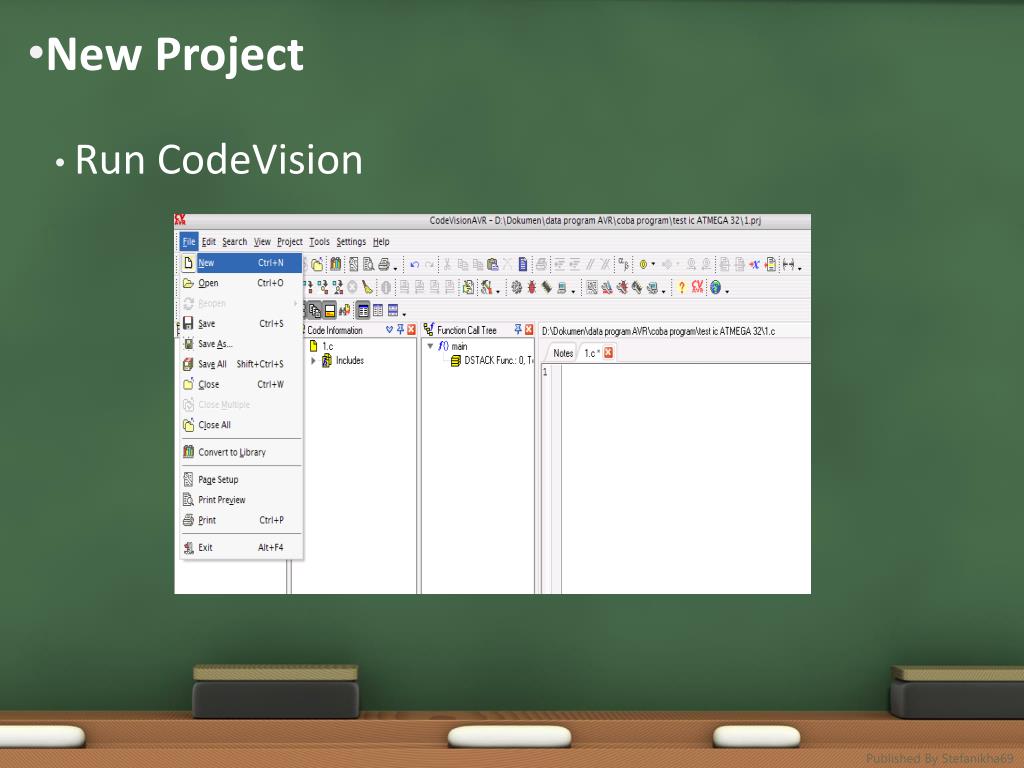

  5. New Project Run CodeVision Published By Stefanikha69

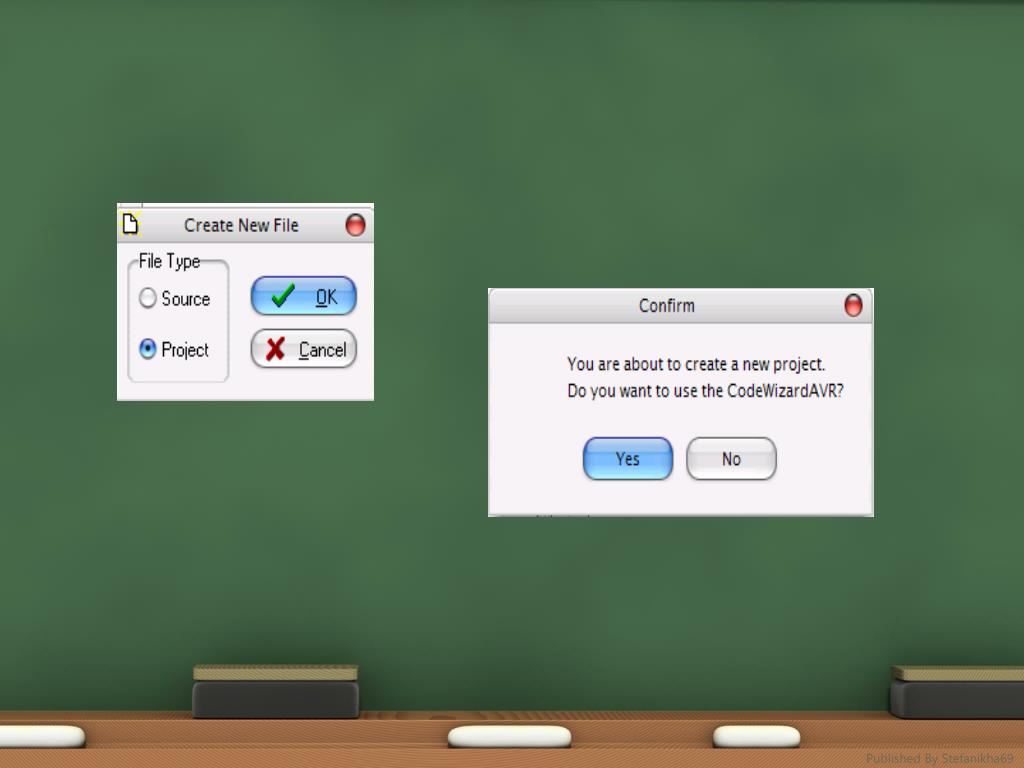

  6. Published By Stefanikha69

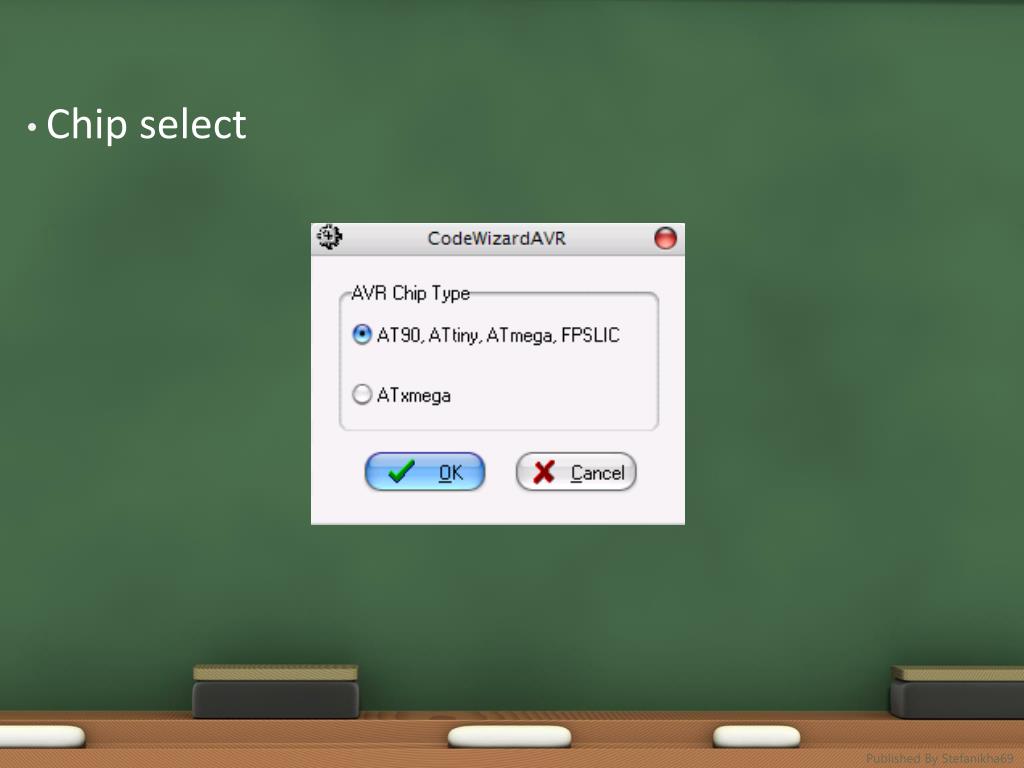

  7. Chip select Published By Stefanikha69

  8. configuration chip select Chip ATMEGA 8535 Clock 8.000000 Mhz Published By Stefanikha69

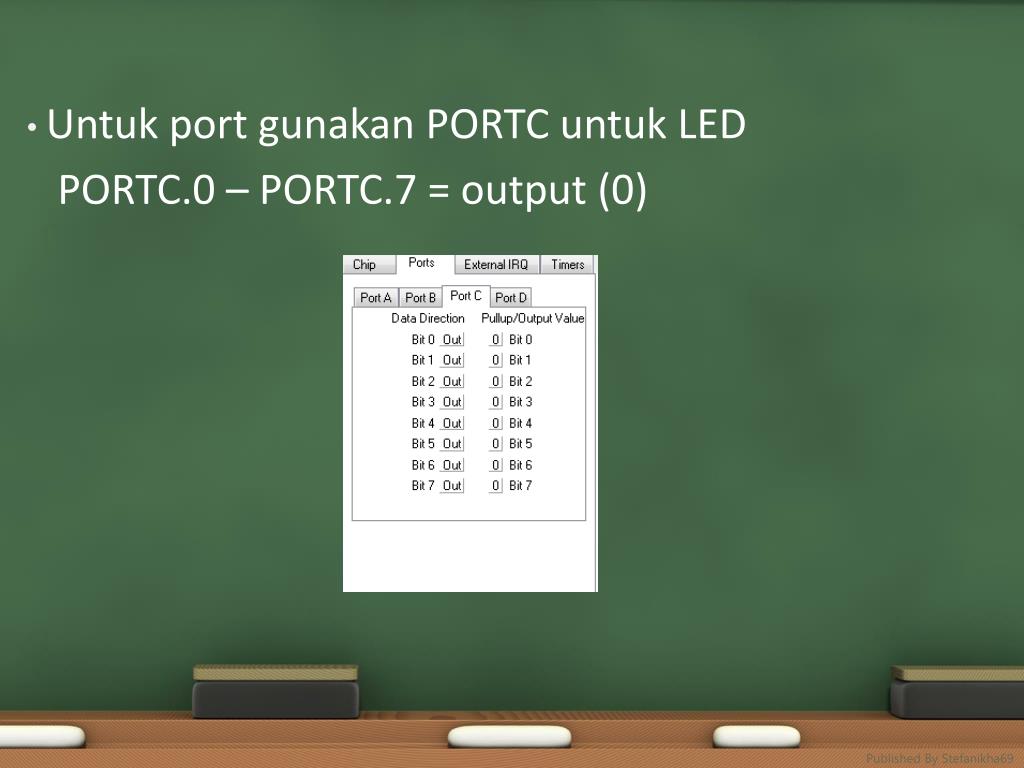

  9. Untuk port gunakan PORTC untuk LED PORTC.0 – PORTC.7 = output (0) Published By Stefanikha69

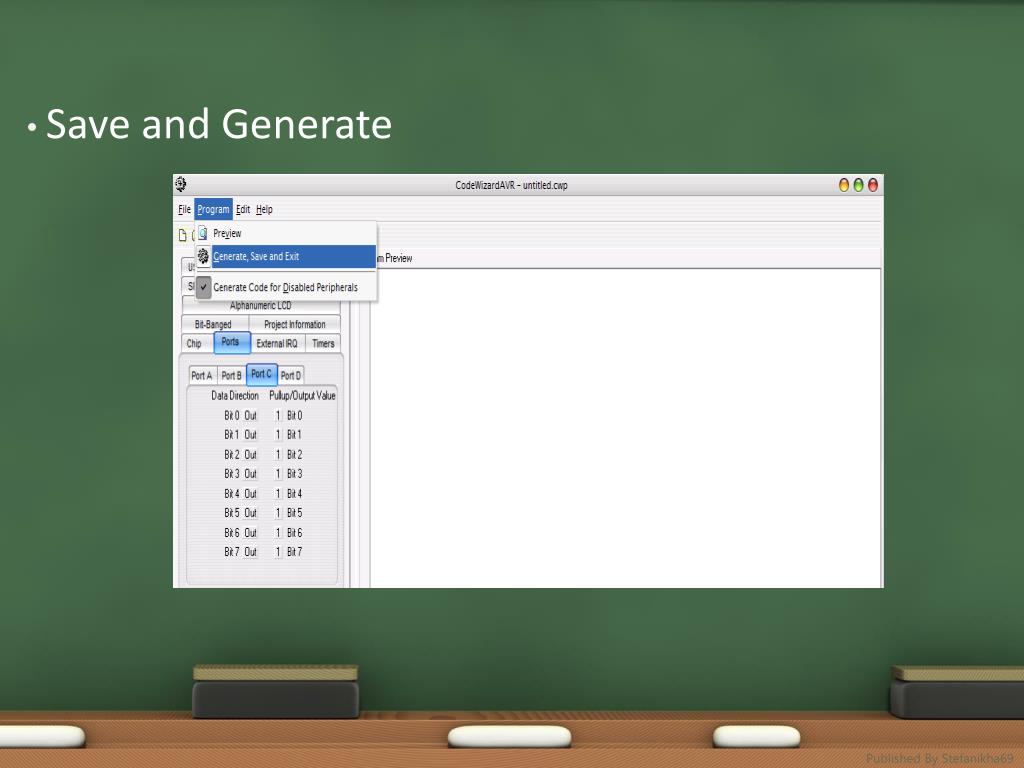

  10. Save and Generate Published By Stefanikha69

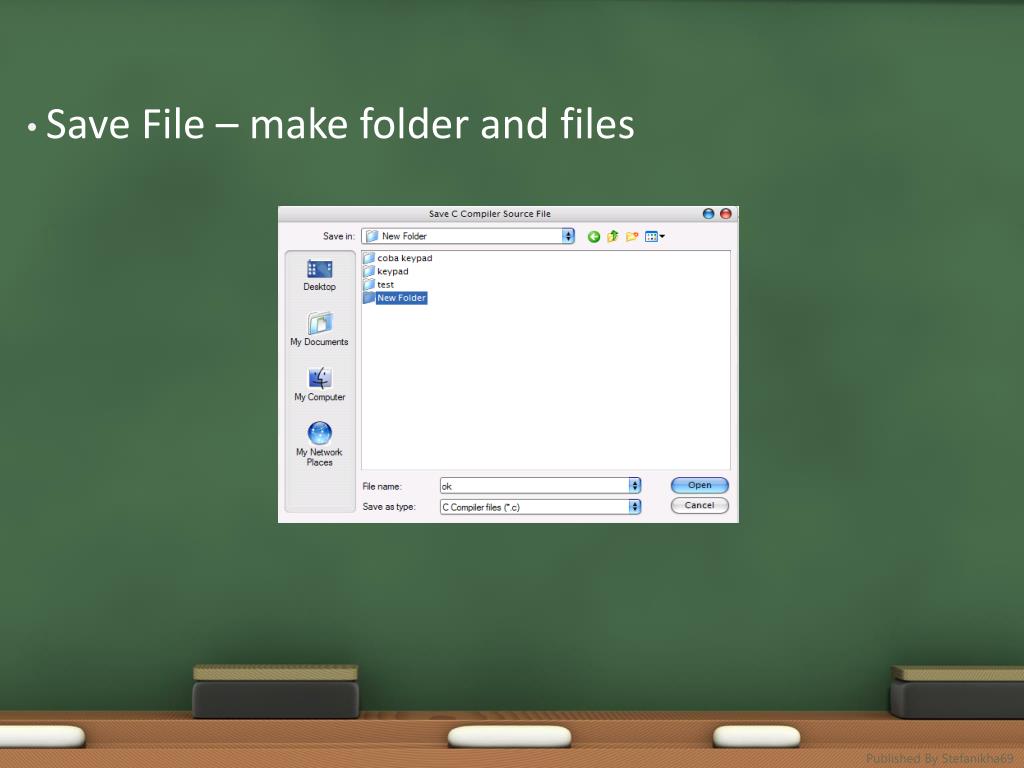

  11. Save File – make folder and files Published By Stefanikha69

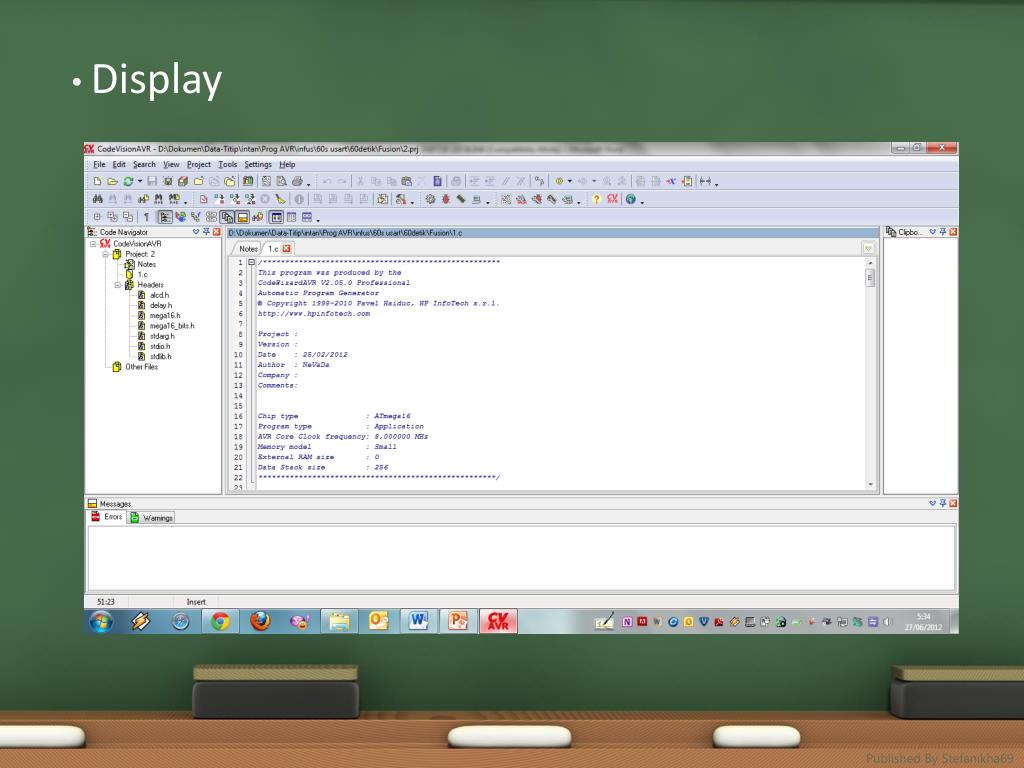

  12. Display Published By Stefanikha69

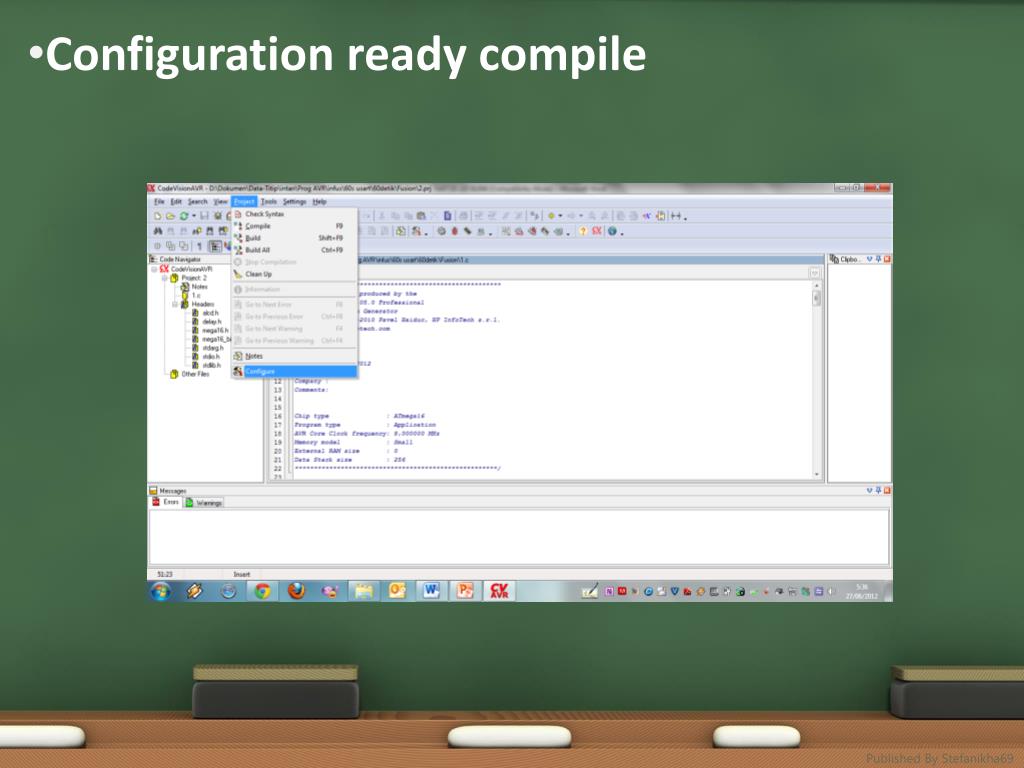

  13. Configuration ready compile Published By Stefanikha69

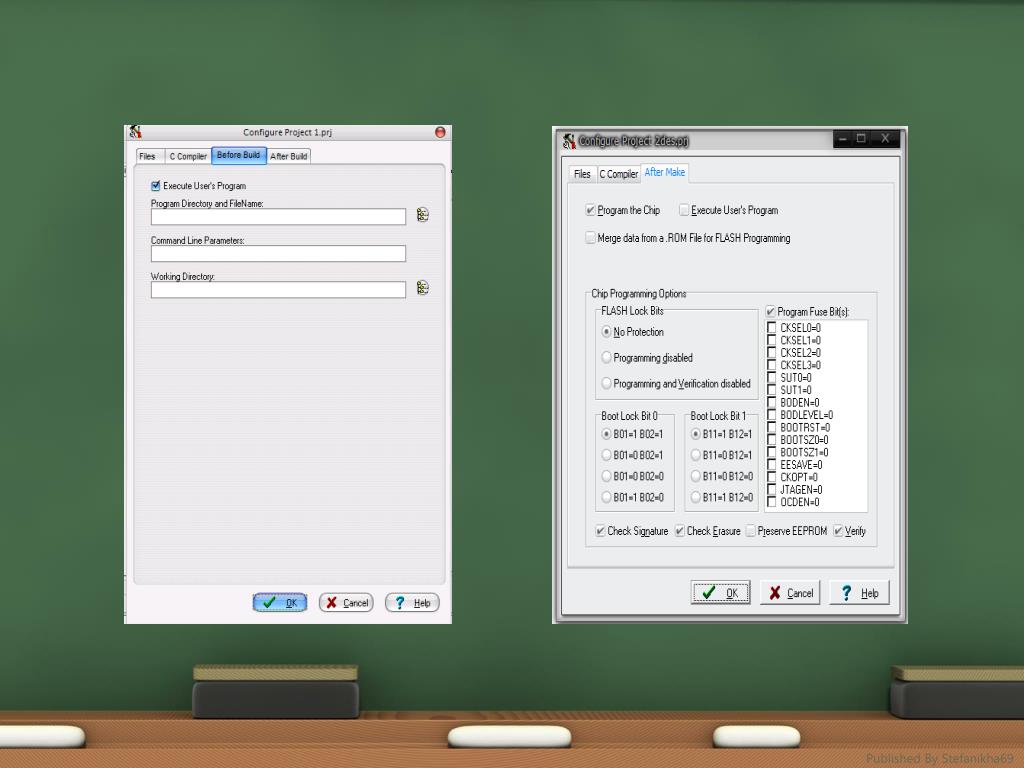

  14. Published By Stefanikha69

  15. CODE PROGRAM Untukmenyalakansebuah led misalkanpadaposisiPORTC.0 (PORTC memiliki 8 buah PIN. Pin 0-7), makaDapatdituliskanpadaakhir program yang paling bawah; while(1){ //Place your code here) PORTC.0=0; PORTC.1=1; PORTC.2=1; PORTC.3=1; PORTC.4=1; PORTC.5=1; PORTC.6=1; PORTC.7=1; } } Published By Stefanikha69

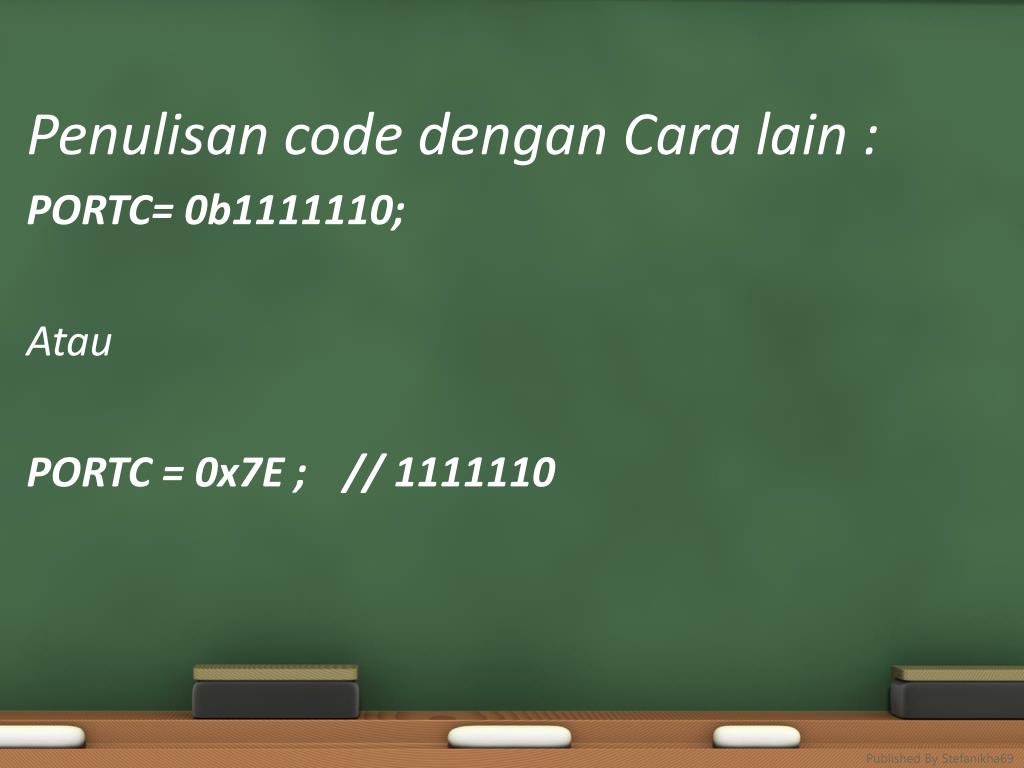

  16. Penulisan code dengan Cara lain : PORTC= 0b1111110; Atau PORTC = 0x7E ;// 1111110 Published By Stefanikha69

  17. SETTING USB – DOWNLOADER : INSTALL DEVICE USB DOWNLOADER CONNECT USB DOWNLOADER TO PC/LAPTOP SETTING COM PORT: COMPUTER -> MANAGE -> DEVICE MANAGER PORT (COM &LPT) -> PROLIFIC USB TO SERIAL COMM PORT (COM....) Published By Stefanikha69

  18. Configuration PORT Programmer Published By Stefanikha69

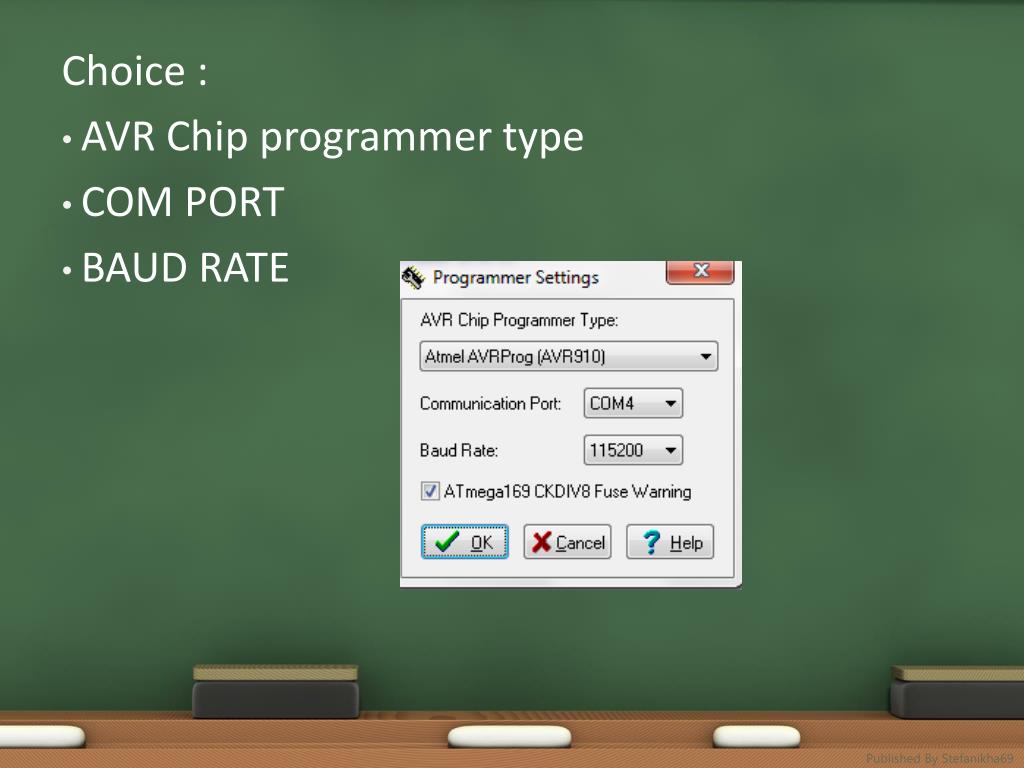

  19. Choice : AVR Chip programmer type COM PORT BAUD RATE Published By Stefanikha69

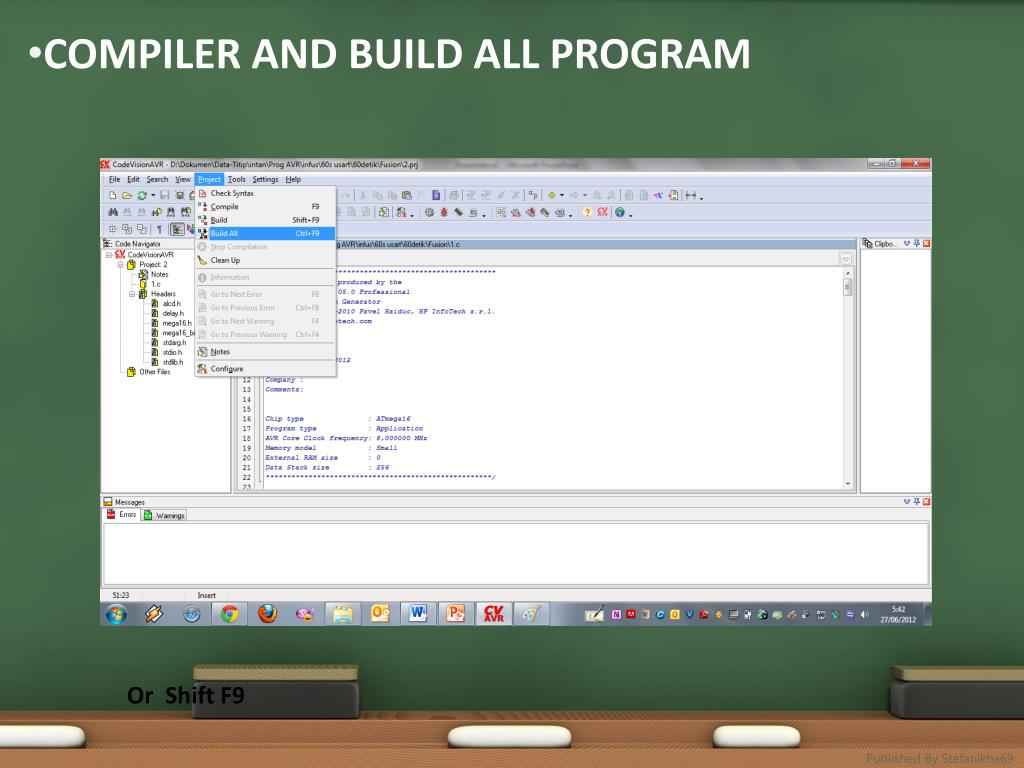

  20. COMPILER AND BUILD ALL PROGRAM Or Shift F9 Published By Stefanikha69

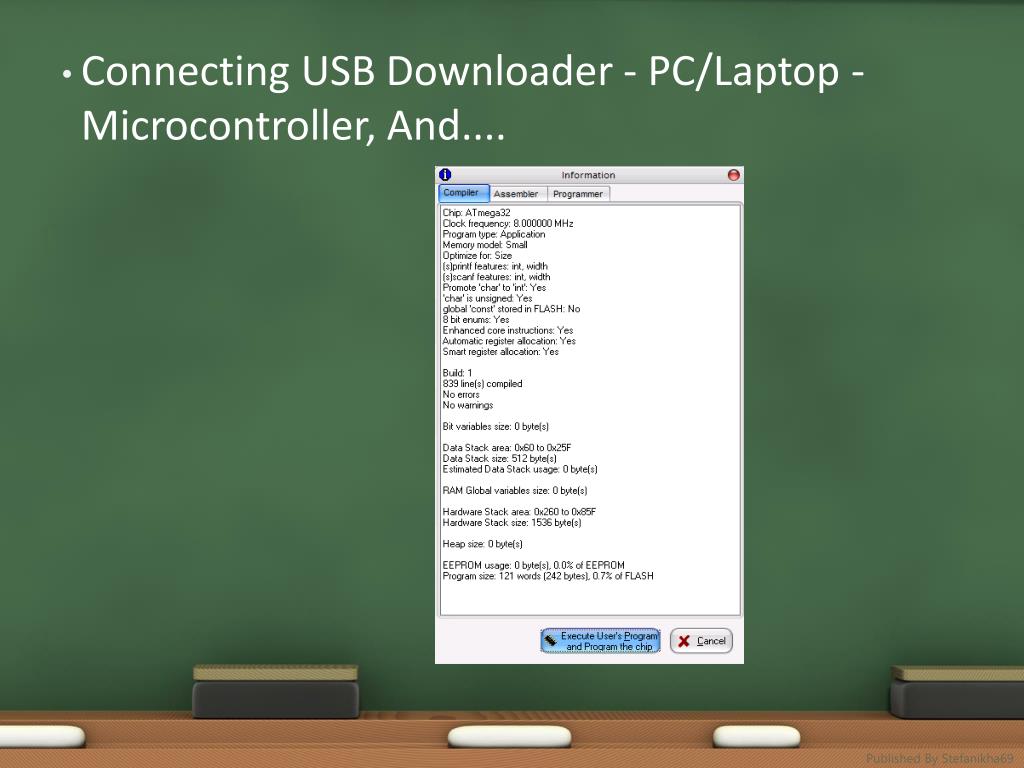

  21. Connecting USB Downloader - PC/Laptop - Microcontroller, And.... Published By Stefanikha69

  22. Process Downloading......... Published By Stefanikha69

  23. FINISH Published By Stefanikha69

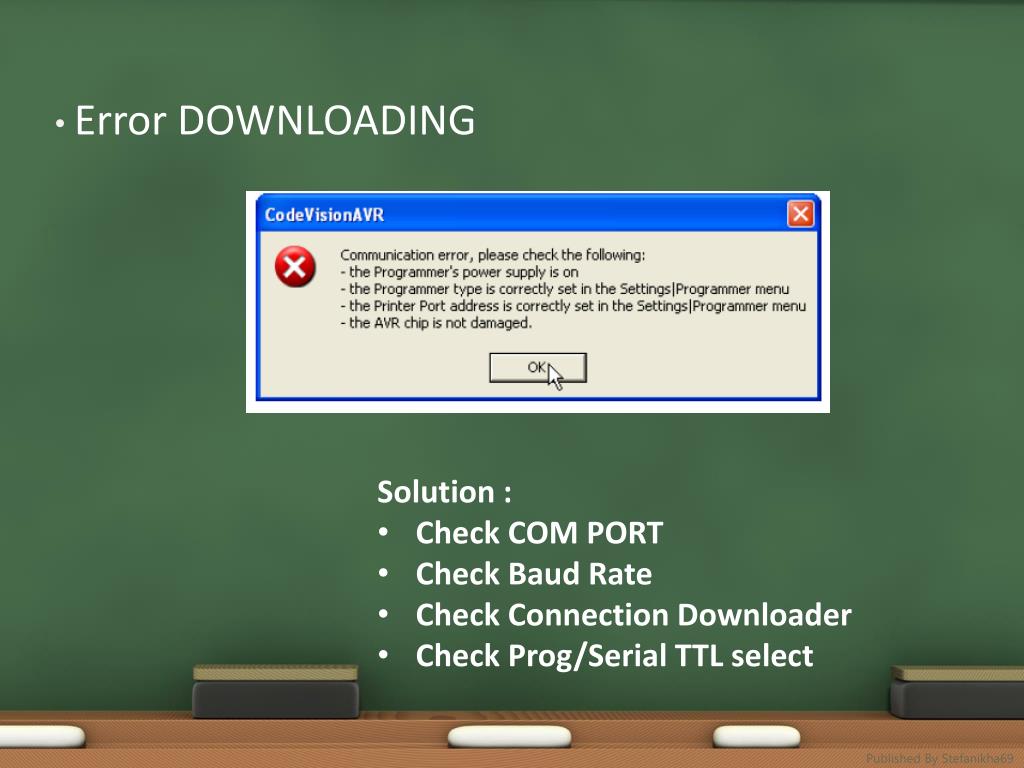

  24. Solution : • Check COM PORT • Check Baud Rate • Check Connection Downloader • Check Prog/Serial TTL select Error DOWNLOADING Published By Stefanikha69

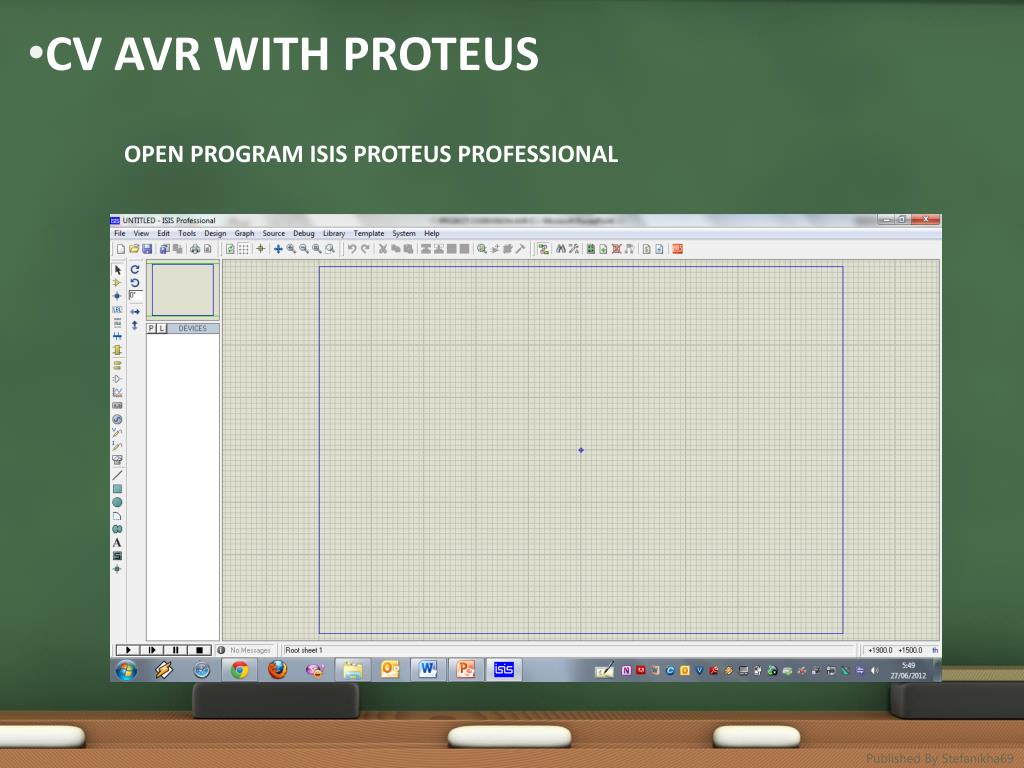

  25. CV AVR WITH PROTEUS OPEN PROGRAM ISIS PROTEUS PROFESSIONAL Published By Stefanikha69

  26. synchronization cv avr with proteus Creat Project and Design Double click pict microcntroller Published By Stefanikha69

  27. synchronization cv avr with proteus Select clock frequency Select program file, (HEX file type) Published By Stefanikha69

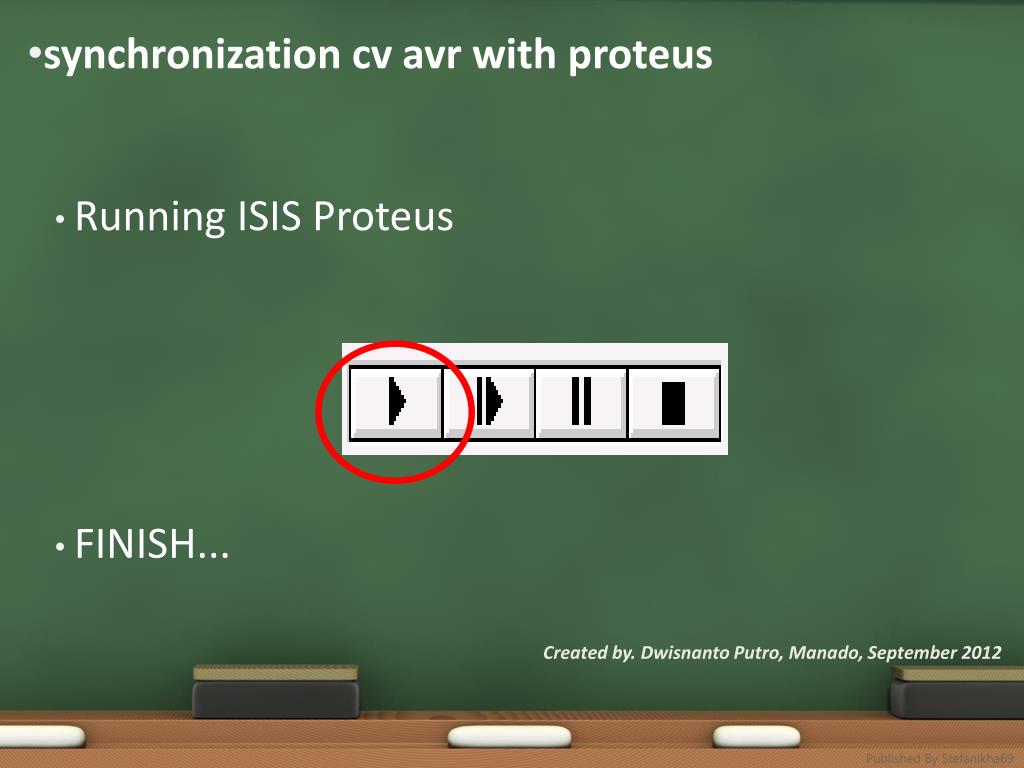

  28. synchronization cv avr with proteus • Running ISIS Proteus • FINISH... Created by. DwisnantoPutro, Manado, September 2012 Published By Stefanikha69

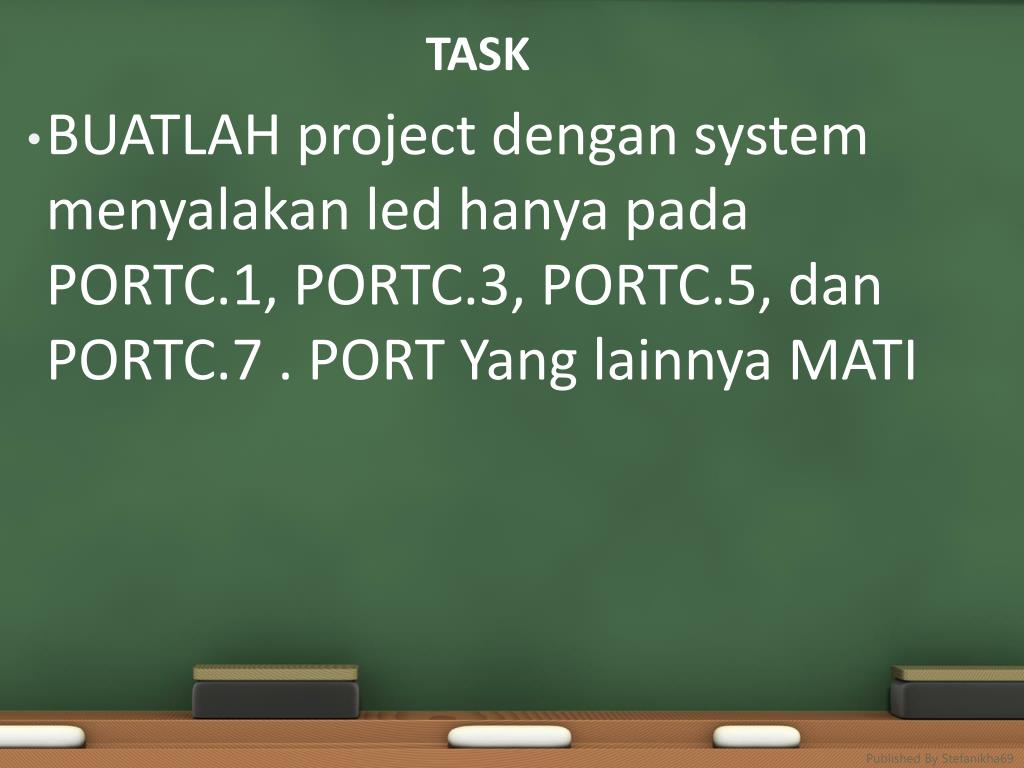

  29. TASK BUATLAH project dengan system menyalakan led hanya pada PORTC.1, PORTC.3, PORTC.5, dan PORTC.7 . PORT Yang lainnya MATI Published By Stefanikha69

  30. TASK BUATLAH project dengan system menyalakan led hanya pada PORTC.0, PORTC.2, PORTC.4, DAN PORTC.6 .PORT Yang lainnya MATI Published By Stefanikha69

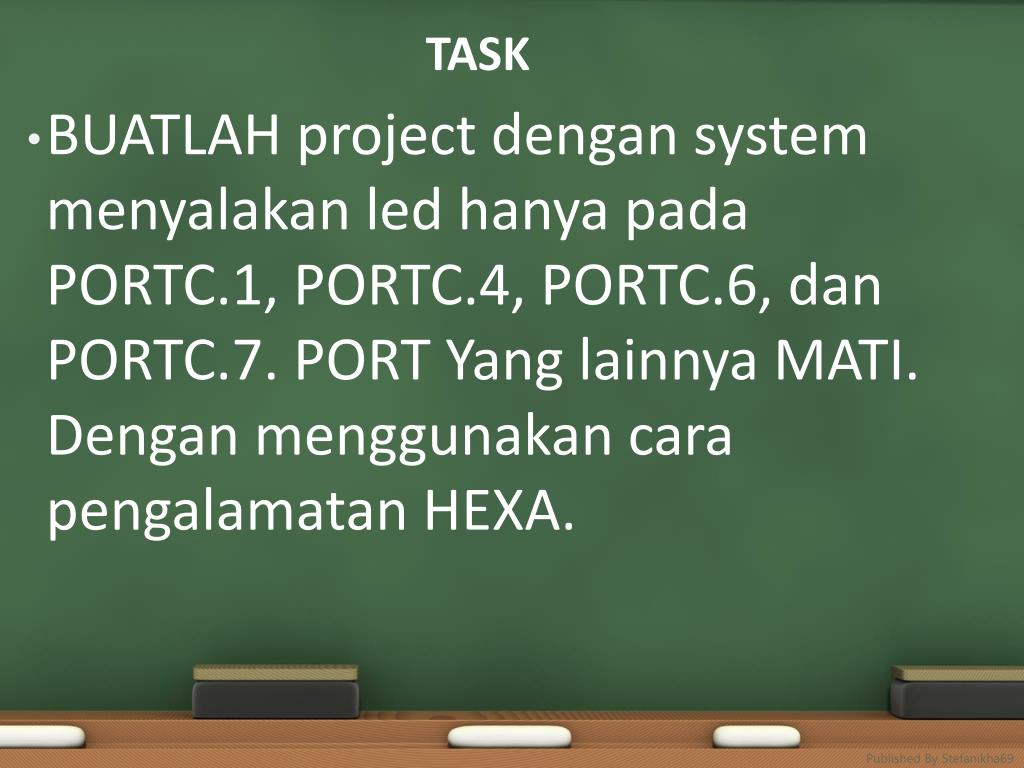

  31. TASK BUATLAH project dengan system menyalakan led hanya pada PORTC.1, PORTC.4, PORTC.6, dan PORTC.7. PORT Yang lainnya MATI. Dengan menggunakan cara pengalamatan HEXA. Published By Stefanikha69

  32. TASK BUATLAH project dengan system menyalakan led hanya pada PORTC.7, PORTC.6, PORTC.3, PORTC.1 dan PORTC.0. PORT Yang lainnya MATI. Published By Stefanikha69

  33. TASK BUATLAH project dengan system menyalakan led hanya pada PORTC.2, PORTC.7, PORTC.6 dan PORTC.1. PORT Yang lainnya MATI. Published By Stefanikha69
