Presentation Transcript

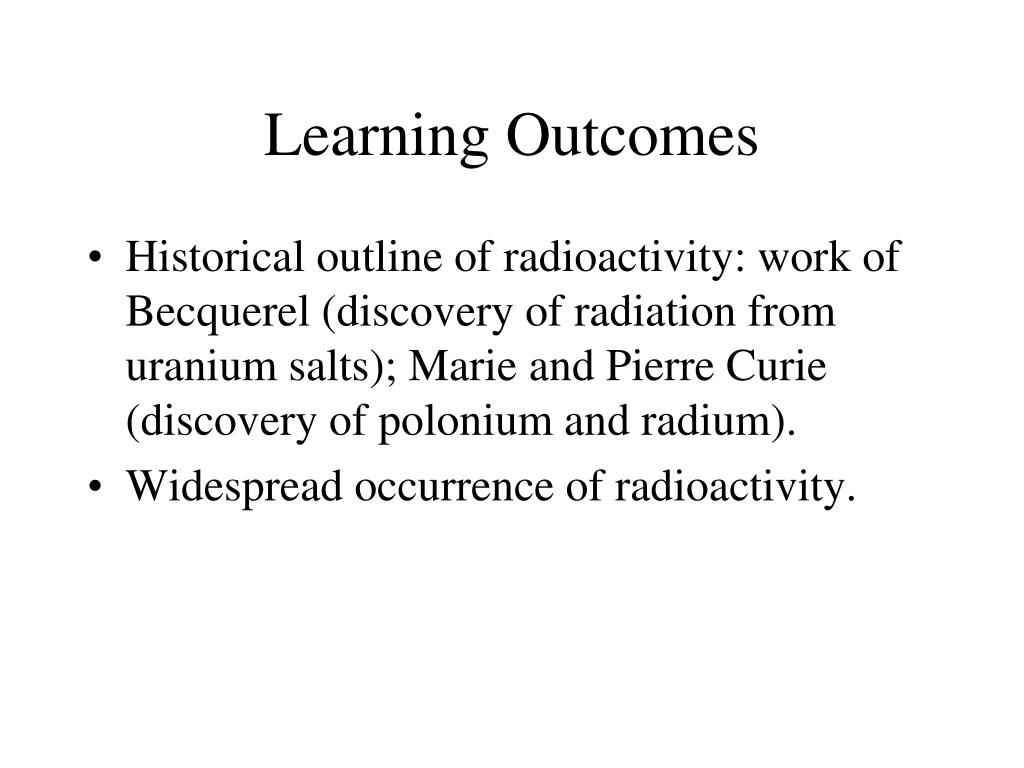

  1. Learning Outcomes • Historical outline of radioactivity: work of Becquerel (discovery of radiation from uranium salts); Marie and Pierre Curie (discovery of polonium and radium). • Widespread occurrence of radioactivity.

  2. Antoine Henri Becquerel • In 1896, while investigating uranium salts, Becquerel accidentally discovered radioactivity . Becquerel found that the photographic plates were fully exposed when in contact with radioactive salt.

  3. Marie Curie • developed a theory of radioactivity techniques for isolating radioactive isotopes, and discovered two new elements, Polonium and Radium

  4. Natural Radiation comes from • Sources in the earth that contain radioactive isotopes. • Sources from space in the form of cosmic rays • Sources in the atmosphere, particularly from Radon gas that is released from the Earth's crust. • About 15% of background radiation comes from medical X-rays and nuclear medicine. • About 3% of background radiation comes from other man-made sources such as: nuclear testing, power plants, and smoke detectors.

  5. Pierre Curie • Pierre discovered nuclear energy, by identifying the continuous emission of heat from Radium particles. He also investigated the radiation emissions of radioactive substances, which lead to the discovery of Alpha, Beta and Gamma radiation.

  6. Learning Outcomes • Alpha, beta and gamma radiation (nature and penetrating ability).One example each of: • an α-emitter, e.g. 241Am • a β-emitter, e.g. 14C • a γ-emitter, e.g. 60Co.

  7. Radioactivity • Is the spontaneous breaking up of unstable nuclei with the emission of one or more types of radiation • There are threetypes alpha, beta and gamma

  8. Alpha particle

  9. Alpha • Made of 2 protons + 2 neutrons • Helium nucleus • From unstable nuclei • Low penetration; stopped by a sheet of paper • Americum-241 [used in smoke detectors] emits alpha particles

  10. Alpha particle

  11. Smoke detector

  12. Beta • Electrons • Formed when a neutron decays into a proton and an electron • Penetrate 5mm of aluminum • Carbon-14 used in carbon-dating emits beta particles

  13. Neutron decay

  14. Carbon 14

  15. Learning Outcomes • Uses of radioisotopes (three examples). • 14C age determination (calculations not required). • 60Co for cancer treatment. • Food irradiation.

  16. The animation below shows the decay of a radioactive sample of Carbon-14 to stable Nitrogen by the emission of beta particles.

  17. Carbon-14 decays to nitrogen-14

  18. Take in Carbon-14 • The percentage of carbon-14 in all of these living things is the same as the percentage of carbon-14 in the atmosphere.

  19. Death • The carbon-14 within every once-living thing will someday turn back into nitrogen-14

  20. Carbon-14 detection

  21. Gamma • High energy electromagnetic radiation • Not deflected by magnetic or electric fields • Only stopped by several cms of lead. • Cobalt-60 [used to treat cancer] emits gamma rays

  22. Gamma Rays

  23. Learning Outcomes • Demonstration of properties –detection and penetrating power

  24. Penetration

  25. Penetration 2

  26. Learning Outcomes • Distinction between chemical reaction and nuclear reaction • (simple equations required –confine examples to alpha and beta emissions).

  27. Nuclear reactions • Emission of radioactive radiation • In a nuclear reaction the nucleus forms a new element,

  28. Loss of an alpha particle • Radium-226 Radon-222 + alpha particle • 22688Ra22286Rn +42He • Mass decreases by 4 [226222] • Atomic number decreases by 2 [8886]

  29. Beta loss • Carbon-14 nitrogen-14 + beta • 146C  147N + 0-1e • Mass number stays the same • Atomic number increases by 1

  30. Learning Outcomes • Radioisotopes. • Half-life (non-mathematical treatment). • Uses of radioisotopes (three examples).

  31. Radioisotopes • A Radioisotope (radionuclide) is an atom with an unstable nucleus.

  32. Transmutation • Change of one element into another • Rutherford confirmed the artificial transmutation of nitrogen. Alpha particles were allowed to pass through nitrogen gas; when one struck a nitrogen nucleus, a hydrogen nucleus was ejected, and an oxygen nucleus formed.

  33. Half life • Time taken for half of the nuclei in any given sample to decay

  34. uses • Medical—.gamma rays kill cancerous cells and sterilises equipment • Archaeological—after a living thing dies the amount of C-14 decreases. Used to determine the age of a plant/animal • Food—gamma rays kill disease causing organisms
