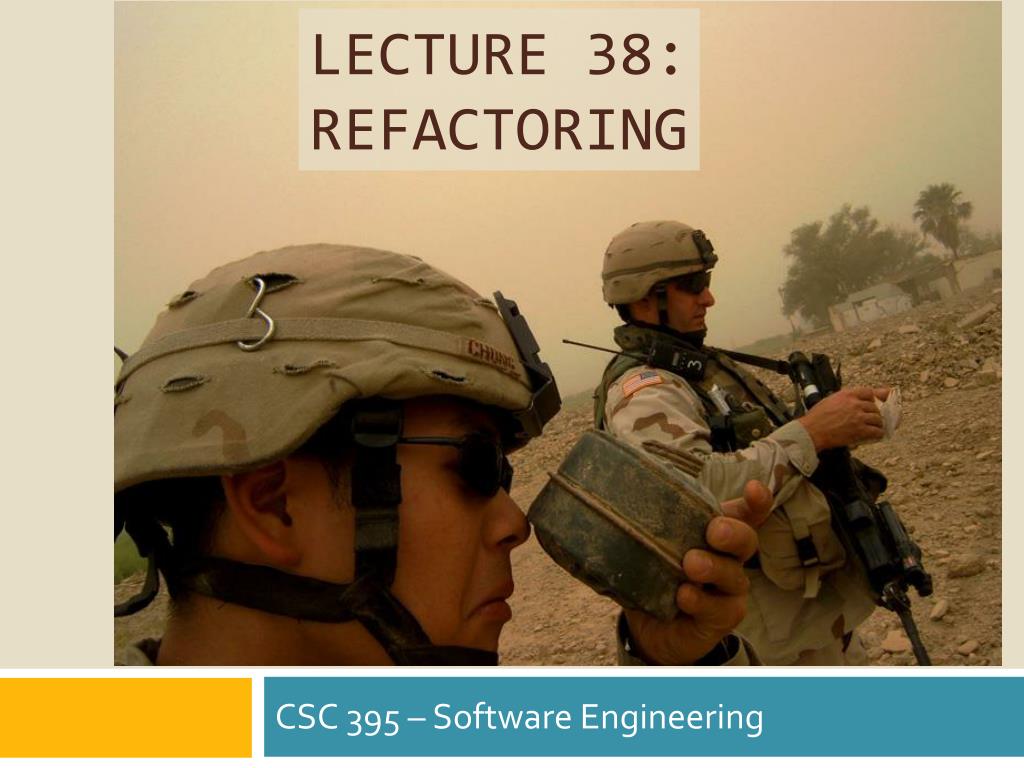

  1. Lecture 38:Refactoring CSC 395 – Software Engineering

  2. Software Being Developed • Comprehensive requirements developed or added • Working from these, create workable design • Class design tested & all defect fixes reviewed • Complete test suite check for range of bugs • 100% path coverage & more for complex methods • Code reviews used on every line of code in system • Integration & validation tests on completed code • Last few days spent completing documentation

  3. RealSoftware Development • Develop good set of requirements with client • Once “complete”, client changes mind 5 times • Solid design developed from these requirements • But design was only using revision 3 of requirements • Some issues uncaught until code monkeys started • Coding takes much, much longer than planned • All-nighters needed for final push over last week • Due to lack of time, final bugs fixed via patch • Documentation good, but not always complete

  4. RealSoftware, Take 2 • Develop comprehensive set of requirements • Problem known, system reuses existing code base • Nearly complete design developed • If even remotely feasible, existing classes used • Design is complete, but some rough edges remain • Coding done quickly, but needs to be quick • Mashes up existing classes for new purpose • Lots of having to fit square pegs into round holes • Comments good, but don't always fit program

  5. Whoever Smelled It... • Code occasionally gets "bad smell" • Code duplicated in methods and classes • Wrote and now must use ginormous method or class • 7+ parameters used by a single method • Simple class now serves multiple purposes • "Shotgun surgery" with requires many little changes • Mostly call methods in other class "feature envy" • Variables not independent, but always used together • No polymorphism, instead uses large switch/if-else

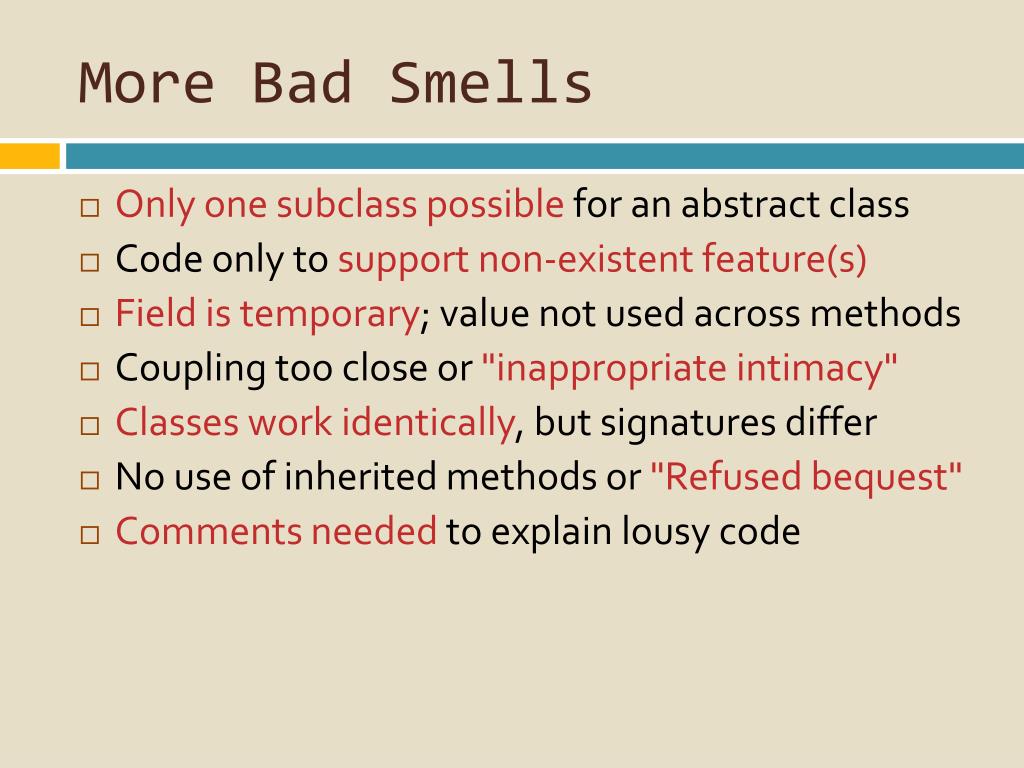

  6. More Bad Smells • Only one subclass possible for an abstract class • Code only to support non-existent feature(s) • Field is temporary; value not used across methods • Coupling too close or "inappropriate intimacy" • Classes work identically, but signatures differ • No use of inherited methods or "Refused bequest" • Comments needed to explain lousy code

  7. Get Me Some Deodorant! • Nothing ever perfect the first time • Getting the details right often takes multiple passes • Even harder without full picture of what will be done • Ugly code often results as deadlines approach • "Get it done right" becomes "Get it done right now"

  8. Vital Part of Project • Bad smells always occur for variety of reasons • But ugly code does need not linger forever • Refactoring important to eliminate these problems • Finish work early and ease into any deadlines

  9. Vital Part of Project • Bad smells always occur for variety of reasons • But ugly code does need not linger forever • Refactoring important to eliminate these problems • Refactorcode before or after each deadline • Code quickly then refactor before deadlines in agile • Start iteration refactoring code in iterative methods

  10. What Could Go Wrong? • Refactoring creates opportunities for mayhem • Intentionally changing code that works & is used • Modifications could accidentally add regression faults • Must respect assumptions made by other code • (Requires that these assumptions are known)

  11. What Do We Need • Good documentation crucial to this process • Method should state preconditions before called • Expectations of results specified as postcondition • Invariants list as relationships between fields • Comments kept up-to-date as coding continues • Refactoring works provided stay within limits

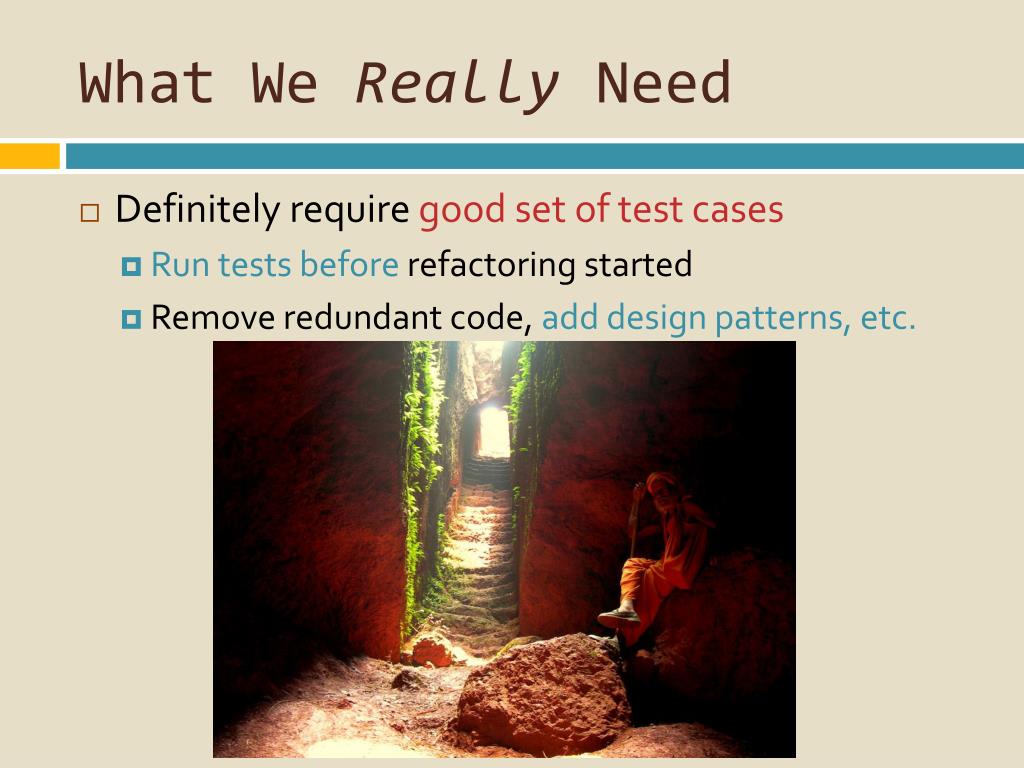

  12. What We Really Need • Definitely require good set of test cases • Run tests before refactoring started • Remove redundant code, add design patterns, etc.

  13. What We Really Need • Definitely require good set of test cases • Re-run tests after refactoring (or close enough) • If test fails, fix the refactored code • Add comments describing the missing details • If all tests pass, continue progressing • Doing it right the first time would have been faster… • … but still a lot better than non-refactored code • All roads lead to multiple passes

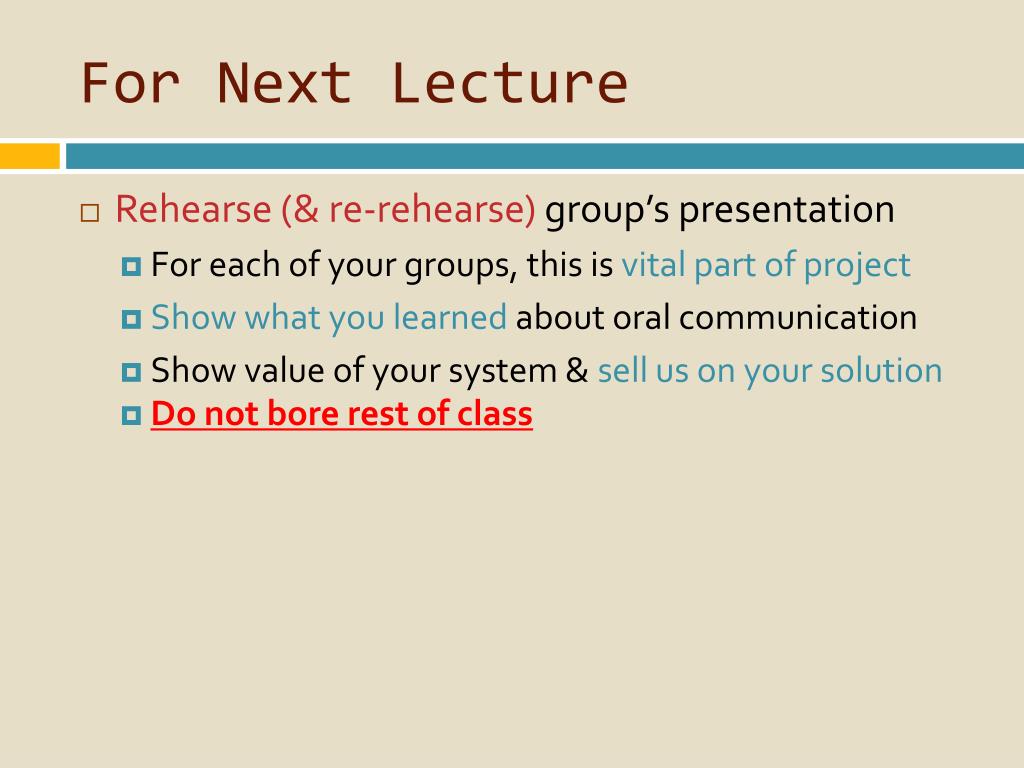

  14. For Next Lecture • Rehearse (& re-rehearse) group’s presentation • For each of your groups, this is vital part of project • Show what you learned about oral communication • Show value of your system & sell us on your solution • Do not bore rest of class
