  1. FFAG-ERIT R&D 06/11/06 Kota Okabe (Kyoto Univ.) for FFAG-DDS group

  2. Neutron source for BNCTFFAG-ERIT scheme Requirements from BNCT(Boron Neutron Capture Therapy): In order to remedy the tumor of 10cm2, 2*1013 neutrons are needed. If we assume that remedy time is 30 minutes => Flux cm2 sec. Accelerator as a neutron source ; Energy is low, but beam current is very large (I > 40mA [CW]) Technically hard and expensive ERIT : Emittance-Energy Recovering Internal Target The stored beam is irradiated to the internal target, it generates the neutron in the storage ring. The beam energy lost in the target is recovered by re-acceleration. Feature of ERIT scheme Beam current reduced by storage the beam in the ring.

  3. Overview of FFAG-ERIT accelerator system

  4. Emittance growth in storage ring • Using an internal target in the ring, the beam emittance can be increased in 3-D directions by multiple scattering and straggling. In this reason, the storage ring require to large acceptance. • In ERIT scheme, however, the beam emittance growth can be cured by Ionization Coolingeffect.

  5. Heating term Cooling term Ionization cooling (1) The rate equation of beam emittance passing through a target material is, Longitudinal Horizontal Vertical When the wedged target is placed at dispersive point, can be possible. 0 Wedge Target Acceleration Cavity

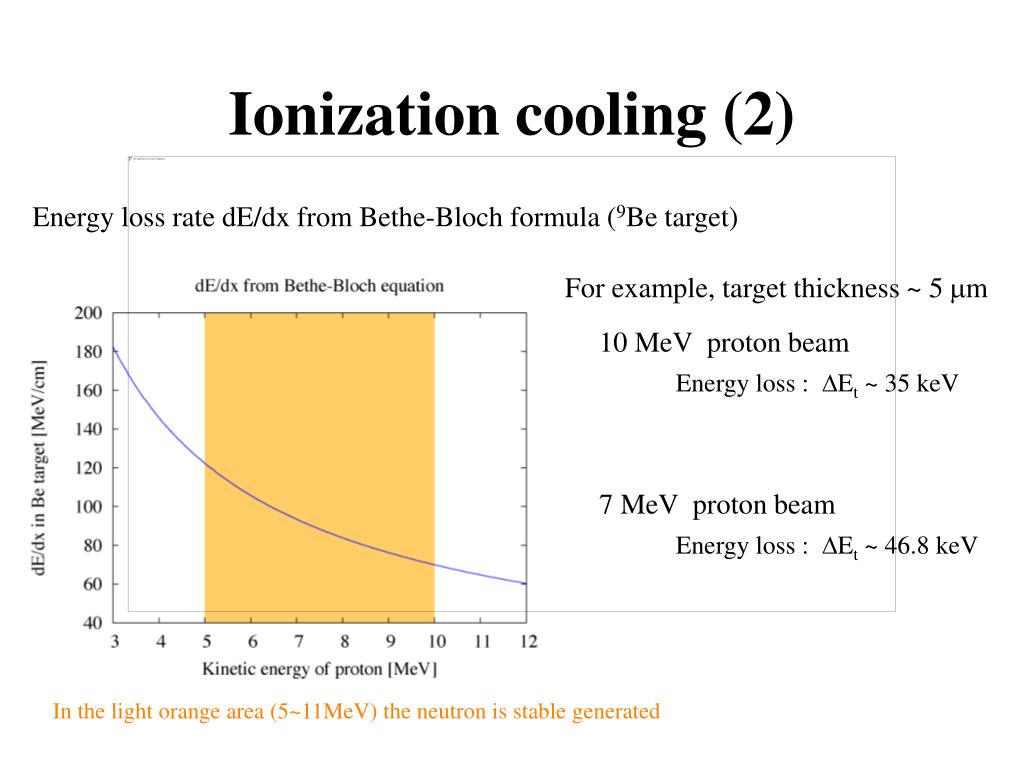

  6. Ionization cooling (2) Energy loss rate dE/dx from Bethe-Bloch formula (9Be target) For example, target thickness ~ 5 m 10 MeV proton beam Energy loss : Et ~ 35 keV 7 MeV proton beam Energy loss : Et ~ 46.8 keV In the light orange area (5~11MeV) the neutron is stable generated

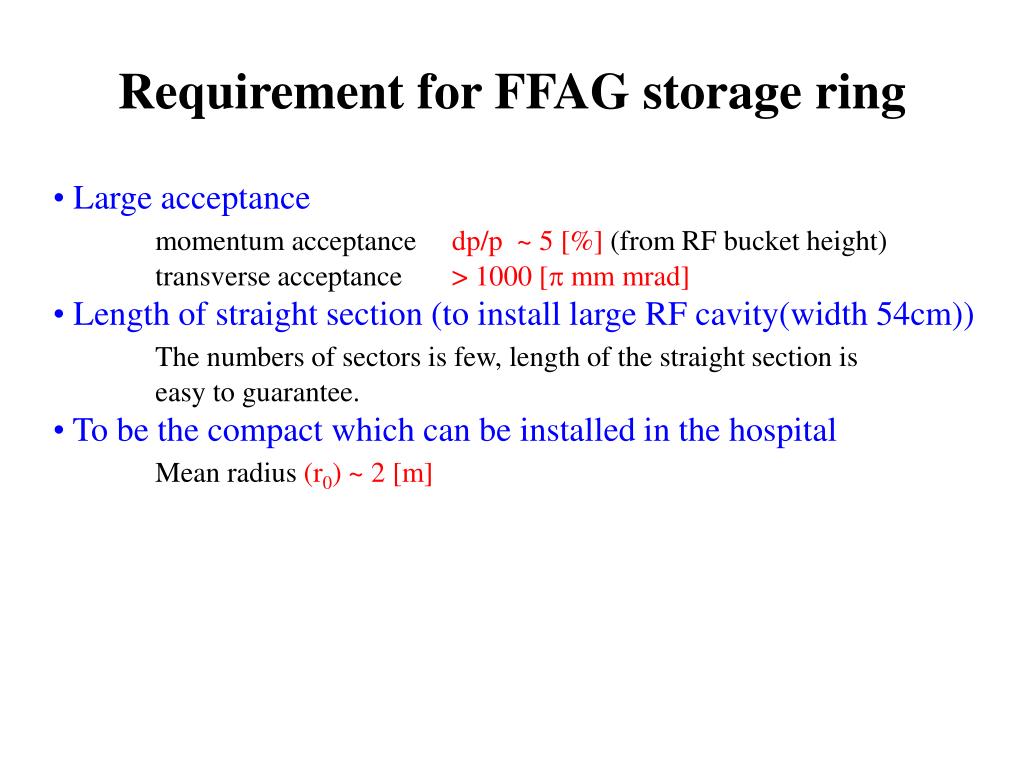

  7. Requirement for FFAG storage ring • Large acceptance • momentum acceptance dp/p ~ 5 [%] (from RF bucket height) • transverse acceptance > 1000 [ mm mrad] • Length of straight section (to install large RF cavity(width 54cm)) • The numbers of sectors is few, length of the straight section is • easy to guarantee. • To be the compact which can be installed in the hospital • Mean radius (r0) ~ 2 [m]

  8. Spiral sector type FFAG

  9. Magnetic field calculation (TOSCA) The size of the accelerator becomes small compared with the radial sector type. Spiral sector type FFAG Lattice parameters Cell num. = 8 Open sec. angle = 45 deg Open F angle = 13.5 deg Packing fac. = 0.3 Average radius = 1.8 m 7MeV proton beam

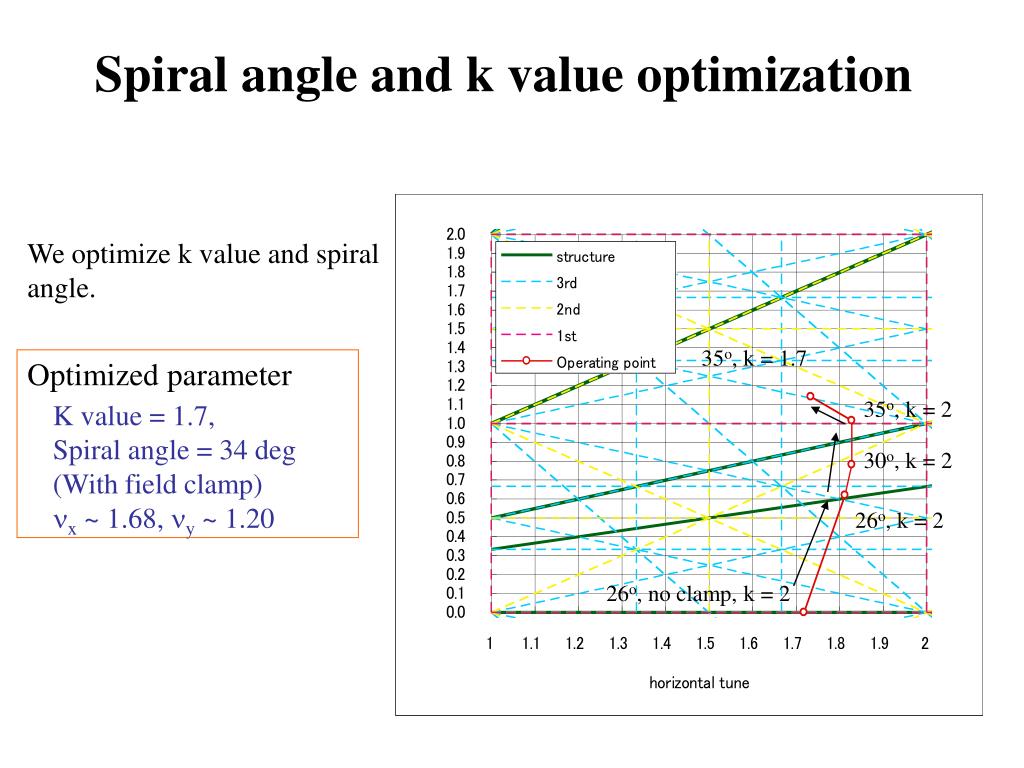

  10. Spiral angle and k value optimization We optimize k value and spiral angle. 35o, k = 1.7 Optimized parameter 35o, k = 2 K value = 1.7, Spiral angle = 34 deg (With field clamp) x ~ 1.68, y ~ 1.20 30o, k = 2 26o, k = 2 26o, no clamp, k = 2

  11. Acceptance study Gap 14 [cm] Horizontal Vertical ~7000π mm-mrad ~1400π mm-mrad Hori. Acceptance, Vert. acceptance Gap 14 [cm] ~7000π [mm-mrad], ~1400π [mm-mrad] Gap 17.5 [cm] ~7000π [mm-mrad], ~2400π [mm-mrad] ~6100π [mm-mrad], ~3200π [mm-mrad] Gap 20.0 [cm]

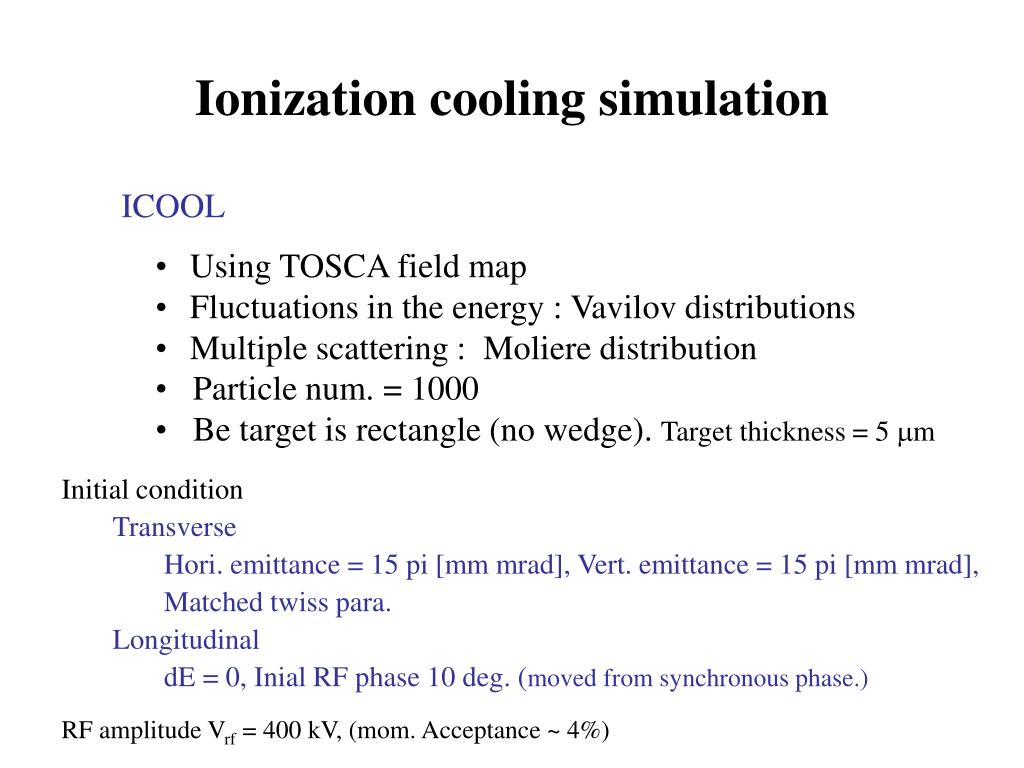

  12. Ionization cooling simulation ICOOL • Using TOSCA field map • Fluctuations in the energy : Vavilov distributions • Multiple scattering : Moliere distribution • Particle num. = 1000 • Be target is rectangle (no wedge). Target thickness = 5 m • Initial condition • Transverse • Hori. emittance = 15 pi [mm mrad], Vert. emittance = 15 pi [mm mrad], • Matched twiss para. • Longitudinal • dE = 0, Inial RF phase 10 deg. (moved from synchronous phase.) RF amplitude Vrf = 400 kV, (mom. Acceptance ~ 4%)

  13. Surviving turn number Result of magnet gap 14 [cm] Suv.rate = particle num. (at turn) / initial particle num Mean surviving turn num.192 turn

  14. RMS emittance and energy spread An analytical solution and the simulation results are corresponding well while a little the beam loss. Particle of the large amplitude is lost as the turn number increases. Emittance is saturated

  15. Vertical acceptance - dependent ~3200π [mm-mrad] ~2400π [mm-mrad] ~1400π [mm-mrad] Vertical beta function@target ~ 1.35 [m]

  16. Discussion • From simulation results, the most cause of beam loss is heating of the vertical direction. • It is difficult to achieve strong focusing the vertical direction in the spiral type lattice. In this reason, radial sector type suitable for ERIT?

  17. Radial sector type

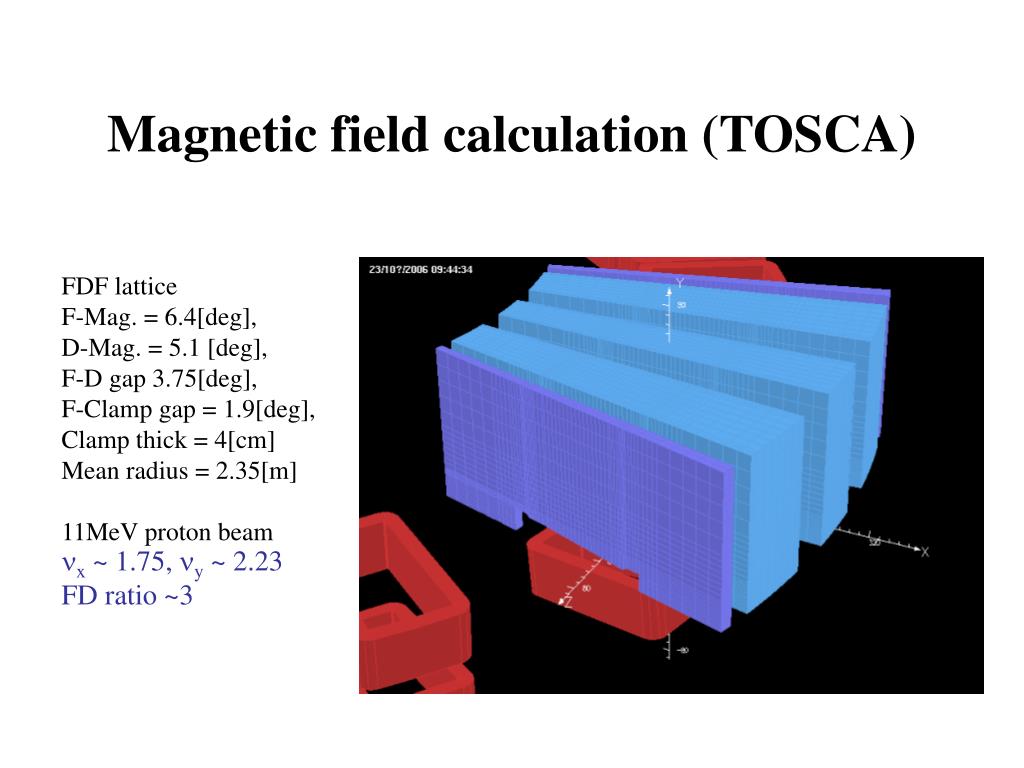

  18. Magnetic field calculation (TOSCA) FDF lattice F-Mag. = 6.4[deg], D-Mag. = 5.1 [deg], F-D gap 3.75[deg], F-Clamp gap = 1.9[deg], Clamp thick = 4[cm] Mean radius = 2.35[m] 11MeV proton beam x ~ 1.75, y ~ 2.23 FD ratio ~3

  19. Vertical beta function & acceptance Tracking results used TOSCA field. Vertical beta function@target ~ 0.83 [m] Vertical acceptance ~ 3000π [mm-mrad] (Horizontal acceptance > 7000π [mm-mrad])

  20. Surviving turn number Mean surviving turn num.810 turns

  21. RMS emittance and energy spread An analytical solution and the simulation results are corresponding well while beam loss is few.

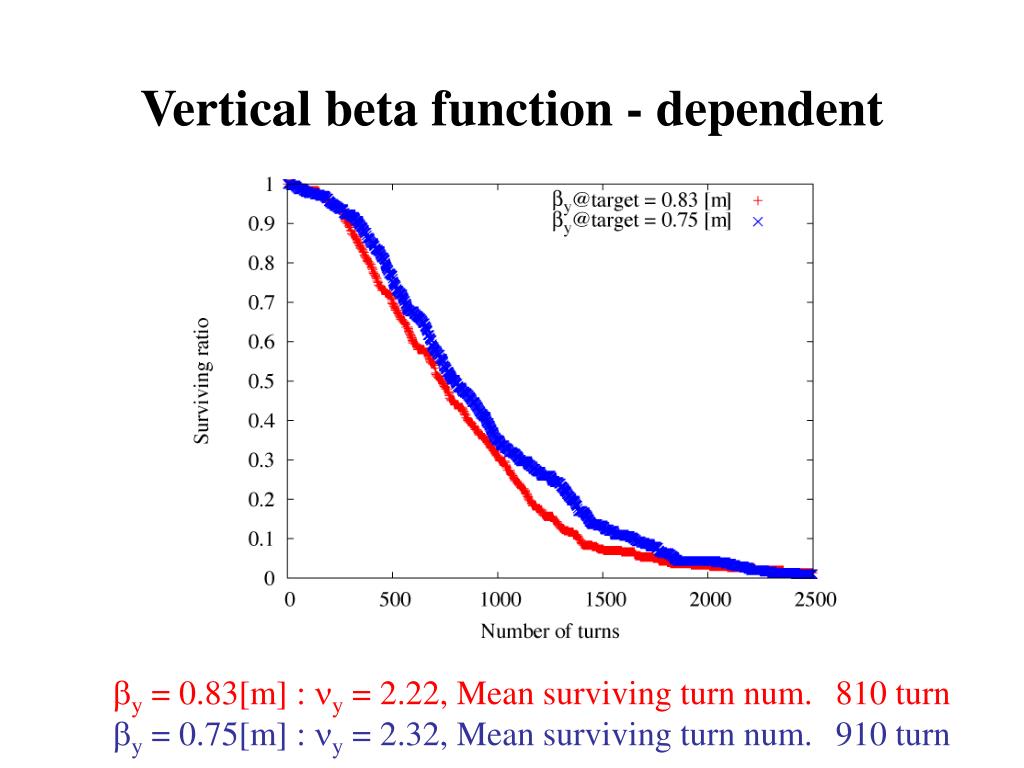

  22. Vertical beta function - dependent y = 0.83[m] : y = 2.22, Mean surviving turn num.810 turn y = 0.75[m] : y = 2.32, Mean surviving turn num.910 turn

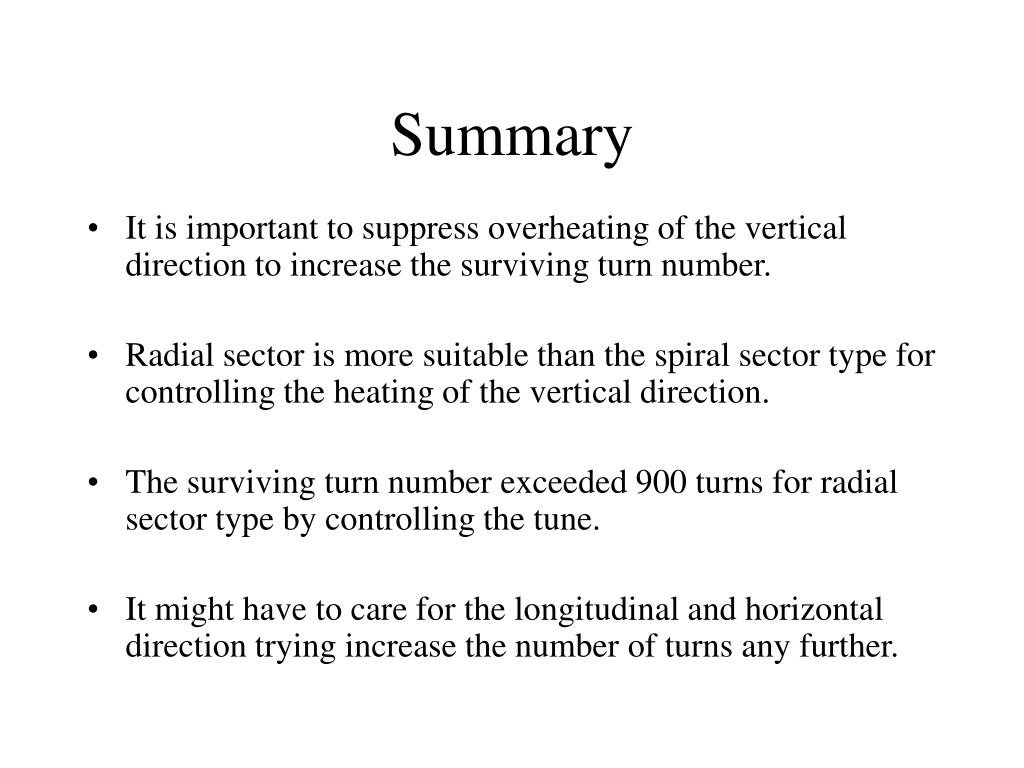

  23. Summary • It is important to suppress overheating of the vertical direction to increase the surviving turn number. • Radial sector is more suitable than the spiral sector type for controlling the heating of the vertical direction. • The surviving turn number exceeded 900 turns for radial sector type by controlling the tune. • It might have to care for the longitudinal and horizontal direction trying increase the number of turns any further.
