1 / 17

POLYMERIC MATERIALS USED AS HEAT EXCHANGERS

POLYMERIC MATERIALS USED AS HEAT EXCHANGERS. PVDF NYLON 6 PTFE PEEK. Potential Advantages of Polymer Heat Exchangers. Resistance to Corrosion Resistance to Fouling Light Weight Cost Benefits. Potential Applications of Polymer Heat Exchangers.

tillie
Télécharger la présentation

POLYMERIC MATERIALS USED AS HEAT EXCHANGERS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

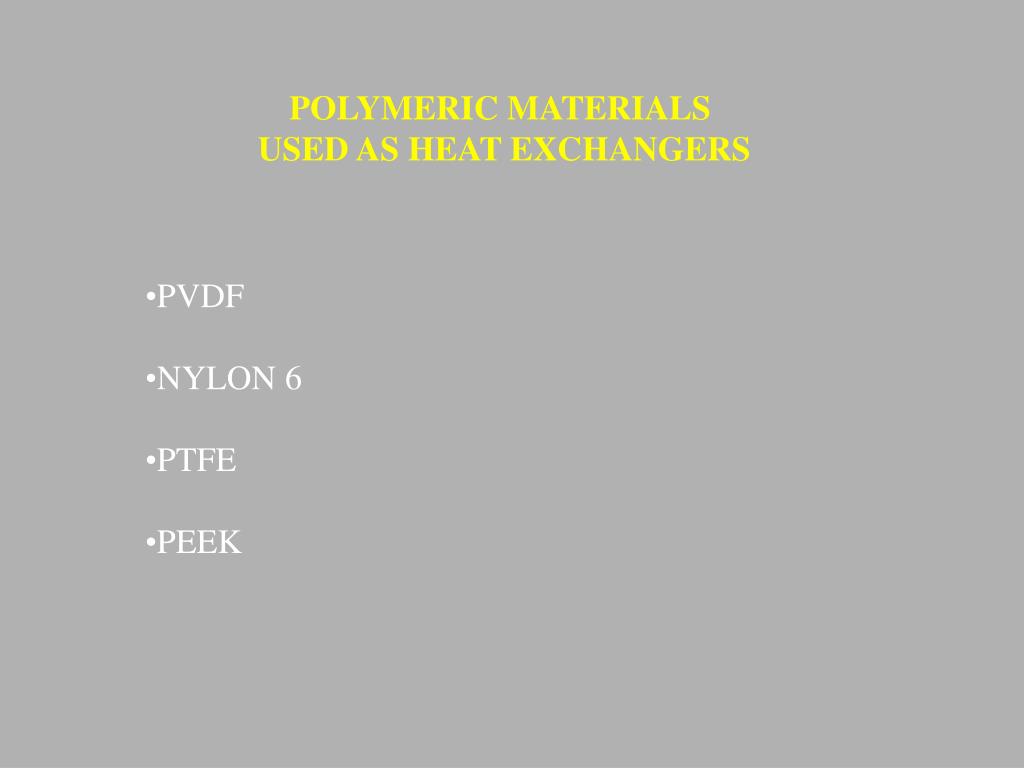

  1. POLYMERIC MATERIALS USED AS HEAT EXCHANGERS • PVDF • NYLON 6 • PTFE • PEEK

  2. Potential Advantages of Polymer Heat Exchangers • Resistance to Corrosion • Resistance to Fouling • Light Weight • Cost Benefits

  3. Potential Applications of Polymer Heat Exchangers • Heating and Cooling in Electroplating and Anodizing Processes • (Currently tubular PTFE exchangers are used) • Heating and Cooling Applications in Sulphuric Acid Plants • Bromine Recovery systems • Acid Dilution systems for the battery industry • Secondary heat exchanger in Condensing gas boilers • Flue gas heat recovery systems • Aviation and Automobile Industry • Air conditioning systems

  4. Continued • Convective Heat Transfer & Pressure Drop Characteristics • (Air / Air , Water / Water, Air / Water) • Effect of Angle of Cross Corrugation • Effect of Pr Number • Condensation in the presence of non- condensibles • Mass transfer studies • Flow visualisation studies

  5. Cross Corrugated Film

  6. Exchanger Matrix

  7. Jh 30 0 / Jh 90 0 = 1.85 Jh 60 0 / Jh 90 0 = 1.48

  8. What about Thermal Resistance? Liquid 5000 W/m2 K Resistance 0.0002m2 K/W Gas 400 W/m2k Resistance 0.0025 m2 K/W Film t=53. 10 -6 m, k = 0.2 W/m K Resistance 0.000265 m2 K/W Film / Liquid 1.32 Film / Gas 0.106 (If t=0.9mm) Film/Gas =1.8 Film / Liquid (2500 W/ m2 K) 0.66

More Related
