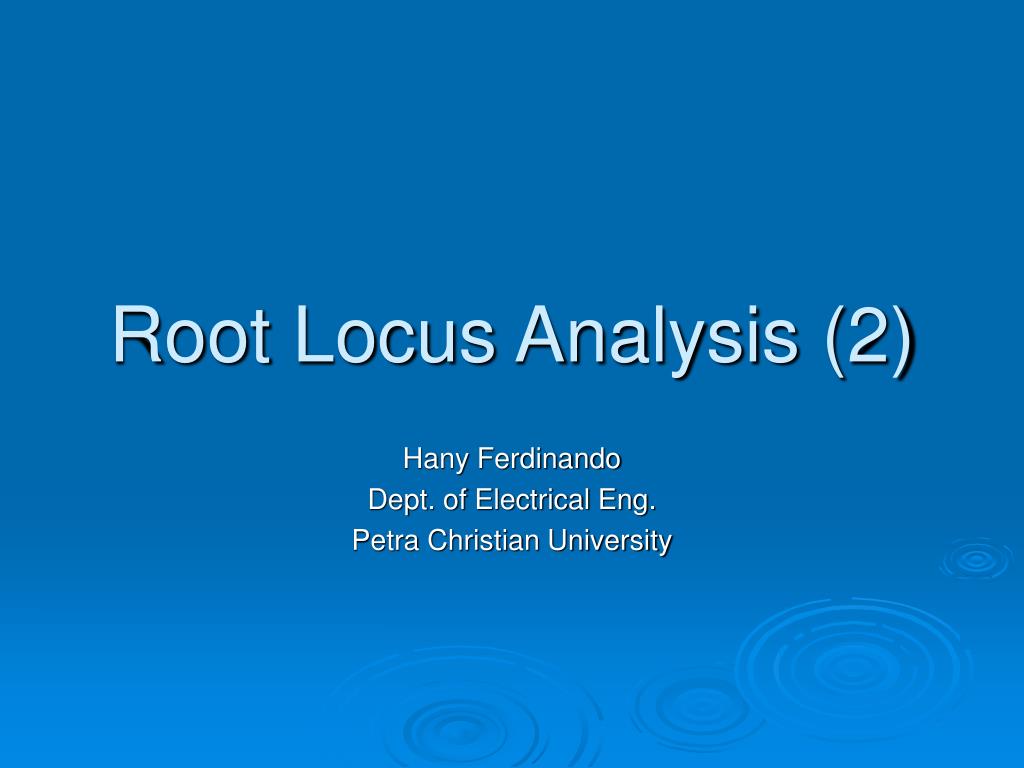

Root Locus Analysis (2). Hany Ferdinando Dept. of Electrical Eng. Petra Christian University. General Overview. This section explain the root locus plot for positive feedback system instead of negative feedback All rules use the opposite of the ones used in the negative feedback. R(s).

tomai
Télécharger la présentation

Root Locus Analysis (2)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Root Locus Analysis (2) Hany Ferdinando Dept. of Electrical Eng. Petra Christian University

  2. General Overview • This section explain the root locus plot for positive feedback system instead of negative feedback • All rules use the opposite of the ones used in the negative feedback

  3. R(s) C(s) G(s) + + H(s) Standardization 1 – G(s)H(s) = 0 Find Characteristic Equation!!

  4. How to make it? • Start from the characteristic equation • Locate the poles and zeros on the s plane • Determine the root loci on the real axis • Determine the asymptotes of the root loci • Find the breakaway and break-in points • Determines the angle of departure (angle of arrival) from complex poles (zeros) • Find the points where the root loci may cross the imaginary axis

  5. Example (1) 1. Start from the characteristic equation

  6. Example (2) 2. Locate the poles and zeros on the s plane

  7. Example (3) 3. Determine the root loci on the real axis

  8. Example (4a) 4. Determine the asymptotes of the root loci

  9. Example (4b) 4. Determine the asymptotes of the root loci

  10. Example (5) From the characteristic equation, find then calculate… s = -0.8 and s = -2.35±0.77j 5. Find the breakaway and break-in point

  11. Example (6) qpole= 0 – sum from pole + sum from zero qzero = 0 – sum from zero + sum from pole qpole= 0 – 27 – 90 + 45 = -72 6. Determine the angle from complex pole/zero

  12. Example (7) Do this part by substituting jw for all s in the characteristic equation K = - w2+8 and - w2 = -10/3 The root locus does not cross the jw axis 7. Find the points where the root loci may cross the imaginary axis

  13. Example (8)

  14. Plot in negative feedback

  15. Root Locus in Matlab Function rlocus(num,den) draws the Root Locus of a system. Another version in state space is rlocus(A,B,C,D) The characteristic equation For positive feedback use rlocus(-num,den) to plot the Root Locus in complex plane

  16. Next… Design of a compensator is the topic for the next meeting… See you there!
