  1. Process Flow

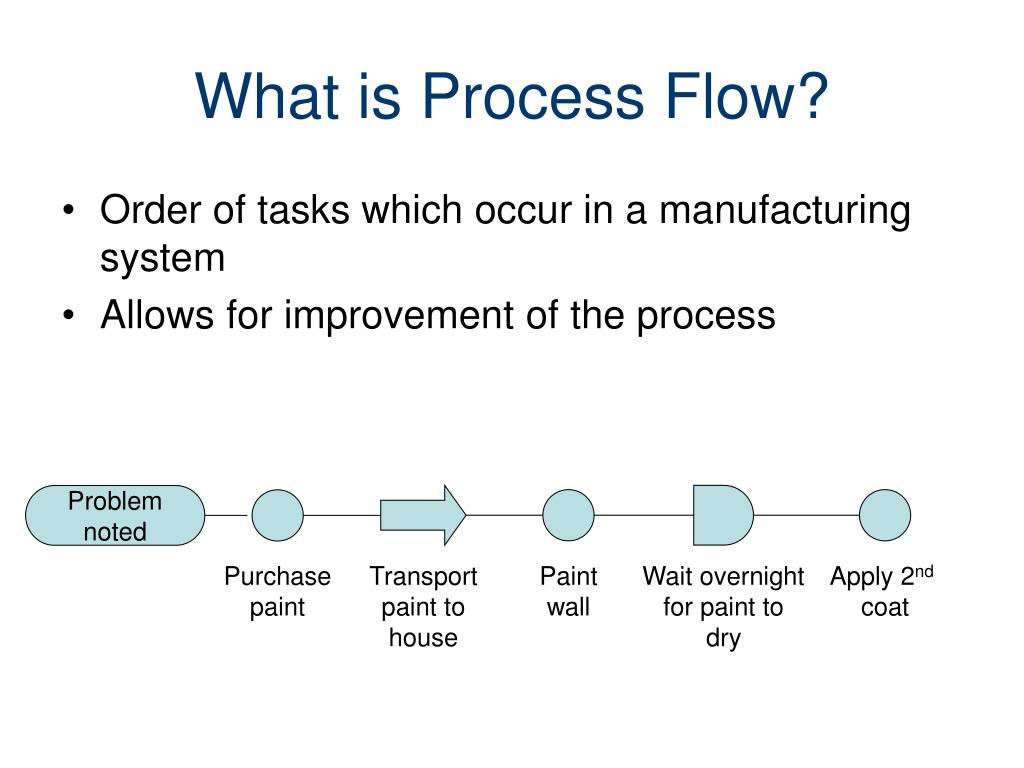

  2. What is Process Flow? • Order of tasks which occur in a manufacturing system • Allows for improvement of the process Problem noted Purchase paint Transport paint to house Paint wall Wait overnight for paint to dry Apply 2nd coat

  3. Operation Transportation Inspection Delay Storage Process Flow Symbols

  4. Flow Process Chart

  5. Example

  6. Parts to Machine • Base plate • Angle bracket • Craft stick

  7. The Base Plate

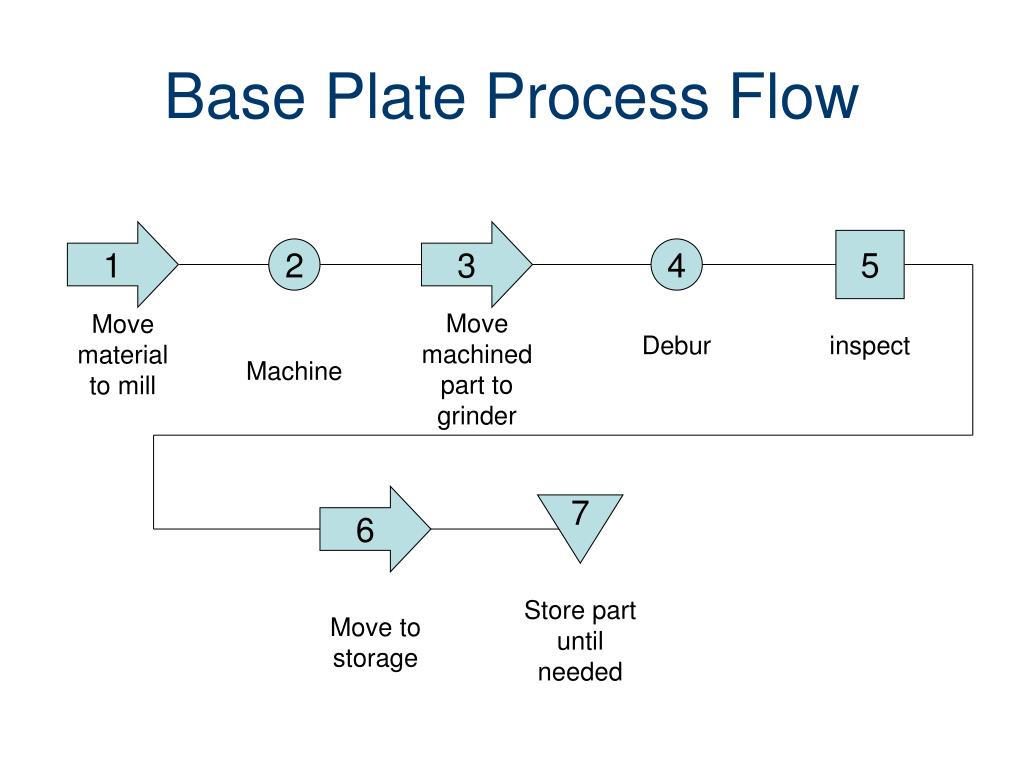

  8. Base Plate Process Flow 1 3 5 2 4 Move machined part to grinder Move material to mill Debur inspect Machine 6 7 Store part until needed Move to storage

  9. Launcher Assembly

  10. Assembly Process Flow
