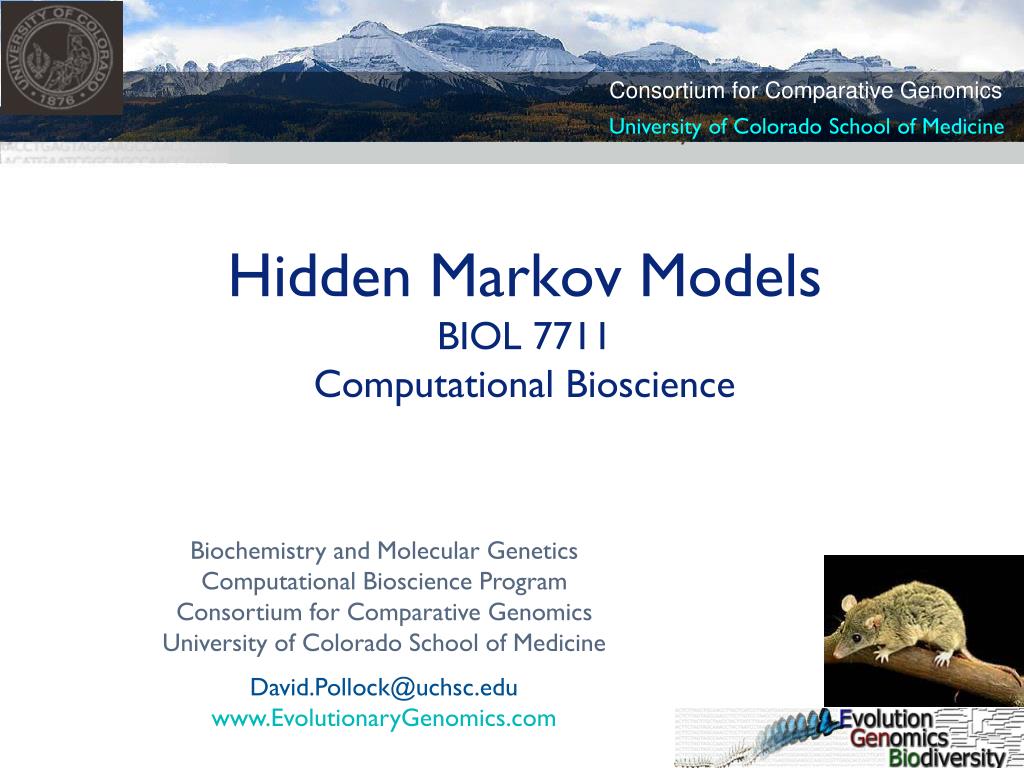

  1. Consortium for Comparative Genomics University of Colorado School of Medicine Hidden Markov ModelsBIOL 7711 Computational Bioscience

  2. Why a Hidden Markov Model? • Data elements are often linked by a string of connectivity, a linear sequence • Secondary structure prediction (Goldman, Thorne, Jones) • CpG islands • Models of exons, introns, regulatory regions, genes • Mutation rates along genome

  3. Sequence Alignment ProfilesMouse TCR Va

  4. Why a Hidden Markov Model? • Complications? • Insertion and deletion of states (indels) • Long-distance interactions • Benefits • Flexible probabilistic framework • E.g., compared to regular expressions

  5. Gap Gap insert insert insert A .1C .05D .2E .08F .01 A .04C .1D .01E .2F .02 A .2C .01D .05E .1F .06 Profiles: an Example continue continue delete

  6. Gap Gap insert insert insert A .1C .05D .2E .08F .01 A .04C .1D .01E .2F .02 A .2C .01D .05E .1F .06 Profiles, an Example: States continue continue State #1 State #2 State #3 delete

  7. Gap Gap insert insert insert A .1C .05D .2E .08F .01 A .04C .1D .01E .2F .02 A .2C .01D .05E .1F .06 Profiles, an Example: Emission Sequence Elements (possibly emitted by a state) continue continue State #1 State #2 State #3 delete

  8. Gap Gap insert insert insert A .1C .05D .2E .08F .01 A .04C .1D .01E .2F .02 A .2C .01D .05E .1F .06 Profiles, an Example: Emission Sequence Elements (possibly emitted by a state) Emission Probabilities continue continue State #1 State #2 State #3 delete

  9. Gap Gap insert insert A .1C .05D .2E .08F .01 A .04C .1D .01E .2F .02 A .2C .01D .05E .1F .06 Profiles, an Example: Arcs continue continue insert transition State #1 State #2 State #3 delete

  10. Gap Gap insert insert A .1C .05D .2E .08F .01 A .04C .1D .01E .2F .02 A .2C .01D .05E .1F .06 Profiles, an Example: Special States Self => Self Loop continue continue insert transition State #1 State #2 State #3 delete No Delete “State”

  11. A Simpler not very Hidden MMNucleotides, no Indels, Unambiguous Path G .1C .1A .7T .1 G .1C .3A .2T .4 G .3C .3A .1T .3 1.0 1.0 1.0 A 0.7 T 0.4 T 0.3

  12. A Simpler not very Hidden MMNucleotides, no Indels, Unambiguous Path G .1C .1A .7T .1 G .1C .3A .2T .4 G .3C .3A .1T .3 1.0 1.0 1.0 A 0.7 T 0.4 T 0.3

  13. Emit G Emit C Begin End Emit A Emit T A Toy not-Hidden MMNucleotides, no Indels, Unambiguous PathAll arcs out are equal Example sequences:GATC ATC GC GAGAGC AGATTTC Arc Emission

  14. A Simple HMMCpG Islands; States are Really Hidden Now 0.8 0.9 0.2 G .3C .3A .2T .2 G .1C .1A .4T .4 0.1 CpG Non-CpG

  15. The Forward AlgorithmProbability of a Sequence is the Sum of All Paths that Can Produce It CpG 0.8 G .3C .3A .2T .2 G .3 .3*( .3*.8+ .1*.1) =.075 0.2 0.1 G .1 .1*( .3*.2+ .1*.9) =.015 G .1C .1A .4T .4 G C 0.9 Non-CpG

  16. The Forward AlgorithmProbability of a Sequence is the Sum of All Paths that Can Produce It CpG 0.8 G .3C .3A .2T .2 G .3 .3*( .3*.8+ .1*.1) =.075 .3*( .075*.8+ .015*.1) =.0185 0.2 0.1 G .1 .1*( .3*.2+ .1*.9) =.015 .1*( .075*.2+ .015*.9) =.0029 G .1C .1A .4T .4 G C G 0.9 Non-CpG

  17. The Forward AlgorithmProbability of a Sequence is the Sum of All Paths that Can Produce It CpG 0.8 G .3C .3A .2T .2 G .3 .3*( .3*.8+ .1*.1) =.075 .3*( .075*.8+ .015*.1) =.0185 .2*( .0185*.8+ .0029*.1) =.003 .2*( .003*.8+ .0025*.1) =.0005 0.2 0.1 G .1 .1*( .3*.2+ .1*.9) =.015 .1*( .075*.2+ .015*.9) =.0029 .4*( .0185*.2+ .0029*.9) =.0025 .4*( .003*.2+ .0025*.9) =.0011 G .1C .1A .4T .4 G C G A A 0.9 Non-CpG

  18. The Forward AlgorithmProbability of a Sequence is the Sum of All Paths that Can Produce It CpG 0.8 G .3C .3A .2T .2 G .3 .3*( .3*.8+ .1*.1) =.075 .3*( .075*.8+ .015*.1) =.0185 .2*( .0185*.8+ .0029*.1) =.003 .2*( .003*.8+ .0025*.1) =.0005 0.2 0.1 G .1 .1*( .3*.2+ .1*.9) =.015 .1*( .075*.2+ .015*.9) =.0029 .4*( .0185*.2+ .0029*.9) =.0025 .4*( .003*.2+ .0025*.9) =.0011 G .1C .1A .4T .4 G C G A A 0.9 Non-CpG

  19. The Viterbi AlgorithmMost Likely Path CpG 0.8 G .3C .3A .2T .2 G .3 .3*m( .3*.8, .1*.1) =.072 .3*m( .075*.8, .015*.1) =.0173 .2*m( .0185*.8, .0029*.1) =.0028 .2*m( .003*.8, .0025*.1) =.00044 0.2 0.1 G .1 .1*m( .3*.2, .1*.9) =.009 .1*m( .075*.2, .015*.9) =.0014 .4*m( .0185*.2, .0029*.9) =.0014 .4*m( .003*.2, .0025*.9) =.0050 G .1C .1A .4T .4 G C G A A 0.9 Non-CpG

  20. Forwards and BackwardsProbability of a State at a Position CpG 0.8 .2*( .0185*.8+ .0029*.1) =.003 .003*( .2*.8+ .4*.2) =.0007 G .3C .3A .2T .2 .2*( .003*.8+ .0025*.1) =.0005 .4*( .0185*.2+ .0029*.9) =.0025 0.2 0.1 .0025*( .2*.1+ .4*.9) =.0009 .4*( .003*.2+ .0025*.9) =.0011 G .1C .1A .4T .4 G C G A A 0.9 Non-CpG

  21. Forwards and BackwardsProbability of a State at a Position .003*( .2*.8+ .4*.2) =.0007 .0025*( .2*.1+ .4*.9) =.0009 G C G A A

  22. Homology HMM • Gene recognition, identify distant homologs • Common Ancestral Sequence • Match, site-specific emission probabilities • Insertion (relative to ancestor), global emission probs • Delete, emit nothing • Global transition probabilities

  23. insert insert insert end match match start delete delete Homology HMM

  24. Homology HMM • Uses • Score sequences for match to HMM • Compare alternative models • Alignment • Structural alignment

  25. Multiple Sequence Alignment HMM • Defines predicted homology of positions (sites) • Recognize region within longer sequence • Model domains or whole proteins • Can modify model for sub-families • Ideally, use phylogenetic tree • Often not much back and forth • Indels a problem

  26. Model Comparison • Based on • For ML, take • Usually to avoid numeric error • For heuristics, “score” is • For Bayesian, calculate

  27. Parameters, • Types of parameters • Amino acid distributions for positions • Global AA distributions for insert states • Order of match states • Transition probabilities • Tree topology and branch lengths • Hidden states (integrate or augment) • Wander parameter space (search) • Maximize, or move according to posterior probability (Bayes)

  28. Expectation Maximization (EM) • Classic algorithm to fit probabilistic model parameters with unobservable states • Two Stages • Maximize • If know hidden variables (states), maximize model parameters with respect to that knowledge • Expectation • If know model parameters, find expected values of the hidden variables (states) • Works well even with e.g., Bayesian to find near-equilibrium space

  29. Homology HMM EM • Start with heuristic (e.g., ClustalW) • Maximize • Match states are residues aligned in most sequences • Amino acid frequencies observed in columns • Expectation • Realign all the sequences given model • Repeat until convergence • Problems: Local, not global optimization • Use procedures to check how it worked

  30. Model Comparison • Determining significance depends on comparing two models • Usually null model, H0, and test model, H1 • Models are nested if H0 is a subset of H1 • If not nested • AkaikeIinformation Criterion (AIC) [similar to empirical Bayes] or • Bayes Factor (BF) [but be careful] • Generating a null distribution of statistic • Z-factor, bootstrapping, , parametric bootstrapping, posterior predictive

  31. Z Test Method • Database of known negative controls • E.g., non-homologous (NH) sequences • Assume NH scores • i.e., you are modeling known NH sequence scores as a normal distribution • Set appropriate significance level for multiple comparisons (more below) • Problems • Is homology certain? • Is it the appropriate null model? • Normal distribution often not a good approximation • Parameter control hard: e.g., length distribution

  32. Bootstrapping and Parametric Models • Random sequence sampled from the same set of emission probability distributions • Same length is easy • Bootstrapping is re-sampling columns • Parametric uses estimated frequencies, may include variance, tree, etc. • More flexible, can have more complex null • Pseudocounts of global frequencies if data limit • Insertions relatively hard to model • What frequencies for insert states? Global?

  33. Homology HMM Resources • UCSC (Haussler) • SAM: align, secondary structure predictions, HMM parameters, etc. • WUSTL/Janelia (Eddy) • Pfam: database of pre-computed HMM alignments for various proteins • HMMer: program for building HMMs

  34. Increasing Asymmetry with Increasing Single Strandedness e.g., P ( A=> G) = c + t t = ( DssH * Slope ) + Intercept

  35. 2x Redundant Sites

  36. 4x Redundant Sites

  37. Beyond HMMs • Neural nets • Dynamic Bayesian nets • Factorial HMMs • Boltzmann Trees • Kalman filters • Hidden Markov random fields

  38. COI Functional Regions O2 + protons+ electrons = H2O + secondary proton pumping (=ATP) Water H (alt) Water H Electron Oxygen D H D K K
