Discrete Cosine Transform

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

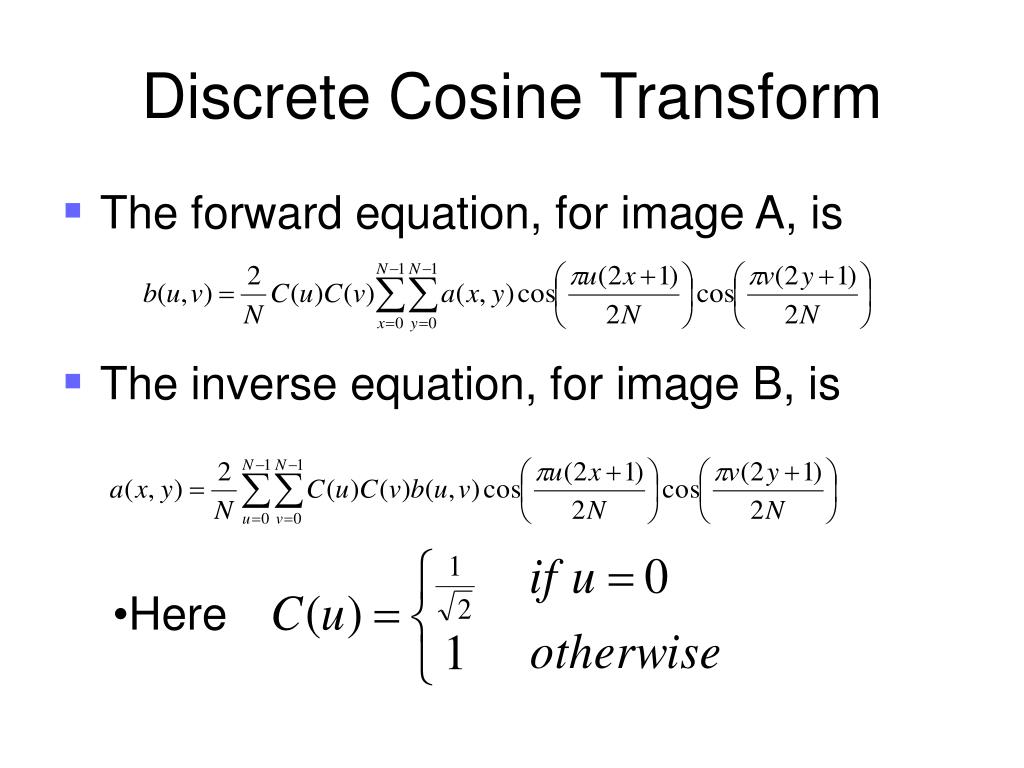

Discrete Cosine Transform • The forward equation, for image A, is • The inverse equation, for image B, is • Here

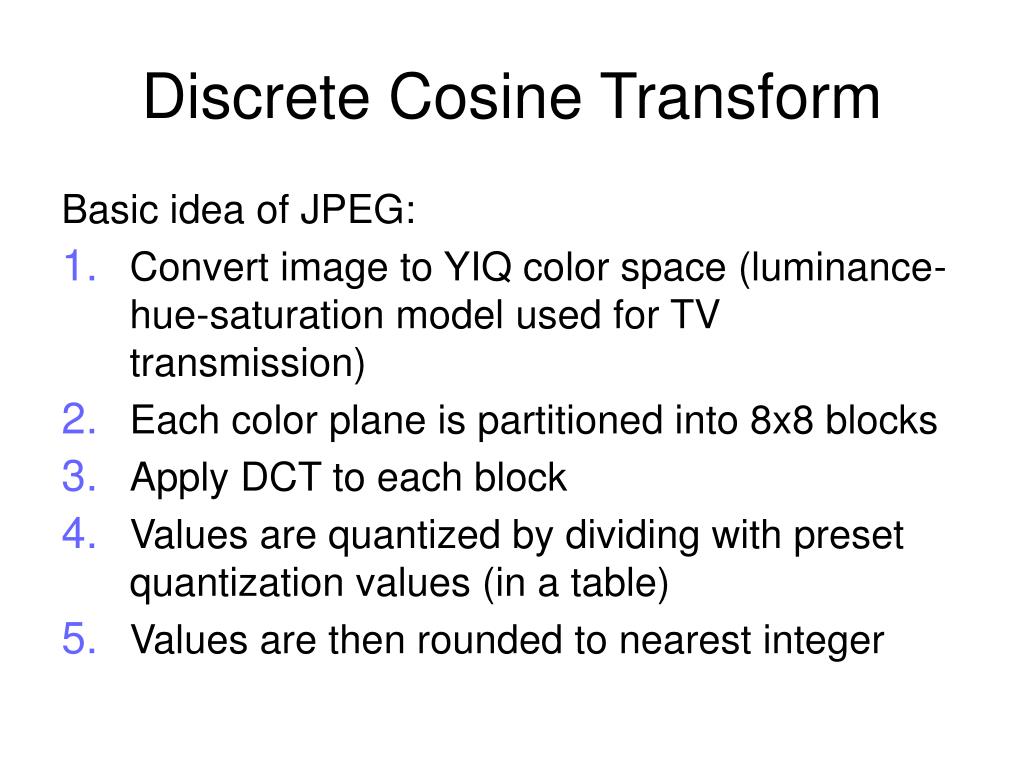

Discrete Cosine Transform Basic idea of JPEG: • Convert image to YIQ color space (luminance-hue-saturation model used for TV transmission) • Each color plane is partitioned into 8x8 blocks • Apply DCT to each block • Values are quantized by dividing with preset quantization values (in a table) • Values are then rounded to nearest integer
JPEG Compression Interface COMPRESSED IMAGE 8 X 8 BLOCK ENTROPY ENCODER DCT QUANTIZER (0,0) QUANTIZERTABLE
Basis function of DCT

The Discrete Cosine Transform (DCT)

Christopher Mitchell CDA 6938, Spring 2009. The Discrete Cosine Transform (DCT). The Discrete Cosine Transform. In the same family as the Fourier Transform Converts data to frequency domain. Represents data via summation of variable frequency cosine waves.
