  1. MDF Terminal Block & Plug type xDSL Splitter MAT-54 ; IDC MDF Terminal Block and Plug type xDSL Splitter Aug. 2011

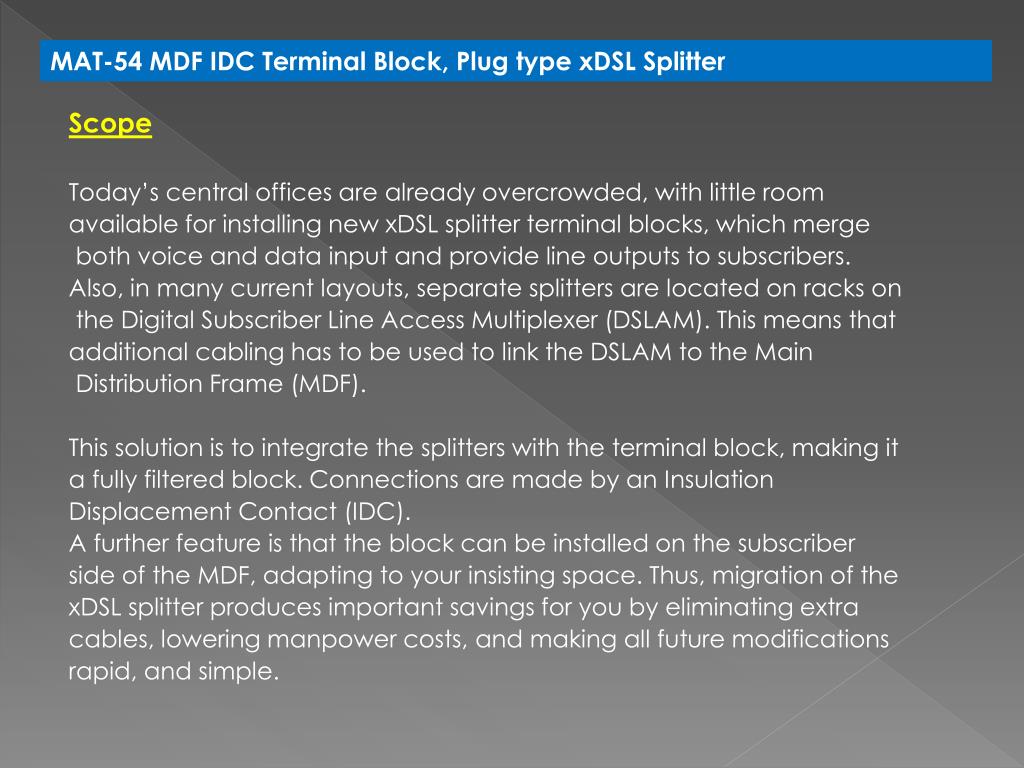

  2. MAT-54 MDF IDC Terminal Block, Plug type xDSL Splitter Scope Today’s central offices are already overcrowded, with little room available for installing new xDSL splitter terminal blocks, which merge both voice and data input and provide line outputs to subscribers. Also, in many current layouts, separate splitters are located on racks on the Digital Subscriber Line Access Multiplexer (DSLAM). This means that additional cabling has to be used to link the DSLAM to the Main Distribution Frame (MDF). This solution is to integrate the splitters with the terminal block, making it a fully filtered block. Connections are made by an Insulation Displacement Contact (IDC). A further feature is that the block can be installed on the subscriber side of the MDF, adapting to your insisting space. Thus, migration of the xDSL splitter produces important savings for you by eliminating extra cables, lowering manpower costs, and making all future modifications rapid, and simple.

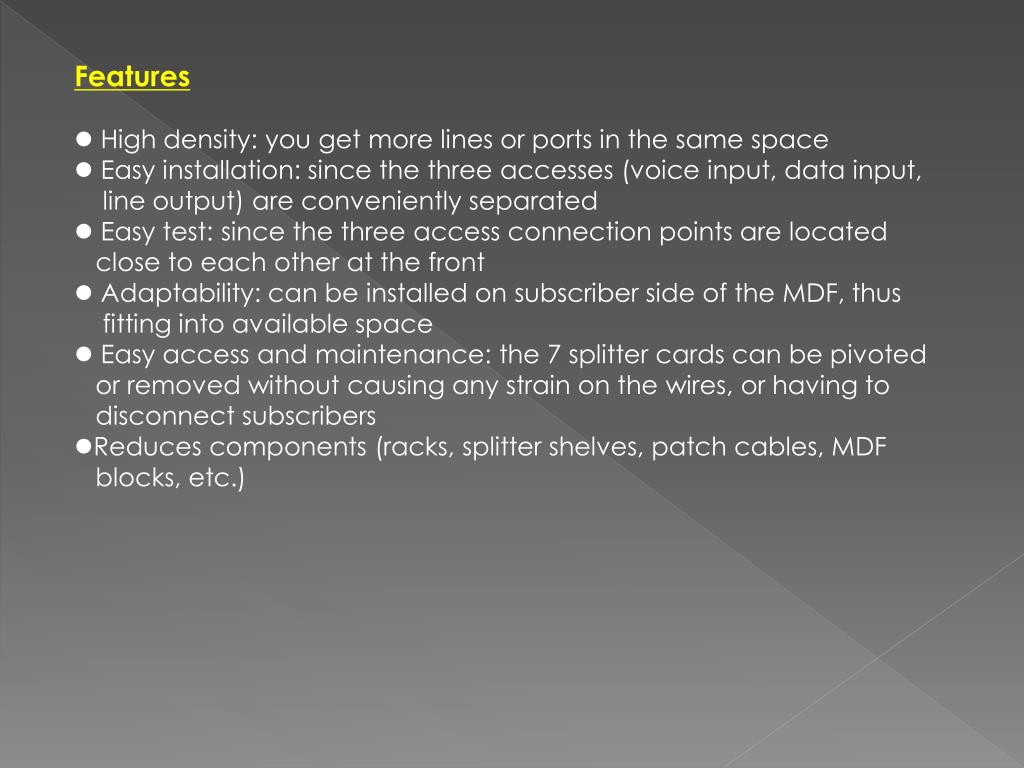

  3. Features • High density: you get more lines or ports in the same space • Easy installation: since the three accesses (voice input, data input, • line output) are conveniently separated • Easy test: since the three access connection points are located • close to each other at the front • Adaptability: can be installed on subscriber side of the MDF, thus • fitting into available space • Easy access and maintenance: the 7 splitter cards can be pivoted • or removed without causing any strain on the wires, or having to • disconnect subscribers • Reduces components (racks, splitter shelves, patch cables, MDF • blocks, etc.)

  4. Conventional Our Solution

  5. MAT-54 MDF IDC Terminal Block, Click here to see the brochure MDF IDC Terminal Block Accepting 54 Plug type POTS Splitter 1- Plug type POTS Splitter is installed

  6. MAT-54 MDF IDC Terminal Block

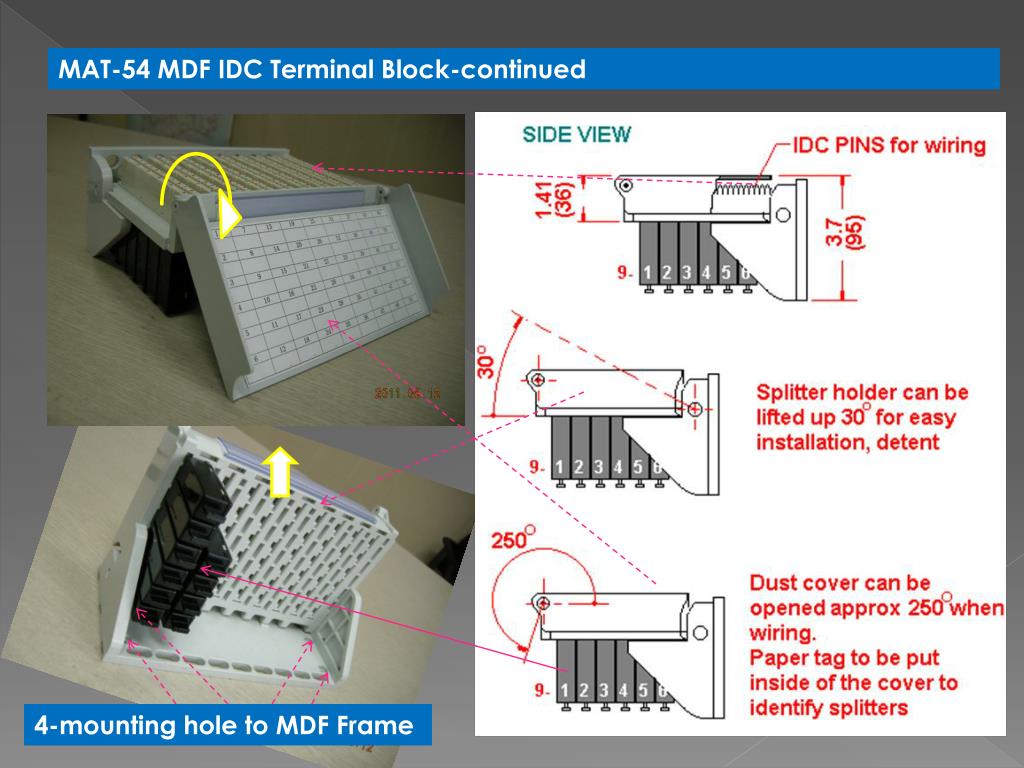

  7. MAT-54 MDF IDC Terminal Block-continued 4-mounting hole to MDF Frame

  8. MAT-54 MDF IDC Terminal Block-continued Actually installed MAT-54 Terminal Blocks

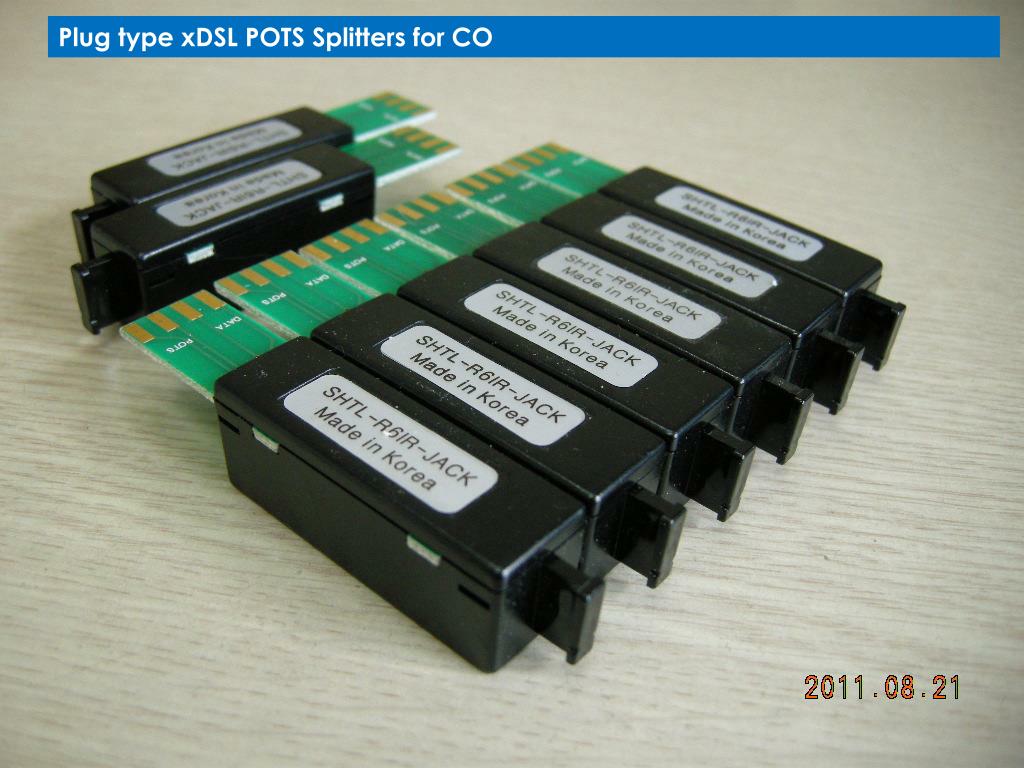

  9. Plug type xDSL POTS Splitters for CO

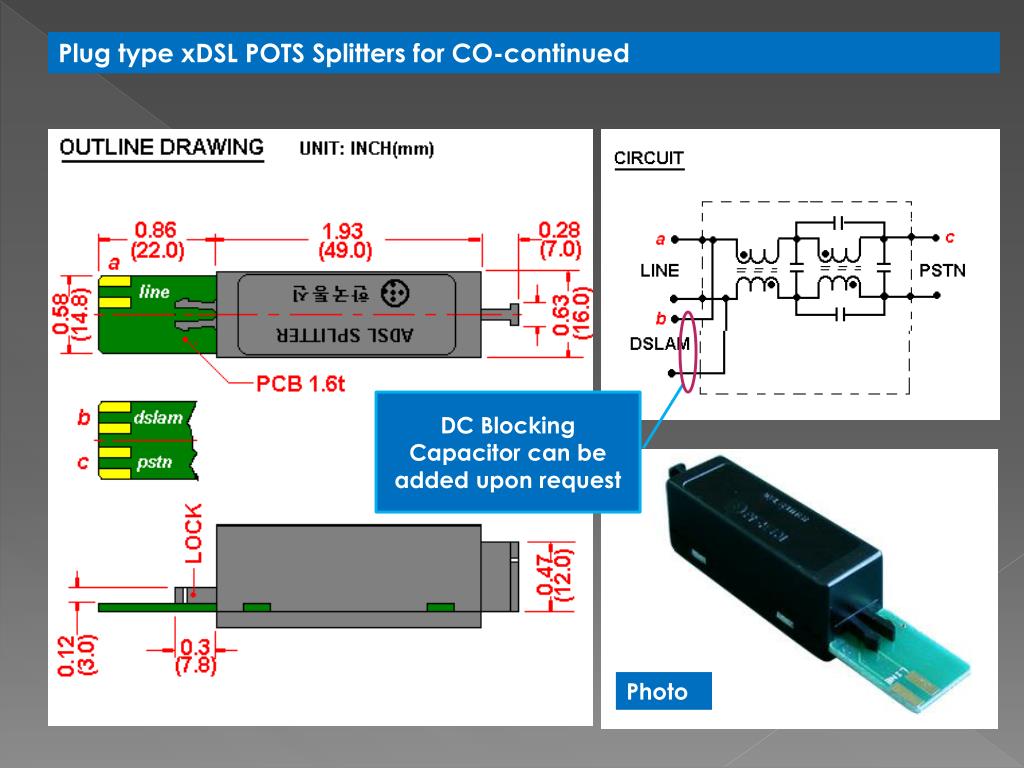

  10. Plug type xDSL POTS Splitters for CO-continued DC Blocking Capacitor can be added upon request Photo

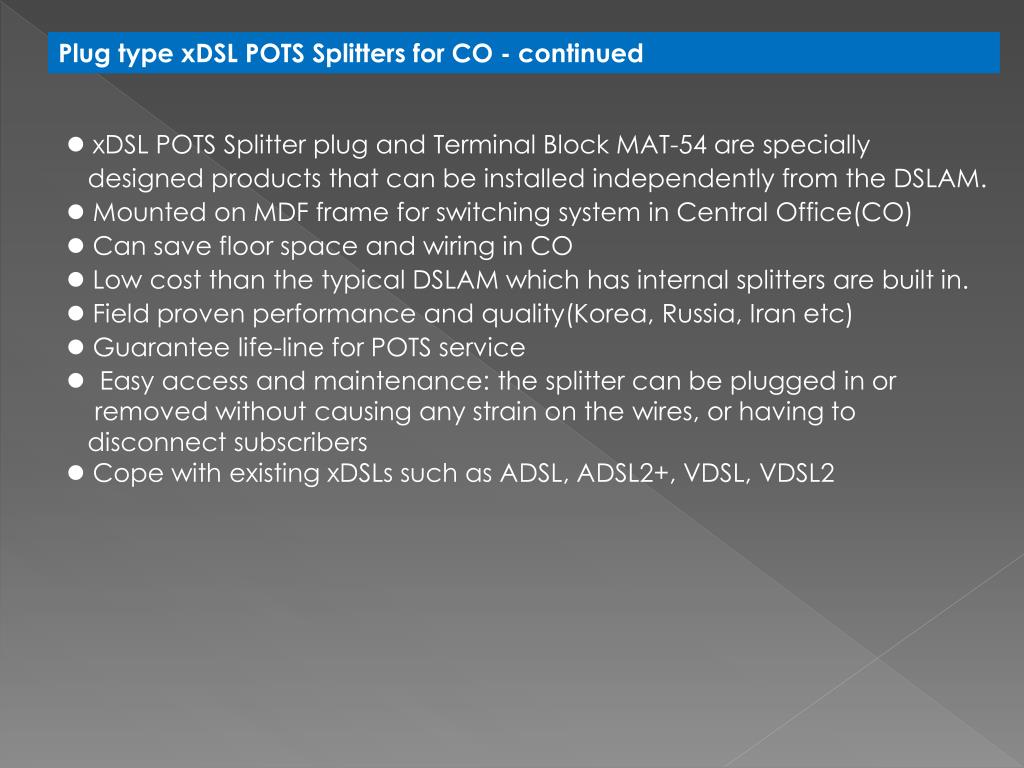

  11. Plug type xDSL POTS Splitters for CO - continued • xDSL POTS Splitter plug and Terminal Block MAT-54 are specially • designed products that can be installed independently from the DSLAM. • Mounted on MDF frame for switching system in Central Office(CO) • Can save floor space and wiring in CO • Low cost than the typical DSLAM which has internal splitters are built in. • Field proven performance and quality(Korea, Russia, Iran etc) • Guarantee life-line for POTS service • Easy access and maintenance: the splitter can be plugged in or • removed without causing any strain on the wires, or having to • disconnect subscribers • Cope with existing xDSLs such as ADSL, ADSL2+, VDSL, VDSL2

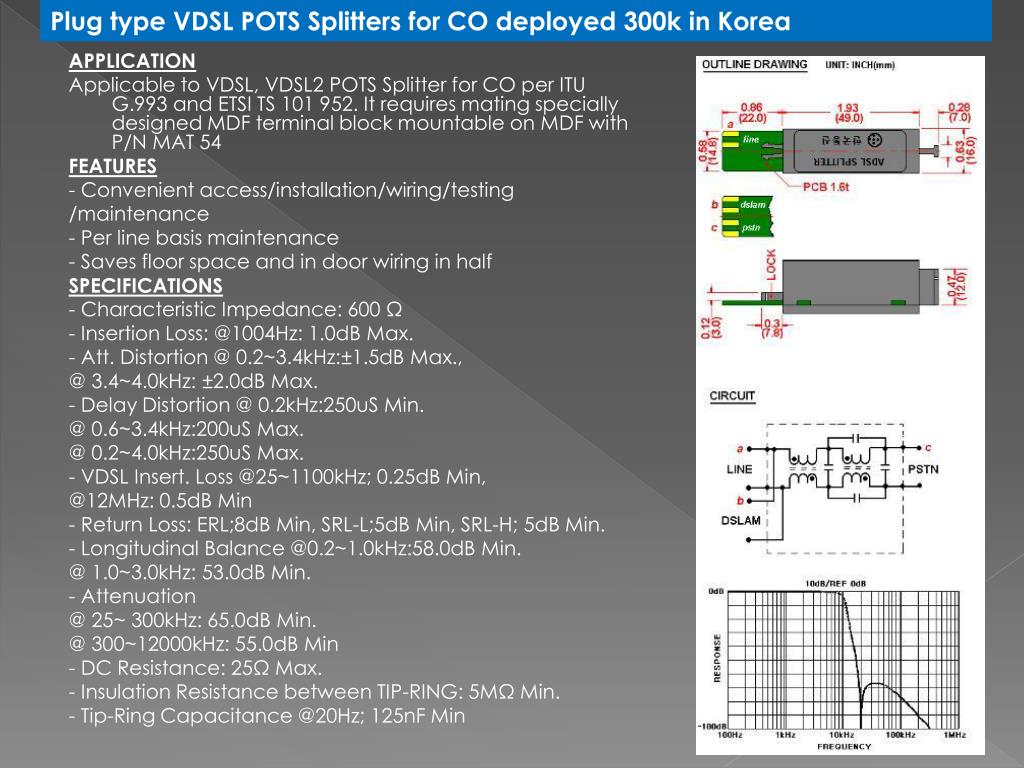

  12. Plug type VDSL POTS Splitters for CO deployed 300k in Korea APPLICATION Applicable to VDSL, VDSL2 POTS Splitter for CO per ITU G.993 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004Hz: 1.0dB Max. - Att. Distortion @ 0.2~3.4kHz:±1.5dB Max., @ 3.4~4.0kHz: ±2.0dB Max. - Delay Distortion @ 0.2kHz:250uS Min. @ 0.6~3.4kHz:200uS Max. @ 0.2~4.0kHz:250uS Max. - VDSL Insert. Loss @25~1100kHz; 0.25dB Min, @12MHz: 0.5dB Min - Return Loss: ERL;8dB Min, SRL-L;5dB Min, SRL-H; 5dB Min. - Longitudinal Balance @0.2~1.0kHz:58.0dB Min. @ 1.0~3.0kHz: 53.0dB Min. - Attenuation @ 25~ 300kHz: 65.0dB Min. @ 300~12000kHz: 55.0dB Min - DC Resistance: 25Ω Max. - Insulation Resistance between TIP-RING: 5MΩ Min. - Tip-Ring Capacitance @20Hz; 125nF Min

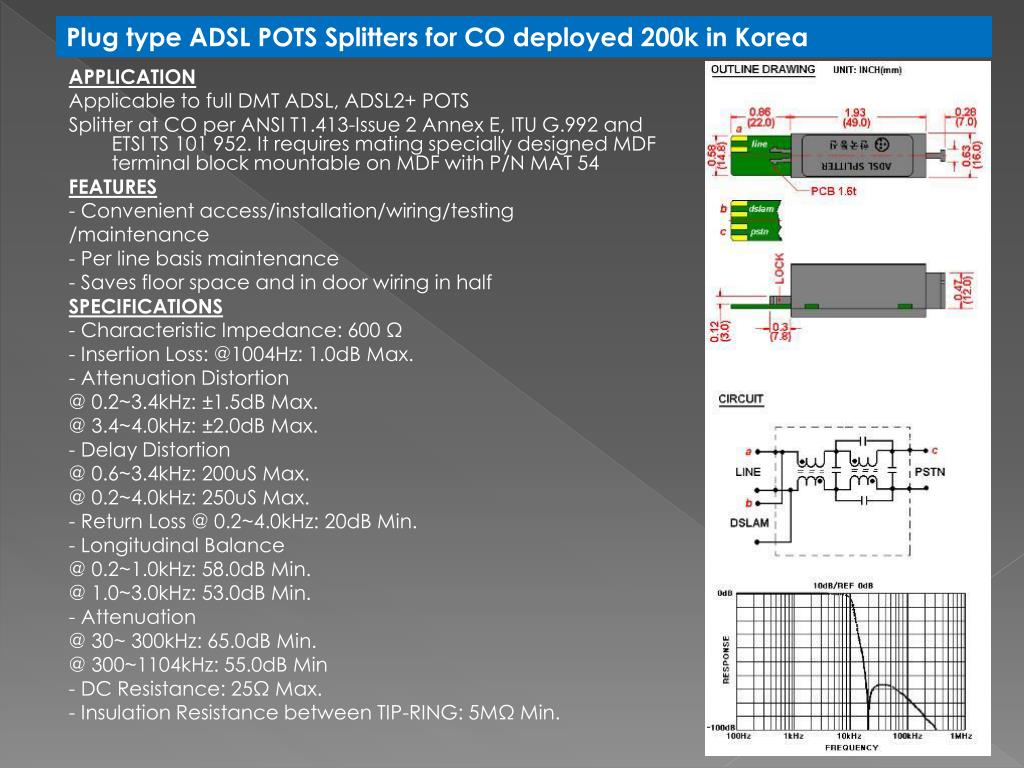

  13. Plug type ADSL POTS Splitters for CO deployed 200k in Korea APPLICATION Applicable to full DMT ADSL, ADSL2+ POTS Splitter at CO per ANSI T1.413-Issue 2 Annex E, ITU G.992 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004Hz: 1.0dB Max. - Attenuation Distortion @ 0.2~3.4kHz: ±1.5dB Max. @ 3.4~4.0kHz: ±2.0dB Max. - Delay Distortion @ 0.6~3.4kHz: 200uS Max. @ 0.2~4.0kHz: 250uS Max. - Return Loss @ 0.2~4.0kHz: 20dB Min. - Longitudinal Balance @ 0.2~1.0kHz: 58.0dB Min. @ 1.0~3.0kHz: 53.0dB Min. - Attenuation @ 30~ 300kHz: 65.0dB Min. @ 300~1104kHz: 55.0dB Min - DC Resistance: 25Ω Max. - Insulation Resistance between TIP-RING: 5MΩ Min.

  14. Plug type ADSL POTS Splitters for CO deployed 1.5M in Iran APPLICATION Applicable to full DMT ADSL, ADSL2+ POTS Splitter at CO per ANSI T1.413-Issue 2 Annex E, ITU G.992 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004Hz: 1.0dB Max. - Attenuation Distortion @ 0.2~3.4kHz: ±1.5dB Max. @ 3.4~4.0kHz: ±2.0dB Max. - Delay Distortion @ 0.6~3.4kHz: 200uS Max. @ 0.2~4.0kHz: 250uS Max. - Return Loss @ 0.2~4.0kHz: 20dB Min. - Longitudinal Balance @ 0.2~1.0kHz: 58.0dB Min. @ 1.0~3.0kHz: 53.0dB Min. - Attenuation @ 30~ 300kHz: 65.0dB Min. @ 300~1104kHz: 55.0dB Min - DC Resistance: 25Ω Max. - Insulation Resistance between TIP-RING: 5MΩ

  15. Plug type ADSL POTS Splitters for CO deployed 1M in Russia APPLICATION Applicable to full DMT ADSL, ADSL2+ POTS Splitter at CO per ANSI T1.413-Issue 2 Annex E, ITU G.992 and ETSI TS 101 952. It requires mating specially designed MDF terminal block mountable on MDF with P/N MAT 54 FEATURES - Convenient access/installation/wiring/testing /maintenance - Per line basis maintenance - Saves floor space and in door wiring in half SPECIFICATIONS - Characteristic Impedance: 600 Ω - Insertion Loss: @1004Hz: 1.0dB Max. - Attenuation Distortion @ 0.2~3.4kHz: ±1.5dB Max. @ 3.4~4.0kHz: ±2.0dB Max. - Delay Distortion @ 0.6~3.4kHz: 200uS Max. @ 0.2~4.0kHz: 250uS Max. - Return Loss @ 0.2~4.0kHz: 20dB Min. - Longitudinal Balance @ 0.2~1.0kHz: 58.0dB Min. @ 1.0~3.0kHz: 53.0dB Min. - Attenuation @ 30~ 300kHz: 65.0dB Min. @ 300~@2.2MHz: 55.0dB Min - DC Resistance: 50Ω Max. - Insulation Resistance between TIP-RING: 5MΩ

  16. MDF terminal block & Plug type xDSL POTS Splitters for CO Further study/development are going on to for higher density !!! Thank You
