Aperture Enclosure Assembly

This guide provides detailed assembly instructions for the Wyman-Gordon Aperture Enclosure. Follow these steps to ensure proper installation: Step 1: Insert the first O-Ring to create a seal. Step 2: Carefully insert the glass into the enclosure. Step 3: Place the final O-Ring to secure the glass. Step 4: Attach the enclosure to the laser using two ¼-20-3/4” bolts. Completing these steps will ensure a functional and secure assembly ready for operation.

vienna
Télécharger la présentation

Aperture Enclosure Assembly

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Aperture Enclosure Assembly Wyman Gordon Forging LocatorOriginal Revision: 2/14/2013

  2. Aperture Enclosure Full Assembly

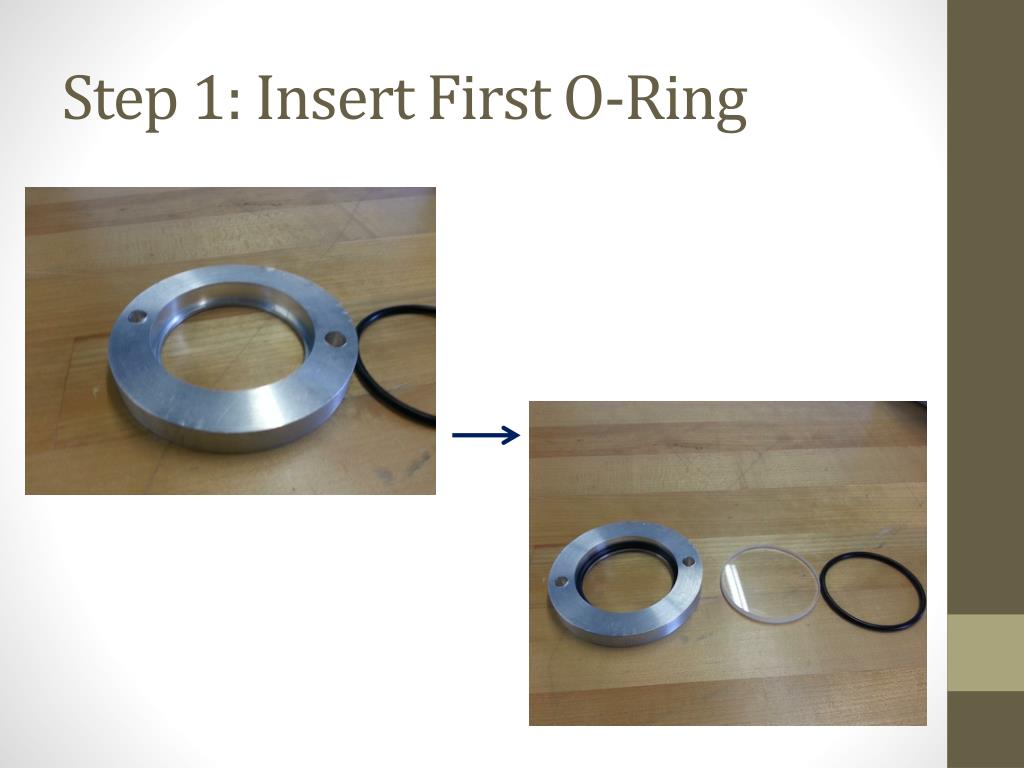

  3. Step 1: Insert First O-Ring

  4. Step 2: Insert Glass

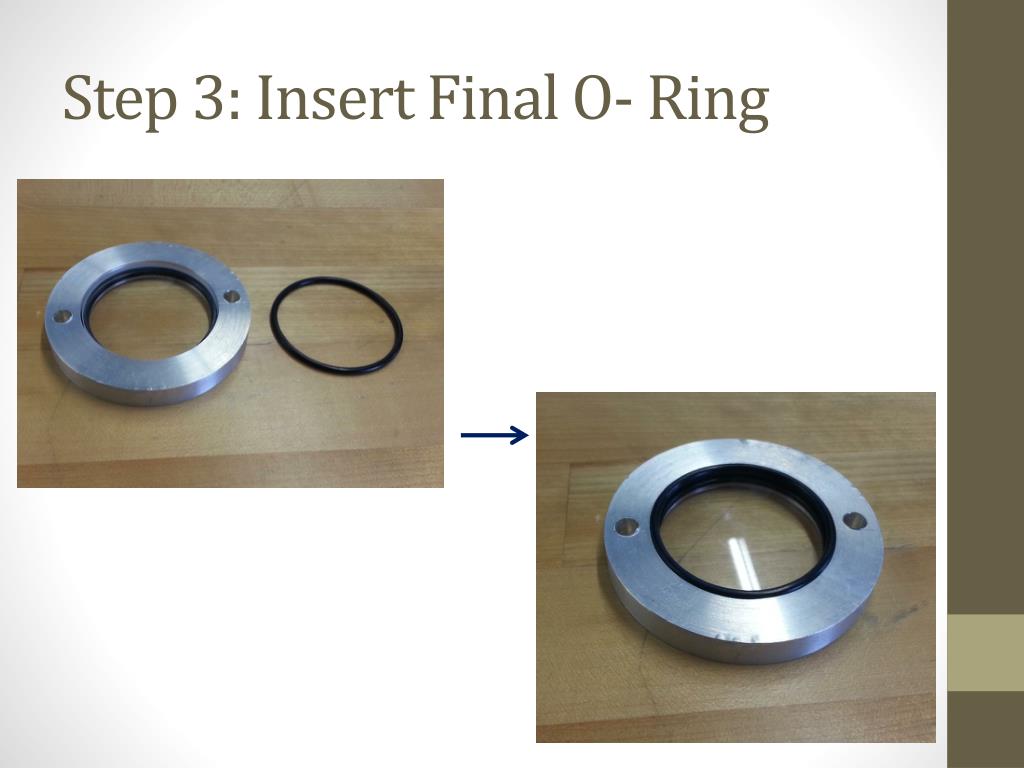

  5. Step 3: Insert Final O- Ring

  6. Step 4: Attach to Laser Enclosure Attach the Glass Enclosure to the Laser Enclosure via (2) ¼-20-3/4” bolts
