  1. COMPASS Computerized Analysis and Storage Server Iain Last

  2. Outline • Why? • Hardware • Linux Device Drivers • Linux Installation and Limits • Benchmarking Tests • Results • Future Iain Last, University Of Liverpool

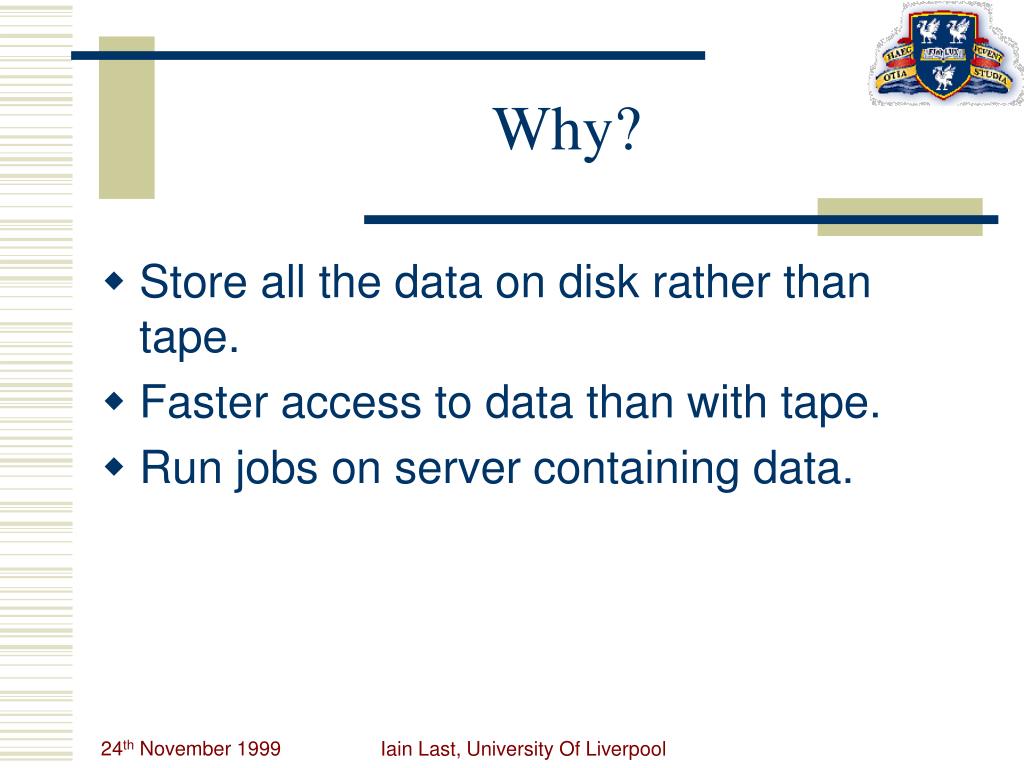

  3. Why? • Store all the data on disk rather than tape. • Faster access to data than with tape. • Run jobs on server containing data. Iain Last, University Of Liverpool

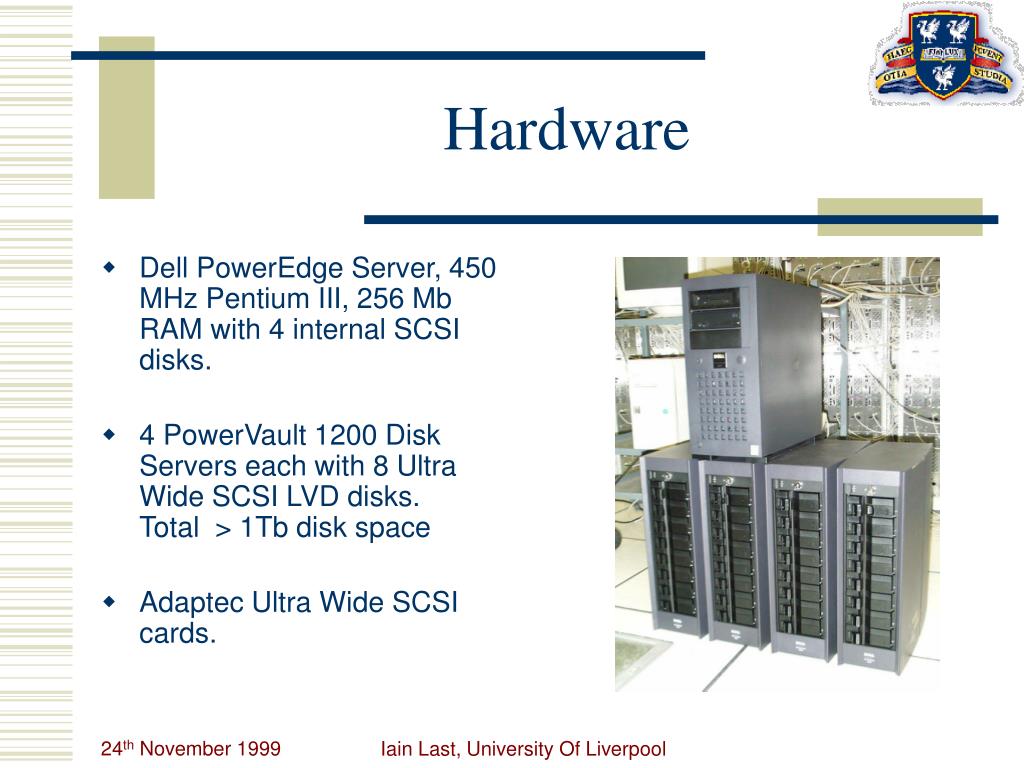

  4. Hardware • Dell PowerEdge Server, 450 MHz Pentium III, 256 Mb RAM with 4 internal SCSI disks. • 4 PowerVault 1200 Disk Servers each with 8 Ultra Wide SCSI LVD disks.Total > 1Tb disk space • Adaptec Ultra Wide SCSI cards. Iain Last, University Of Liverpool

  5. Linux Devices Drivers • Linux Device Drivers: • Devices accessed through special files in /dev directory specifying block or character device and major / minor number pairs. • Major number refers to a device driver e.g. 8 is a SCSI disk (see /usr/src/linux/include/linux/major.h) • For disks, minor number refers to disk / partition on disk e.g. /dev/sda major:8 minor:0 first SCSI disk found on system /dev/sda1 major:8 minor:1 first partition /dev/sda15 major:8 minor:15 last partition on first disk /dev/sdb major:8 minor:16 second SCSI disk found on system • minor numbers are 8-bit i.e. only have values in range 0-255 only 16 disks per disk major number. Iain Last, University Of Liverpool

  6. Linux Installation & Limits • RedHat Linux 5.2: Kernel 2.0.x • Used at Liverpool and CERN – problem: only one SCSI major number is defined – maximum of 16 SCSI disks allowed. • Kernel “hacking” necessary to register new SCSI major number with system. • RedHat Linux 6.0: Kernel 2.2.x • Defines 8 SCSI major numbers : 8, 65-71- max. 128 SCSI disks. • Have to create some special files in /dev by hand – relatively trivial with mknod • Physical limit of only 4 PCI slots for SCSI cards on motherboard Iain Last, University Of Liverpool

  7. Benchmarking Tests • Use CERN sequential IO tests for read / write / calibration. • Calculates average write rate over previous 10 writes • Calibration: Comment out write statement and run write tests again. • Read test averages file read for > 10Mb data over previous 10 reads. • Modified version of above calculates averages over the whole file. Iain Last, University Of Liverpool

  8. Results: Writing I Iain Last, University Of Liverpool

  9. Results: Writing II Iain Last, University Of Liverpool

  10. Results: Reading Iain Last, University Of Liverpool

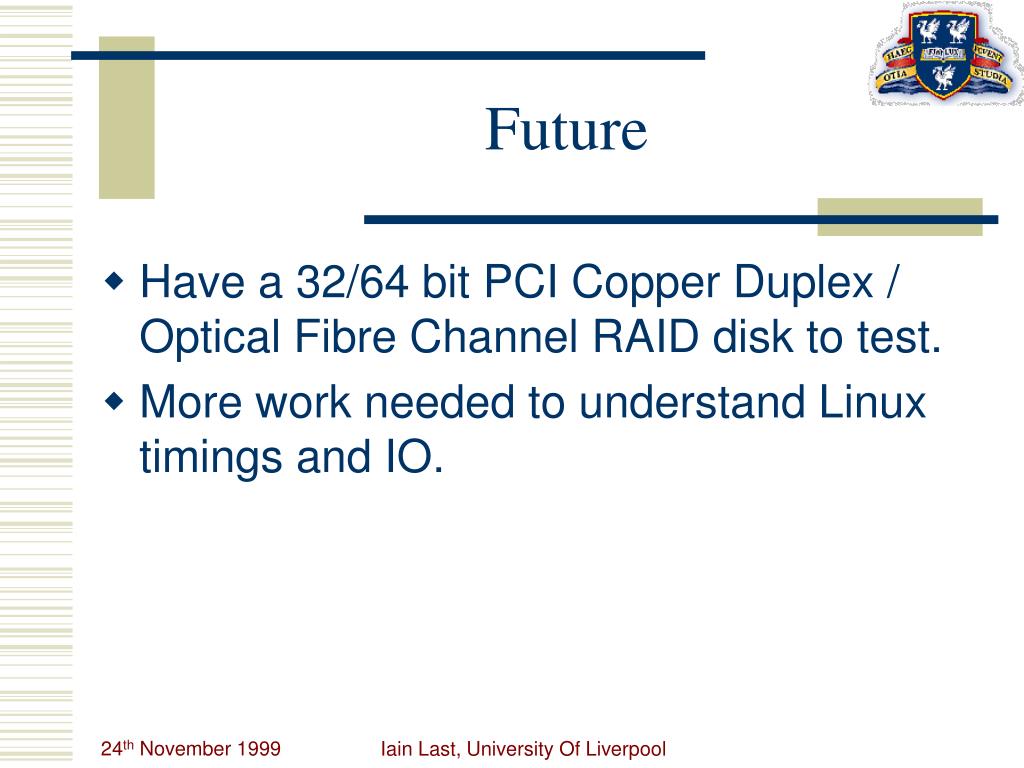

  11. Future • Have a 32/64 bit PCI Copper Duplex / Optical Fibre Channel RAID disk to test. • More work needed to understand Linux timings and IO. Iain Last, University Of Liverpool
