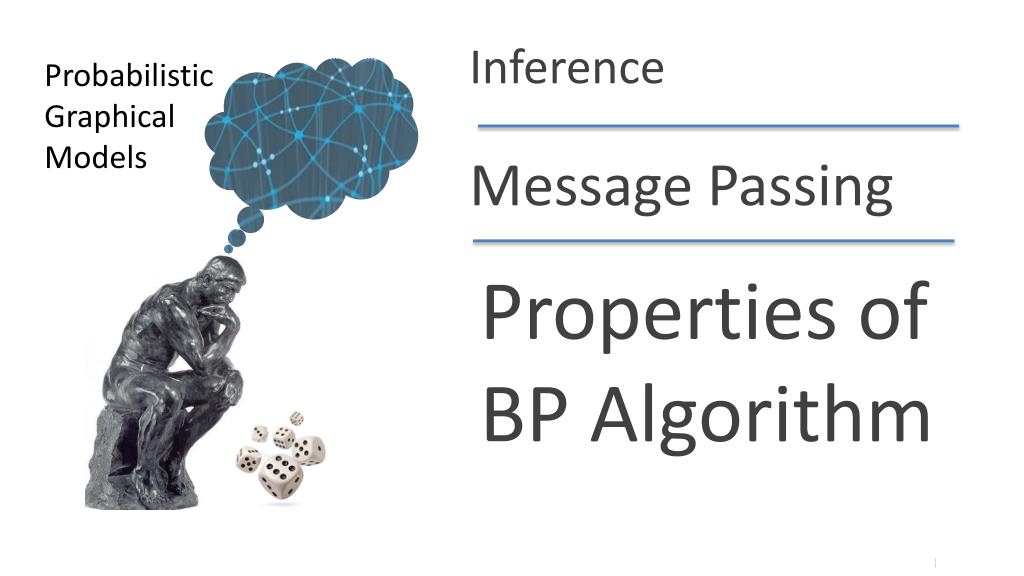

  1. Inference Probabilistic Graphical Models Message Passing Properties of BP Algorithm

  2. Calibration • Cluster beliefs: • A cluster graph is calibrated if every pair of adjacent clusters Ci,Cjagree on their sepsetSi,j 1: A,B 4: A,D A B D 2: B,C 3: C,D C

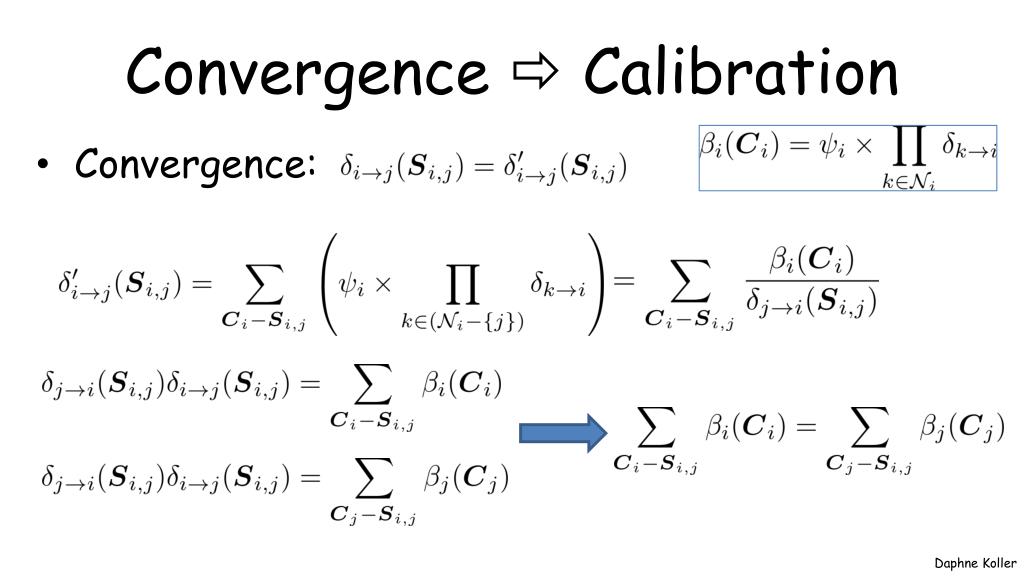

  3. Convergence  Calibration • Convergence:

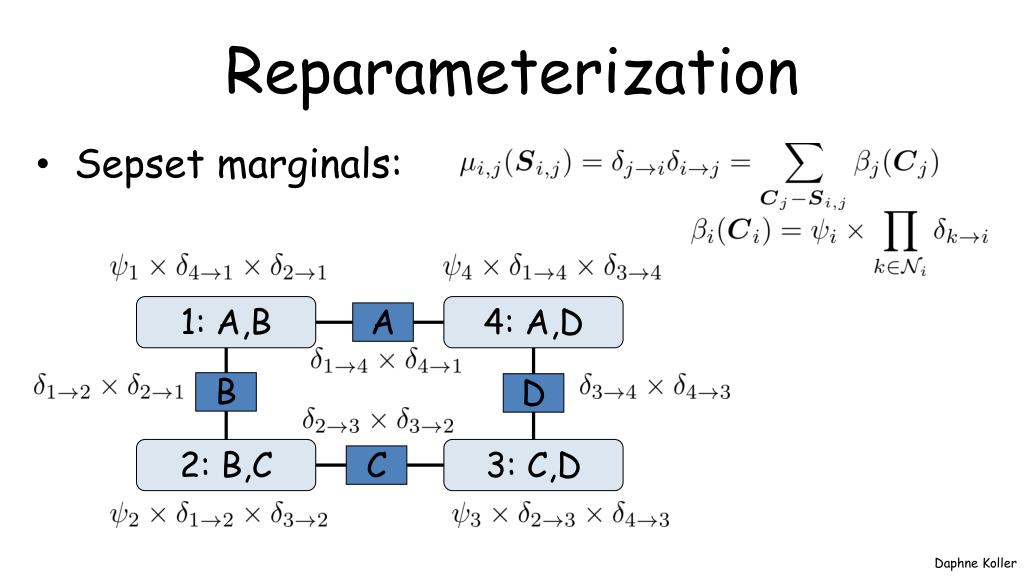

  4. Reparameterization • Sepsetmarginals: 1: A,B 4: A,D A B D 2: B,C 3: C,D C

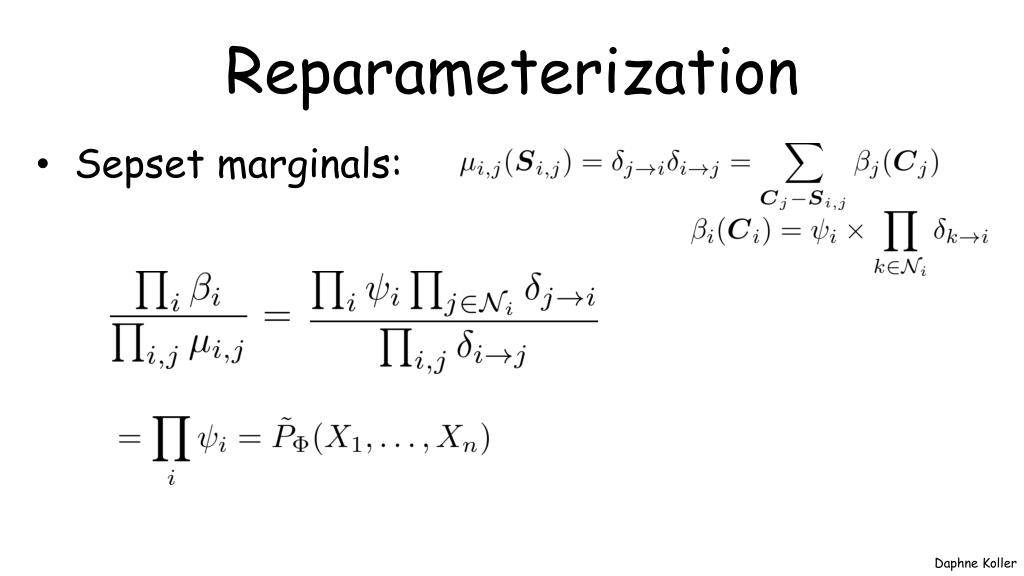

  5. Reparameterization • Sepsetmarginals:

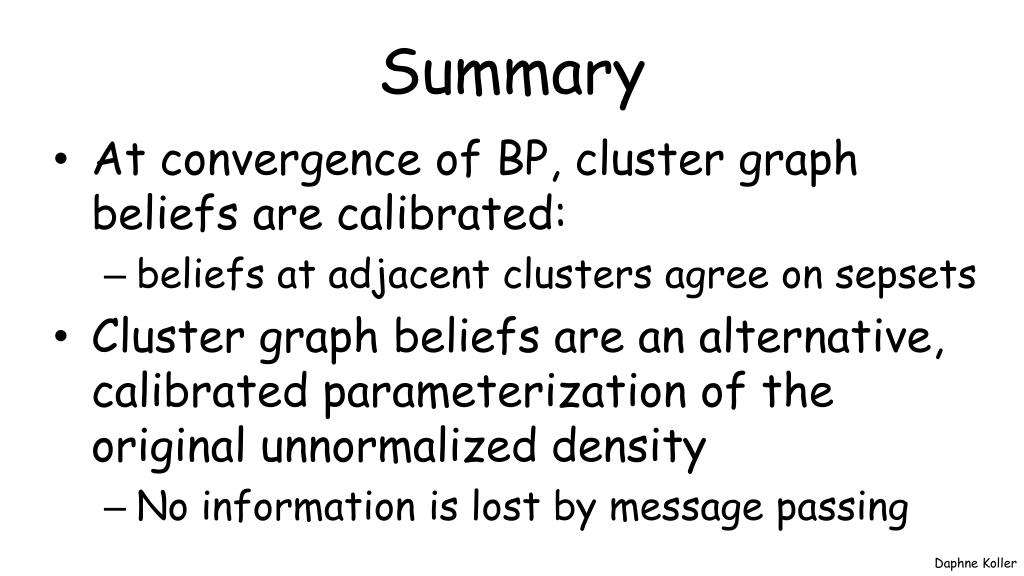

  6. Summary • At convergence of BP, cluster graph beliefs are calibrated: • beliefs at adjacent clusters agree on sepsets • Cluster graph beliefs are an alternative, calibrated parameterization of the original unnormalized density • No information is lost by message passing

  7. END END END
