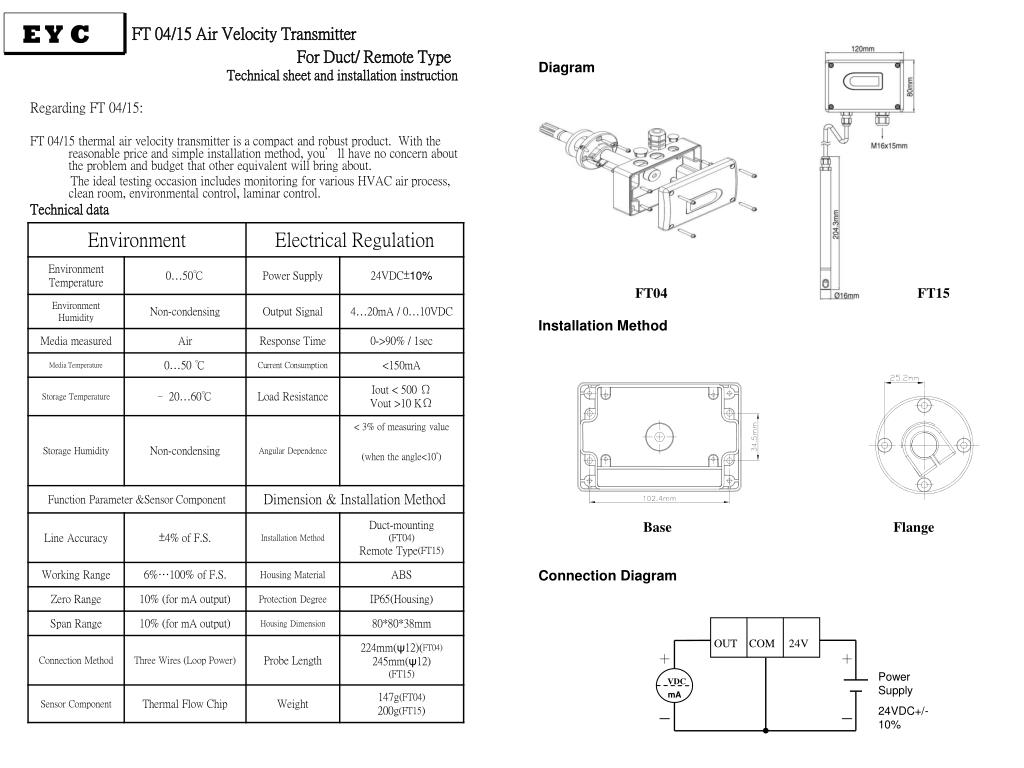

  1. OUT COM 24V ＋ ＋ Power Supply 24VDC+/-10% VDC mA － － E Y C Diagram FT 04/15 Air Velocity Transmitter For Duct/ Remote Type Technical sheet and installation instruction Regarding FT 04/15: FT 04/15 thermal air velocity transmitter is a compact and robust product. With the reasonable price and simple installation method, you’ll have no concern about the problem and budget that other equivalent will bring about. The ideal testing occasion includes monitoring for various HVAC air process, clean room, environmental control, laminar control. Technical data FT04 FT15 Installation Method Base Flange Connection Diagram
