LC vertex detector technology options

1. LC vertex detector technology options • Chris Damerell • The transition from microstrips to pixels, for vertex detectors • Detector requirements • Detector architectures • CCDs • Monolithic APS (including FAPS) • DEPFET • Hybrid APS • SOI-inspired • RF pickup suppression • Correlated double sampling • The route to convergence • Synergy with other science C Damerell LC technologies Cornell U

2. Since late’70s, successful vertex detectors (for heavy flavour tagging) were mainly based on silicon microstrips • Interesting paradigm shift is under way. Within 5 years, will mostly be based on silicon pixels • Why is this? • highest performance b and charm tagging in dense track environments has come from a series of pixel-based detectors, NA32 in ’80s, SLD in ’90s • extreme radiation environments in the inferno close to IP at future hadron colliders • high track density in core of jets at future e+e- colliders • The disparate requirements at hadron and e+e- colliders have very different solutions, and are supported by contrasting R&D programmes • The transition to pixels implies valuable synergies for other areas of science, where images taken with IR, visible, UV, X-rays benefit from the technologies being developed for HEP vertex detectors, and vice versa C Damerell LC technologies Cornell U

3. Of course, it will definitely be silicon pixels at the LC, or will it? C Damerell LC technologies Cornell U

4. Detector requirements • Most were mentioned in LCFI talk: concentric barrels, thinnest possible layers, micron-level precision and stability • Budget of inactive material (eg in endcaps) is also extremely important • With ~109 channels, suppression of noise and pickup may be decisive C Damerell LC technologies Cornell U

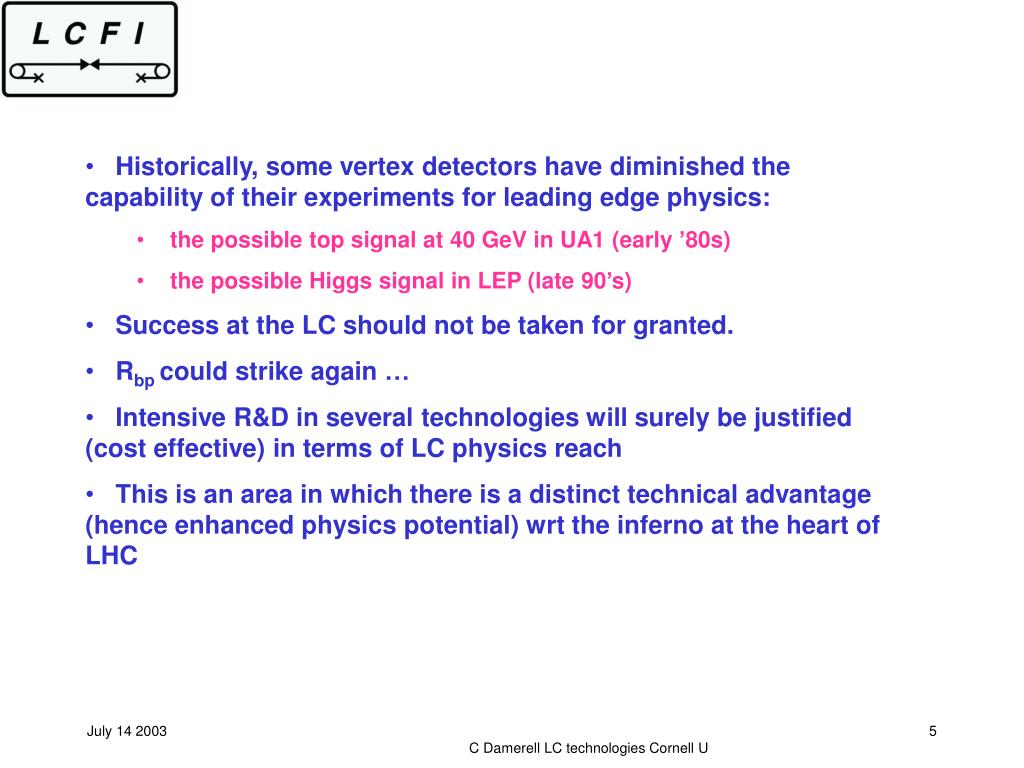

5. Historically, some vertex detectors have diminished the capability of their experiments for leading edge physics: • the possible top signal at 40 GeV in UA1 (early ’80s) • the possible Higgs signal in LEP (late 90’s) • Success at the LC should not be taken for granted. • Rbp could strike again … • Intensive R&D in several technologies will surely be justified (cost effective) in terms of LC physics reach • This is an area in which there is a distinct technical advantage (hence enhanced physics potential) wrt the inferno at the heart of LHC C Damerell LC technologies Cornell U

6. Detector architectures C Damerell LC technologies Cornell U

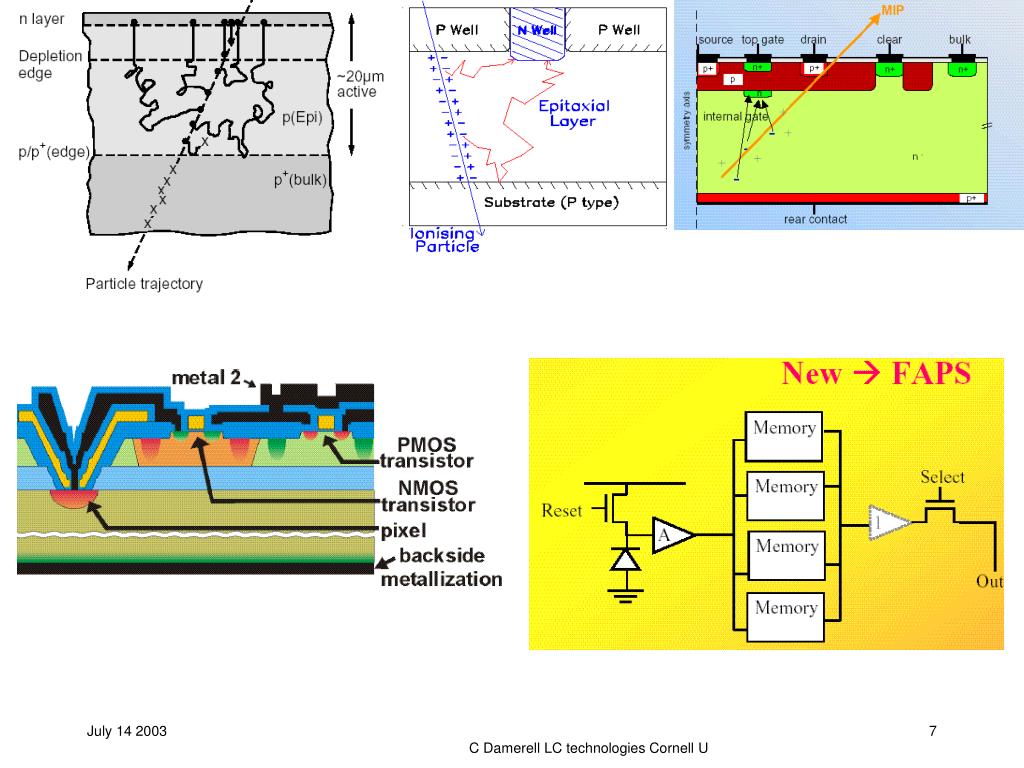

7. C Damerell LC technologies Cornell U

8. MAPS • ‘Standard CMOS process’ so signal charge is collected from undepleted bulk or epitaxial layer • However this isn’t obligatory – early S Parker developments with 300 µm fully depleted devices were highly successful • Early results have been based on few mm2 devices and minimal in-pixel logic • Recently, using 0.35 µm CMOS, increasing functionality is being implemented at the periphery of the chip by the Strasbourg group • Flexible active pixel idea (Renato Turchetta at RAL) could lead the way to a TESLA-compatible architecture C Damerell LC technologies Cornell U

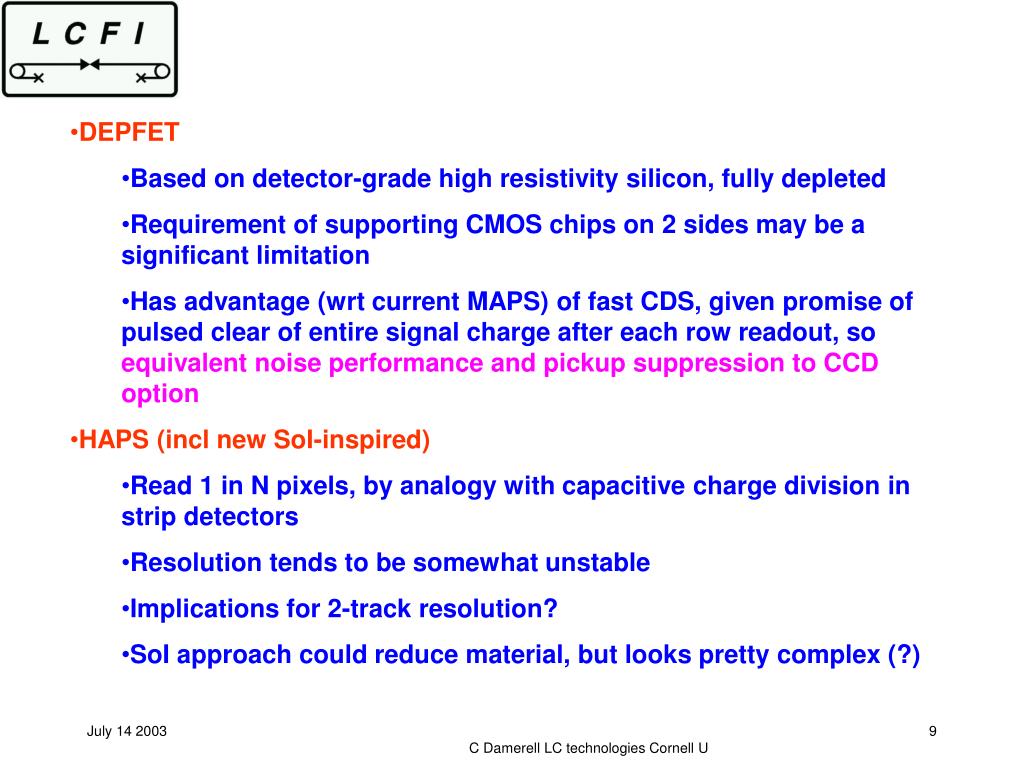

9. DEPFET • Based on detector-grade high resistivity silicon, fully depleted • Requirement of supporting CMOS chips on 2 sides may be a significant limitation • Has advantage (wrt current MAPS) of fast CDS, given promise of pulsed clear of entire signal charge after each row readout, so equivalent noise performance and pickup suppression to CCD option • HAPS (incl new SoI-inspired) • Read 1 in N pixels, by analogy with capacitive charge division in strip detectors • Resolution tends to be somewhat unstable • Implications for 2-track resolution? • SoI approach could reduce material, but looks pretty complex (?) C Damerell LC technologies Cornell U

10. MIMOSA-5 Strasbourg group C Damerell LC technologies Cornell U

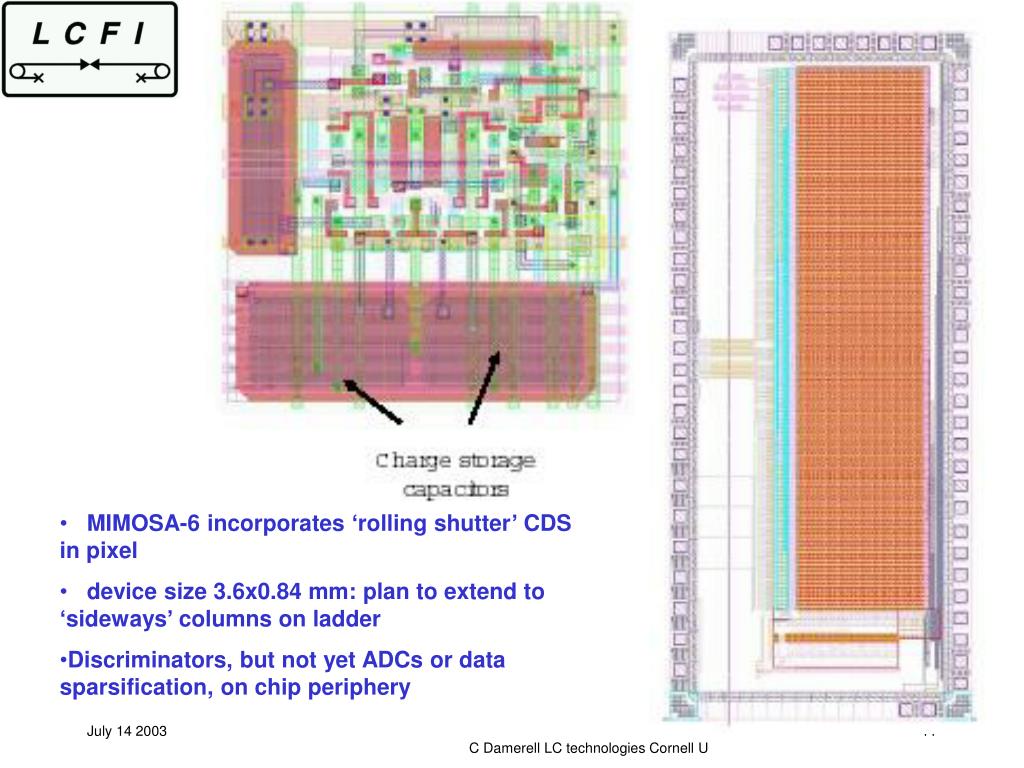

11. MIMOSA-6 incorporates ‘rolling shutter’ CDS in pixel • device size 3.6x0.84 mm: plan to extend to ‘sideways’ columns on ladder • Discriminators, but not yet ADCs or data sparsification, on chip periphery C Damerell LC technologies Cornell U

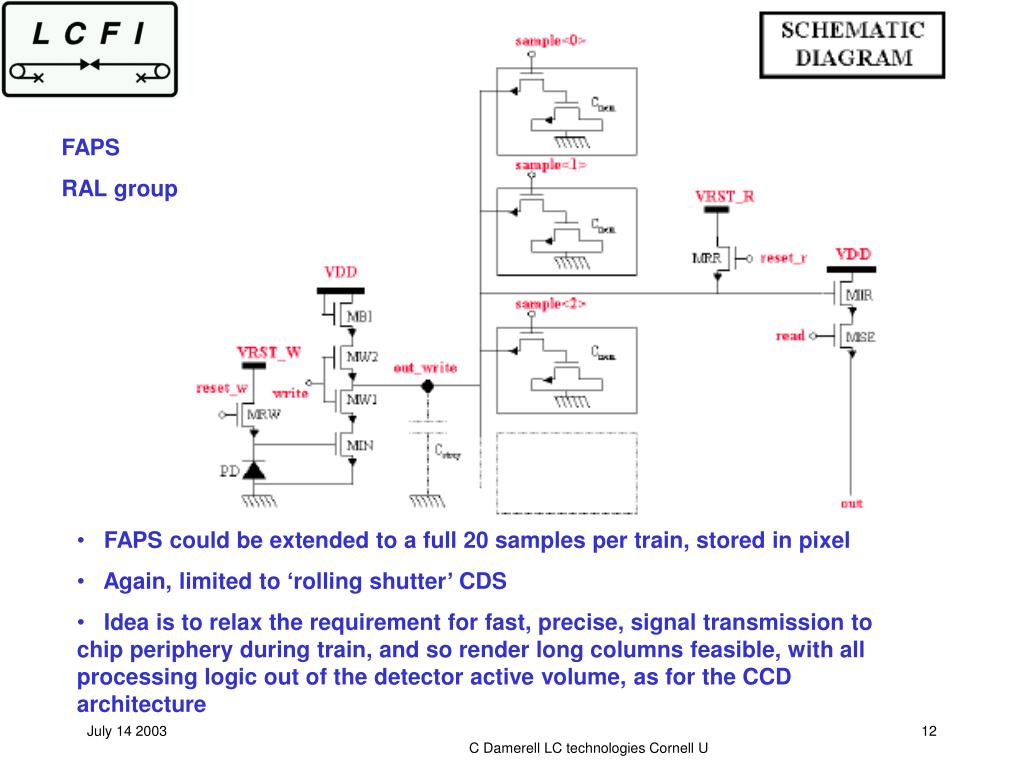

12. FAPS RAL group • FAPS could be extended to a full 20 samples per train, stored in pixel • Again, limited to ‘rolling shutter’ CDS • Idea is to relax the requirement for fast, precise, signal transmission to chip periphery during train, and so render long columns feasible, with all processing logic out of the detector active volume, as for the CCD architecture C Damerell LC technologies Cornell U

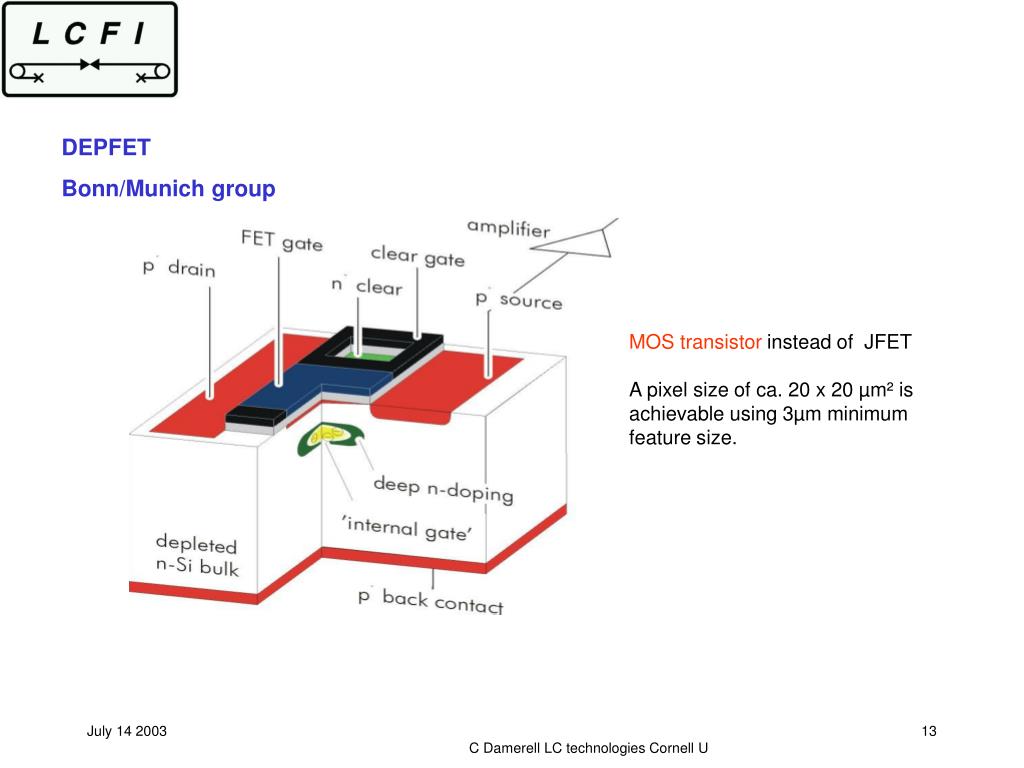

13. DEPFET Bonn/Munich group MOS transistor instead of JFET A pixel size of ca. 20 x 20 µm² is achievable using 3µm minimum feature size. C Damerell LC technologies Cornell U

14. matrix is read out row-wise first thinned samples: • thin detector-area • down to 50µm • frame for mechanical • stability carries readout- • and steering-chips [L.Andricek, MPI Munich] C Damerell LC technologies Cornell U

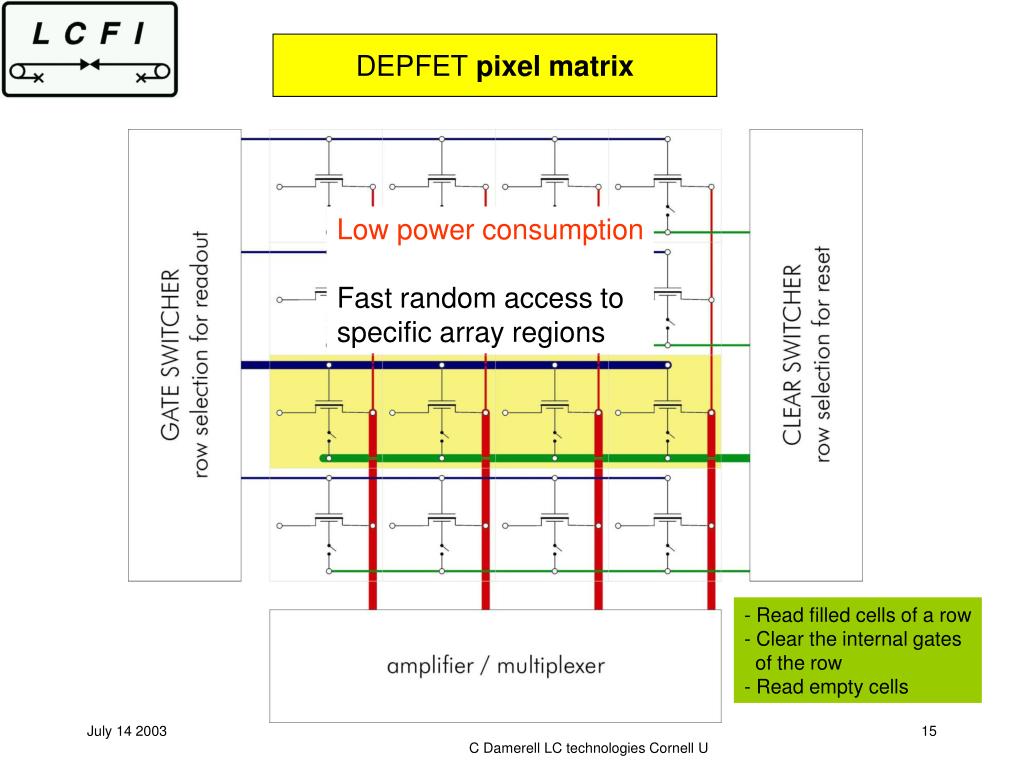

15. DEPFET pixel matrix Low power consumption Fast random access to specific array regions • Read filled cells of a row • Clear the internal gates • of the row • - Read empty cells C Damerell LC technologies Cornell U

16. Polyresistor Interleaved pixel Readout pixel readout pitch = n x pixel pitch Small enough for an effective sampling Large enough to house the VLSI front-end cell p + n Hybrid Pixel Detector with Interleaved Pixels HAPS Insubria/Krakow group Charge carriers generated underneath one ofthe interleaved pixel cells induce a signal on the capacitively coupled read-out pixels, leading to a spatial accuracy improvement by a proper signal interpolation. C Damerell LC technologies Cornell U

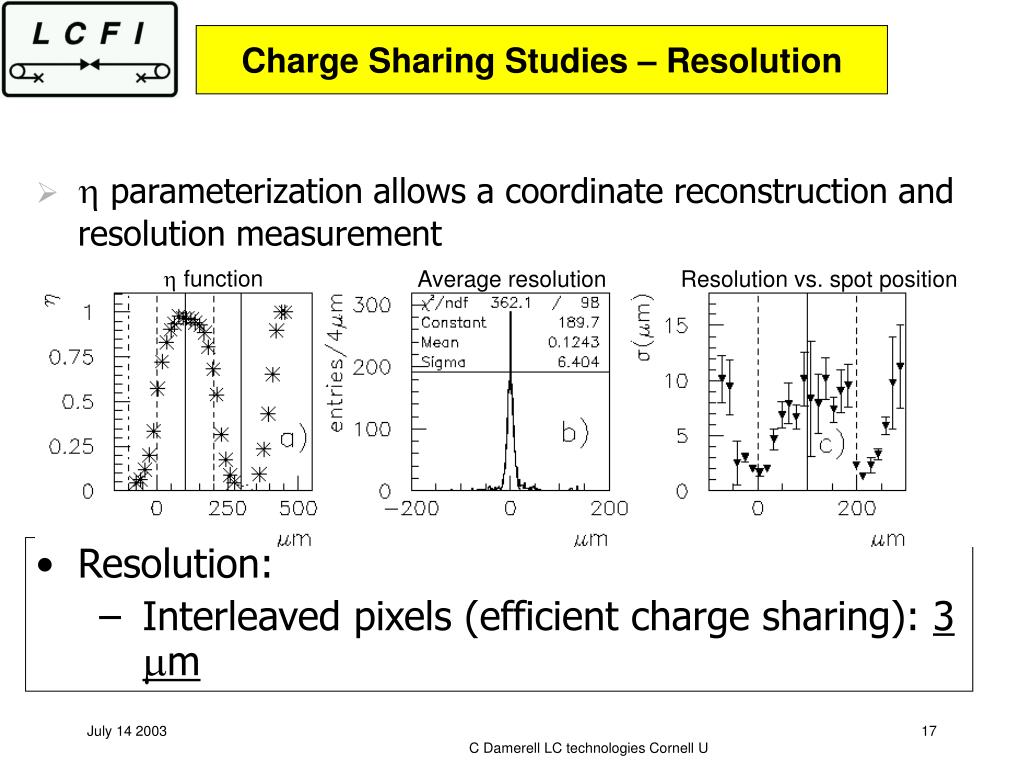

17. Resolution: Interleaved pixels (efficient charge sharing): 3 m  function Average resolution Resolution vs. spot position Charge Sharing Studies – Resolution • parameterization allows a coordinate reconstruction and resolution measurement C Damerell LC technologies Cornell U

18. Detector handlable wafer High resistivity 300 m thick Electronics active layer Low resistivity 1.5 m thick Readout pixels (min charge sharing): 10 m SOI Imager – Main Concept Insubria/Krakow group Detector:conventional p+-n, DC-coupled Electronics:preliminary solution – conventional bulk MOS technology on the thick SOI substrate C Damerell LC technologies Cornell U

19. RF pickup suppression • Beam-associated RF radiation penetrating the beam-pipe (even 0.25 mm Be) is presumably negligible (provided it isn’t CF as tried in UA1) • However, flanges, BPM cables, etc can permit RF radiation to leak out • SLD experience: • analogue signals stored securely in CCD buried channel • Digital logic (PLL in optical links) was disrupted – fortunately could be restored within some ms of end of bunch train) • NLC/JLC: • could envisage similar settling/restoration before readout • TESLA: • need to read detector repeatedly during train, to internal storage of sparsified data • each internal frame readout spans ~150 BX, so electronics is hit repeatedly by whatever RF is present • For SLD VTX, this would have been fatal • As part of the verification procedure of any prototype ladder, suggest testing in a final focus lab where machine bunches are simulated by current pulses down wires in the ‘beam-pipe’, and all other FF equipment is in and running – needed as part of the GAN C Damerell LC technologies Cornell U

20. Correlated double sampling? • CDS is the term invented circa 1972 for the form of pedestal subtraction used to suppress reset noise in CCD front-end circuits • Simplest CDS involves: • Reset***measure V-out***transfer signal charge***re-measure V-out • Used to reduce the system noise from tens of e- to ~1 e- by suppressing the fluctuations in post-reset V-out • DEPFET shares robust CDS capability with CCD, in LC application: • read pedestal+signal***reset – ie remove signal Q***read pedestal alone • However, MAPS CDS involves subtraction over full frame period of 50 ms or whatever • could in principle be resolved by incorporating 1-pixel CCD, or DEPFET structure, within the CMOS pixel • CDS with Dt = 50 ms? • SLD was OK in inter-train period with 200 ms CDS sampling period • might get away with it at NLC, after some settling time • might not work at TESLA due to RF activity within train C Damerell LC technologies Cornell U

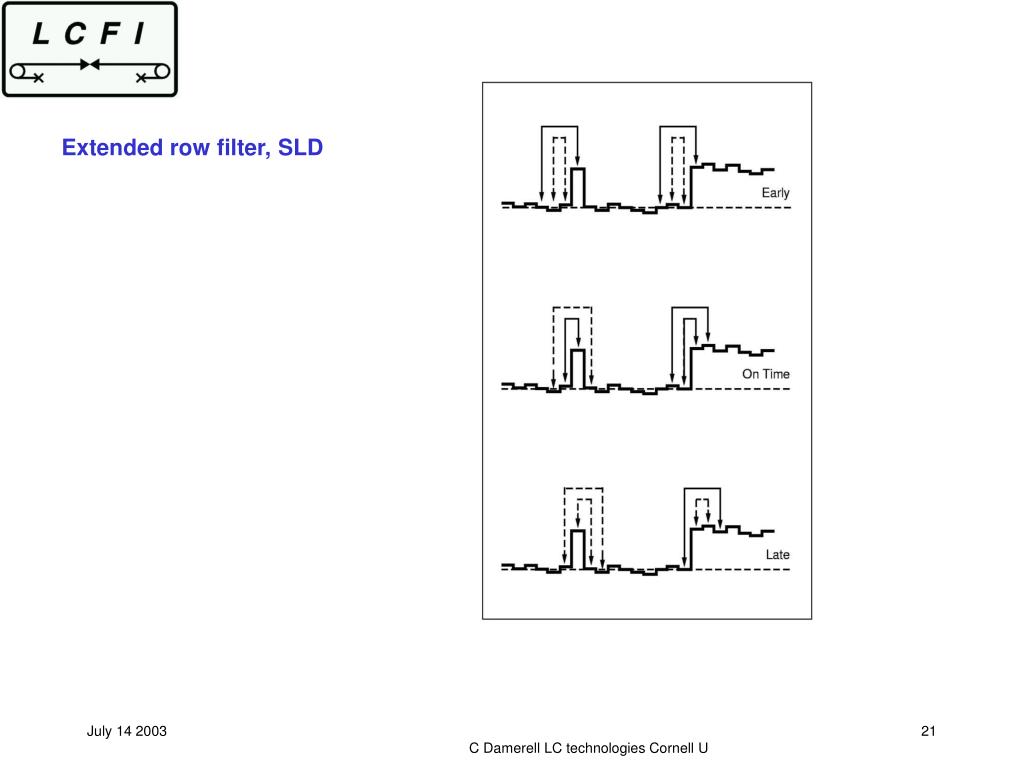

21. Extended row filter, SLD C Damerell LC technologies Cornell U

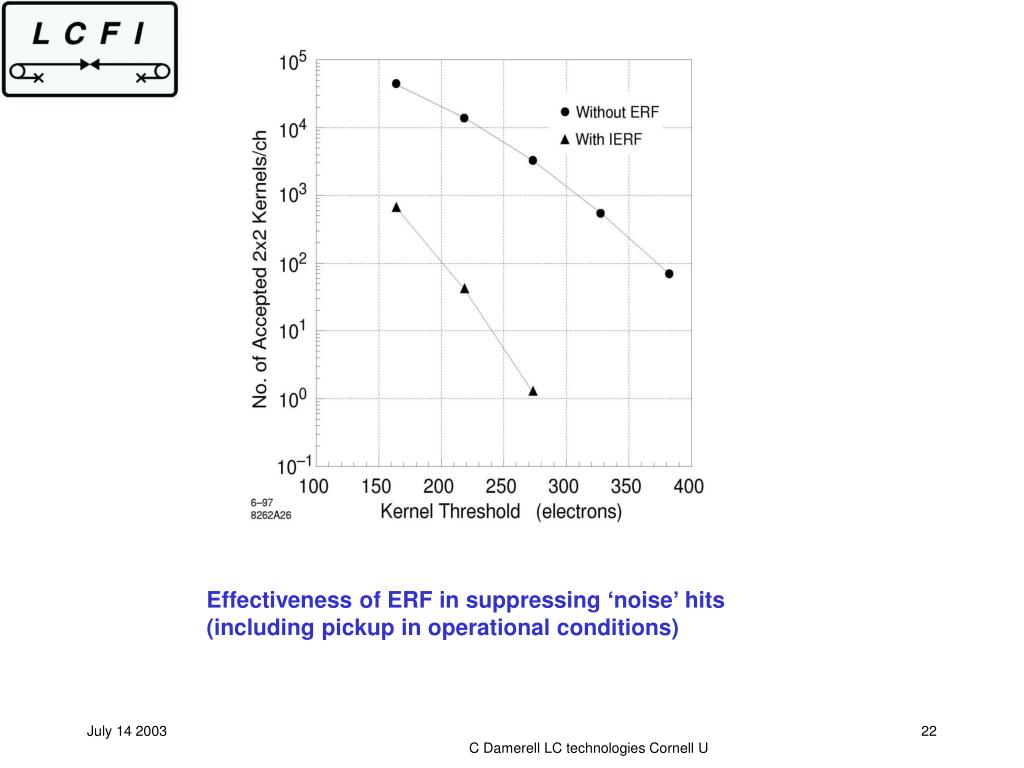

22. Effectiveness of ERF in suppressing ‘noise’ hits (including pickup in operational conditions) C Damerell LC technologies Cornell U

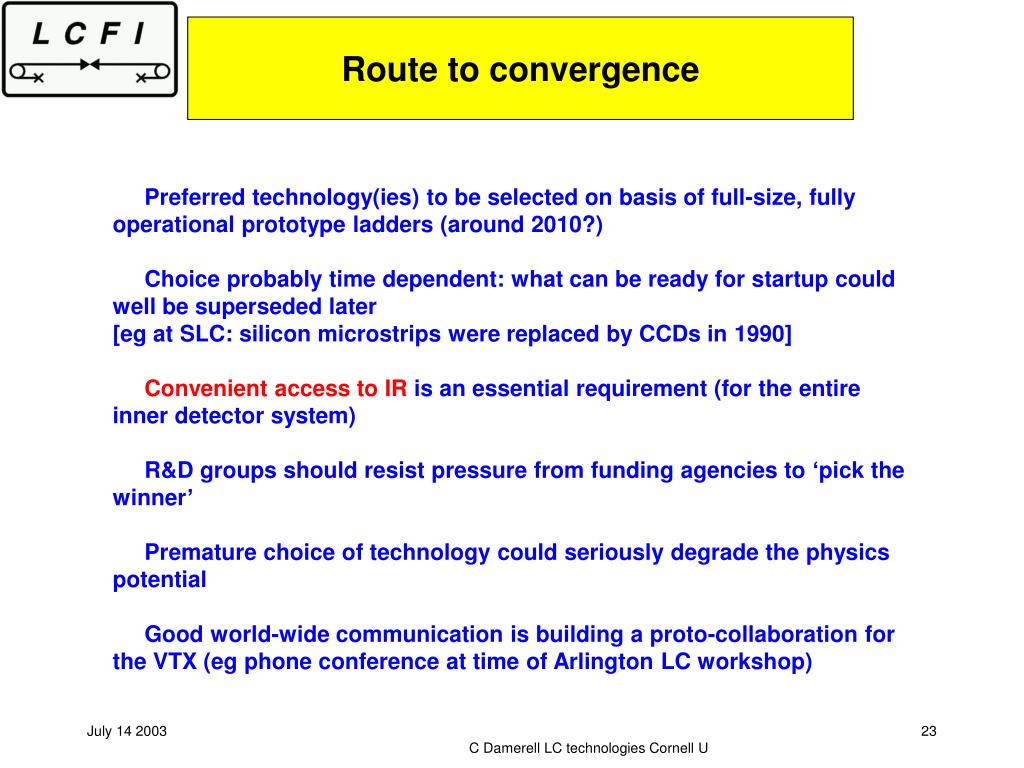

23. Route to convergence • Preferred technology(ies) to be selected on basis of full-size, fully operational prototype ladders (around 2010?) • Choice probably time dependent: what can be ready for startup could well be superseded later • [eg at SLC: silicon microstrips were replaced by CCDs in 1990] • Convenient access to IR is an essential requirement (for the entire inner detector system) • R&D groups should resist pressure from funding agencies to ‘pick the winner’ • Premature choice of technology could seriously degrade the physics potential • Good world-wide communication is building a proto-collaboration for the VTX (eg phone conference at time of Arlington LC workshop) C Damerell LC technologies Cornell U

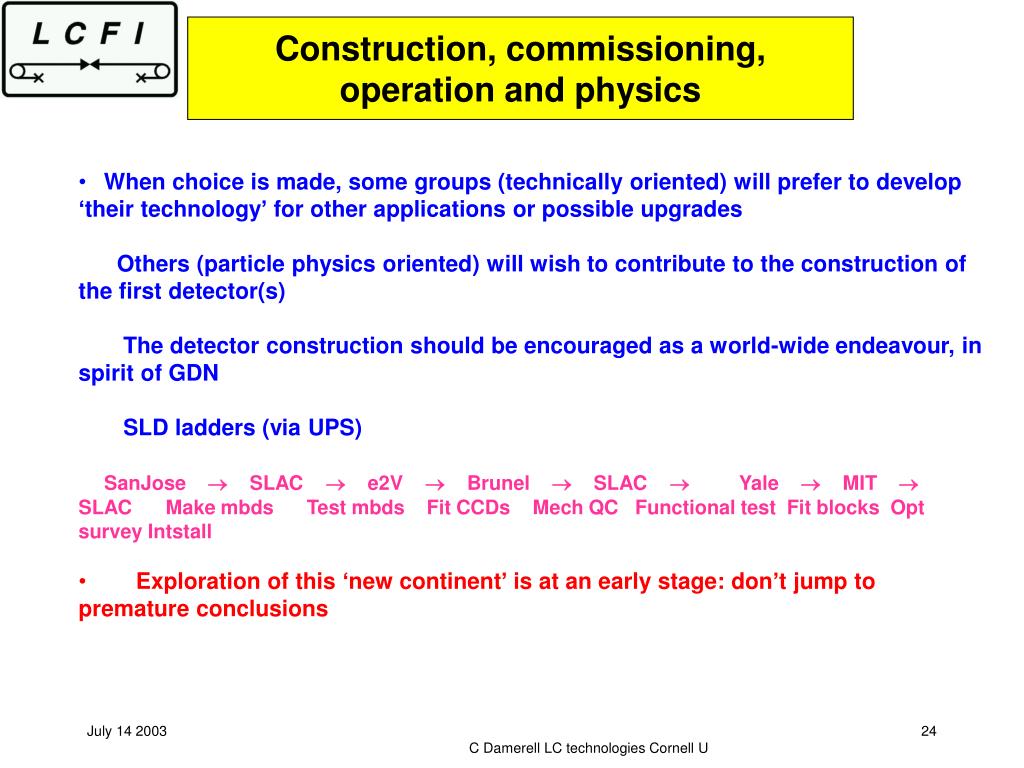

24. Construction, commissioning, operation and physics • When choice is made, some groups (technically oriented) will prefer to develop ‘their technology’ for other applications or possible upgrades • Others (particle physics oriented) will wish to contribute to the construction of the first detector(s) • The detector construction should be encouraged as a world-wide endeavour, in spirit of GDN • SLD ladders (via UPS) • SanJose SLAC e2V Brunel SLAC Yale MIT SLAC Make mbds Test mbds Fit CCDs Mech QC Functional test Fit blocks Opt survey Intstall • Exploration of this ‘new continent’ is at an early stage: don’t jump to premature conclusions C Damerell LC technologies Cornell U

25. Synergy with other science • Pixel detectors are uniquely inter-disciplinary • Example from ‘fall of the wall’ in structural biology (J Hajdu, TESLA colloquium) • 120 Hz frame rate needed at LCLS (with 14 bit dynamic range) • SNAP (600 Mpixels), XEUS, biological cell imaging, … • Fast Gigapixel-scale imaging systems are widely needed, and the LC vertex detector community is making a strong contribution to their development C Damerell LC technologies Cornell U
