PISE-W202D 120W Dimmable Power (48V Output)

PISE-W202D 120W Dimmable Power (48V Output). 48V / 2.5A / 120W. Features. ▶ Mechanical Outline (Metal Case) - 228 x 68 x 38mm . ▶ Suitable for LED Street Outdoor Application ▶ Universal AC input / Full Range (AC90V ~ AC305V) ▶ 0 -10 Dimming can be selected

will
Télécharger la présentation

PISE-W202D 120W Dimmable Power (48V Output)

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

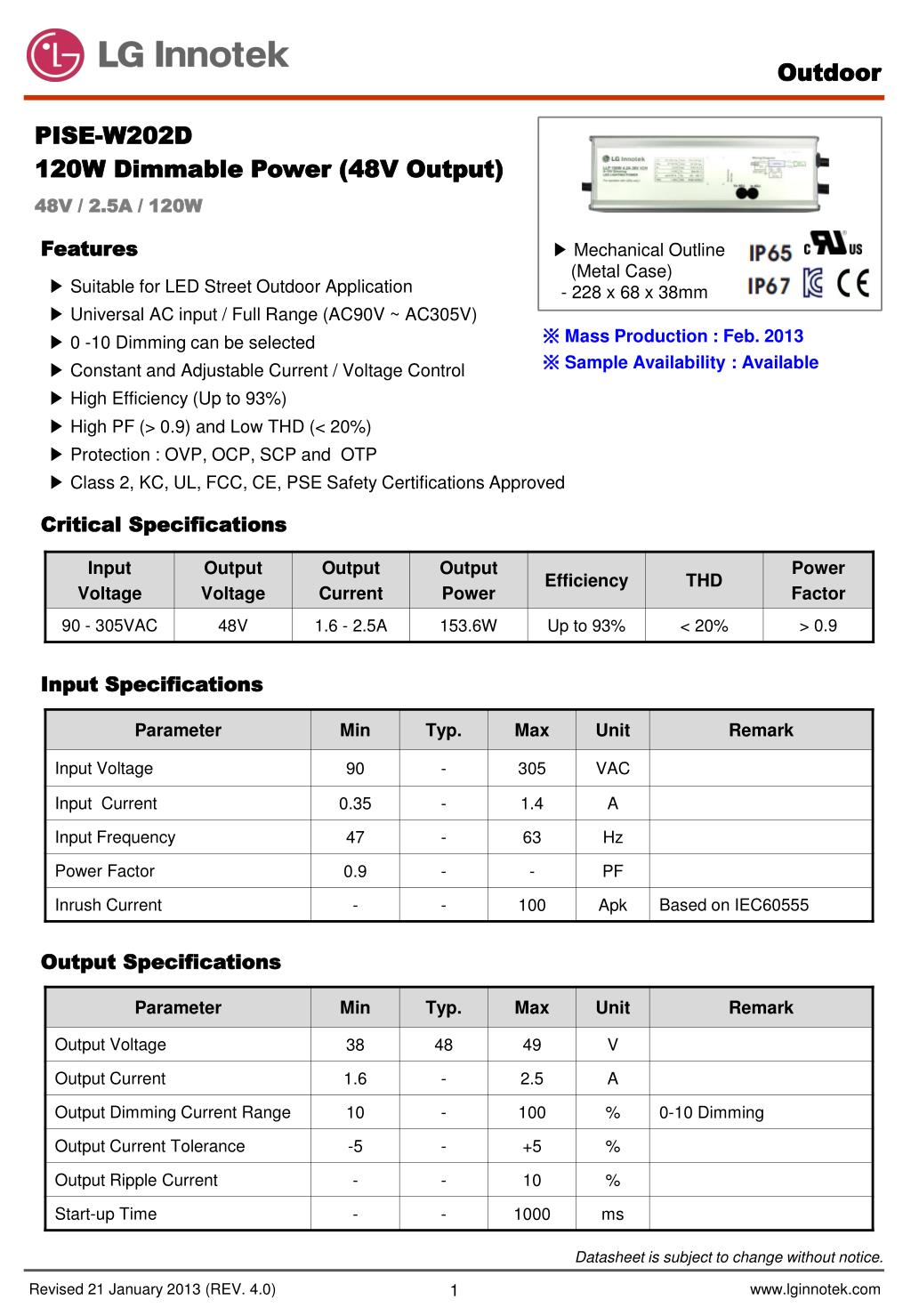

  1. PISE-W202D 120W Dimmable Power (48V Output) 48V / 2.5A / 120W Features ▶ Mechanical Outline (Metal Case) - 228 x 68 x 38mm ▶ Suitable for LED Street Outdoor Application ▶ Universal AC input / Full Range (AC90V ~ AC305V) ▶ 0 -10 Dimming can be selected ▶ Constant and Adjustable Current / Voltage Control ▶ High Efficiency (Up to 93%) ▶ High PF (> 0.9) and Low THD (< 20%) ▶ Protection : OVP, OCP, SCP and OTP ▶ Class 2, KC, UL, FCC, CE, PSE Safety Certifications Approved ※ Mass Production : Feb. 2013 ※ Sample Availability : Available Critical Specifications Input Specifications Output Specifications 1

  2. Protection Functions ReliabilitySpecifications EnvironmentalSpecifications Standards 2
