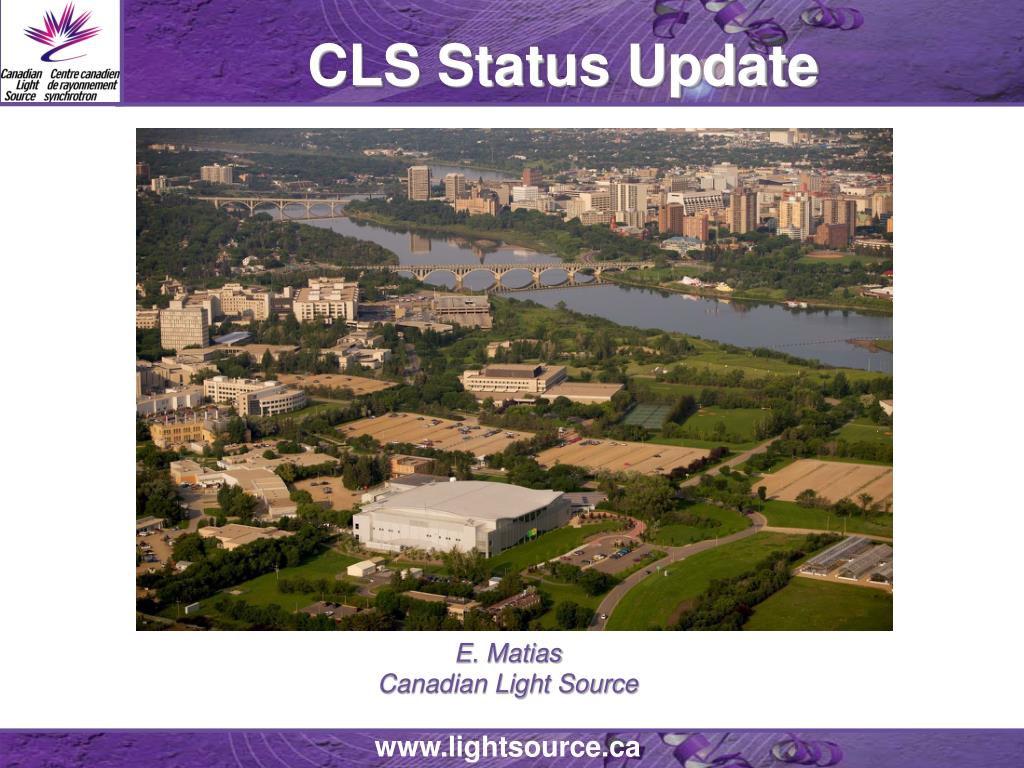

  1. CLS Status Update E. Matias Canadian Light Source

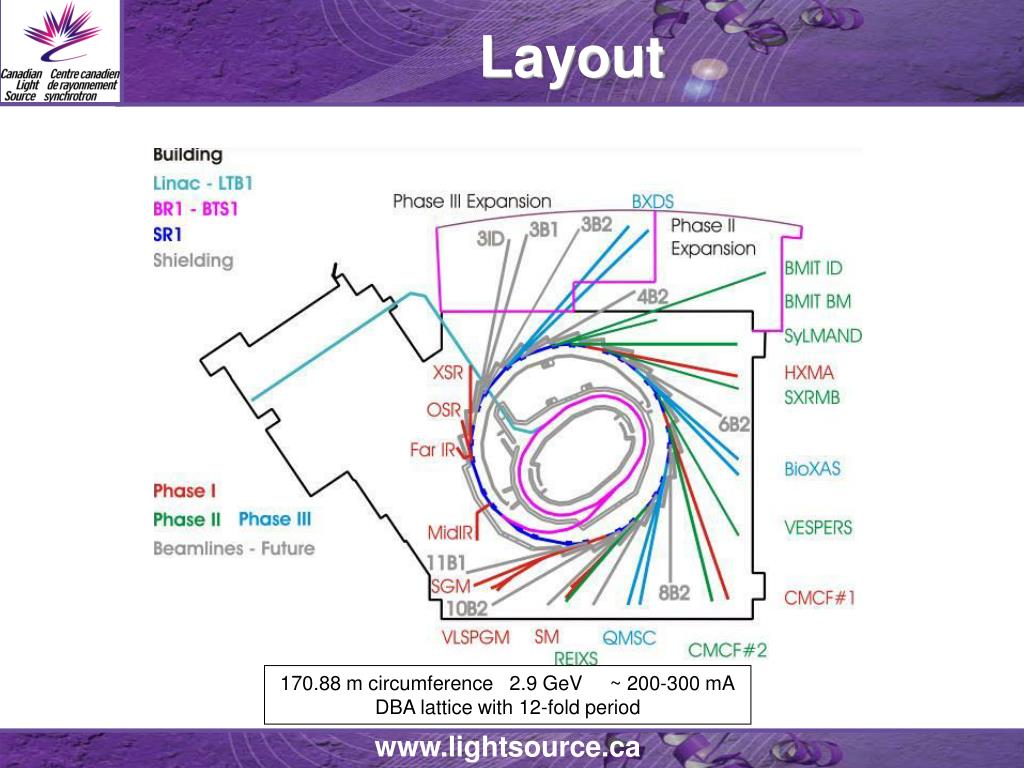

  2. Layout 170.88 m circumference 2.9 GeV ~ 200-300 mADBA lattice with 12-fold period

  3. Major Facility Projects • Complete Phase II Beamlines • Start Phase III Beamlines • New Linac RF System • New Linac &Transfer Line Power Supplies

  4. Phase II - Under Construction B1/B2 - Indicates Bending Magnet Beamline 1 - operational in 2008 ID - Indicates Insertion Device Beamline

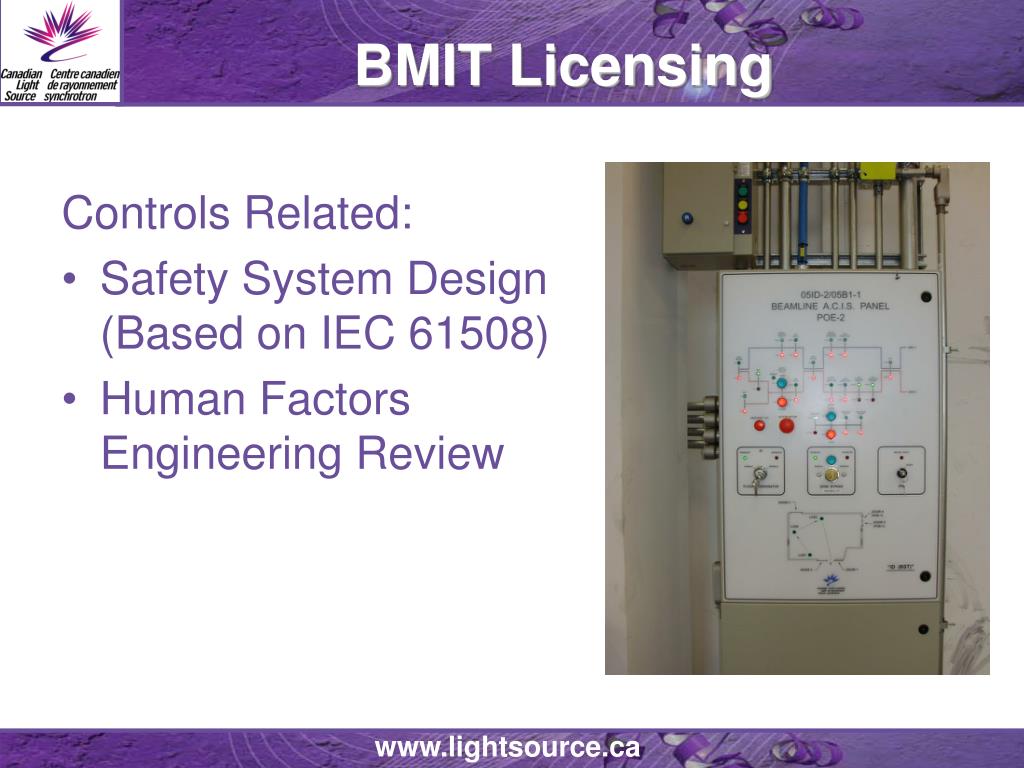

  5. BMIT Licensing Controls Related: • Safety System Design (Based on IEC 61508) • Human FactorsEngineering Review

  6. Phase III B1/B2 - Indicates Bending Magnet Beamline ID - Indicates Insertion Device Beamline 2 – CFI funded; not yet approved for construction.

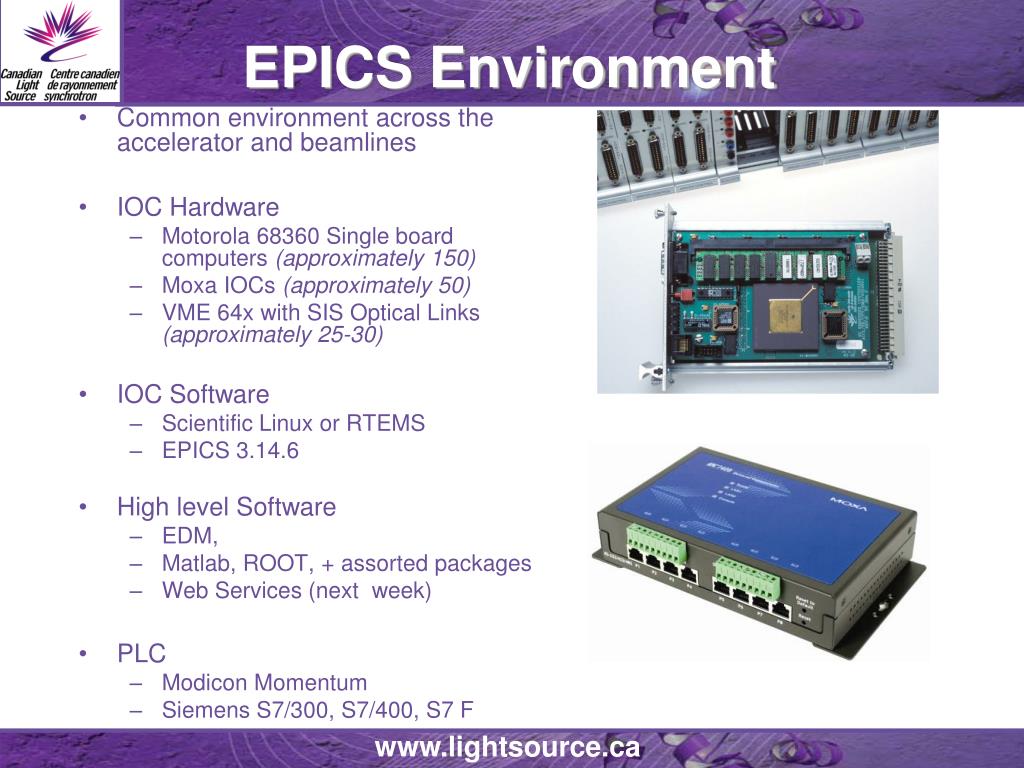

  7. EPICS Environment • Common environment across the accelerator and beamlines • IOC Hardware • Motorola 68360 Single board computers (approximately 150) • Moxa IOCs (approximately 50) • VME 64x with SIS Optical Links (approximately 25-30) • IOC Software • Scientific Linux or RTEMS • EPICS 3.14.6 • High level Software • EDM, • Matlab, ROOT, + assorted packages • Web Services (next week) • PLC • Modicon Momentum • Siemens S7/300, S7/400, S7 F

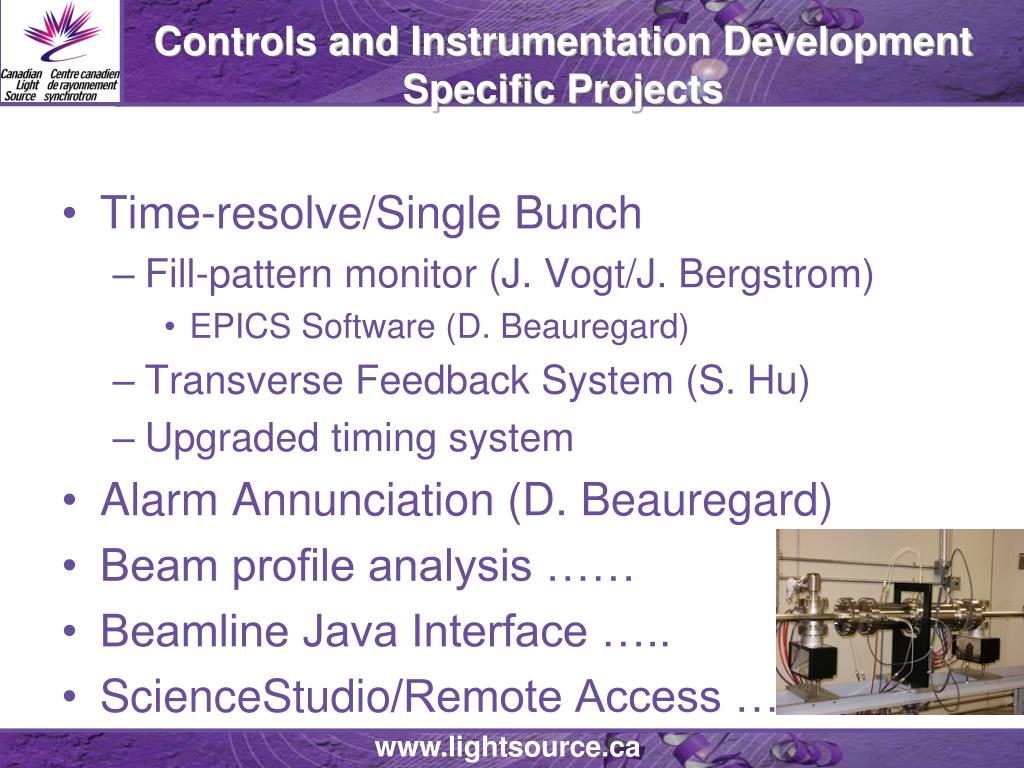

  8. Controls and Instrumentation Development Specific Projects • Time-resolve/Single Bunch • Fill-pattern monitor (J. Vogt/J. Bergstrom) • EPICS Software (D. Beauregard) • Transverse Feedback System (S. Hu) • Upgraded timing system • Alarm Annunciation (D. Beauregard) • Beam profile analysis …… • Beamline Java Interface ….. • ScienceStudio/Remote Access …..

  9. Fill Pattern Monitor • Complete Phase II Beamlines • Start Phase III Beamlines • New Linac RF System • New Linac Power Supplies

  10. Results….

  11. Results….

  12. Audio Alarm (using Festival)

  13. Virtual PA System

  14. Funding Partners 38 supporting University Partners and growing…
