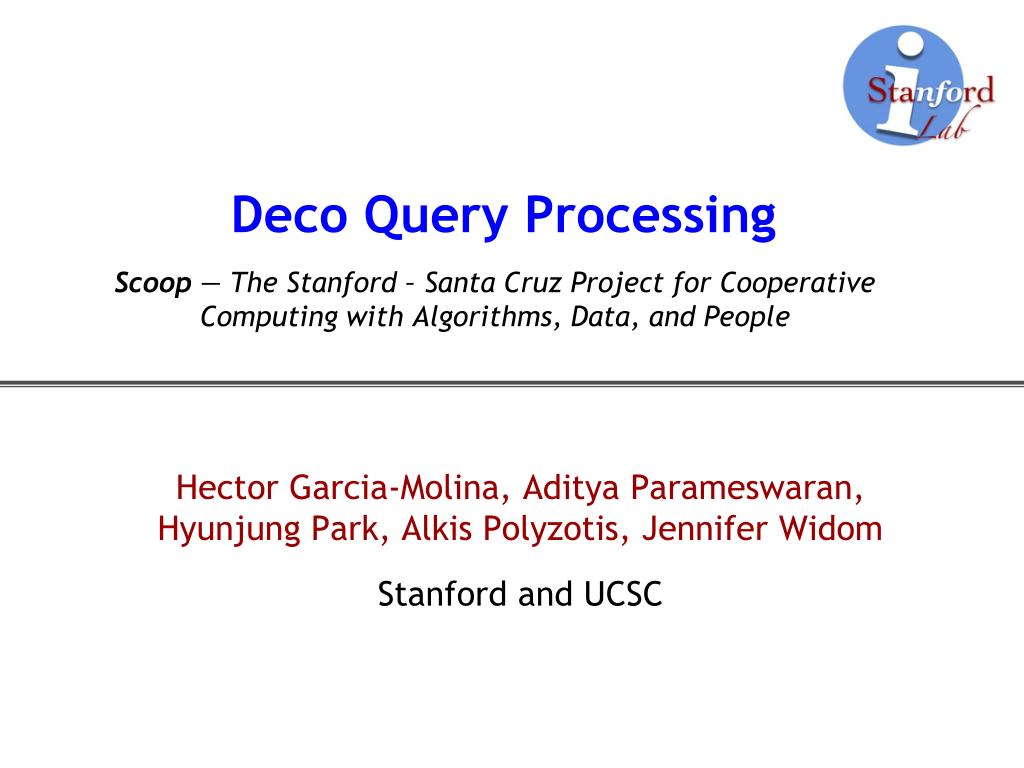

  1. Deco Query Processing Scoop — The Stanford – Santa Cruz Project for Cooperative Computing with Algorithms, Data, and People Hector Garcia-Molina, Aditya Parameswaran, Hyunjung Park, Alkis Polyzotis, Jennifer Widom Stanford and UCSC

  2. Valid Instance of Database • Given: • Current contents of Deco tables (actual schema) • Fetch Rules and Resolution Rules • Valid instance (conceptual schema) is any state of relations obtained by: 1. Fetch— add tuples to Deco tables by invoking FR procedures 2. Resolve— resolve dependent attributes using RR functions 3. Join — full outerjoin of Deco tables for each relation Schema designer End user relations and other stuff relations Conceptual schema automatic (system) Actual schema RDBMS

  3. Query Semantics • Deco query Q • Relational query (over the conceptual schema) • Result of a Deco query Q • Result of Q (using relational semantics) over some valid instance of the database • Which valid instance? • “Current” one (no fetch step): result may be empty • Factors restricting valid instances for Q: • Number of result tuples, Quality of results • Running time, Monetary cost

  4. Query Processing Objective • For now: • The user specifies the minimum number of tuples in the result of Q • Query processor minimizes a combination of running time and monetary cost • Alternative: • Given upper bounds of running time and monetary cost, maximize the number of result tuples and their quality

  5. Rest of This Presentation • Four example query plans demonstrating: • Query operators • Placing FRs in query plans

  6. Example Schema R (restaurant, address, [rating], [cuisine]) • Resolution Rules • restaurant,address rating • restaurant cuisine • Fetch Rules • restaurant,address  rating • restaurant  cuisine • restaurant,address  rating,cuisine • cuisine  restaurant,address •   restaurant,address

  7. Example #1: Query Operators SELECT rest, addr FROM R WHERE rating=4 MINTUPLES 5 MinTuples [5] • Retrieves tuples from its child operator • Feeds retrieved tuples to the RR function until the resolved value is good enough Filter [rating=4] • Retrieves tuples in the underlying Deco table • Then, fetches more tuples from external source • Stores externally obtained tuples in the Deco table Join Resolve [conf≥0.8] Fetch [rest,addr] Fetch [rest,addrrating] A1+MTurk A2+MTurk

  8. Example #1: Query Operators SELECT rest, addr FROM R WHERE rating=4 MINTUPLES 5 MinTuples [5] • Waits until placeholders are replaced by actual values Filter [rating=4] Sync [rating] • Initiate FR procedure • Returns “incomplete” tuple with placeholders Join Resolve [conf≥0.8] Sync [rest,addr] Fetch [rest,addr] Fetch [rest,addrrating] A1+MTurk A2+MTurk

  9. Example #2: FR Scheduling SELECT * FROM R WHERE rating=4 MINTUPLES 5 FRs operate in parallel Shorter running time More $$ MinTuples [5] Filter [rating=4] Sync [rating,cuisine] Join Join Fetch & Sync [rest,addr] Fetch & Resolve [rest,addrrating] Fetch & Resolve [restcuisine]

  10. Example #2: FR Scheduling MinTuples [5] SELECT * FROM R WHERE rating=4 MINTUPLES 5 FRs operate serially Longer running time Less $$ Sync [cuisine] Join Filter [rating=4] Sync [rating] Join Fetch & Sync [rest,addr] Fetch & Resolve [rest,addrrating] Fetch & Resolve [restcuisine]

  11. Example #3: FR Composition SELECT * FROM R MINTUPLES 5 One FR for each dependent attribute group More FR invocations MinTuples [5] Sync [rating,cuisine] Join Join Fetch & Sync [rest,addr] Fetch & Resolve [rest,addrrating] Fetch & Resolve [restcuisine]

  12. Example #3: FR Composition SELECT * FROM R MINTUPLES 5 Composite FR for both dependent attribute groups Fewer FR invocations MinTuples [5] Sync [rating, cuisine] Join Fetch & Sync [rest,addr] Fetch & Resolve [rest,addrrating,cuisine]

  13. Example #4: Reverse FR SELECT rest, addr FROM R WHERE cuisine=‘French’ MINTUPLES 5 What if there are few French restaurants? MinTuples [5] Filter [cuisine=‘French’] Sync [cuisine] Join Fetch & Sync [rest,addr] Fetch & Resolve [restcuisine]

  14. Example #4: Reverse FR SELECT rest, addr FROM R WHERE cuisine=‘French’ MINTUPLES 5 Shorter running time using Reverse FR MinTuples [5] Filter [cuisine=‘French’] Sync [cuisine] Join Fetch & Sync [cuisine:French rest,addr] Fetch & Resolve [restcuisine]
