XT55 Evaluation Kit: Comprehensive Guide and Technical Overview

Discover the XT55 Evaluation Kit, an essential tool for testing and integrating GPS/GSM technologies. This kit features a main board and adapter board equipped with multiple RS232/485 serial interfaces, audio I/O ports, and a range of power options. The package includes all necessary components such as a universal evaluation board, power supply adapter, GPS/GSM antenna, and comprehensive documentation. Learn how to flash software packages and utilize standard or AVL/TCP/IP software setups effectively with included SiRFFlash PC software.

xavier-potts
Télécharger la présentation

XT55 Evaluation Kit: Comprehensive Guide and Technical Overview

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. XT55 Evaluation Kit

  2. Table of content • Technical data • The main board • The adapter board • Package content • How to flash SW packages • SiRFFlash PC-software • Use with standard SW package • Use with AVL or TCP/IP SW package XT55 Evaluation Kit, 08.11.2014

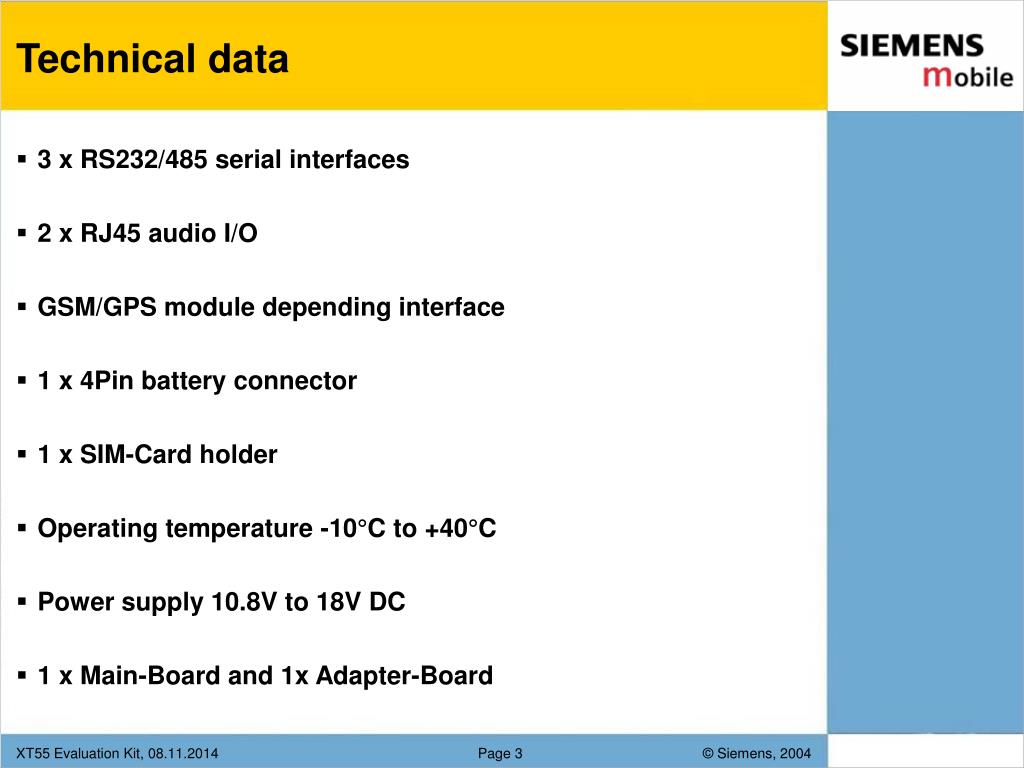

  3. Technical data • 3 x RS232/485 serial interfaces • 2 x RJ45 audio I/O • GSM/GPS module depending interface • 1 x 4Pin battery connector • 1 x SIM-Card holder • Operating temperature -10°C to +40°C • Power supply 10.8V to 18V DC • 1 x Main-Board and 1x Adapter-Board XT55 Evaluation Kit, 08.11.2014

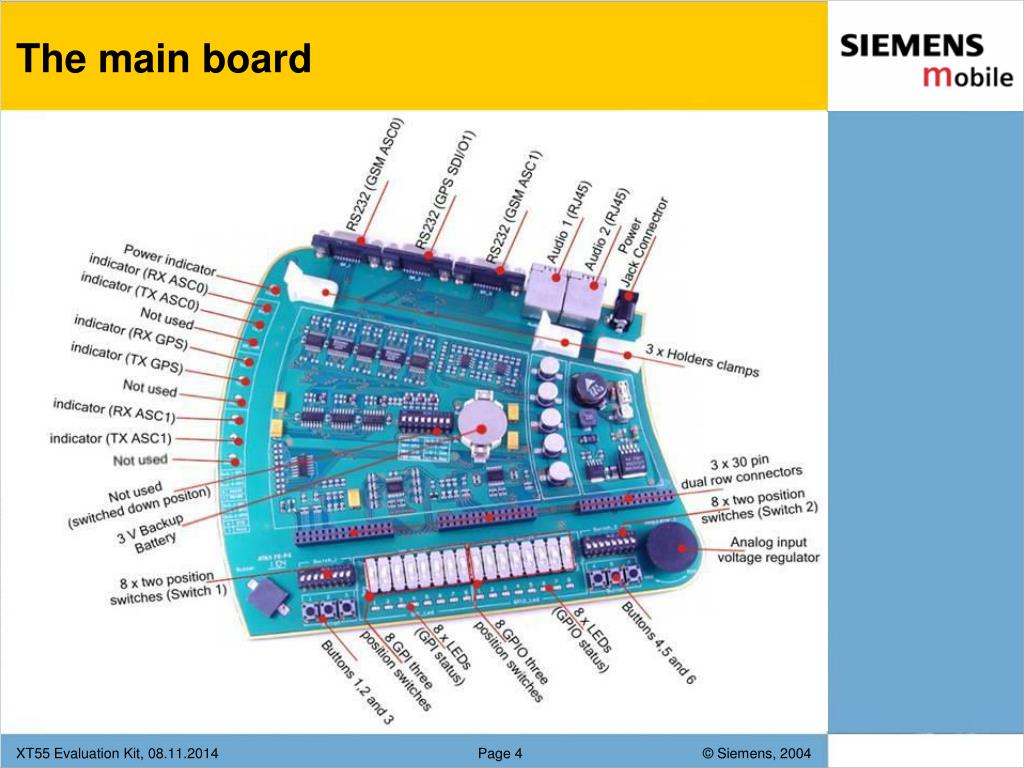

  4. The main board XT55 Evaluation Kit, 08.11.2014

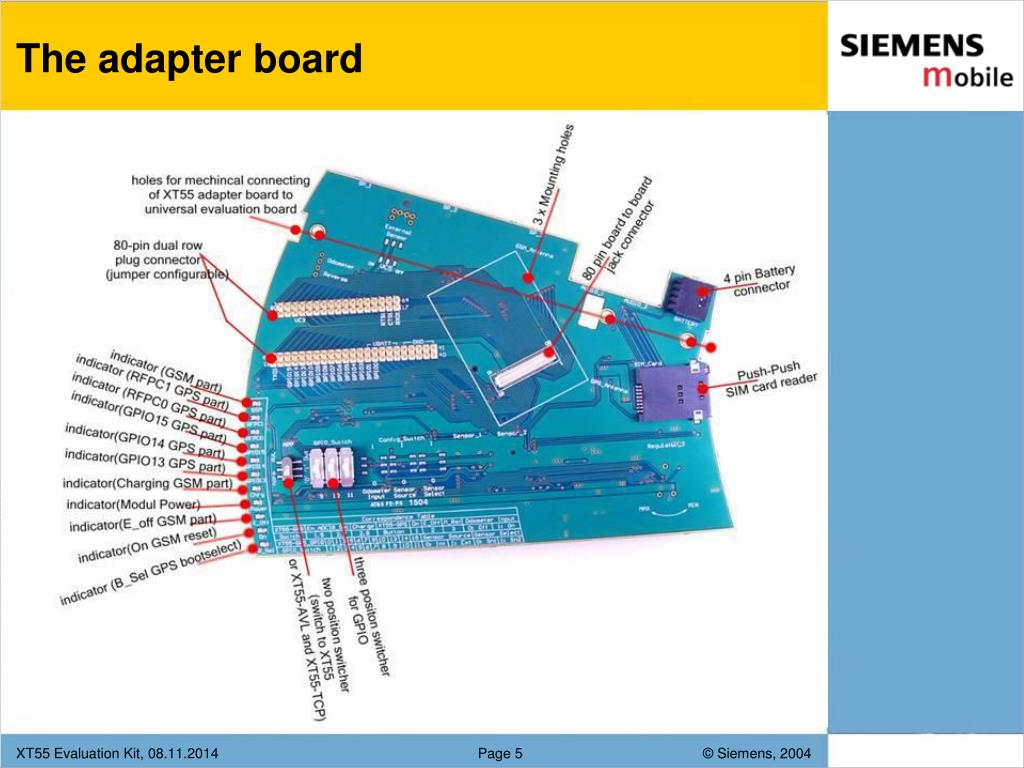

  5. The adapter board XT55 Evaluation Kit, 08.11.2014

  6. Package content • 1 x universal evaluation board • 1 x XT55 – adapter board • 1 x power supply adapter • 1 x GPS/GSM combination antenna • 1 x antenna-adapter Hirose U.FL-R-SMT / SMB • 1 x antenna-adapter Hirose U.FL-R-SMT / FME • 1 x Headset • CD with documentation and evaluation software XT55 Evaluation Kit, 08.11.2014

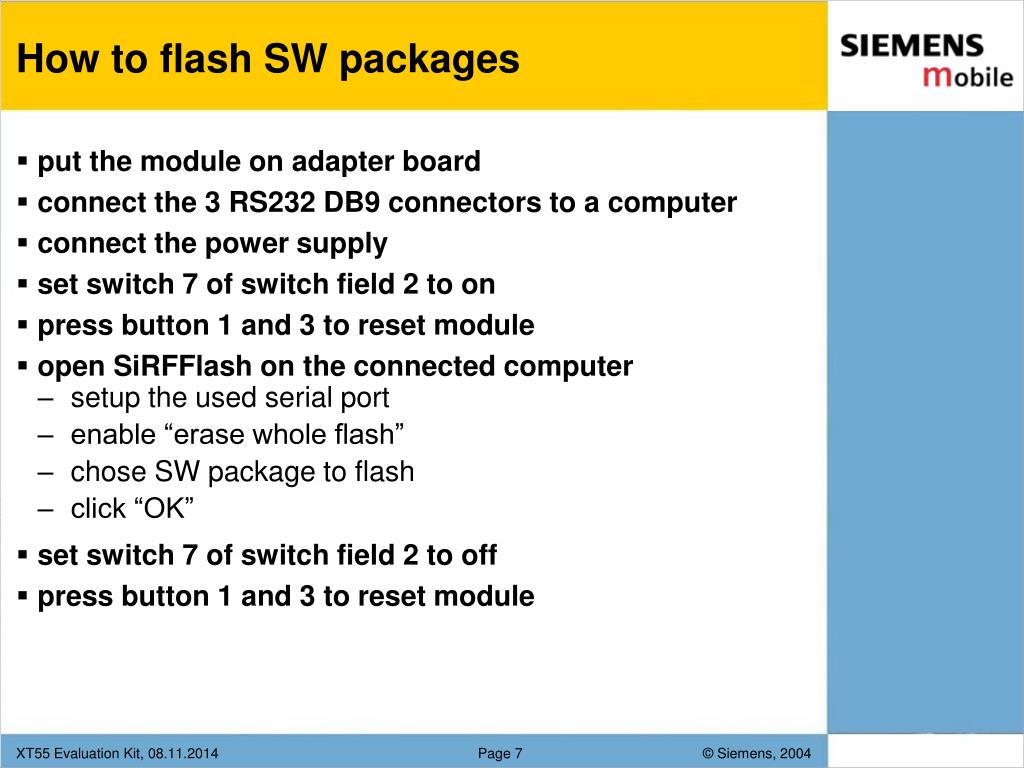

  7. How to flash SW packages • put the module on adapter board • connect the 3 RS232 DB9 connectors to a computer • connect the power supply • set switch 7 of switch field 2 to on • press button 1 and 3 to reset module • open SiRFFlash on the connected computer • setup the used serial port • enable “erase whole flash” • chose SW package to flash • click “OK” • set switch 7 of switch field 2 to off • press button 1 and 3 to reset module XT55 Evaluation Kit, 08.11.2014

  8. SiRFFlash PC-software XT55 Evaluation Kit, 08.11.2014

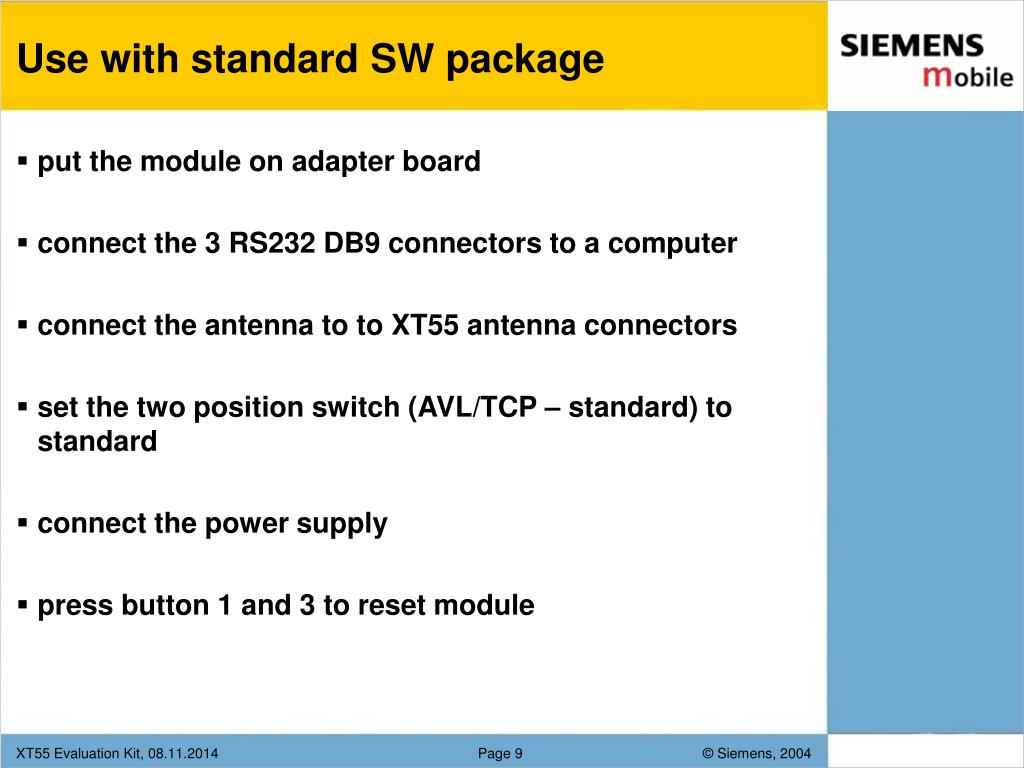

  9. Use with standard SW package • put the module on adapter board • connect the 3 RS232 DB9 connectors to a computer • connect the antenna to to XT55 antenna connectors • set the two position switch (AVL/TCP – standard) to standard • connect the power supply • press button 1 and 3 to reset module XT55 Evaluation Kit, 08.11.2014

  10. Use with AVL or TCP/IP SW package • put the module on adapter board • connect the 3 RS232 DB9 connectors to a computer • connect the antenna to to XT55 antenna connectors • set the two position switch (AVL/TCP – standard) to AVL/TCP • connect the power supply • press button 1 and 3 to reset module XT55 Evaluation Kit, 08.11.2014
