The Cell

yank avatar
8 diapositives · 262 Views · Sep 05, 2014

The Cell. Movement through the cell. Passive transport – no energy required Diffusion – region of high concentration to low concentration Osmosis and dialysis – water through a selectively permeable membrane Filtration – water and small particles through system due to hydrostatic pressure

The Cell - slide 1
01 / 8The Cell
1 / 17

Télécharger la présentation

The Cell
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

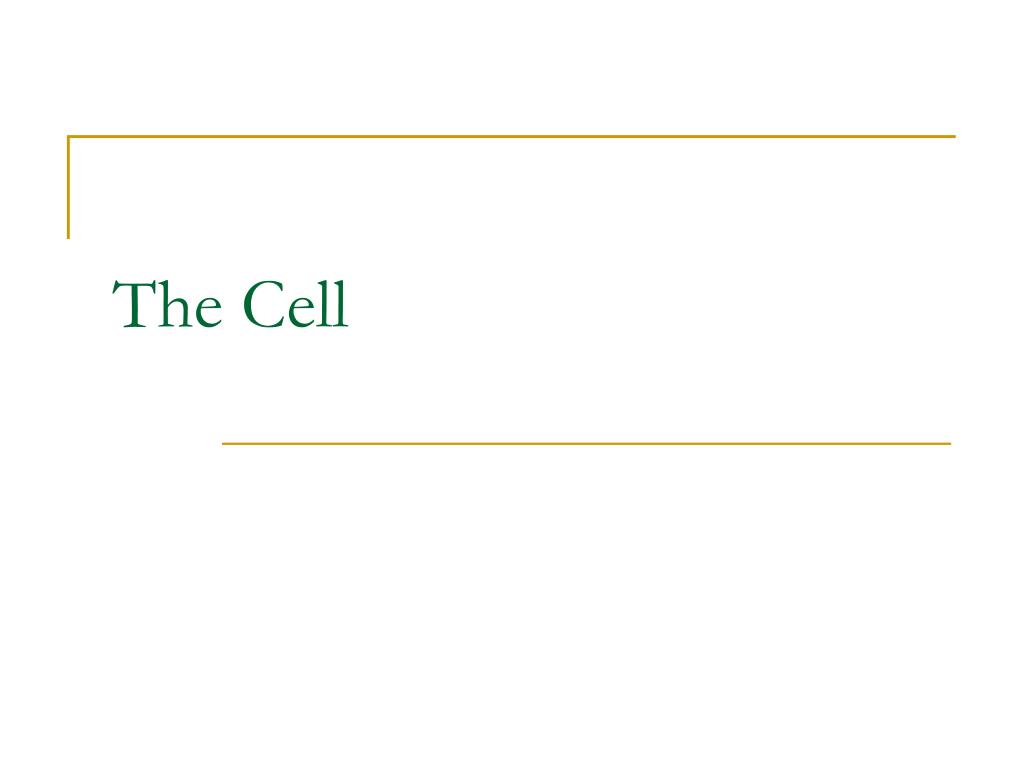

  1. The Cell

  2. Movement through the cell • Passive transport – no energy required • Diffusion – region of high concentration to low concentration • Osmosis and dialysis – water through a selectively permeable membrane • Filtration – water and small particles through system due to hydrostatic pressure • Kidneys and urine formation

  3. Active transport • Requires energy (ATP) • low to high concentration • Ion Pumps • Sodium potassium pumps • Phagocytosis • Larger molecules, foreign material • Pinocytosis • Fluids and dissolved material

  4. Tonicity • Isotonic • Salt solution .9% is isotonic = to red blood cell • Hypertonic – solution contains higher salt content than cell • Water moves out of cell, cell shrinks = crenation • Hypotonic - solution contains lower salt content than cell • Water moves into cell, cell swells and lysis could occur

  5. DNA Double stranded Helix ATCG Deoxyribose Can not leave nucleus Dictates directions for protein synthesis RNA (mRNA, rRNA, tRNA) Single stranded Linear AUCG Ribose sugar Can leave nucleus Carries out protein synthesis Nucleic Acid: DNA and RNA

  6. Protein synthesis, Fig 3.8 • Transcription • DNA to mRNA – out of nucleus • Translation • mRNA to ribosome to make protein

  7. Cell division • Interphase • G1 – growth • S – synthesis, DNA copies itself • G2 – preparation for cell division • Prophase • Metaphase • Anaphase • Telophase • Cytokensis

  8. Changes in cell growth and reproduction • Hypertrophy – increase in size of cell • Atrophy – decrease in size of cell • Hyperplasia – increase in cell reproduction • Increase of number of cell • Anaplasia – production of abnormal, undifferentiated cells • Can result in a tumor or neoplasm
