  1. Communicating Lighting Design

  2. Reflected Ceiling Plans Includes all Architectural and Most Lighting Information Note that the drop ceiling is included.

  3. Lighting Plans Includes all Lighting Information

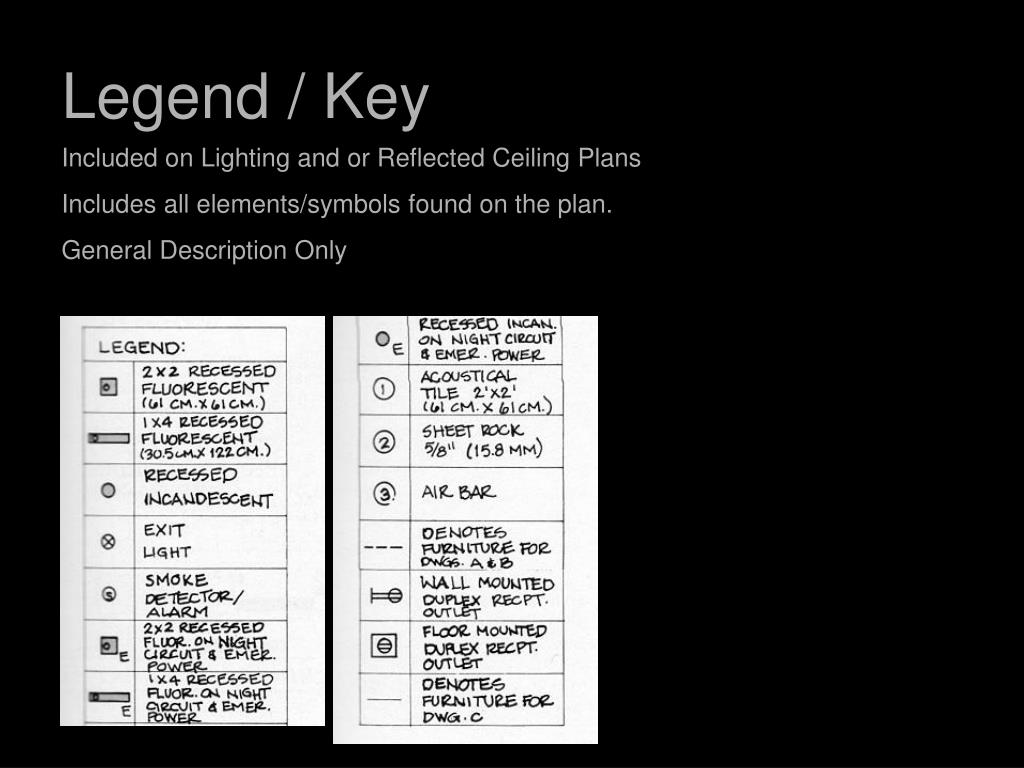

  4. Legend / Key Included on Lighting and or Reflected Ceiling Plans Includes all elements/symbols found on the plan. General Description Only

  5. Detailed Symbols Ê Pin Hole Fixture Wallwash Square Fixture Small Down Fixture Adjustable Square Fixture Typical Down Fixture Compact Fluorescent Wallwash Wall Wash Accent Fixture Adjustable Fixture Multi Lamp Fixture Square or Rectangular Fixture Large Square or Rectangular Fixture

  6. Detailed Symbols

  7. Detailed Symbols Ê Half Bowl Sconce Small Sconce Triangular Sconce Wall Bracket Sconce Multi Lamp Sconce Continuous Fluorescent Wall Mounted Fixture

  8. Symbols Ê

  9. Symbols Ê

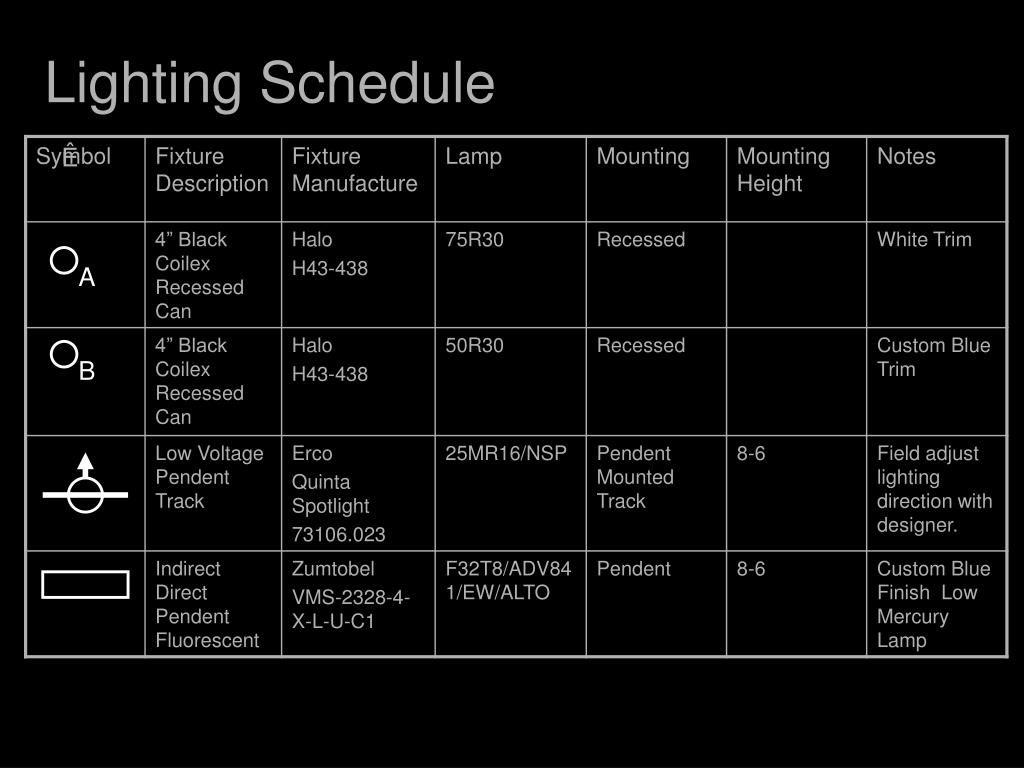

  10. Lighting Schedule Ê A B

  11. Details
