Computer Architecture Chapter 3 Instructions: Arithmetic for Computer

zach avatar
zach
59 diapositives · 866 Views · Sep 13, 2014

Computer Architecture Chapter 3 Instructions: Arithmetic for Computer. Yu-Lun Kuo 郭育倫 Department of Computer Science and Information Engineering Tunghai University, Taichung, Taiwan R.O.C. sscc6991@gmail.com http://www.csie.ntu.edu.tw/~d95037/. Fetch PC = PC+4. Exec. Decode.

Computer Architecture Chapter 3 Instructions: Arithmetic for Computer - slide 1
01 / 59Computer Architecture Chapter 3 Instructions: Arithmetic for Computer
1 / 17

Télécharger la présentation

Computer Architecture Chapter 3 Instructions: Arithmetic for Computer
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

  1. Computer ArchitectureChapter 3Instructions: Arithmetic for Computer Yu-Lun Kuo 郭育倫 Department of Computer Science and Information Engineering Tunghai University, Taichung, Taiwan R.O.C. sscc6991@gmail.com http://www.csie.ntu.edu.tw/~d95037/

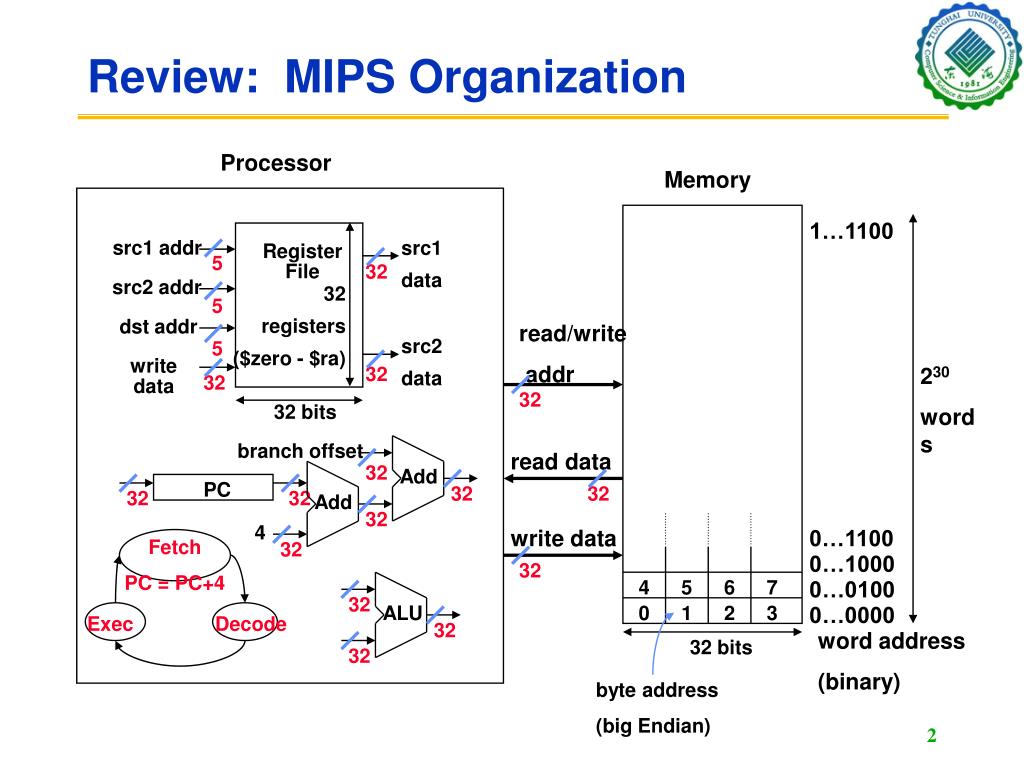

  2. Fetch PC = PC+4 Exec Decode Review: MIPS Organization Processor Memory 1…1100 src1 addr src1 data Register File 5 32 src2 addr 32 registers ($zero - $ra) 5 dst addr read/write addr 5 src2 data write data 32 230 words 32 32 32 bits branch offset read data 32 Add PC 32 32 32 32 Add 32 4 write data 0…1100 32 0…1000 32 4 5 6 7 0…0100 32 ALU 0 1 2 3 0…0000 32 word address (binary) 32 bits 32 byte address (big Endian)

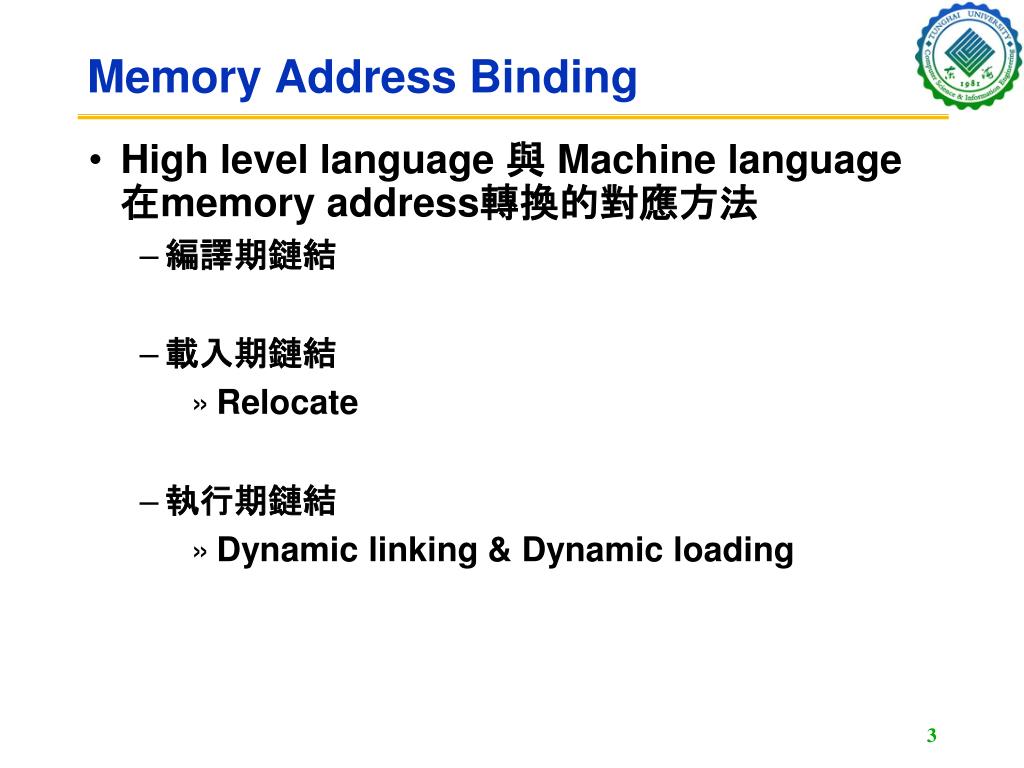

  3. Memory Address Binding • High level language 與 Machine language在memory address轉換的對應方法 • 編譯期鏈結 • 載入期鏈結 • Relocate • 執行期鏈結 • Dynamic linking & Dynamic loading

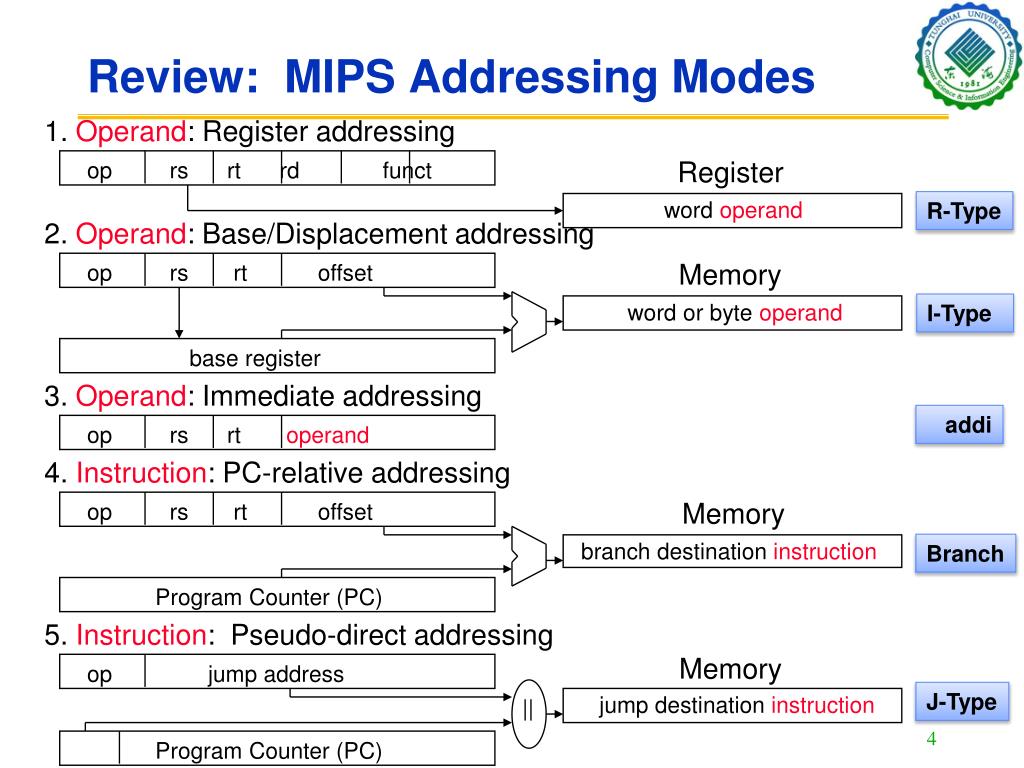

  4. 2. Operand: Base/Displacement addressing Memory op rs rt offset word or byte operand base register Review: MIPS Addressing Modes 1. Operand: Register addressing Register op rs rt rd funct word operand R-Type I-Type 3. Operand: Immediate addressing addi op rs rt operand 4. Instruction: PC-relative addressing Memory op rs rt offset branch destination instruction Branch Program Counter (PC) 5. Instruction: Pseudo-direct addressing Memory op jump address J-Type jump destination instruction || Program Counter (PC)

  5. Overview • Data type includes representation and operations • let’s look at some arithmetic operations: • Addition • Subtraction • Sign Extension • Also look at overflow conditions for addition. • Multiplication, division, etc. • Logical operations are also useful: • AND • OR • NOT

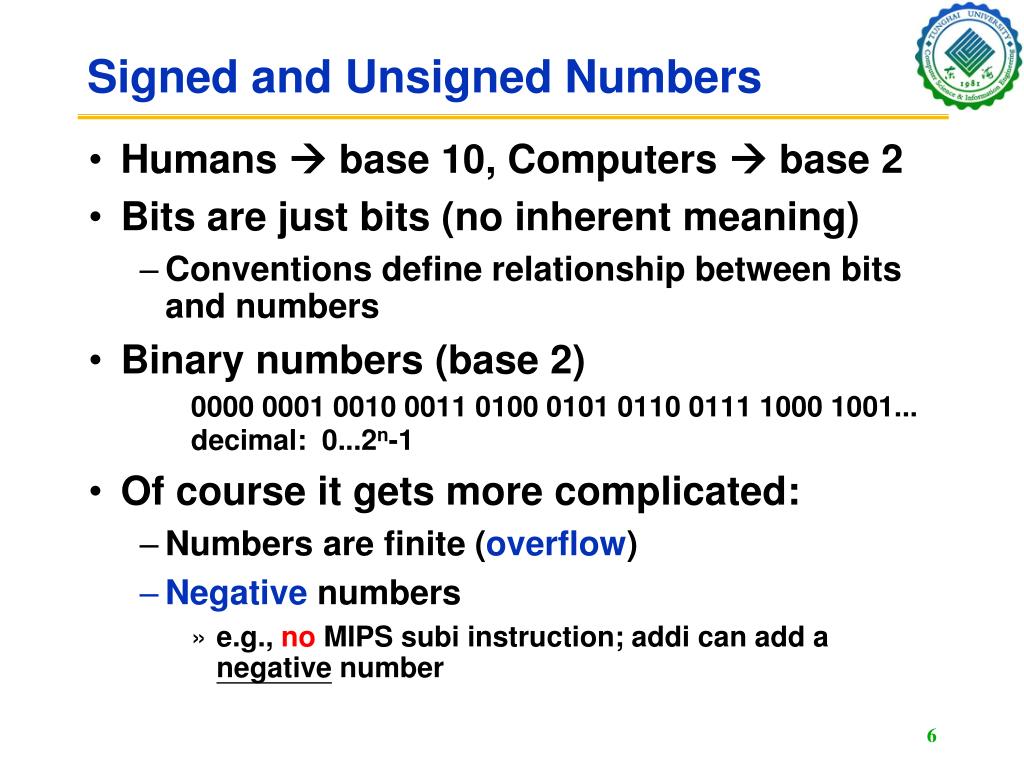

  6. Signed and Unsigned Numbers • Humans  base 10, Computers  base 2 • Bits are just bits (no inherent meaning) • Conventions define relationship between bits and numbers • Binary numbers (base 2)0000 0001 0010 0011 0100 0101 0110 0111 1000 1001... decimal: 0...2n-1 • Of course it gets more complicated: • Numbers are finite (overflow) • Negative numbers • e.g., no MIPS subi instruction; addi can add a negative number

  7. Signed and Unsigned Numbers • Computer program calculate both positive and negative numbers • Distinguishes the positive from the negative • Obvious solution • Add a separate sign • Conveniently can be represented in a sign bit • Name of this representation is sign and magnitude

  8. Signed and Unsigned Numbers • Sign and magnitude representation has several shortcomings • Not obvious where to put the sign bit • Right or left? • Adders may need an extra step to set the sign • Has both a positive and negative zero • Lead to problems for inattentive programmers

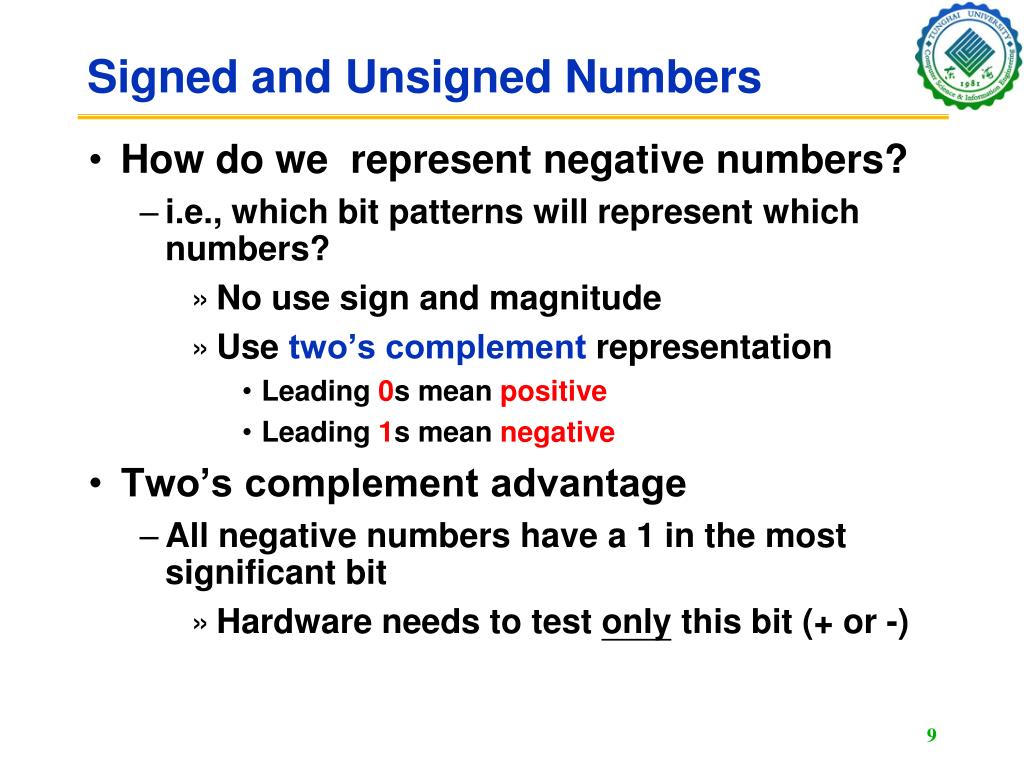

  9. Signed and Unsigned Numbers • How do we represent negative numbers? • i.e., which bit patterns will represent which numbers? • No use sign and magnitude • Use two’s complement representation • Leading 0s mean positive • Leading 1s mean negative • Two’s complement advantage • All negative numbers have a 1 in the most significant bit • Hardware needs to test only this bit (+ or -)

  10. maxint MSB LSB minint Signed and Unsigned Numbers • 32-bit signed numbers (2’s complement):0000 0000 0000 0000 0000 0000 0000 0000two = 0ten0000 0000 0000 0000 0000 0000 0000 0001two = + 1ten... 0111 1111 1111 1111 1111 1111 1111 1110two = + 2,147,483,646ten0111 1111 1111 1111 1111 1111 1111 1111two = + 2,147,483,647ten1000 0000 0000 0000 0000 0000 0000 0000two = – 2,147,483,648ten1000 0000 0000 0000 0000 0000 0000 0001two = – 2,147,483,647ten... 1111 1111 1111 1111 1111 1111 1111 1110two = – 2ten1111 1111 1111 1111 1111 1111 1111 1111two = – 1ten (2)10 = (0000 0000 0000 0000 0000 0000 0000 0010)2 (1111 1111 1111 1111 1111 1111 1111 1101)2 (-2)10 = (1111 1111 1111 1111 1111 1111 1111 1110)2

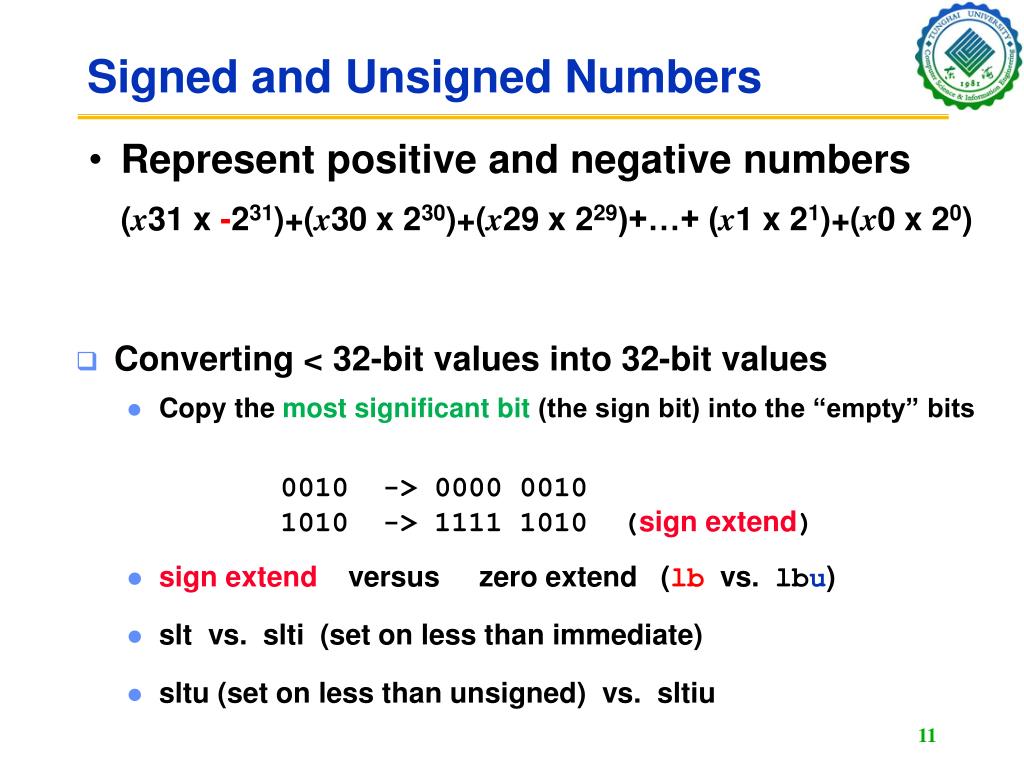

  11. Signed and Unsigned Numbers • Converting < 32-bit values into 32-bit values • Copy the most significant bit (the sign bit) into the “empty” bits • 0010 -> 0000 0010 1010 -> 1111 1010 (sign extend) • sign extend versus zero extend (lb vs. lbu) • slt vs. slti (set on less than immediate) • sltu (set on less than unsigned) vs. sltiu • Represent positive and negative numbers (x31 x -231)+(x30 x 230)+(x29 x 229)+…+ (x1 x 21)+(x0 x 20)

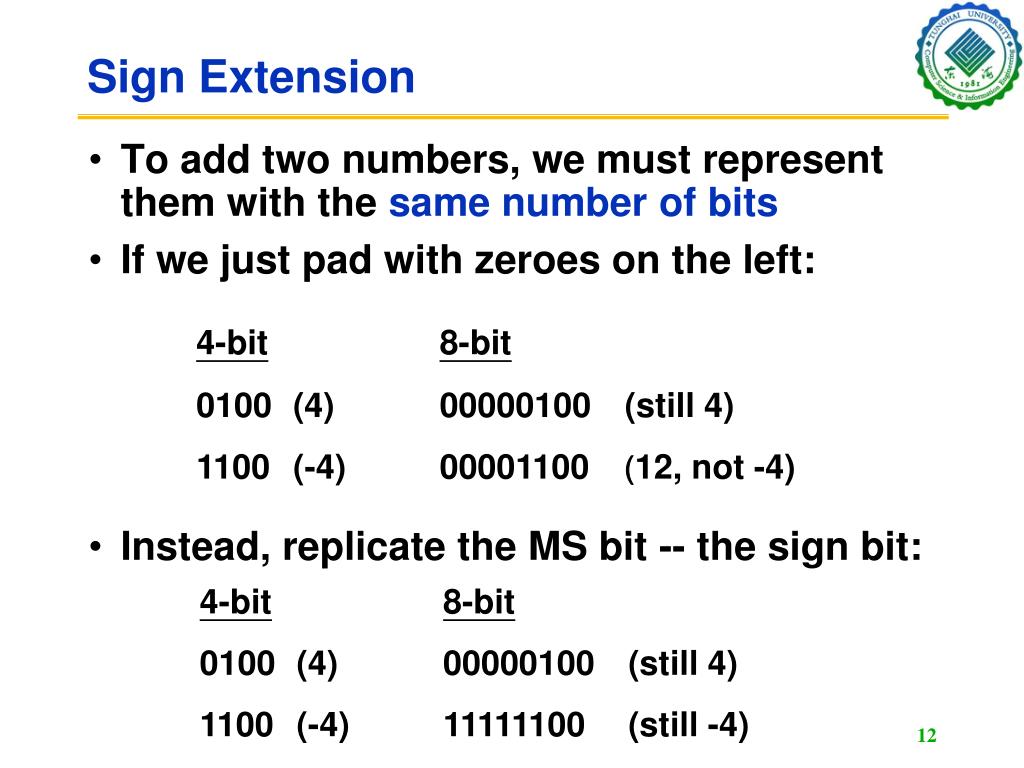

  12. Sign Extension 4-bit8-bit 0100 (4)00000100 (still 4) 1100 (-4)00001100 (12, not -4) 4-bit8-bit 0100 (4)00000100 (still 4) 1100 (-4)11111100 (still -4) To add two numbers, we must represent them with the same number of bits If we just pad with zeroes on the left: Instead, replicate the MS bit -- the sign bit:

  13. Signed versus Unsigned Comparison • Suppose register $s0 has binary number 1111 1111 1111 1111 1111 1111 1111 1111 • Register $s1 has the binary number 0000 0000 0000 0000 0000 0000 0000 0001 What are the value of registers $t0 and $t1 • slt $t0, $s0, $s1 #signed • sltu $t1, $s0, $s1 #unsigned Ans: $t0 = 1 and $t1 = 0

  14. zero ovf 1 1 A 32 ALU result 32 B 32 4 m (operation) MIPS Arithmetic Logic Unit (ALU) • Must support the Arithmetic/Logic operations of the ISA add, addi, addiu, addu sub, subu, mult, multu, div, divu sqrt and, andi, nor, or, ori, xor, xori beq, bne, slt, slti, sltiu, sltu • With special handling for • sign extend – addi, addiu andi, ori, xori, slti, sltiu • zero extend – lbu, addiu, sltiu • no overflow detected – addu, addiu, subu, multu, divu, sltiu, sltu

  15. 1011 and add a 1 1010 complement all the bits Review: 2’s Complement Representation -23 = -(23 - 1) = • Negate 23 - 1 =

  16. add/sub c0=carry_in A0 1-bit FA S0 B0 c1 control (0=add,1=sub) A1 1-bit FA B0 if control = 0, !B0 if control = 1 S1 B0 B1 c2 A2 1-bit FA S2 B2 c3 . . . c31 A31 1-bit FA S31 B31 c32=carry_out A 32-bit Ripple Carry Adder/Subtractor • Remember 2’s complement is just • complement all the bits • add a 1 in the least significant bit A 0111  0111 B - 0110 + 1001 1 0001 1 0001

  17. Addition & Subtraction • Just like in grade school (carry/borrow 1s) 0111 0111 0110+ 0110 - 0110 - 0101 • Two's complement operations easy • subtraction using addition of negative numbers 0111 + 1010 • Overflow (result too large for finite computer word): • e.g., adding two n-bit numbers does not yield an n-bit number 0111 + 0001 note that overflow term is somewhat misleading, 1000 it does not mean a carry “overflowed”

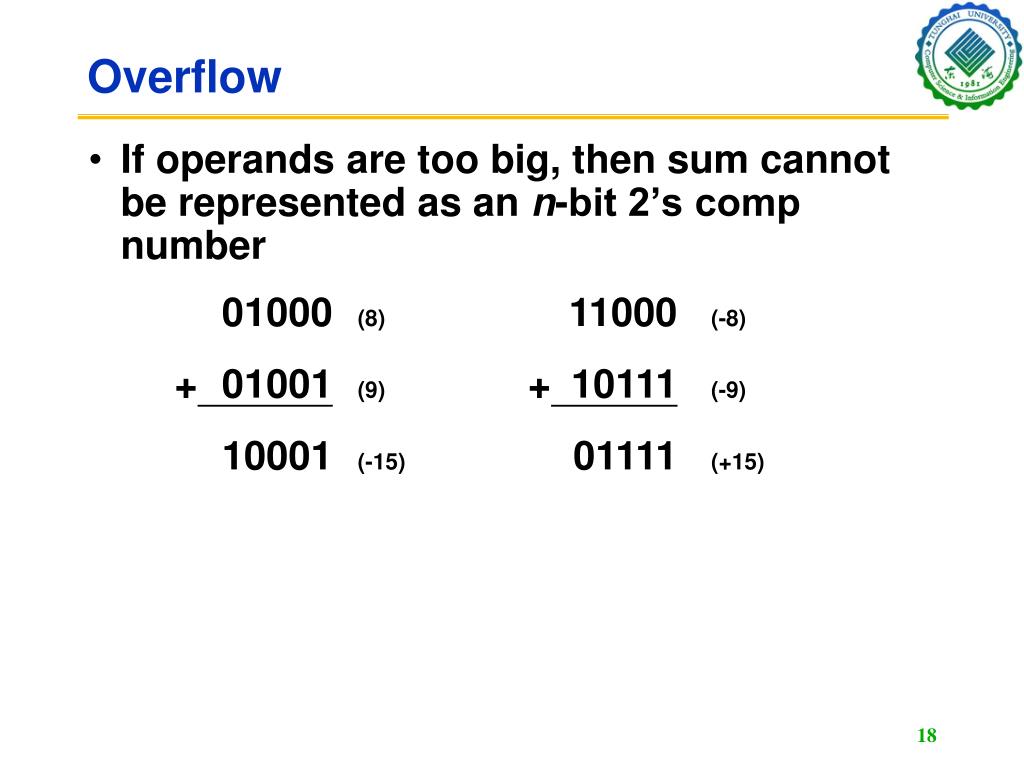

  18. Overflow 01000 (8)11000 (-8) + 01001(9)+ 10111(-9) 10001 (-15) 01111(+15) If operands are too big, then sum cannot be represented as an n-bit 2’s comp number

  19. 0 1 1 1 1 0 0 1 1 1 7 + 0 0 1 1 3 1 0 1 0 0 1 Overflow Detection 1 1 0 0 –4 + 1 0 1 1 – 3 – 6 1 1 7 • Overflow • the result is too large to represent in 32 bits • Overflow occurs when • adding two positives yields a negative • adding two negatives gives a positive • subtract a negative from a positive gives a negative • subtract a positive from a negative gives a positive

  20. Tailoring the ALU to the MIPS ISA • Need to support the logic operation (and,nor,or,xor) • Bit wise operations (no carry operation involved) • Need a logic gate for each function, mux to choose the output • Need to support the set-on-less-than instruction (slt) • Use subtraction to determine if (a – b) < 0 (implies a < b) • Copy the sign bit into the low order bit of the result, set remaining result bits to 0 • Need to support test for equality (bne, beq) • Again use subtraction: (a - b) = 0 implies a = b • Additional logic to “nor” all result bits together • Immediates are sign extended outside the ALU with wiring (i.e., no logic needed)

  21. op rs rtrdshamtfunct Logic Operation (*) • Shift Operations • Shifts move all the bits in a word left or right sll $t2, $s0, 8 #$t2 = $s0 << 8 bits srl $t2, $s0, 8 #$t2 = $s0 >> 8 bits • The shift operation is implemented by hardware separate from the ALU

  22. 0 16 10 8 0 unused Logic Operation (*) sll $s2, $s0, 8 • sll (R-format) • Ex. If register $s0 is 0000 0000 0000 0000 0000 0000 0000 1101 execute sll $s2, $s0, 8 What is the value of $s2? 0000 0000 0000 0000 0000 1101 0000 0000

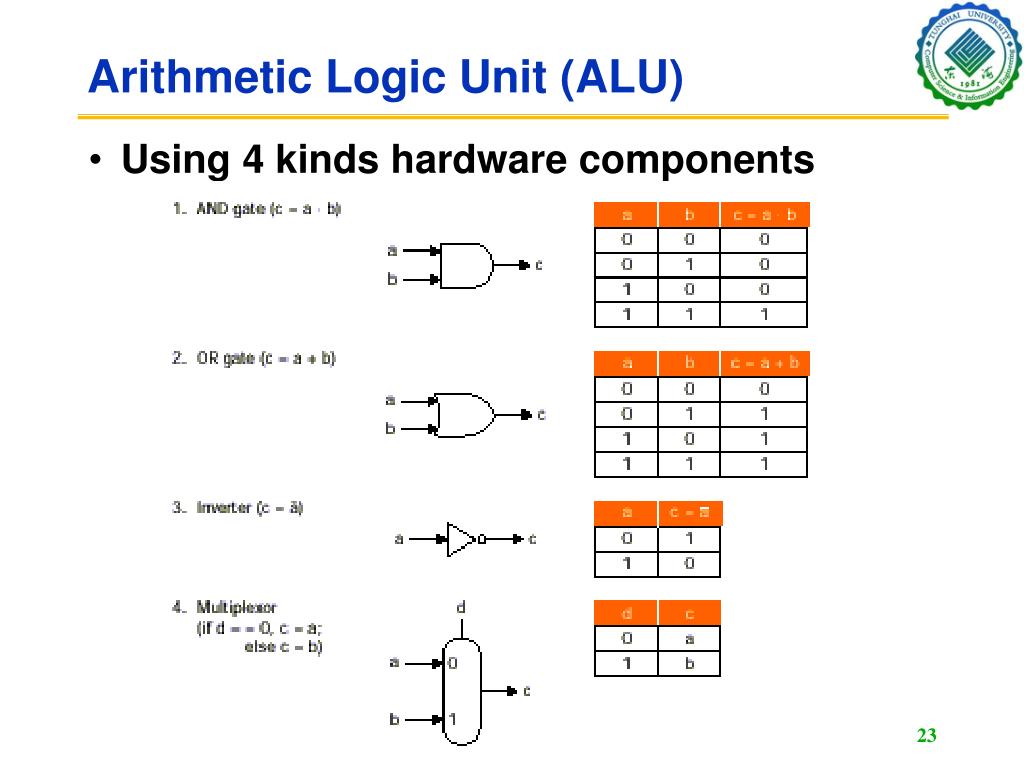

  23. Arithmetic Logic Unit (ALU) Using 4 kinds hardware components

  24. Logical Operations • Operations on logical TRUE or FALSE • two states -- takes one bit to represent: TRUE=1, FALSE=0

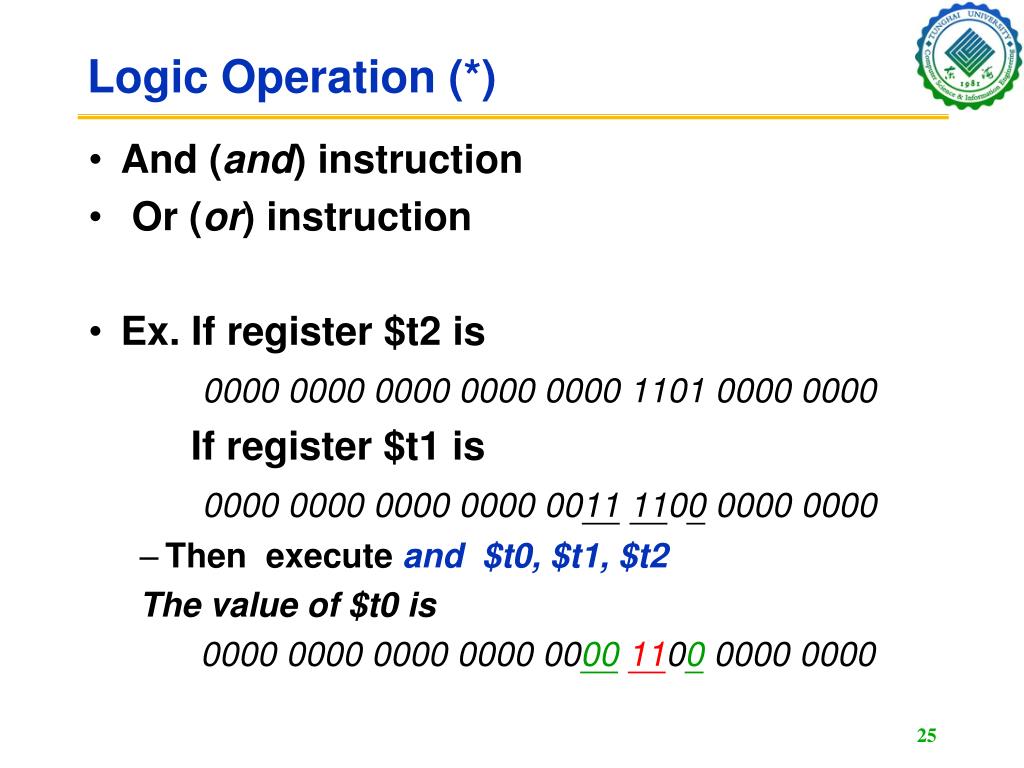

  25. Logic Operation (*) • And (and) instruction • Or (or) instruction • Ex. If register $t2 is 0000 0000 0000 0000 0000 1101 0000 0000 If register $t1 is 0000 0000 0000 0000 00111100 0000 0000 • Then execute and $t0, $t1, $t2 The value of $t0 is 0000 0000 0000 0000 00001100 0000 0000

  26. Examples of Logical Operations • AND • useful for clearing bits • AND with zero = 0 • AND with one = no change • OR • useful for setting bits • OR with zero = no change • OR with one = 1 • NOT • unary operation -- one argument • flips every bit 11000101 AND 00001111 00000101 11000101 OR 00001111 11001111 NOT11000101 00111010

  27. CarryIn Input Output a + Sum a 0 0 0 0 1 1 1 1 b 0 0 1 1 0 0 1 1 CarryIn 0 1 0 1 0 1 0 1 CarryOut 0 0 0 1 0 1 1 1 Sum 0 1 1 0 1 0 0 1 b CarryOut Adder (1-bit) 1-bit full adder

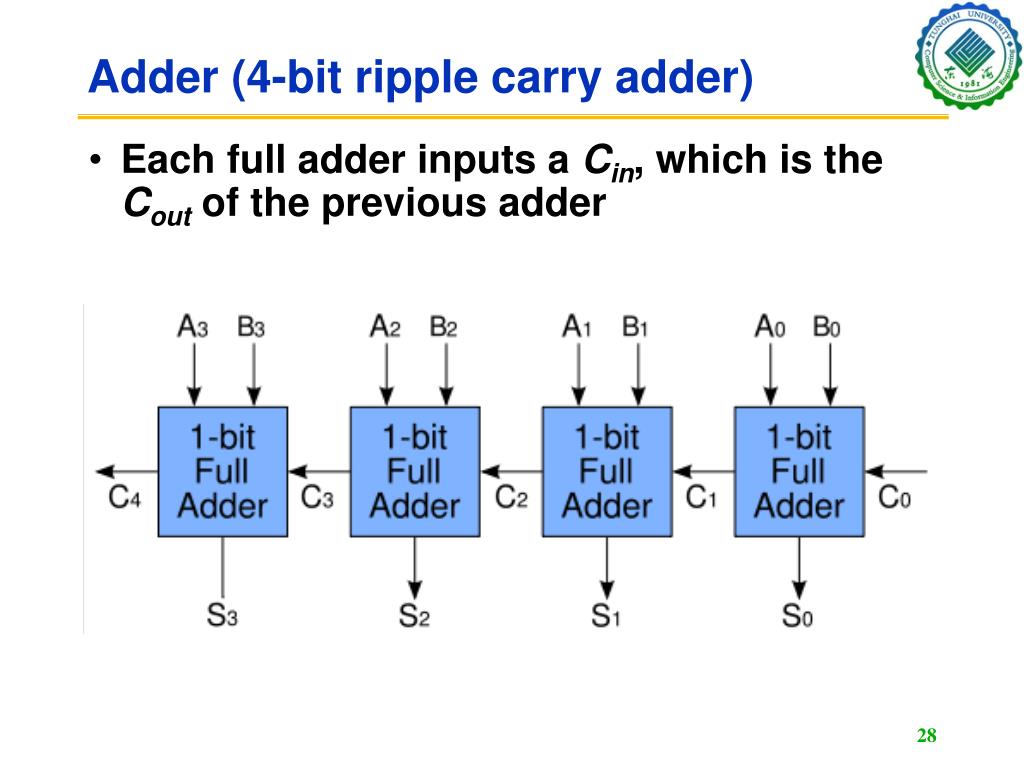

  28. Adder (4-bit ripple carry adder) Each full adder inputs a Cin, which is the Cout of the previous adder

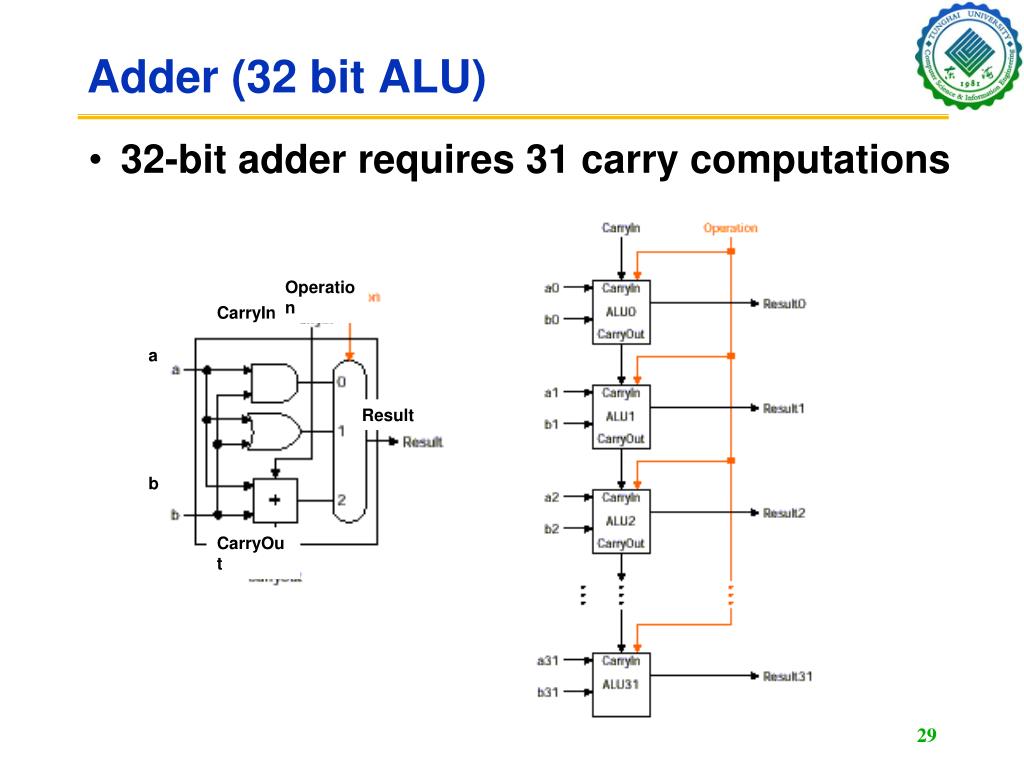

  29. Adder (32 bit ALU) Operation CarryIn a Result b CarryOut 32-bit adder requires 31 carry computations

  30. ALU-運算 a Zero 結果 ALU 溢位 b 進位輸出 ALU Overflow Carry out ALU notation

  31. can be formed in parallel and added in parallel for faster multiplication 3.4 Multiplication (1/4) n multiplicand multiplier partial product array n double precision product 2n Binary multiplication is just a bunch of right shifts and adds

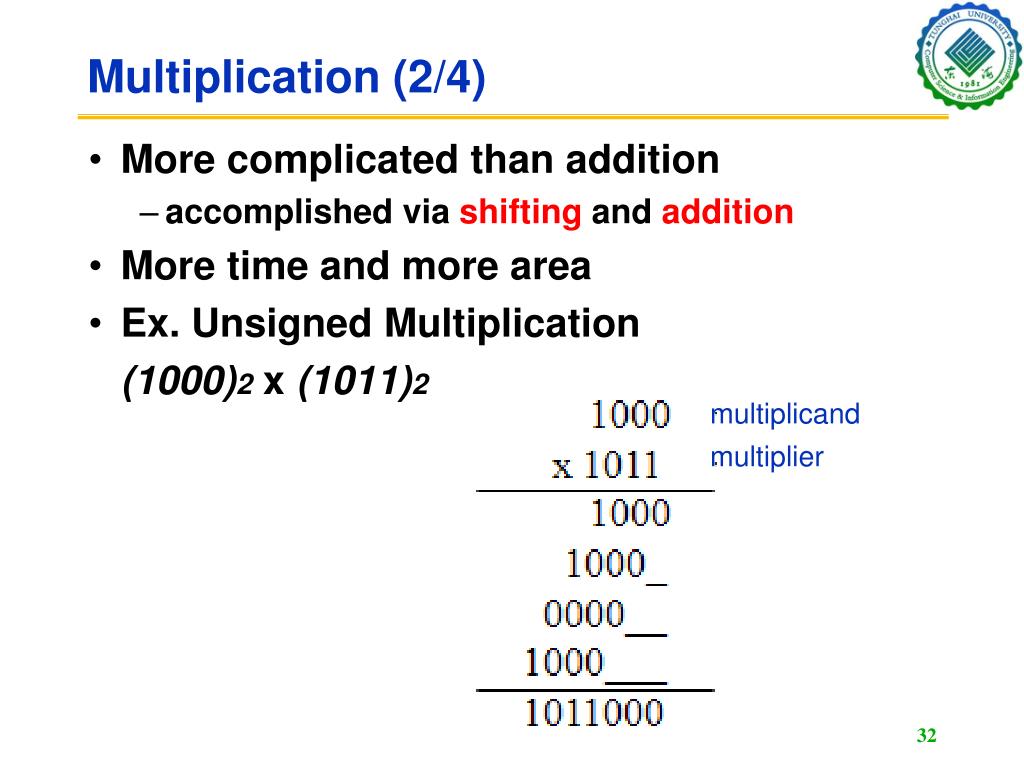

  32. Multiplication (2/4) multiplicand multiplier • More complicated than addition • accomplished via shifting and addition • More time and more area • Ex. Unsigned Multiplication (1000)2 x (1011)2

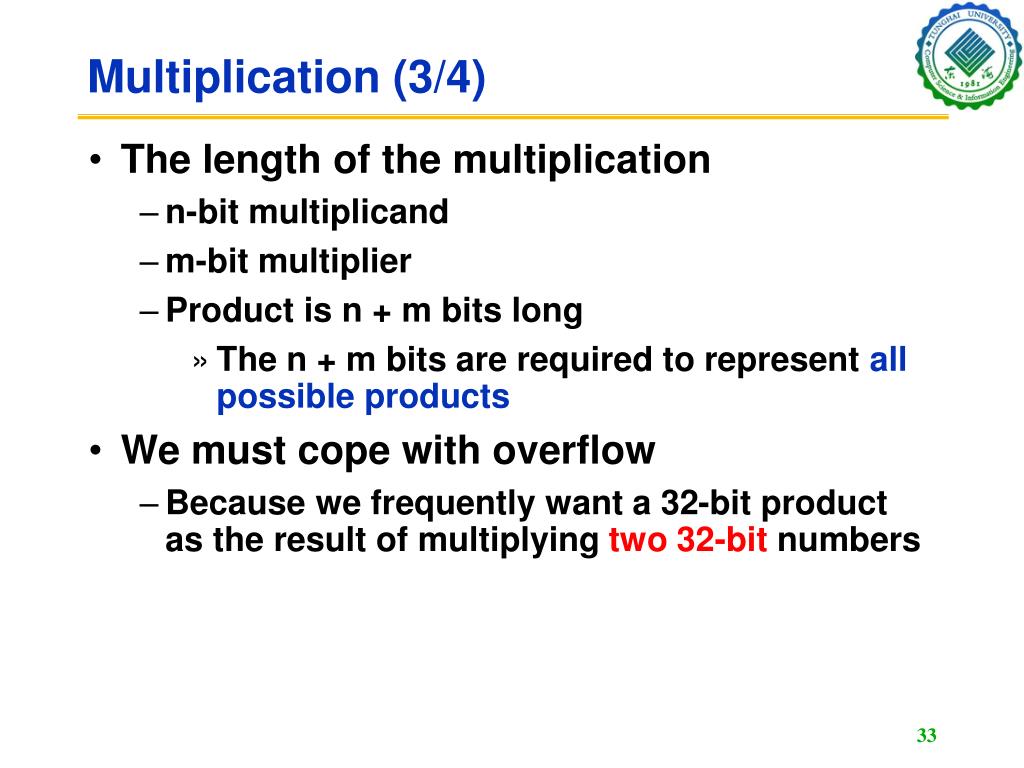

  33. Multiplication (3/4) • The length of the multiplication • n-bit multiplicand • m-bit multiplier • Product is n + m bits long • The n + m bits are required to represent all possible products • We must cope with overflow • Because we frequently want a 32-bit product as the result of multiplying two 32-bit numbers

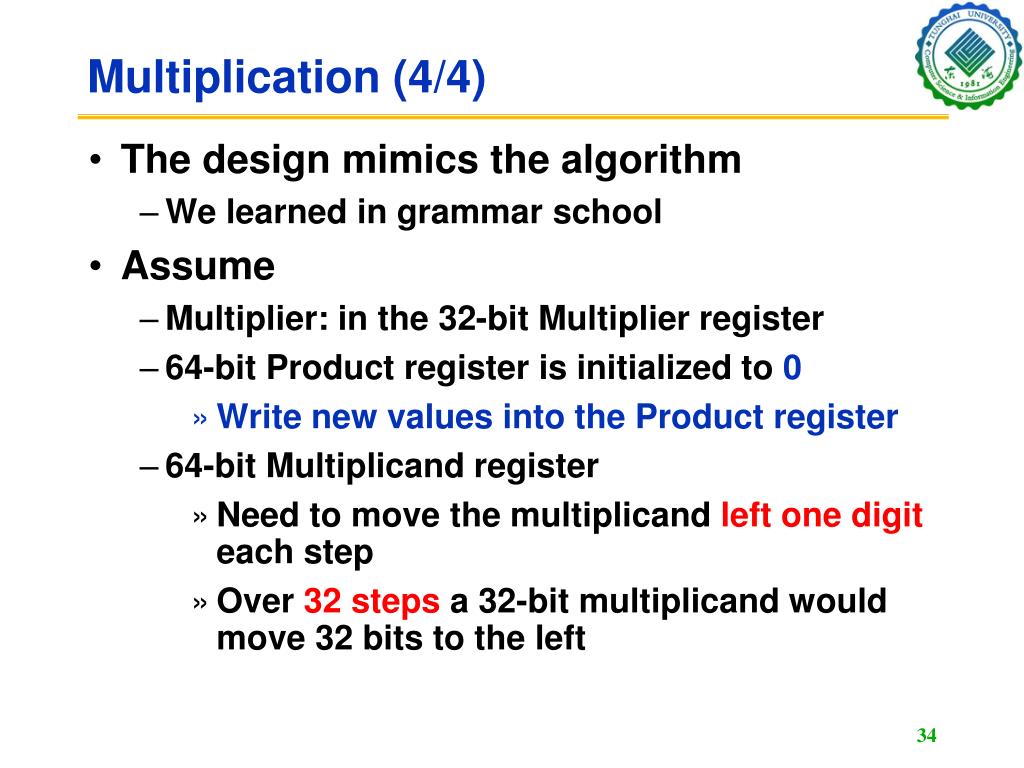

  34. Multiplication (4/4) • The design mimics the algorithm • We learned in grammar school • Assume • Multiplier: in the 32-bit Multiplier register • 64-bit Product register is initialized to 0 • Write new values into the Product register • 64-bit Multiplicand register • Need to move the multiplicand left one digit each step • Over 32 steps a 32-bit multiplicand would move 32 bits to the left

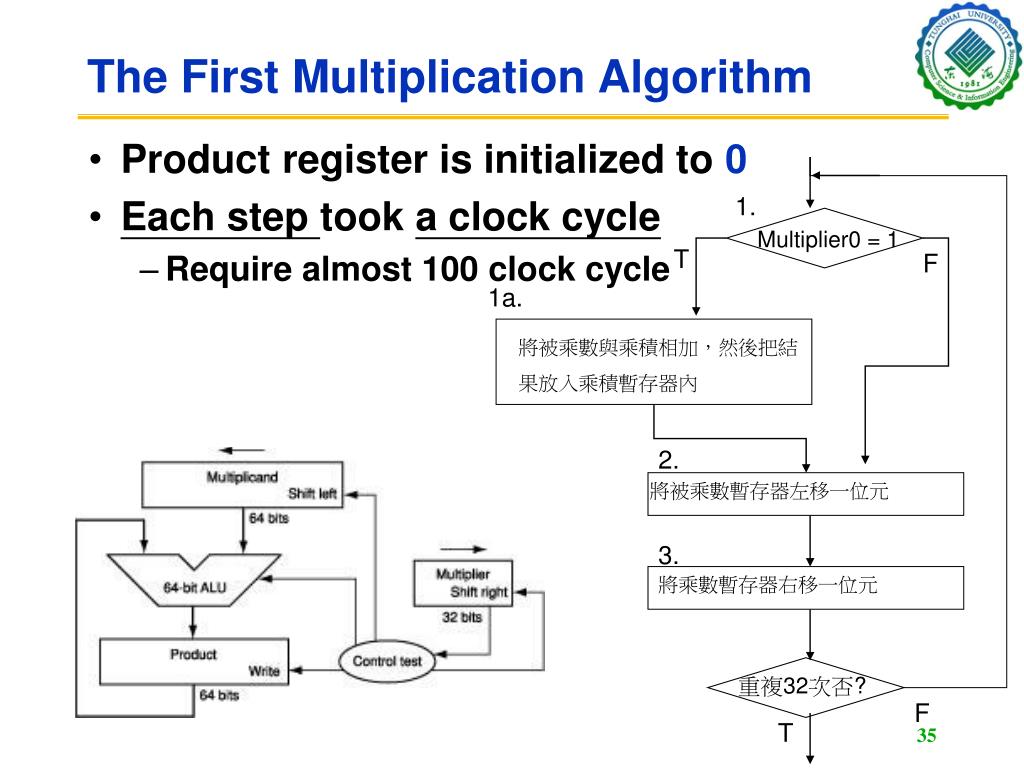

  35. 1. Multiplier0 = 1 T F 1a. 將被乘數與乘積相加，然後把結 果放入乘積暫存器內 2. 將被乘數暫存器左移一位元 3. 重複32次否? 將乘數暫存器右移一位元 F T The First Multiplication Algorithm • Product register is initialized to 0 • Each step took a clock cycle • Require almost 100 clock cycle

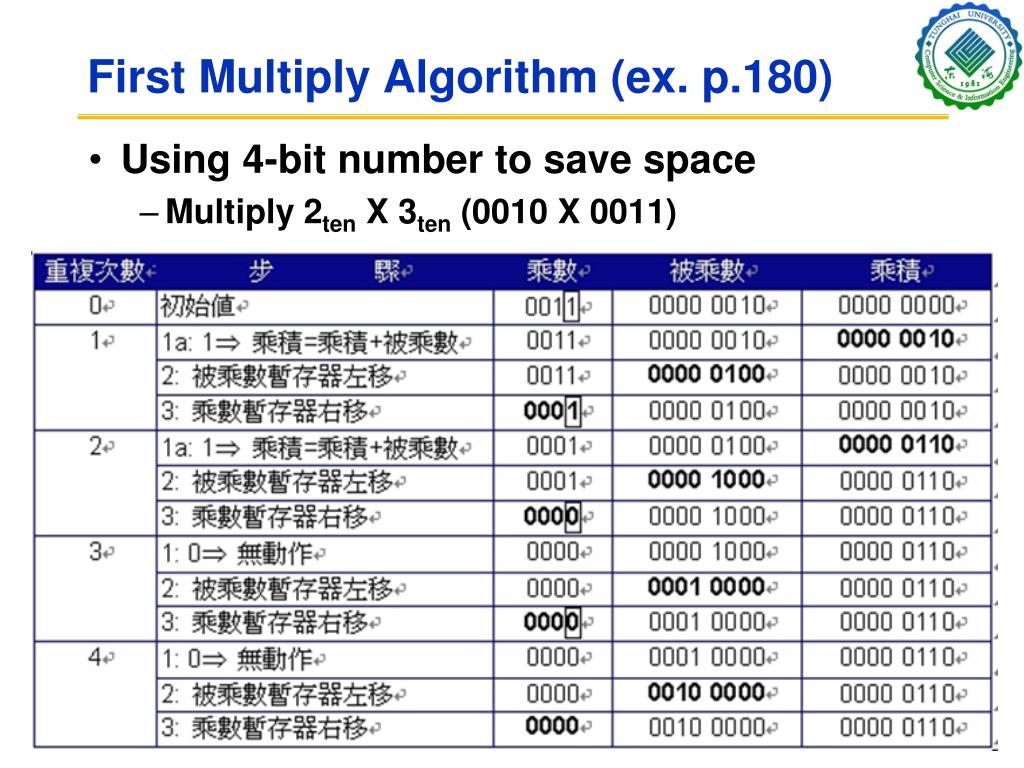

  36. First Multiply Algorithm (ex. p.180) • Using 4-bit number to save space • Multiply 2ten X 3ten (0010 X 0011)

  37. The Second Multiplication Algorithm • Multiplicand register, ALU, and Multiplier register are all 32 bits wide • Only Product register is 64 bits (initial = 0) • The multiplier is placed instead in the right half on the Product register

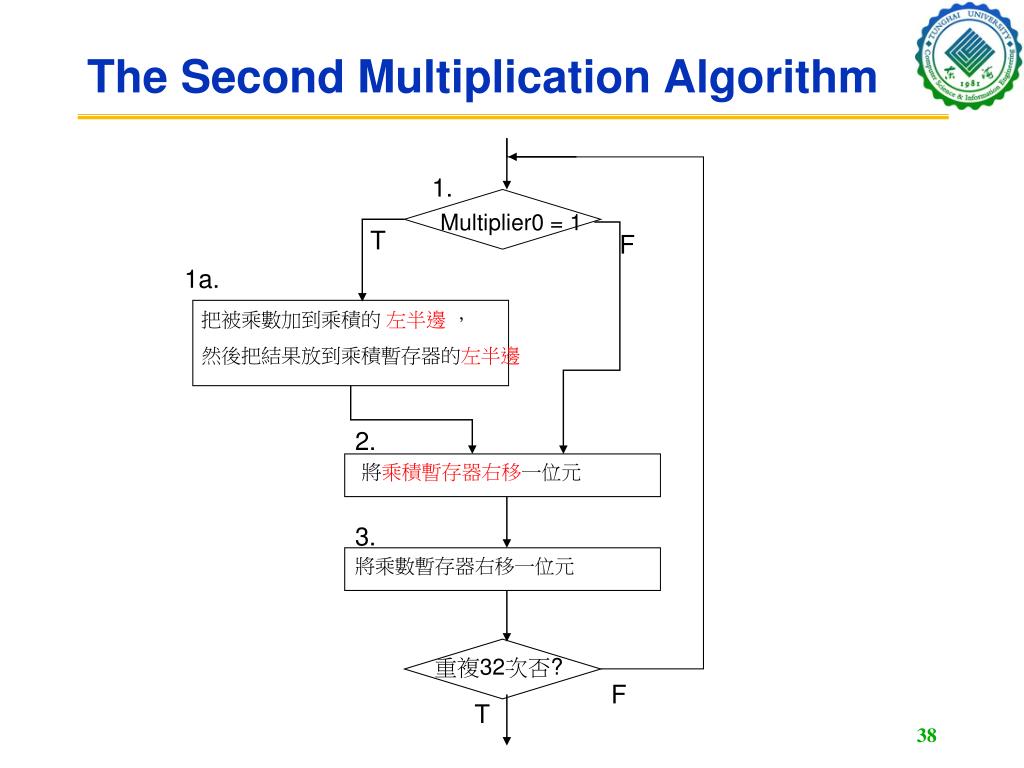

  38. 1. Multiplier0 = 1 T F 1a. 把被乘數加到乘積的 左半邊 ， 然後把結果放到乘積暫存器的左半邊 將乘積暫存器右移一位元 2. 3. 重複32次否? 將乘數暫存器右移一位元 F T The Second Multiplication Algorithm

  39. Multiply in MIPS • MIPS has two instructions • Multiply: mult • Multiply unsigned: multu • MIPS multiply instructions ignore overflow • Up to the software to check to see if the product is too big to fit in 32 bits

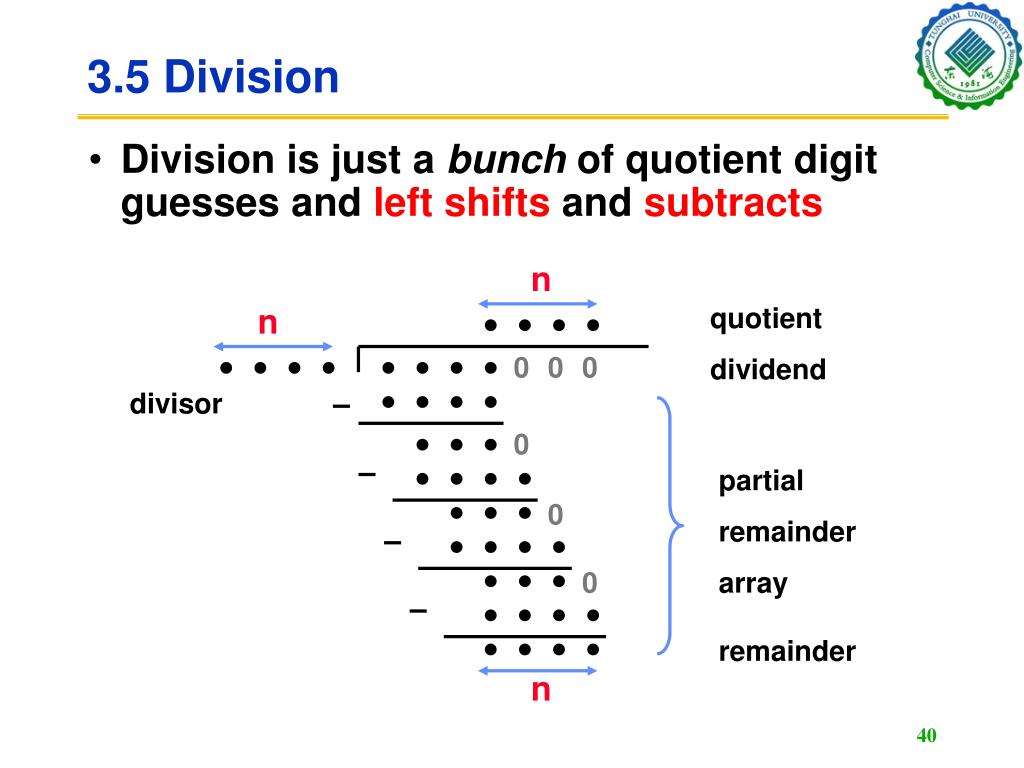

  40. 3.5 Division n n quotient 0 0 0 dividend divisor 0 partial remainder array 0 0 remainder n Division is just a bunch of quotient digit guesses and left shifts and subtracts

  41. Division • MIPS has two instructions • Divide: div • Divide unsigned: divu • As with multiply, divide ignores overflow • Software must determine if the quotient is too large • Software must also check the divisor to avoid division by 0

  42. 3.6 Floating Point (p.189) • We need a way to represent • numbers with fractions, e.g., 3.14159265 (π) • very small numbers, e.g., .000000001 • very large numbers, e.g., 3.15576 X 109

  43. Floating Point • Representation • sign, exponent, significand: (–1)sign X significand X 2exponent • more bits for significand gives more accuracy • more bits for exponent increases range • IEEE 754 floating point standard: • single precision: 8 bit exponent, 23 bit significand • double precision: 11 bit exponent, 52 bit significand

  44. s E (exponent) F (fraction) 1 bit 8 bits 23 bits Representing Big (and Small) Numbers • What if we want to encode the approx. age of the earth? 4,600,000,000 or 4.6 x 109 or the weight in kg of one a.m.u. (atomic mass unit) 0.0000000000000000000000000166 or 1.6 x 10-27 • Floating point representation (-1)sign x F x 2E • Still have to fit everything in 32 bits (single precision)

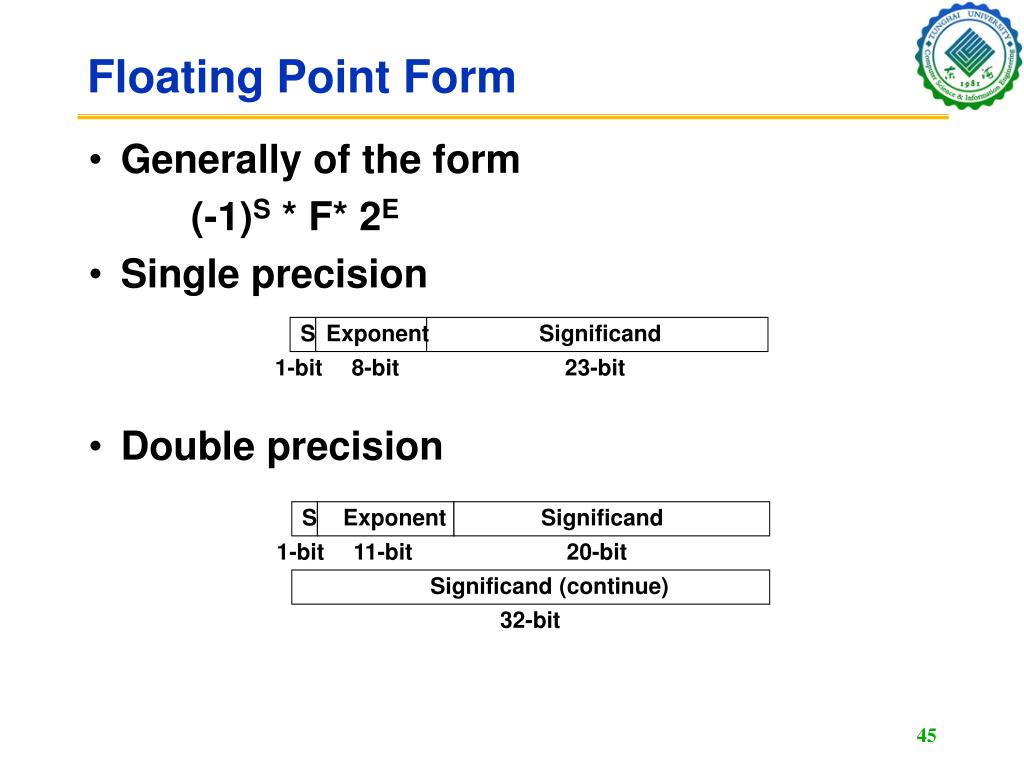

  45. S Exponent Significand Floating Point Form 1-bit 8-bit 23-bit S Exponent Significand 1-bit 11-bit 20-bit Significand (continue) 32-bit • Generally of the form (-1)S * F* 2E • Single precision • Double precision

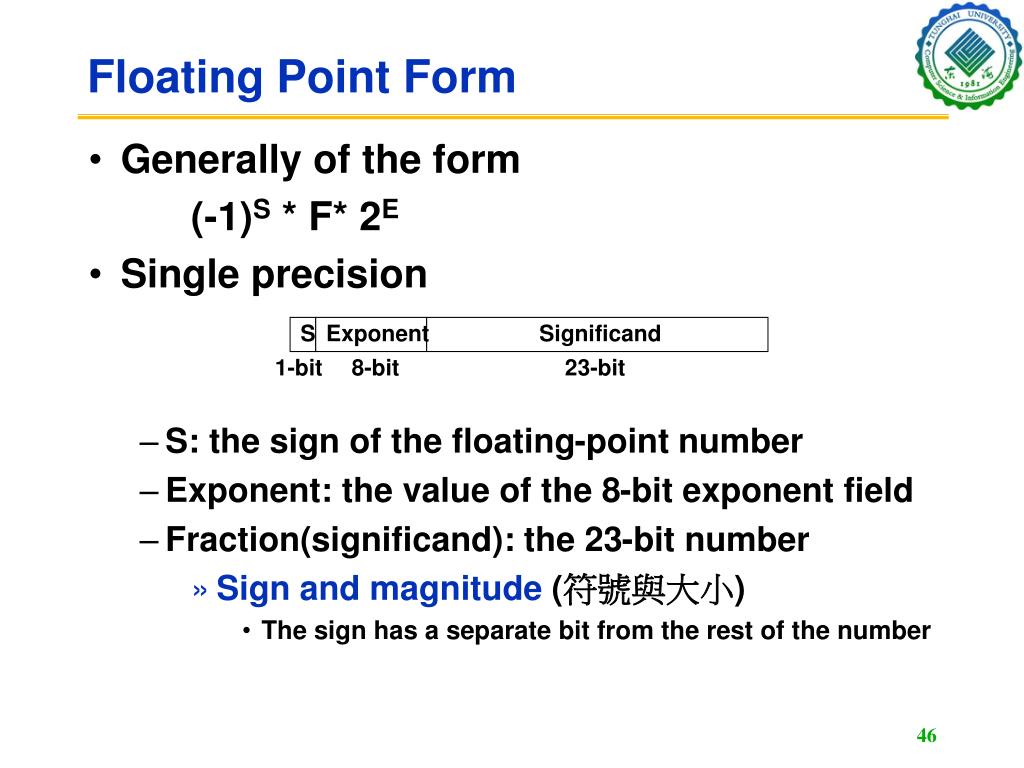

  46. S Exponent Significand Floating Point Form 1-bit 8-bit 23-bit • Generally of the form (-1)S * F* 2E • Single precision • S: the sign of the floating-point number • Exponent: the value of the 8-bit exponent field • Fraction(significand): the 23-bit number • Sign and magnitude (符號與大小) • The sign has a separate bit from the rest of the number

  47. Overflow & Underflow • Overflow • Means that the positiveexponent is too large to be represented in the exponent field • Underflow • Means that the negative exponent is too large to be represented in the exponent field

  48. IEEE 754 floating-point standard (1/2) • These format go beyond MIPS • They are part of the IEEE 754 floating-point standard • To pack even more bits into the significand • IEEE754 makes the leading 1bit of normalized binary numbers implicit • The number is 24 bits long in single precision • Implied 1 and a 23-bit fraction • The number is 53 bits long in double precision • Implied 1 and a 52-bit fraction

  49. IEEE 754 floating-point standard (2/2) • 0 has no leading 1 • It is given the reserved exponent value 0 • 000…00two represents 0 • The representation of the rest of the numbers (-1)S * (1+Fraction)* 2E @F is stored in normalized form where the msb in the fraction is 1 (so there is no need to store it!) – called the hidden bit @ E specifies the value in the exponent field • If number the bits of the fraction from left to right s1, s2, s3,… (-1)S*(1+(s1*2-1) +(s2*2-2) +(s3*2-3)+…)*2E
