Side view

1 - 5  m. Side view. Au electrode. SiO 2. FeGa. SiO 2. 100nm. 70nm. PZT (70/30) ‏. 70nm. Pt. Fabrication of a non-volatile multiferroic memory device. Micron-sized non-volatile magnetoresistance devices are being pursued using ferroelectric/ magnetostrictive multilayers.

zamora
Télécharger la présentation

Side view

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

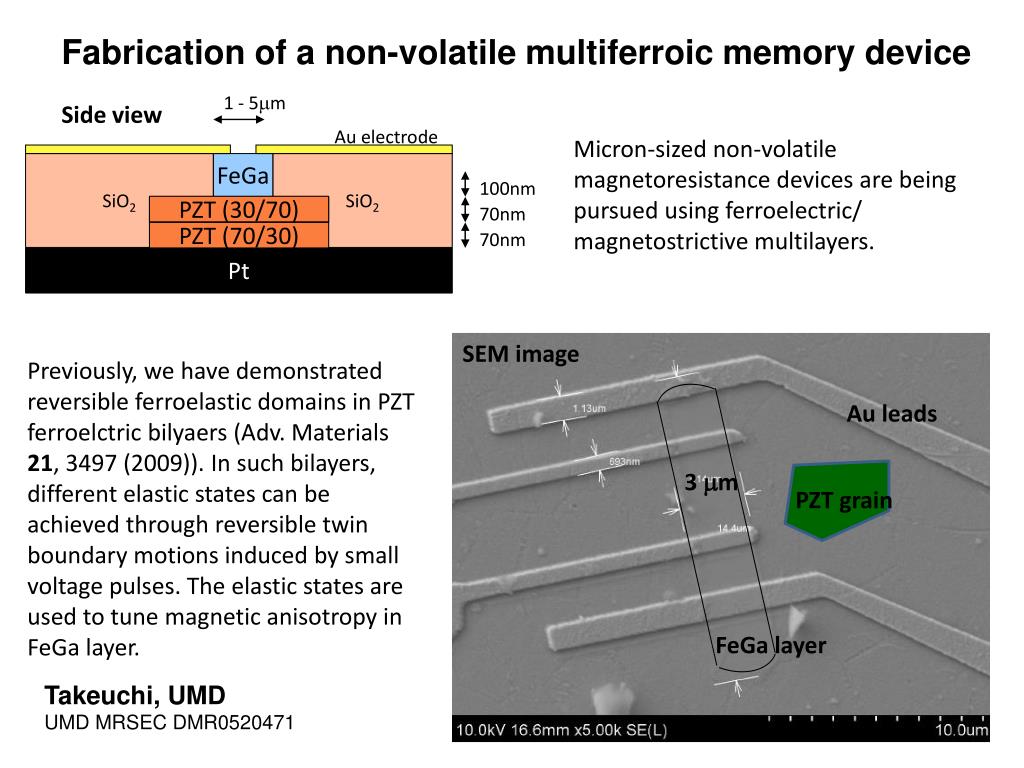

  1. 1 - 5m Side view Au electrode SiO2 FeGa SiO2 100nm 70nm PZT (70/30)‏ 70nm Pt Fabrication of a non-volatile multiferroic memory device Micron-sized non-volatile magnetoresistance devices are being pursued using ferroelectric/ magnetostrictive multilayers. PZT (30/70)‏ SEM image Previously, we have demonstrated reversible ferroelastic domains in PZT ferroelctric bilyaers (Adv. Materials 21, 3497 (2009)). In such bilayers, different elastic states can be achieved through reversible twin boundary motions induced by small voltage pulses. The elastic states are used to tune magnetic anisotropy in FeGa layer. Au leads 3 mm PZT grain FeGa layer Takeuchi, UMD UMD MRSEC DMR0520471
