  1. ADDRESSINGMODES OF 8085

  2. AddressingModesof8085 • Toperformany operation,wehave to givethecorrespondinginstructionsto themicroprocessor. • Ineachinstruction,programmerhas to • specify3things: • Operationtobeperformed. • Addressofsourceofdata. • Addressofdestinationofresult.

  3. AddressingModesof8085 • Themethod by whichtheaddressof sourceof dataortheaddressof destinationofresultis givenin the instructioniscalledAddressing Modes. • Thetermaddressingmoderefersto thewayinwhichtheoperandofthe instructionisspecified.

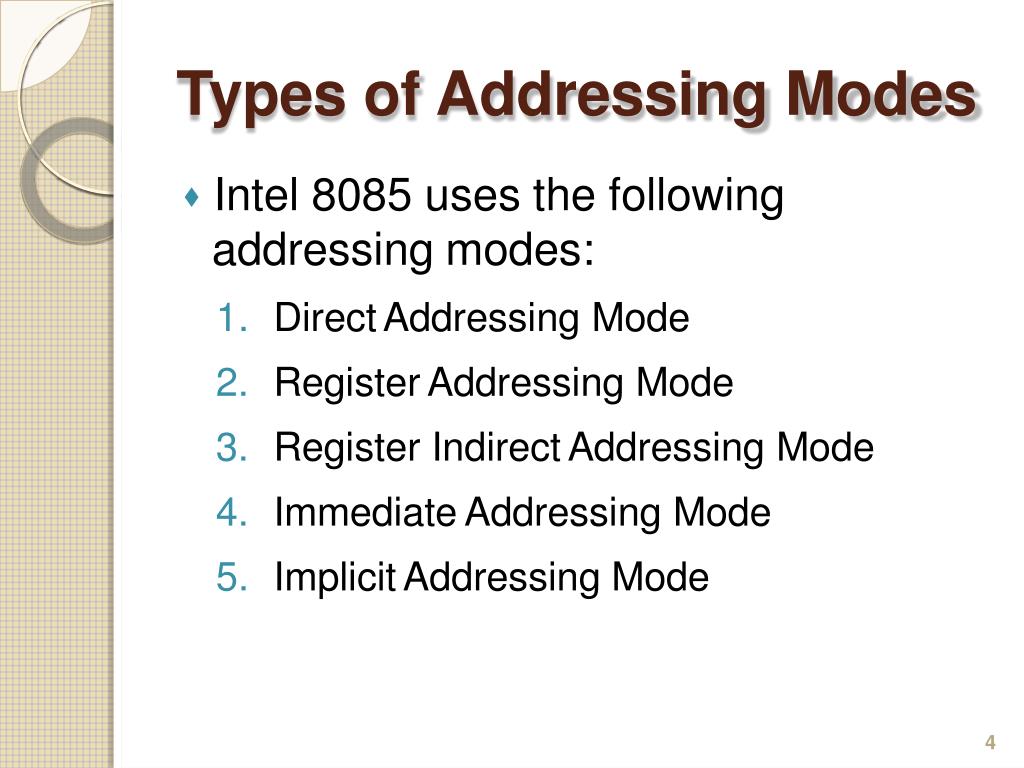

  4. TypesofAddressingModes • Intel8085usesthefollowing • addressingmodes: • DirectAddressingMode • RegisterAddressingMode • RegisterIndirectAddressingMode • ImmediateAddressingMode • ImplicitAddressingMode

  5. DirectAddressingMode • Inthis mode,theaddressofthe operandis givenintheinstruction itself. LDA2500H Loadthecontents of memory location2500H inaccumulator. • LDAis theoperation. • 2500His theaddressofsource. • Accumulatoris thedestination.

  6. RegisterAddressingMode • Inthis mode,theoperandisin general • purposeregister. Movethecontents ofregisterB to A. MOVA,B • MOVis theoperation. • Bis thesourceofdata. • Ais thedestination.

  7. Register IndirectAddressing Mode • Inthis mode,theaddressofoperand • isspecifiedbyaregisterpair. MOVA,M Movedatafrommemorylocation specifiedbyH-Lpair to accumulator. • MOVis theoperation. • Misthememory locationspecifiedby • H-Lregisterpair. • Ais thedestination.

  8. ImmediateAddressingMode • Inthis mode,theoperandisspecified • withintheinstructionitself. MVI A, 05 H Move05 H inaccumulator. • MVIis theoperation. • 05His theimmediatedata(source). • Ais thedestination.

  9. ImplicitAddressingMode • Ifaddress of sourceof dataas wellas addressof destinationofresultis fixed, thenthere is noneedto giveany operandalongwiththe instruction. • CMA Complement accumulator. • CMAis the operation. • Aisthesource. • Ais the destination.
