  1. Networked DAQ

  2. Benefits of Solid State Recording Cost No cost in changing, storing, stocking and replacing pens and paper. Accessibility Local/remote access by any (authorized) person anywhere! Easy searching & retrieval of data Infinite storage capability on Ethernet servers

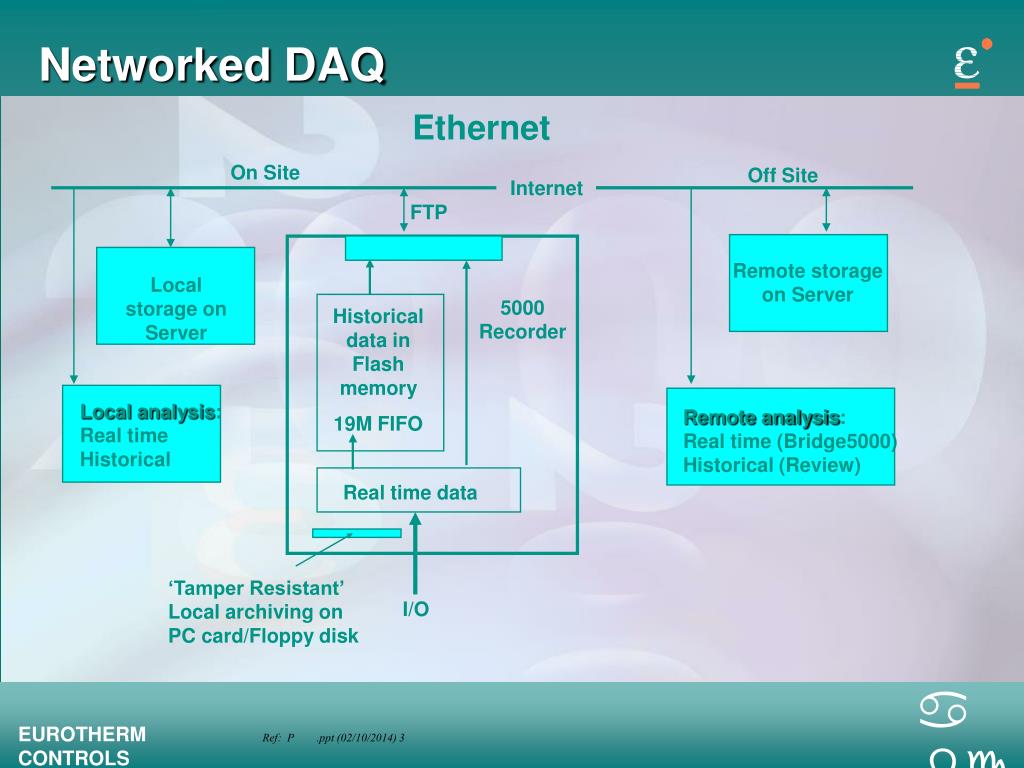

  3. Ethernet On Site Off Site Internet FTP Remote storage on Server Historical data in Flash memory 19M FIFO Local storage on Server 5000 Recorder Local analysis:Real time Historical Real time data Remote analysis:Real time (Bridge5000) Historical (Review) ‘Tamper Resistant’ Local archiving on PC card/Floppy disk I/O Networked DAQ

  4. Remote storage on Server Historical data in Flash memory 19M FIFO Remote analysis:Real time (Bridge5000) Historical (Review) Dial-up Connection Dial up Connection Off Site FTP 5000 Recorder Real time data I/O

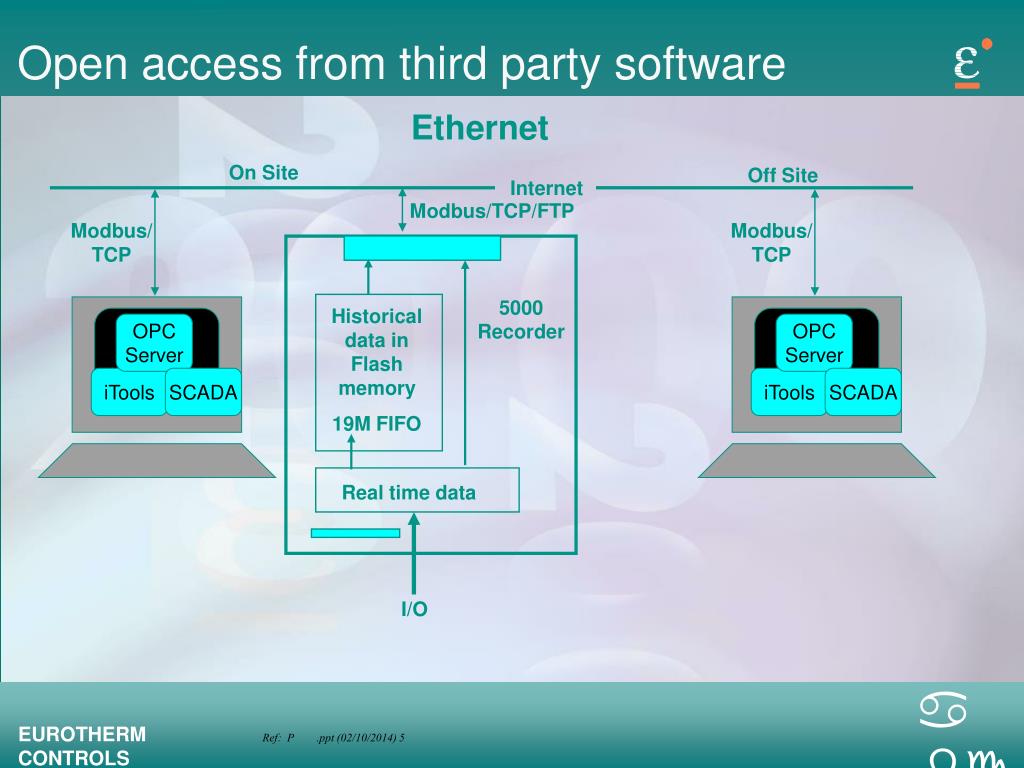

  5. Ethernet On Site Off Site Internet Modbus/TCP/FTP Modbus/TCP Modbus/TCP Historical data in Flash memory 19M FIFO 5000 Recorder OPCServer OPCServer iTools iTools SCADA SCADA Real time data I/O Open access from third party software

  6. The future • Full remote configuration - with Bridge software • Enhancements to live & historical data display
