  1. ENGINE LUBRICATION SYSTEM & NETWORK ANALYSIS PRATK JOSHI

  2. CONTENTS • Introduction • Properties of lubricant • Components used in lubrication system • Engine lubrication system • Flow network analysis • Oil pump flow analysis • Oil filter flow analysis • Hydraulic tappet analysis • Summary • References

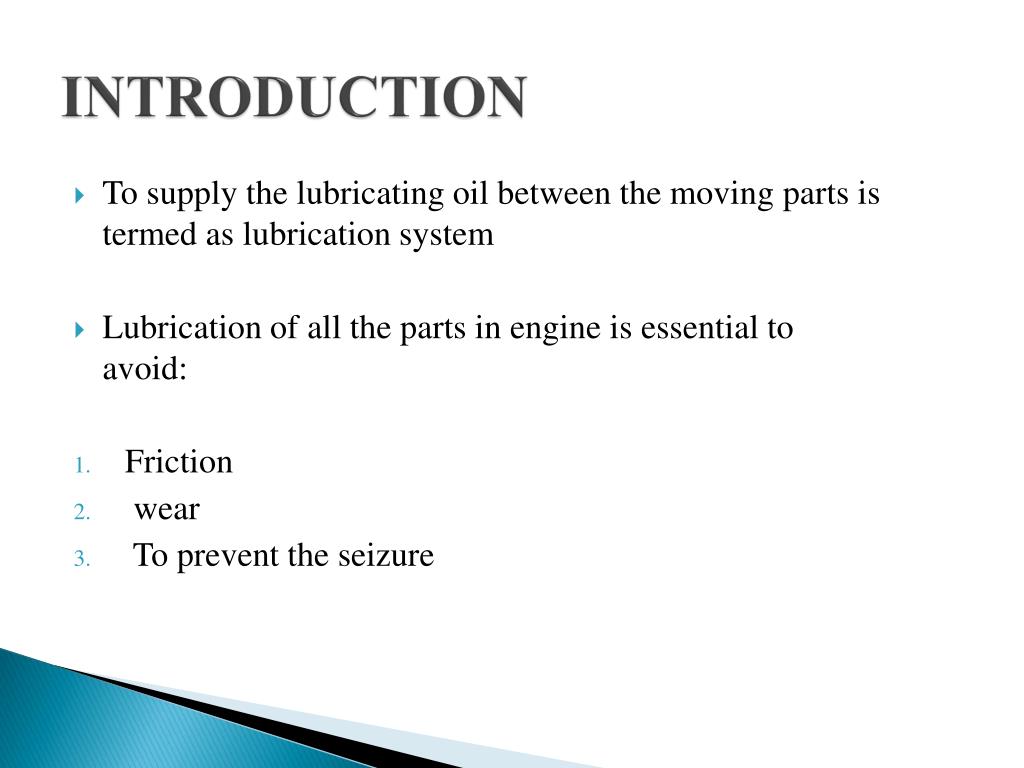

  3. INTRODUCTION • To supply the lubricating oil between the moving parts is termed as lubrication system • Lubrication of all the parts in engine is essential to avoid: • Friction • wear • To prevent the seizure

  4. PROPERTIES OF LUBRICANTS • Viscosity • Density • Specific heat • Flash point • Adhesiveness • Chemical stability

  5. COMPONENTS IN LUBRICATION SYSTEM • Oil sump or Oil tank • Oil pump • Oil filter and strainer • Oil pressure gauge • Oil level indicator

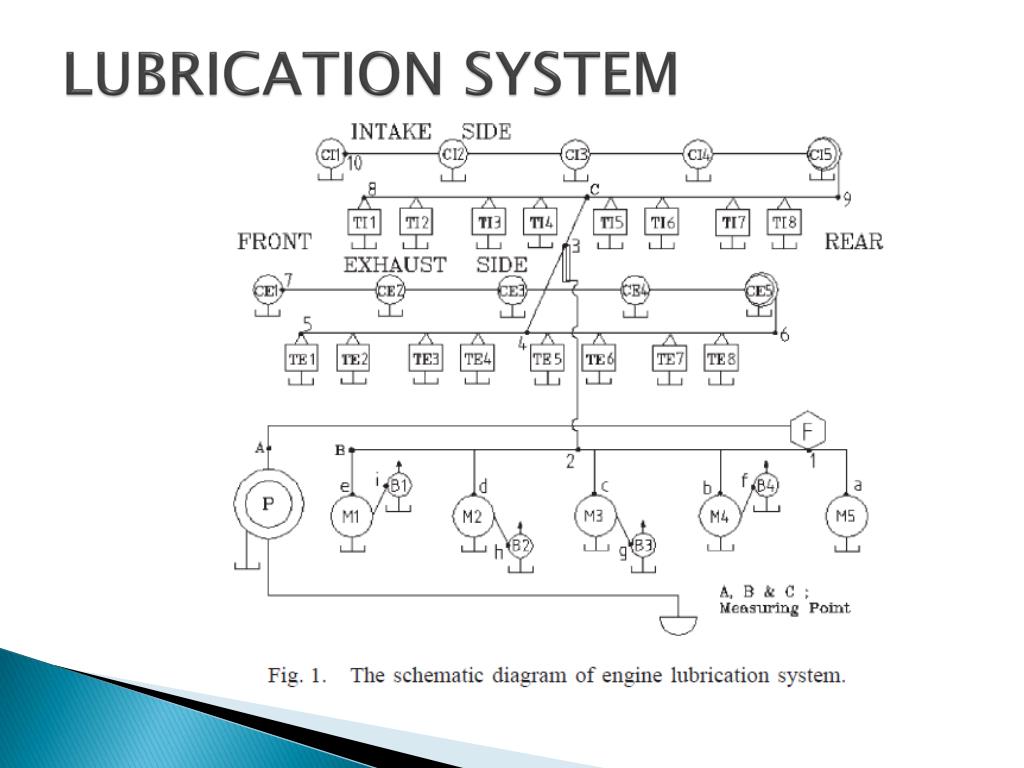

  6. LUBRICATION SYSTEM

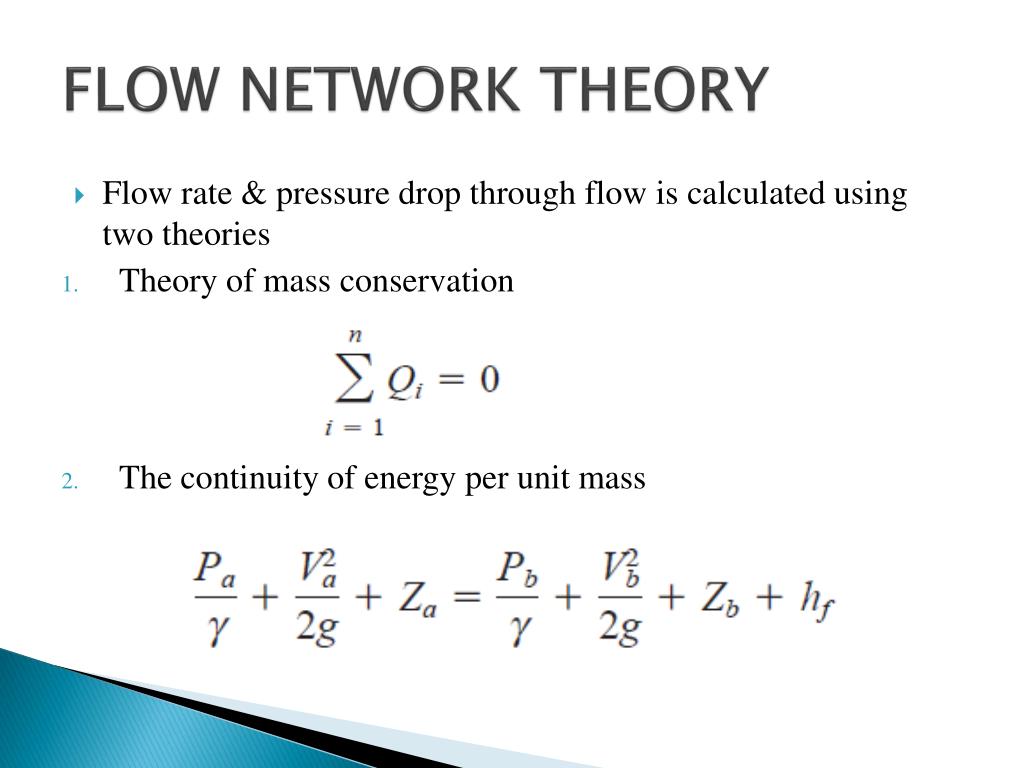

  7. FLOW NETWORK THEORY • Flow rate & pressure drop through flow is calculated using two theories • Theory of mass conservation • The continuity of energy per unit mass

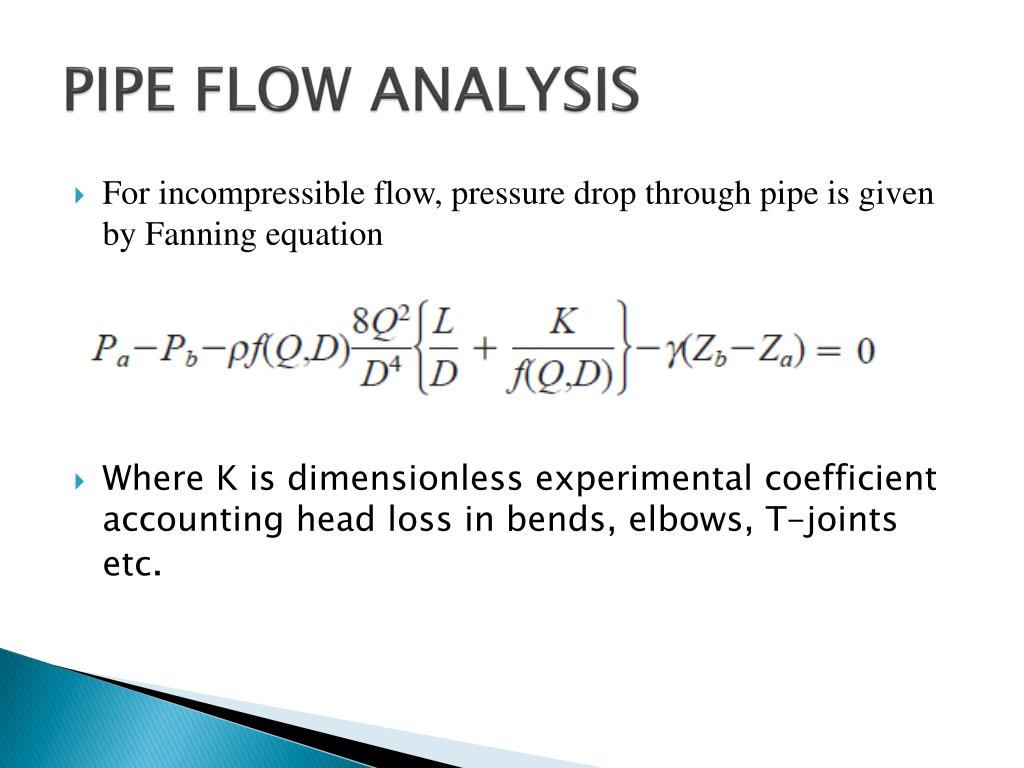

  8. PIPE FLOW ANALYSIS • For incompressible flow, pressure drop through pipe is given by Fanning equation • Where K is dimensionless experimental coefficient accounting head loss in bends, elbows, T-joints etc.

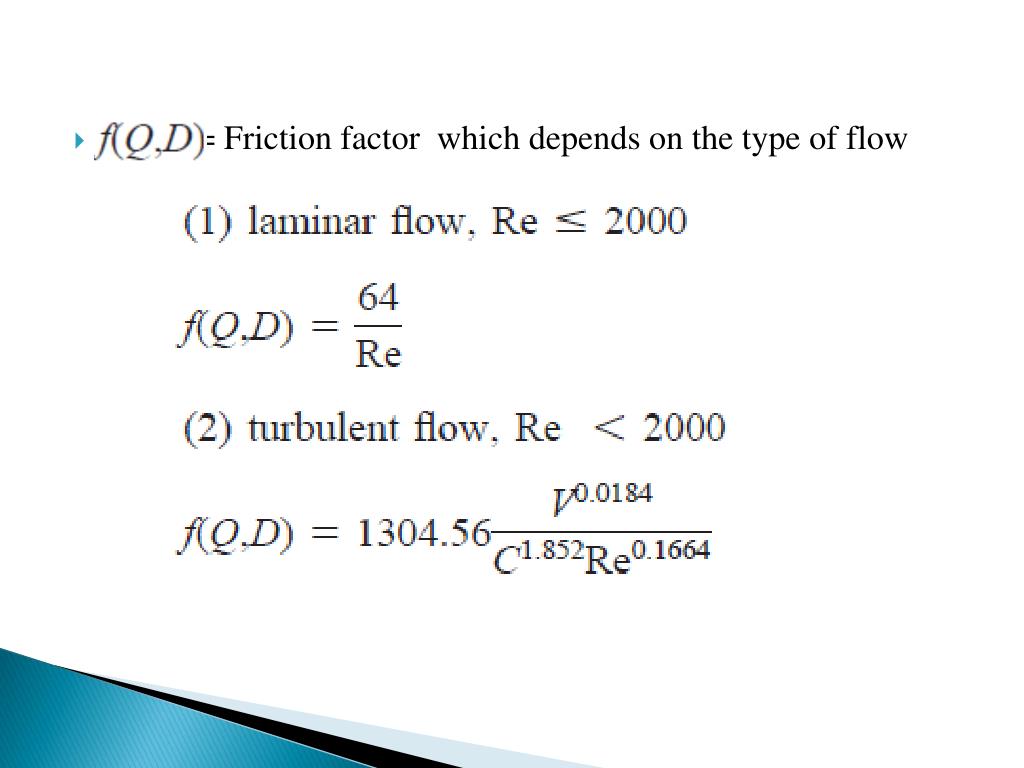

  9. = Friction factor which depends on the type of flow

  10. OIL PUMP FLOW ANALYSIS • Gear pump with crescent guide between internal & external gear can be used as oil pump • Flow rate increases with increase in angular velocity

  11. OIL FILTER ANALYSIS • Oil filter is used to filter out the dirt and grit particle from oil • Lubricating oil is passed through the filter before passing to bearings FIG: Oil filter

  12. The pressure difference and flow rate can be calculated by formulae: • where , are constants and can be obtain by curve fitting (from matlab)

  13. Fig: Flow characteristic of oil filter

  14. HYDRAULIC TAPPET FLOW ANALYSIS Fig: Hydraulic tappet

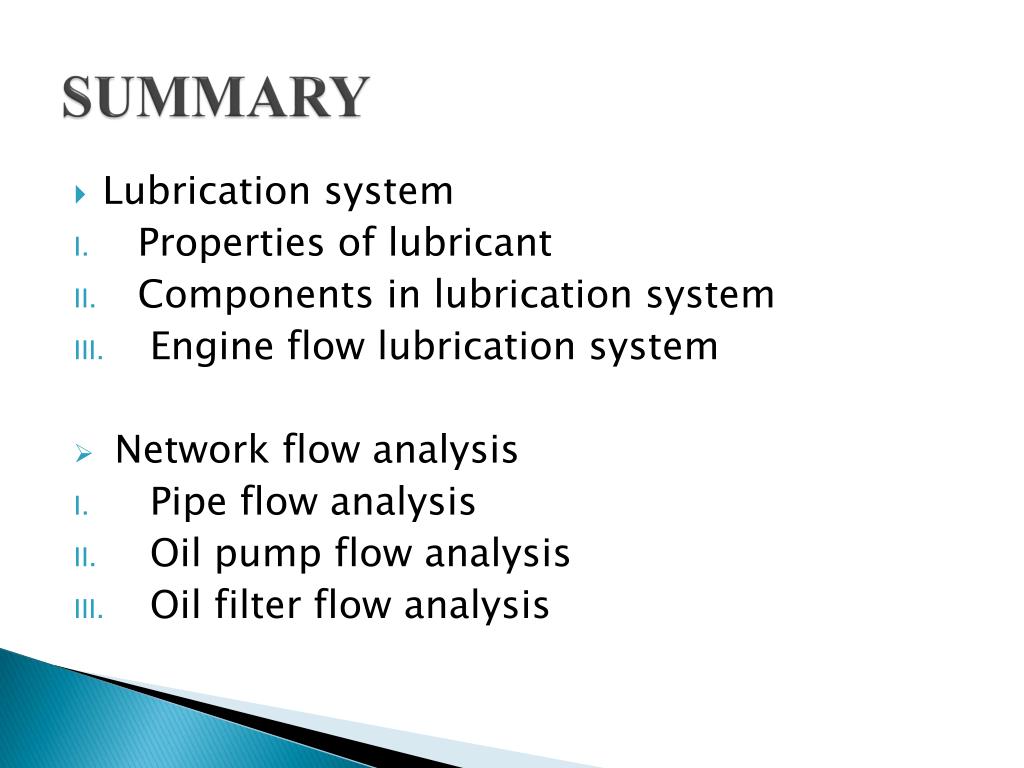

  15. SUMMARY • Lubrication system • Properties of lubricant • Components in lubrication system • Engine flow lubrication system • Network flow analysis • Pipe flow analysis • Oil pump flow analysis • Oil filter flow analysis

  16. REFRENCES • S.M.Chun(2002), “Network analysis of an engine lubricating system”, Tribology international, 12 December. • Tran p, Yamamoto T, Baba Y, Hoshi M, “ An Analysis of lubricating system of automobile gasoline engine”, SAE 871659, 1987. • B.C. Majumdar, “Introduction to Tribology of bearing”, S.Chand publication, second edition 2008.

  17. THANK U
