Stereo Microscope

zolajoneslabtroninfo avatar
3 diapositives · 580 Views · Dec 11, 2023

Stereo Microscope is a compound microscope which works at zoom magnification range. Designed using pillar style stand, provides wide range of zoom
magnification using eyepiece and its rotational objective. Provides sharp stereo erect image over a wide field of view.

1 / 17

Télécharger la présentation

Stereo Microscope
Une image / un lien ci-dessous est fourni (tel quel) pour télécharger la présentation

Politique de téléchargement : le contenu du site vous est fourni TEL QUEL pour votre information et votre usage personnel ; il ne peut être vendu, concédé sous licence ni partagé sur d’autres sites sans l’accord de son auteur.Le contenu vous est fourni TEL QUEL, pour votre information et votre usage personnel uniquement. Téléchargez la présentation en cliquant sur ce lien. Lors du téléchargement, si vous ne parvenez pas à télécharger une présentation, l’éditeur a peut-être supprimé le fichier de son serveur.Pendant le téléchargement, si vous ne parvenez pas à obtenir une présentation, le fichier a peut-être été supprimé par l’éditeur.

F I N

Plus de contenu associé

Transcription de la présentation

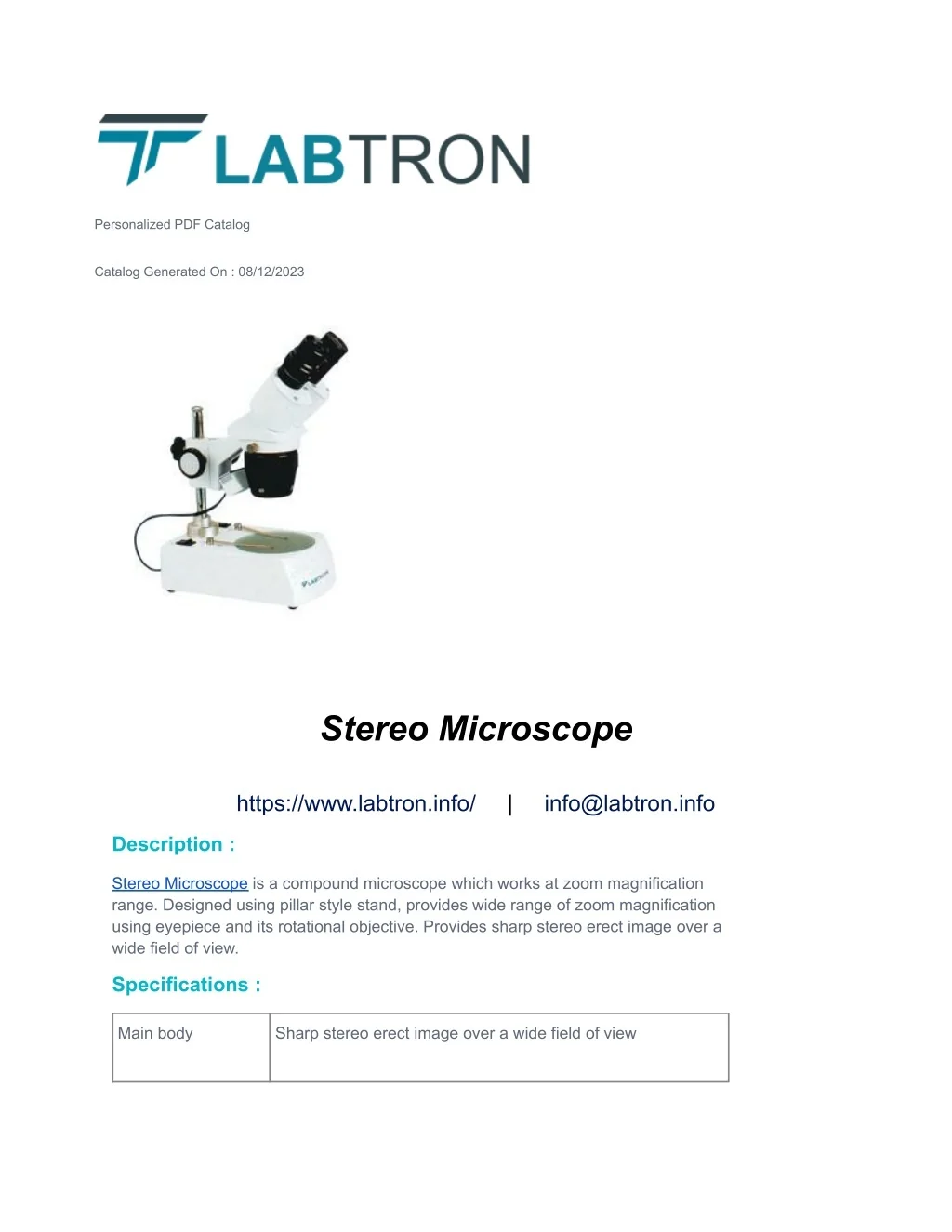

  1. Personalized PDF Catalog Catalog Generated On : 08/12/2023 Stereo Microscope https://www.labtron.info/ | info@labtron.info Description : Stereo Microscope is a compound microscope which works at zoom magnification range. Designed using pillar style stand, provides wide range of zoom magnification using eyepiece and its rotational objective. Provides sharp stereo erect image over a wide field of view. Specifications : Main body Sharp stereo erect image over a wide field of view

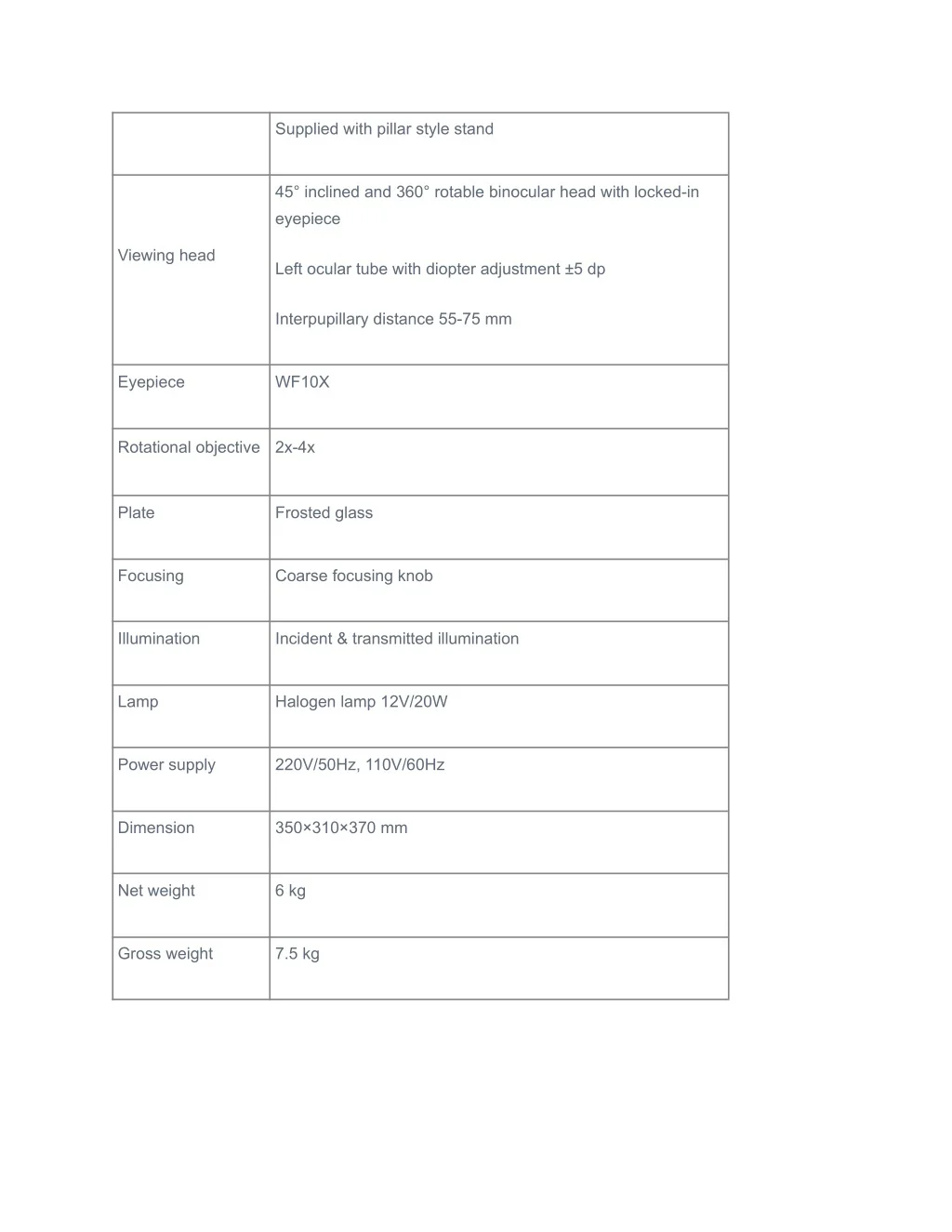

  2. Supplied with pillar style stand 45° inclined and 360° rotable binocular head with locked-in eyepiece Viewing head Left ocular tube with diopter adjustment ±5 dp Interpupillary distance 55-75 mm Eyepiece WF10X Rotational objective 2x-4x Plate Frosted glass Focusing Coarse focusing knob Illumination Incident & transmitted illumination Lamp Halogen lamp 12V/20W Power supply 220V/50Hz, 110V/60Hz Dimension 350×310×370 mm Net weight 6 kg Gross weight 7.5 kg

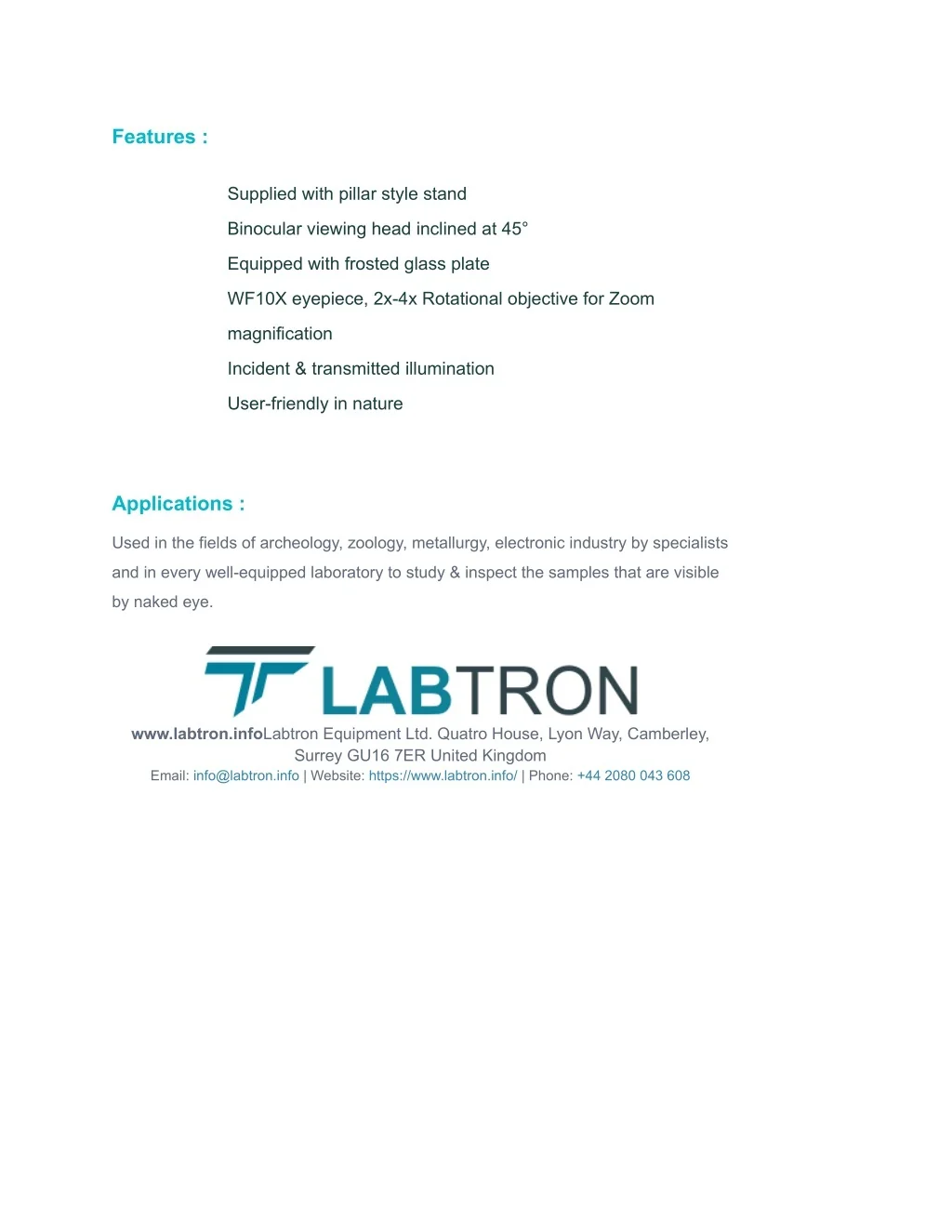

  3. Features : Supplied with pillar style stand Binocular viewing head inclined at 45° Equipped with frosted glass plate WF10X eyepiece, 2x-4x Rotational objective for Zoom magnification Incident & transmitted illumination User-friendly in nature Applications : Used in the fields of archeology, zoology, metallurgy, electronic industry by specialists and in every well-equipped laboratory to study & inspect the samples that are visible by naked eye. www.labtron.infoLabtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
