Z Transform Primer. Basic Concepts. Consider a sequence of values: {x k : k = 0,1,2,... } These may be samples of a function x(t), sampled at instants t = kT; thus x k = x(kT). The Z transform is simply a polynomial in z having the x k as coefficients:. Fundamental Functions.

Télécharger la présentation
## Z Transform Primer

**An Image/Link below is provided (as is) to download presentation**
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.
Content is provided to you AS IS for your information and personal use only.
Download presentation by click this link.
While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

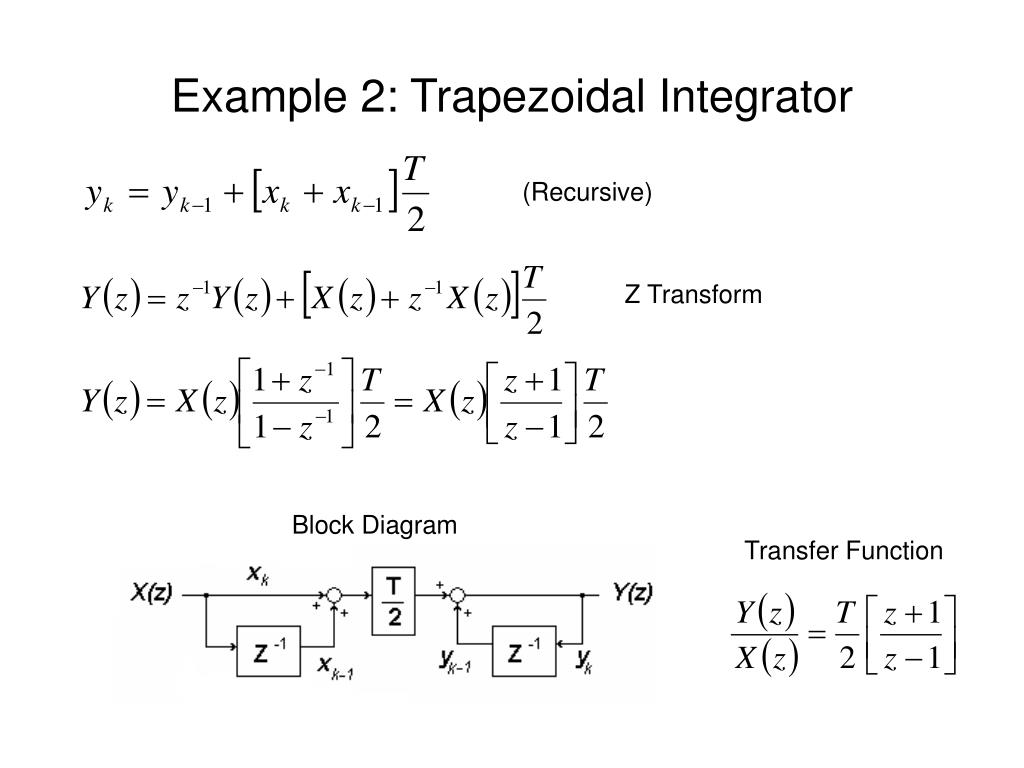

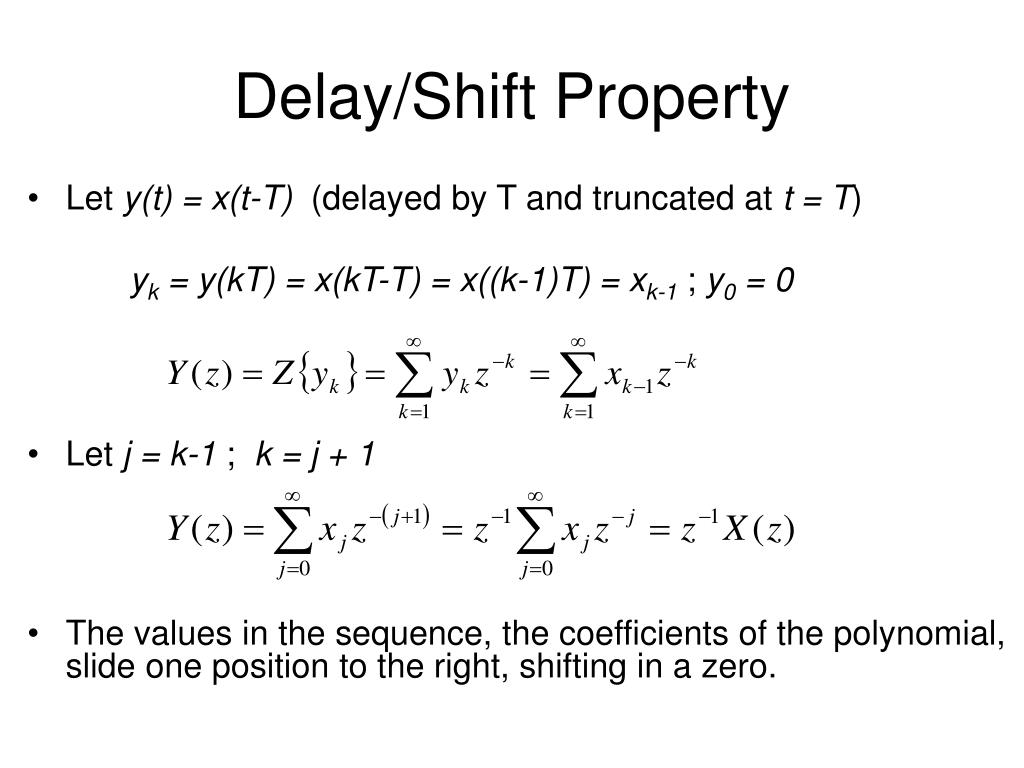

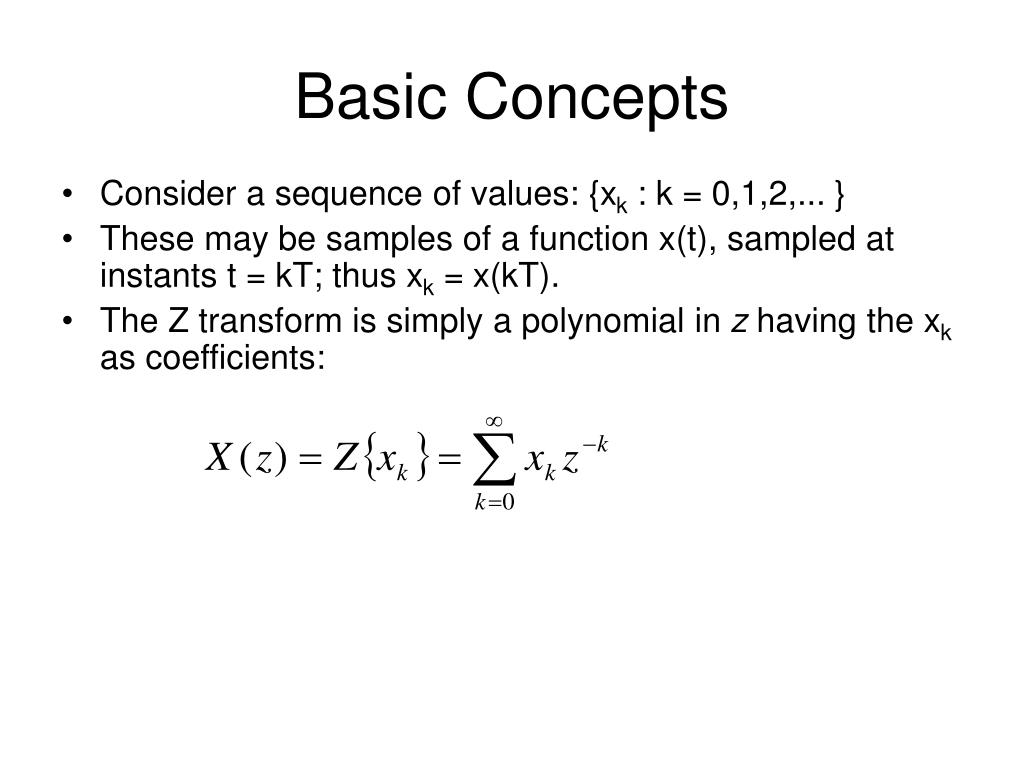

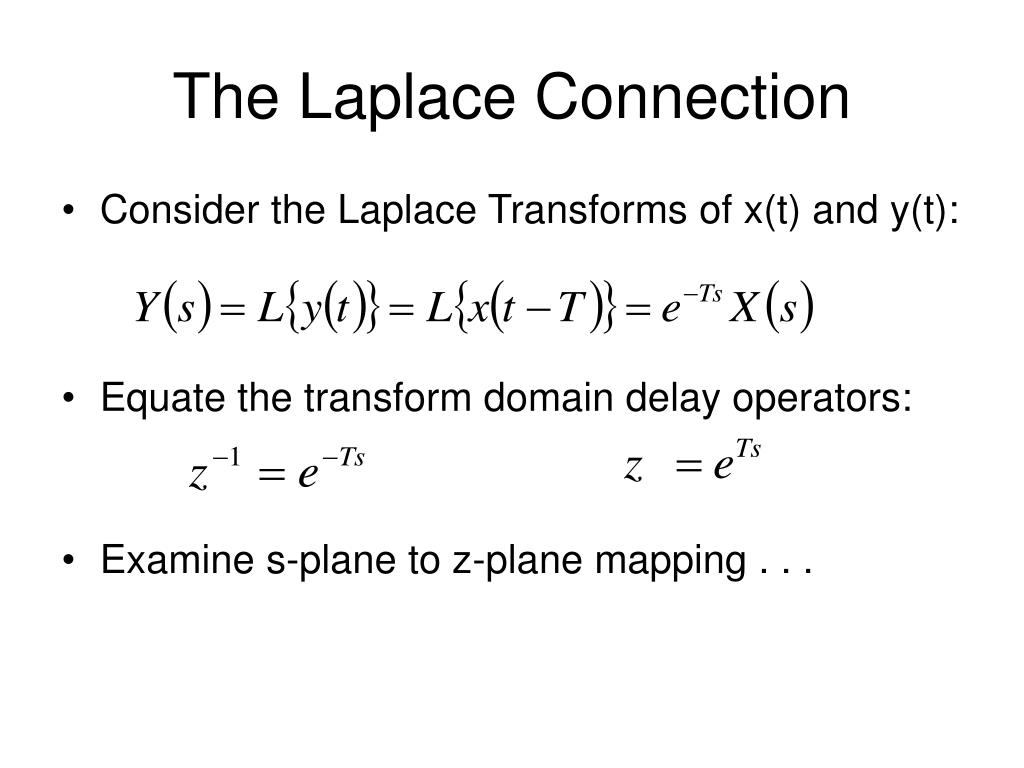

**Basic Concepts**• Consider a sequence of values: {xk : k = 0,1,2,... } • These may be samples of a function x(t), sampled at instants t = kT; thus xk = x(kT). • The Z transform is simply a polynomial in z having the xk as coefficients:**Fundamental Functions**• Define the impulse function: {dk} = {1, 0, 0, 0,....} • Define the unit step function: {uk} = {1, 1, 1, 1,....} (Convergent for |z| < 1)**Delay/Shift Property**• Let y(t) = x(t-T) (delayed by T and truncated at t = T) yk = y(kT) = x(kT-T) = x((k-1)T) = xk-1; y0 = 0 • Let j = k-1 ; k = j + 1 • The values in the sequence, the coefficients of the polynomial, slide one position to the right, shifting in a zero.**The Laplace Connection**• Consider the Laplace Transforms of x(t) and y(t): • Equate the transform domain delay operators: • Examine s-plane to z-plane mapping . . .**S-Plane to Z-Plane Mapping**Anything in the Alias/Overlay region in the S-Plane will be overlaid on the Z-Plane along with the contents of the strip between +/- jp/T. In order to avoid aliasing, there must be nothing in this region, i.e. there must be no signals present with radian frequencies higher than w = p/T, or cyclic frequencies higher than f = 1/2T. Stated another way, the sampling frequency must be at least twice the highest frequency present (Nyquist rate).**Mapping Poles and Zeros**A point in the Z-plane rejq will map to a point in the S-plane according to: Conjugate roots will generate a real valued polynomial in s of the form:**Example 1: Running Average Algorithm**(Non-Recursive) Z Transform Block Diagram Transfer Function Note: Each [Z-1] block can be thought of as a memory cell, storing the previously applied value.**Example 2: Trapezoidal Integrator**(Recursive) Z Transform Block Diagram Transfer Function**Ex. 2 (cont) Block Diagram Manipulation**Intuitive Structure Explicit representation of xk-1 and yk-1 has been lost, but memory element usage has been reduced from two to one. Equivalent Structure**Ex. 2 (cont)More Block Diagram Manipulation**Note that the final form is equivalent to a rectangular integrator with an additive forward path. In a PI compensator, this path can be absorbed by the proportional term, so there is no advantage to be gained by implementing a trapezoidal integrator.
