Soils and Geomorphology

Soils and Geomorphology Bob Anderson October 9th 2007 Hillslopes Convex hilltops G. K. Gilbert’s view of a convex hilltop (1909) Need to address both the source of regolith and its transport. Both are climate-dependent. Regolith balance climate Q = -k dz/dx But climate and all

Télécharger la présentation

Soils and Geomorphology

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.


Presentation Transcript

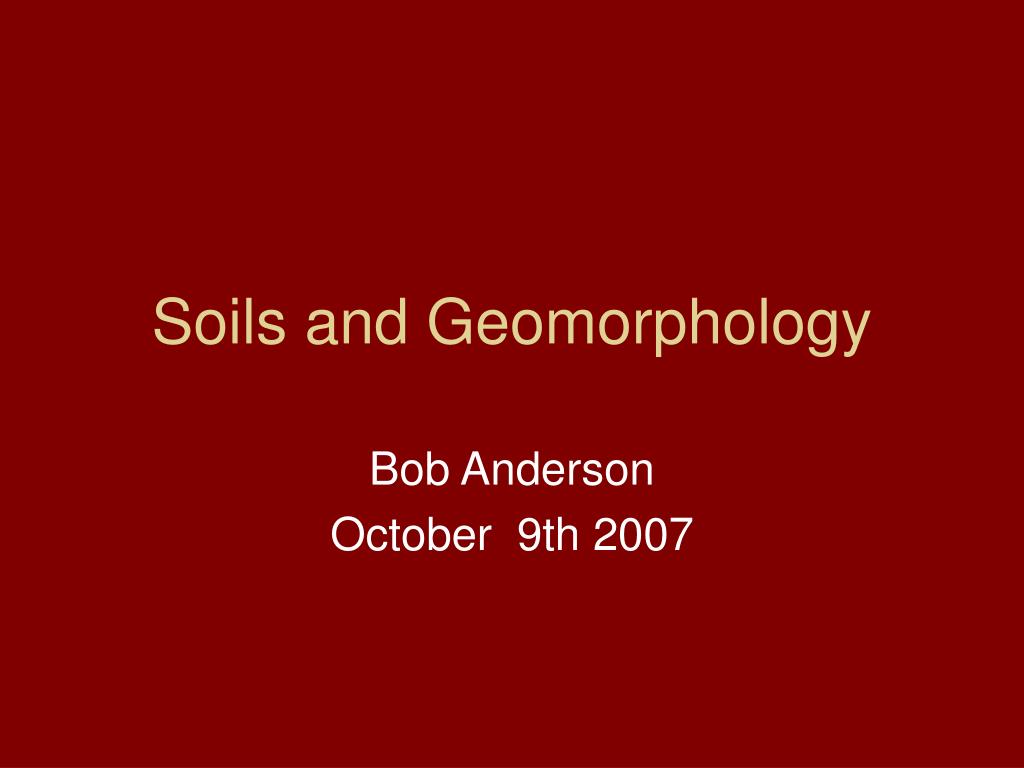

  1. Soils and Geomorphology Bob Anderson October 9th 2007

  2. Hillslopes

  3. Convex hilltops

  4. G. K. Gilbert’s view of a convex hilltop (1909) Need to address both the source of regolith and its transport. Both are climate-dependent.

  5. Regolith balance climate Q = -k dz/dx But climate and all other interesting physics hides in k

  6. Weathering

  7. Occurs throughout the critical zone Transforms the hydrologic behavior of the landscape

  8. Frost cracking • Time spent within the “frost-cracking” window ~ -3 - -8°C • Poses a very specific question of temperatures in the subsurface

  9. k = A exp( -Ea / RT) Arrhenius equation

  10. Weathering occurs at mineral interfaces Richards and Kump

  11. How do we measure “regolith production” or lowering of the regolith-bedrock interface? Basin-wide averages from sediment and solute output But this requires assumptions about steady state… At a point: You wait a really really really long time (>>PhD timescale) …Or… You use a long term integrating tool, and measure the concentration of cosmogenic radionuclides.

  12. Cosmogenic radionuclides e.g. 10Be, 26Al with half-lives of order 1 Myr

  13. Dating a Baffin fjord Bedrock surface using 10Be

  14. Dating stable (noneroding) depositional surfaces

  15. Bedrock lowering rates based upon 10Be concentrations Bottom line: they are VERY slow rates…

  16. But what sets these rates is still up for debate… the connections to climate and tectonic settings are still fuzzy, entangled

  17. Now on to transport, the Q in the regolith balance: Water in the landscape

  18. Blue Hills badlands, Utah. On average it rains < 1 hr/yr…

  19. Transport of regolith, Q One example: Rainsplash Rain bombs! Courtesy David Furbish

  20. Another example: Frost creep due to repeated freeze-thaw cycling Single frost event: • Displacement ~ slope • Discharge ~ square of frost depth Simulation of frost creep Green = maximum heave; red = post-thaw Multiple frost events: • Concave up profile Climate! RSA 2002

  21. Water balance on a hillslope element

  22. Steady state expected overland flow thickness

  23. But reality is MUCH more complicated and interesting I = f(S), the saturation state of the soil So we must allow S to evolve dS/dt = f(S,P,T) -- i.e. climate again The California case: Early storms yield <10% runoff Late storms yield > 60% runoff So we need to know the sequence of rain input: the rainfall intensity, the duration of the storm, the interval between storms, and the number of storms per year.

  24. Vegetable matter Vegetation matters. Interception Evaporation Infiltration capacity Root strength… The pre-land plant world would have operated In a very different way. Ditto Mars.

  25. High summit surfaces of the Laramide province Osborne Mountain, Wind River range

  26. Sampling tors for cosmogenic radionuclides Scale for w = 5 microns/yr!!

  27. High surfaces Model rules Cosmogenic radionuclide Results: Surface lowering rates are 5-10 microns/yr Or 5-10 m/Ma

  28. Late Cenozoic features: Ornamentation of the crests differential lowering of high surfaces vs glacial canyons Ornamentation of the front transient incision of the fluvial system Boulder Golden

  29. Front Range ‘Rocky mountain surface’

  30. Front Range view toward north

  31. James Peak Front Range high surface

  32. Goat Flat, Wind River Range

  33. Goat Flat, Wind River range

  34. Profiles of high surfaces

  35. High surface profiles, Front Range

  36. A few landscapes behave themselves… Note timescale for achieving steady state is several Ma, so must average over glacial-interglacial cycles… (gulp)

  37. High surface model results

  38. 5 Myr simulation, ‘flat’ initial condition

  39. 5 Myr simulation, “tented” initial condition

  40. Residence time of regolith (or soil) on a landscape: Estimated by T=h/w. In the case of the high surfaces, h = 1m, w = 5m/Ma T=1/5 Ma or 200ka

  41. Summary • The majority of any landscape is hillslopes • Most of them are cloaked with soils • The evolution of soil thickness is modulated by both production rate of regolith and its transport • We can measure soil production using cosmogenic radionuclides • In high alpine settings transport is dominated by periglacial processes • The high surfaces of the Rockies are likely steady state surfaces, and residence time is long relative to changes in climate
