Parallel Architectures Based on Parallel Computing , M. J. Quinn

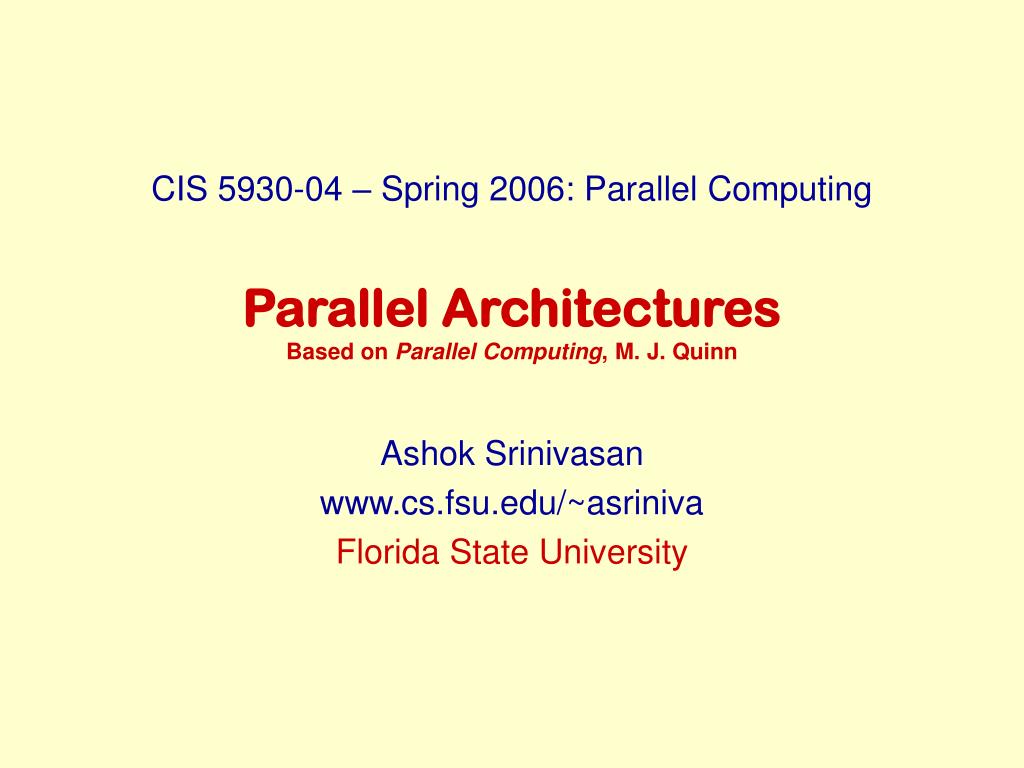

Parallel ArchitecturesBased on Parallel Computing, M. J. Quinn CIS 5930-04 – Spring 2006: Parallel Computing Ashok Srinivasan www.cs.fsu.edu/~asriniva Florida State University

Outline • Interconnection Networks • Mesh • Binary Tree • Hypercube • Architectures • Processor Arrays • Multiprocessors • Centralized Multiprocessors • Distributed Multiprocessors • Multicomputers • Flynn’s Taxonomy • SISD • SIMD • MIMD

Mesh • 2-D Mesh • N = d2 • Diameter = 2 N0.5 • Bisection width = N0.5 • Edges/node = 4 • 2-D Mesh with wraparound (2-D torus) • 3-D Mesh • 3-D torus

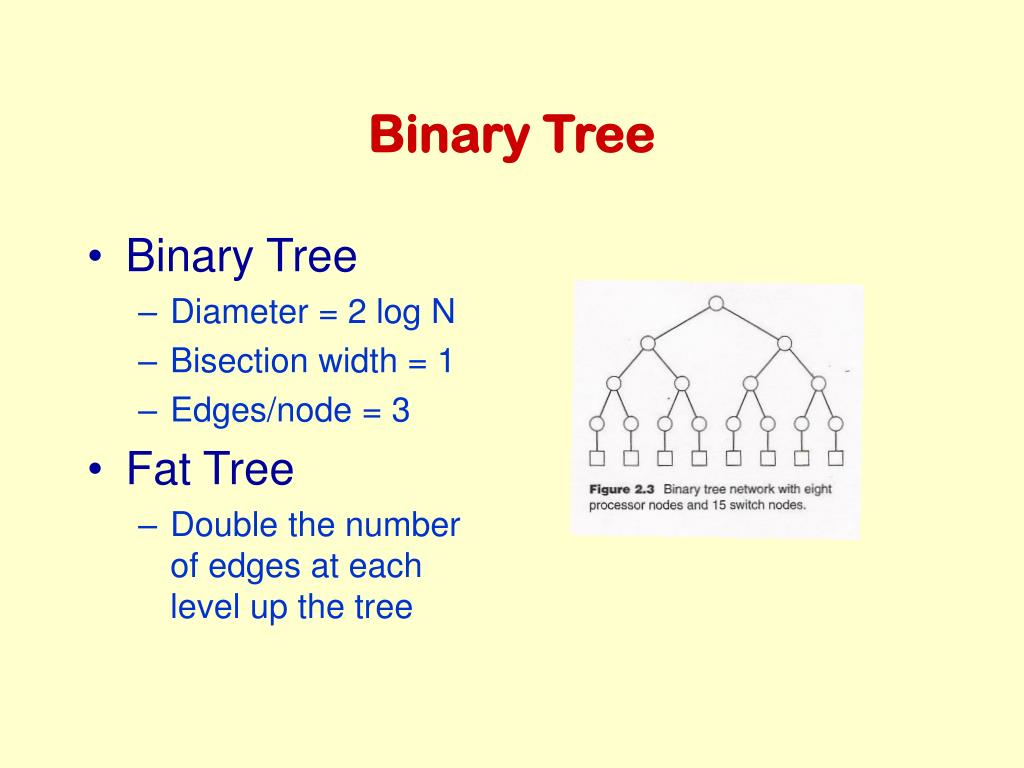

Binary Tree • Binary Tree • Diameter = 2 log N • Bisection width = 1 • Edges/node = 3 • Fat Tree • Double the number of edges at each level up the tree

Hypercube • Hypercube • N = 2d • Diameter = log N • Bisection width = N/2 • Edges/node = log N

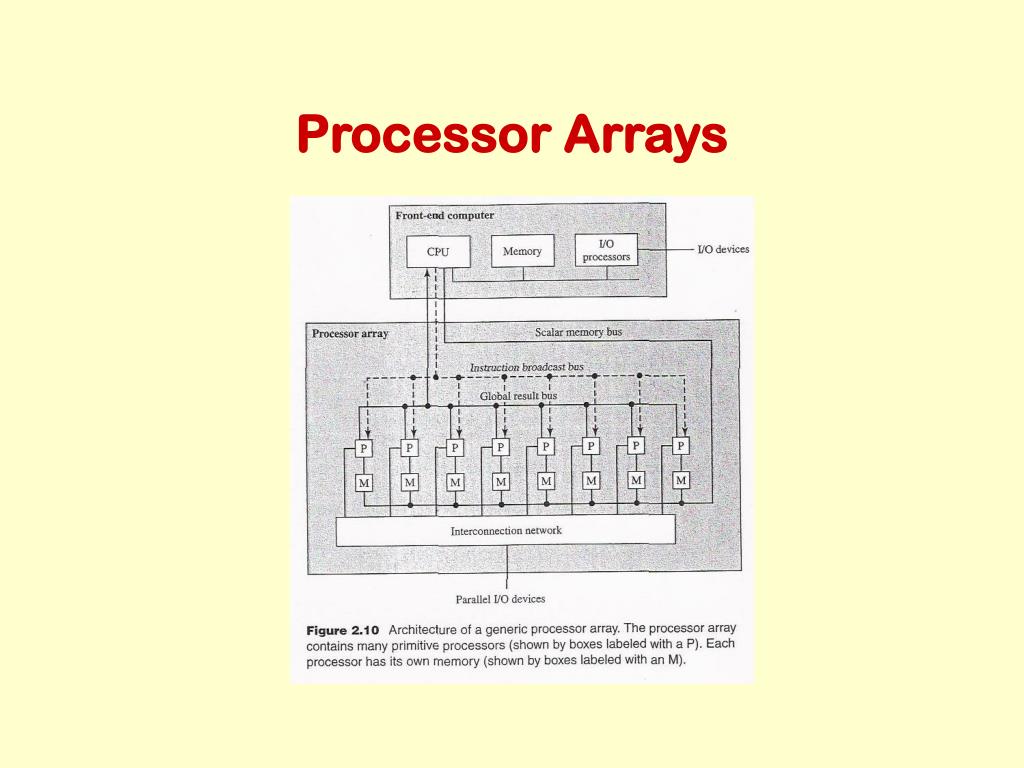

Processor Arrays

Centralized Multiprocessors • Also called SMP/UMA

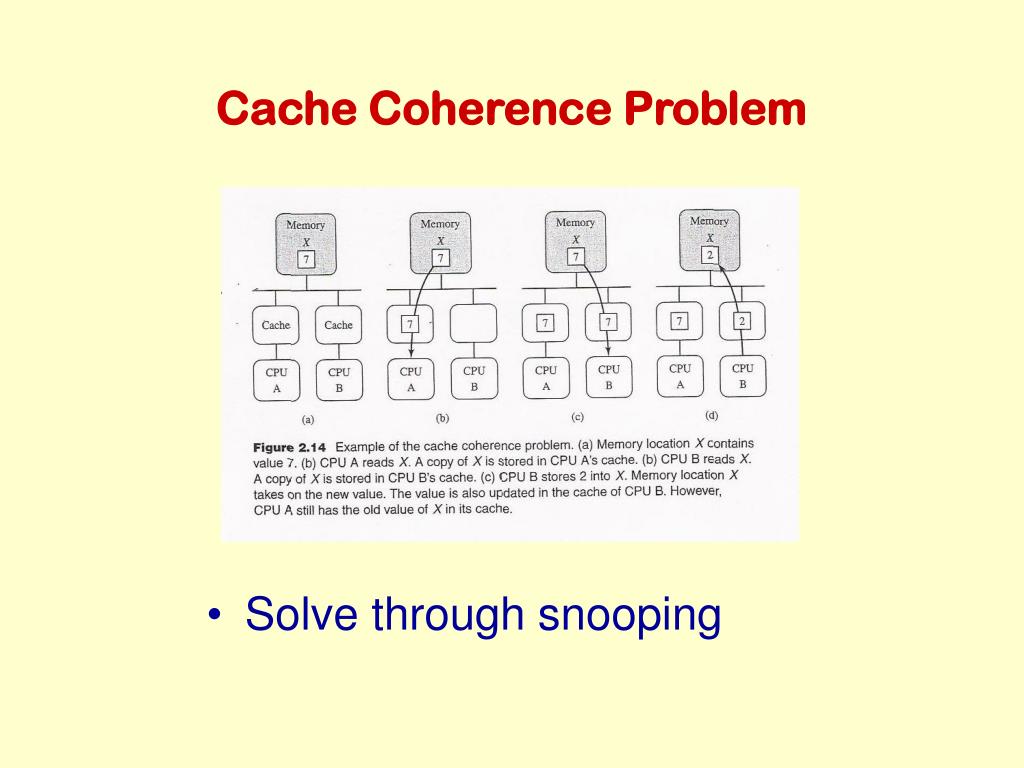

Cache Coherence Problem • Solve through snooping

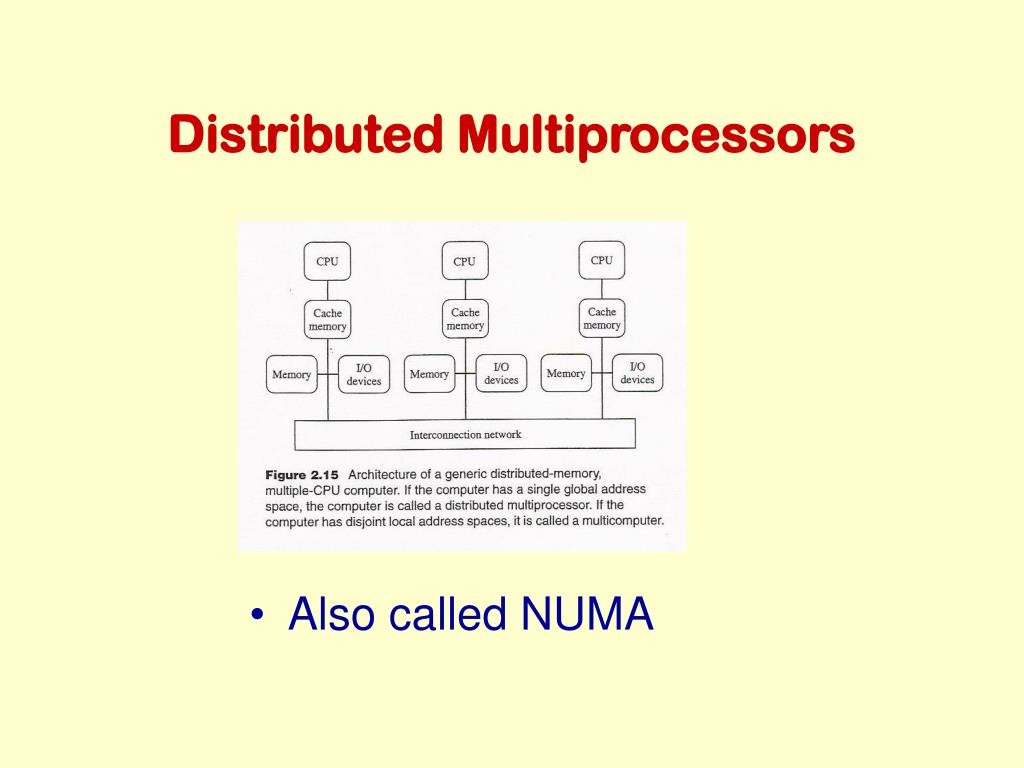

Distributed Multiprocessors • Also called NUMA

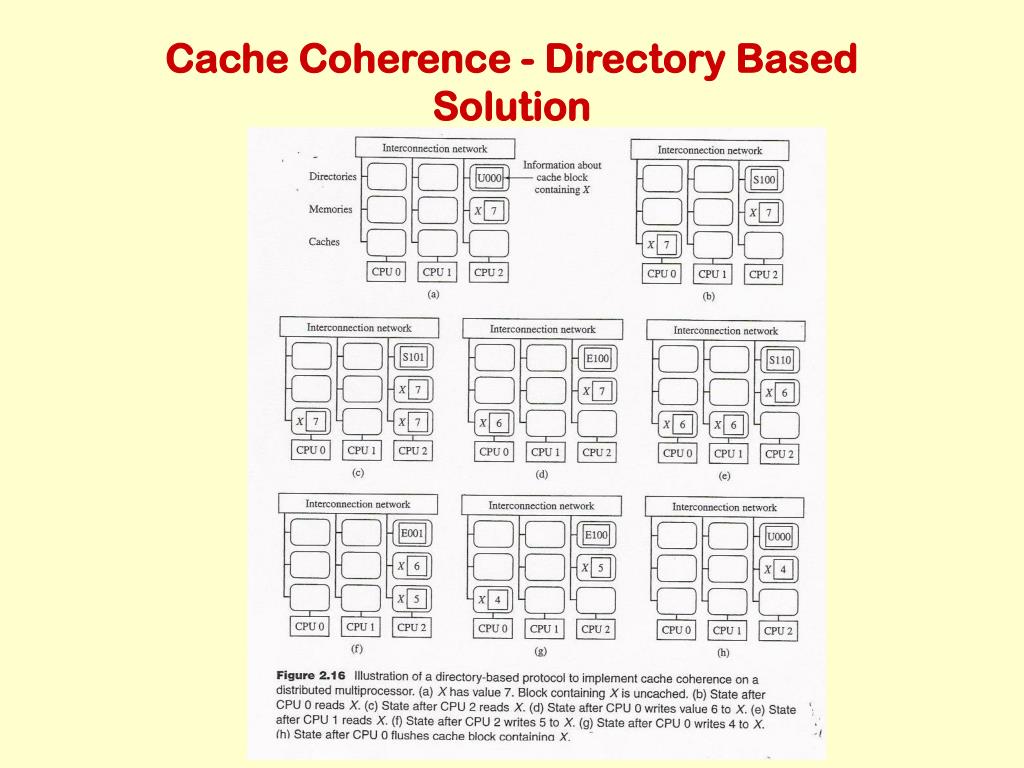

Cache Coherence - Directory Based Solution

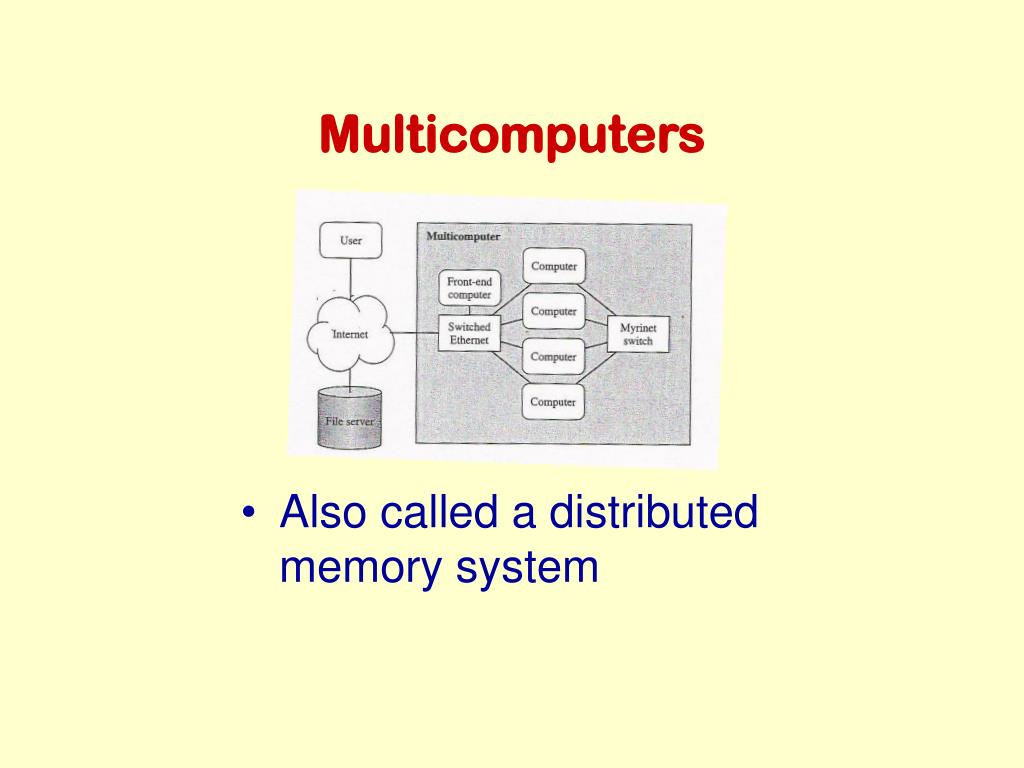

Multicomputers • Also called a distributed memory system

Flynn’s Taxonomy • SISD • Single Instruction, Single Data • Traditional computer • SIMD • Single Instruction, Multiple Data • MIMD • Multiple Instruction, Multiple Data
