Structural analysis

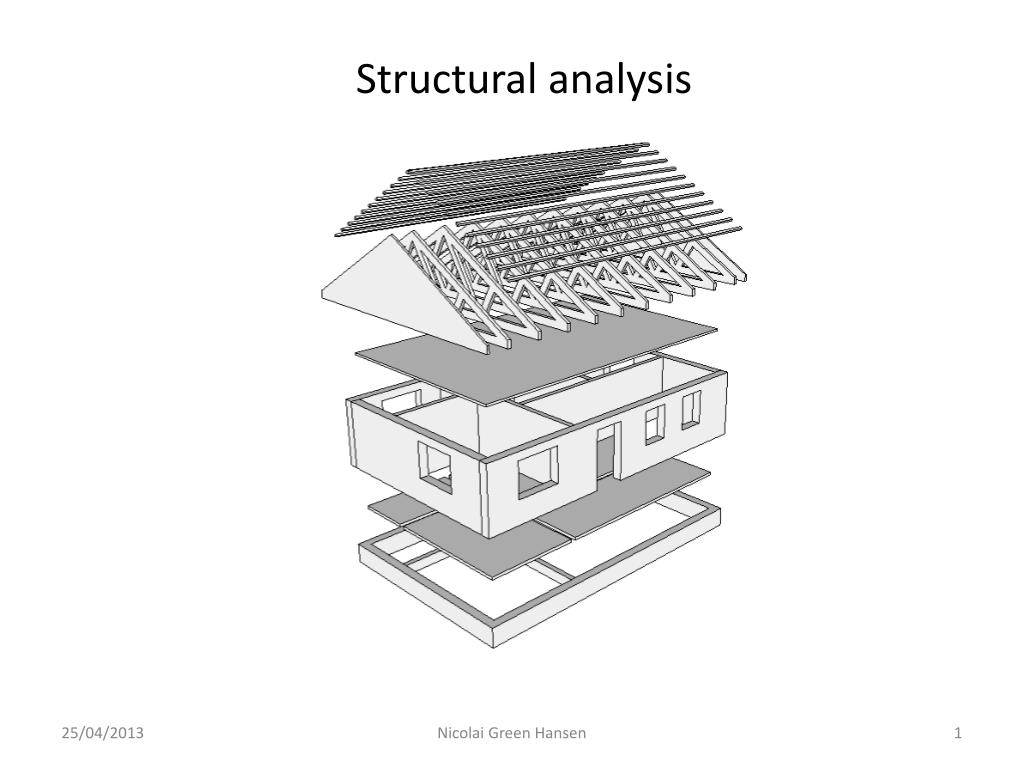

Structural analysis. STATIC FUNCTIONS. JOINTS. Beam function (BF). Vertical load. V1. Vertical loads. Lattice function (LF). F1. Slab function (SF). Horizontal loads facade. Shear function (SHF). G1. Horizontal loads gable. Column function (CF). STATIC FUNCTIONS. JOINTS.

aletta
Télécharger la présentation

Structural analysis

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Structural analysis Nicolai Green Hansen

  2. STATIC FUNCTIONS JOINTS Beam function (BF) Vertical load V1 Verticalloads Lattice function (LF) F1 Slab function (SF) Horizontalloads facade Shear function (SHF) G1 Horizontalloadsgable Column function (CF) Nicolai Green Hansen

  3. STATIC FUNCTIONS JOINTS Beam function (BF) Vertical load V1 Verticalloads Lattice function (LF) Battens F1 Slab function (SF) Horizontalloads facade Shear function (SHF) BF G1 Horizontalloadsgable Column function (CF) Nicolai Green Hansen

  4. STATIC FUNCTIONS JOINTS Beam function (BF) Vertical load V1 Verticalloads Lattice function (LF) Battens Trusses F1 Slab function (SF) Horizontalloads facade Shear function (SHF) LF BF G1 Horizontalloadsgable Column function (CF) V1 Nicolai Green Hansen

  5. STATIC FUNCTIONS JOINTS Beam function (BF) Vertical load V1 Verticalloads Lattice function (LF) Trusses Facades Battens F1 Slab function (SF) Horizontalloads facade Shear function (SHF) BF CF LF G1 Horizontalloadsgable Column function (CF) V1 V2 Nicolai Green Hansen

  6. STATIC FUNCTIONS JOINTS Beam function (BF) Vertical load V1 Verticalloads Lattice function (LF) Battens Facades Trusses F1 Slab function (SF) Horizontalloads facade Shear function (SHF) CF LF BF G1 Horizontalloadsgable Column function (CF) V1 V2 V3 Fund. Soil Nicolai Green Hansen

  7. STATIC FUNCTIONS JOINTS Beam function (BF) Vertical load V1 Verticalloads Lattice function (LF) Trusses Facades Floor Battens F1 Slab function (SF) Horizontalloads facade Shear function (SHF) LF BF SF CF G1 Horizontalloadsgable Column function (CF) V1 Gable triangle V2 Gables Internal walls V3 Fund. Soil Nicolai Green Hansen

  8. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) F1 Slab function (SF) Horizontalloads facade Shear function (SHF) G1 Horizontalloadsgable Column function (CF) Nicolai Green Hansen

  9. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) Battens F1 Slab function (SF) Horizontalloads facade Shear function (SHF) BF G1 Horizontalloadsgable Column function (CF) Nicolai Green Hansen

  10. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) Battens Trusses F1 Slab function (SF) Horizontalloads facade Shear function (SHF) LF BF G1 Horizontalloadsgable Column function (CF) F1 Nicolai Green Hansen

  11. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) Trusses Battens Ceiling F1 Slab function (SF) Horizontalloads facade Shear function (SHF) BF SHF LF G1 Horizontalloadsgable Column function (CF) F1 F2 Nicolai Green Hansen

  12. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) Battens Trusses Ceiling Gables Internal walls F1 Slab function (SF) Horizontalloads facade Shear function (SHF) LF SHF BF SHF SHF G1 Horizontalloadsgable Column function (CF) F1 F2 F4 F3 Nicolai Green Hansen

  13. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) Ceiling Gables Trusses Battens Internal walls F1 Slab function (SF) Horizontalloads facade Shear function (SHF) BF LF SHF SHF SHF G1 Horizontalloadsgable Column function (CF) F1 F2 F5 F3 F6 Fund. F4 Soil Nicolai Green Hansen

  14. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on facade V1 Verticalloads Lattice function (LF) Ceiling Internal walls Gables Trusses Facades Battens F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SF SHF SHF BF SHF LF G1 Horizontalloadsgable Column function (CF) F1 F8 F2 F7 F9 F5 F8 F3 F6 Fund. F4 Soil Nicolai Green Hansen

  15. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) F1 Slab function (SF) Horizontalloads facade Shear function (SHF) G1 Horizontalloadsgable Column function (CF) Nicolai Green Hansen

  16. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) Gable triangle F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SF G1 Horizontalloadsgable Column function (CF) Nicolai Green Hansen

  17. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) Gable triangle Battens F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SHF* SF G1 Horizontalloadsgable Column function (CF) G1 * With windbracing Nicolai Green Hansen

  18. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) Ceiling Battens Gable triangle F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SHF * SF SHF G1 Horizontalloadsgable Column function (CF) G1 G2 G3 * With windbracing Nicolai Green Hansen

  19. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) Ceiling Internal walls Facades Battens Gable triangle F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SHF SHF SF SHF * SHF G1 Horizontalloadsgable Column function (CF) G1 G2 G3 G5 G4 * With windbracing Nicolai Green Hansen

  20. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) Gable triangle Facades Ceiling Battens Internal walls F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SF SHF * SHF SHF SHF G1 Horizontalloadsgable Column function (CF) G1 G2 G3 G5 G4 G6 G7 Fund. Soil * With windbracing Nicolai Green Hansen

  21. STATIC FUNCTIONS JOINTS Beam function (BF) Horizontal load on gable V1 Verticalloads Lattice function (LF) Gables Facades Internal walls Ceiling Battens Gable triangle F1 Slab function (SF) Horizontalloads facade Shear function (SHF) SF SF SHF * SHF SHF SHF G1 G8 Horizontalloadsgable Column function (CF) G1 G9 G2 G3 G10 G5 G4 G11 G6 G7 Fund. Soil * With windbracing Nicolai Green Hansen
