  1. Sedimentary rocks

  2. Weathering is the process of breaking down rocks and minerals into smaller pieces by water, wind, and ice. • Sedimentary rocks are formed from the breaking apart of other rocks (igneous, metamorphic, or sedimentary rocks) and the cementation, compaction and recrystallization of these broken pieces of rock.

  3. The larger sediments fall out first and the lightest sediments fall out last. • In the spring the lake receives an influx of water from the mountain snow melt. This snow melt carries with it a large amount of sediment that becomes suspended in the lake water. The heaviest and largest particles settle out first and the lightest sediments such as silts and clays settle out last.

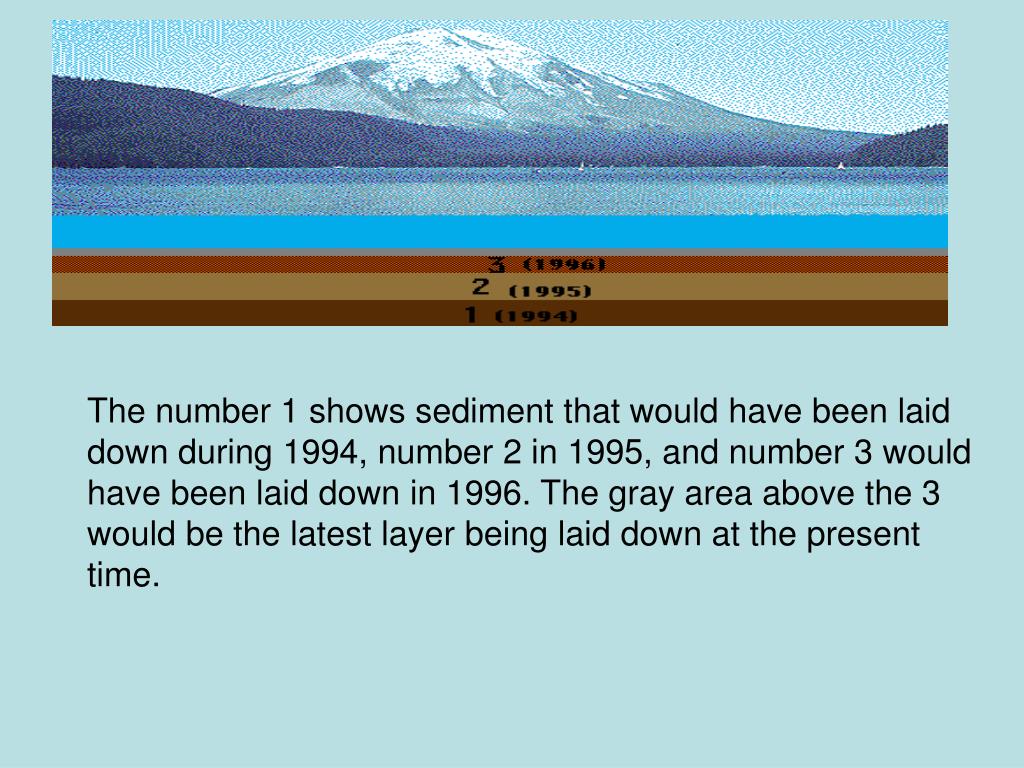

  4. The number 1 shows sediment that would have been laid down during 1994, number 2 in 1995, and number 3 would have been laid down in 1996. The gray area above the 3 would be the latest layer being laid down at the present time.

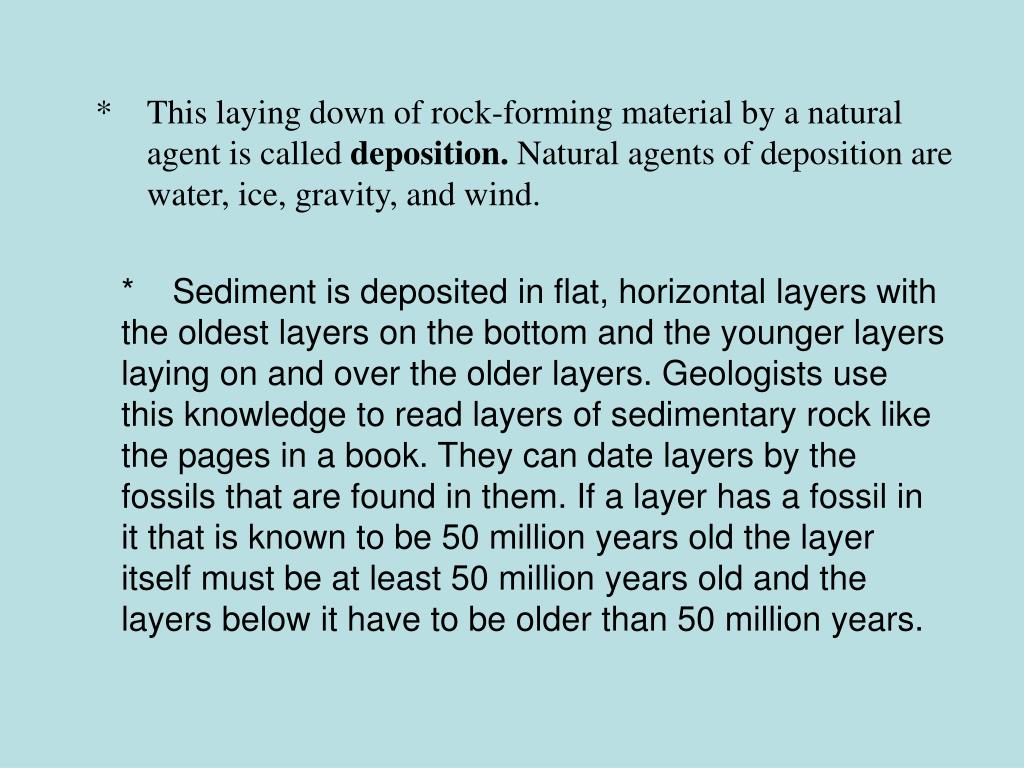

  5. * This laying down of rock-forming material by a natural agent is called deposition. Natural agents of deposition are water, ice, gravity, and wind. • * Sediment is deposited in flat, horizontal layers with the oldest layers on the bottom and the younger layers laying on and over the older layers. Geologists use this knowledge to read layers of sedimentary rock like the pages in a book. They can date layers by the fossils that are found in them. If a layer has a fossil in it that is known to be 50 million years old the layer itself must be at least 50 million years old and the layers below it have to be older than 50 million years.

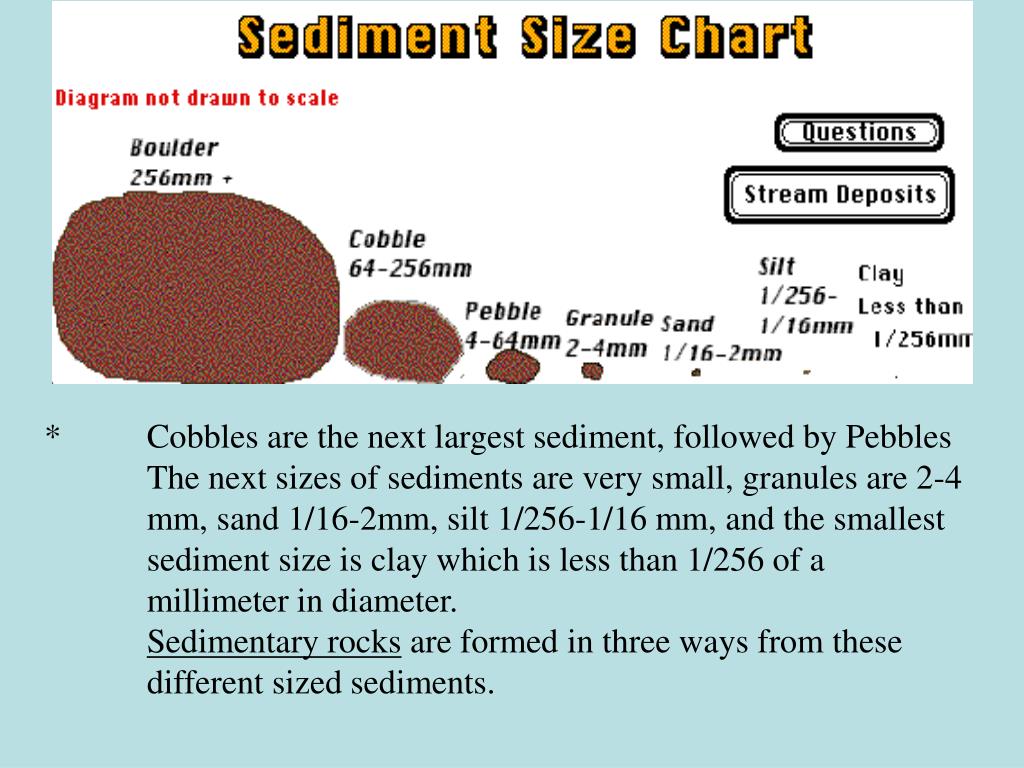

  6. * Cobbles are the next largest sediment, followed by Pebbles The next sizes of sediments are very small, granules are 2-4 mm, sand 1/16-2mm, silt 1/256-1/16 mm, and the smallest sediment size is clay which is less than 1/256 of a millimeter in diameter. • Sedimentary rocks are formed in three ways from these different sized sediments.

  7. A sedimentary rock is a layered rock that is formed from the compaction, cementation, and the recrystallization of sediments.

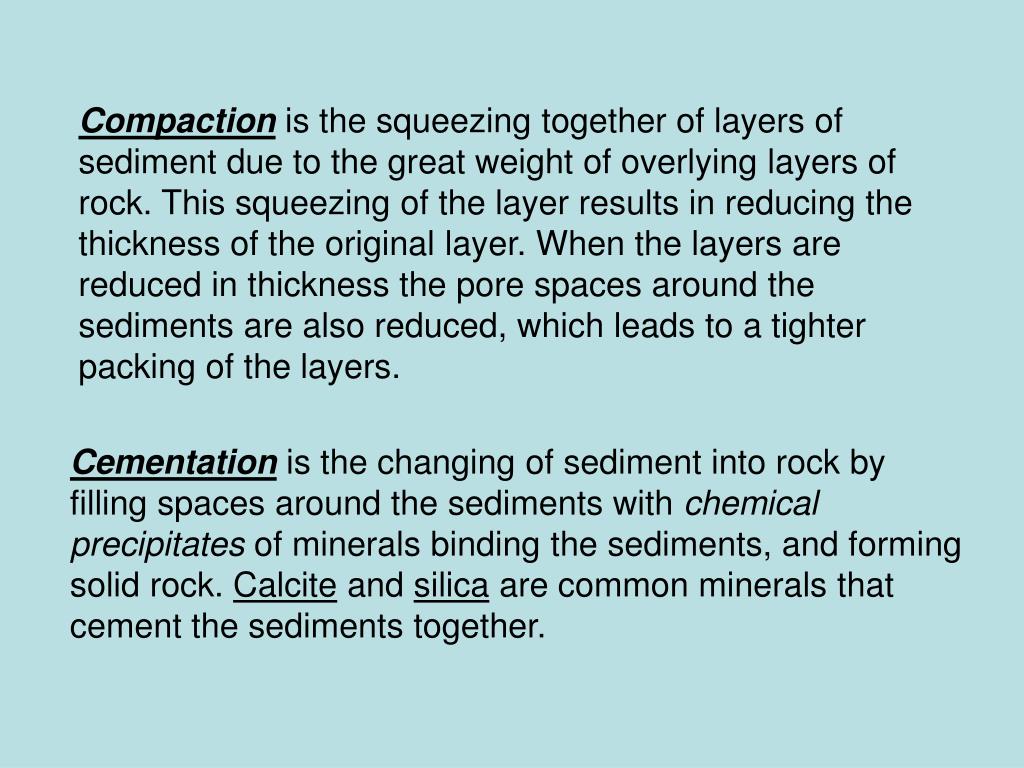

  8. Compaction is the squeezing together of layers of sediment due to the great weight of overlying layers of rock. This squeezing of the layer results in reducing the thickness of the original layer. When the layers are reduced in thickness the pore spaces around the sediments are also reduced, which leads to a tighter packing of the layers. Cementation is the changing of sediment into rock by filling spaces around the sediments with chemical precipitates of minerals binding the sediments, and forming solid rock. Calcite and silica are common minerals that cement the sediments together.

  9. Recrystallization is the third way that sedimentary rocks are formed. Recrystallization is the formation of new mineral grainsthat are larger than the original grains. As the sediments recrystallize they arrange themselves in a series of interlocking crystals that connect the other grains together into a solid rock.

  10. Sedimentary rocks form a thin layer of rock over 75 per cent of the Earth's surface. They are the site of very important resources such as ground water, coal, oil, and soil. Shale, sandstone, and limestone are the most common types of sedimentary rocks. They are formed by the most common mineral that is found on or near the surface of the Earth. The mineral that forms these sedimentary rocks is feldspar. • Running water, such as the mountain stream above, sorts and transports more sediment than any other agent of deposition.

  11. Clastic sedimentary rocks: are made of pieces of rock or mineral grains that have been broken from preexisting rock. These particles and grains have become solid rock by the processes of compaction or cementation of sediments. Some clastic rocks are conglomerate, shale, breccia, gray and red sandstone.

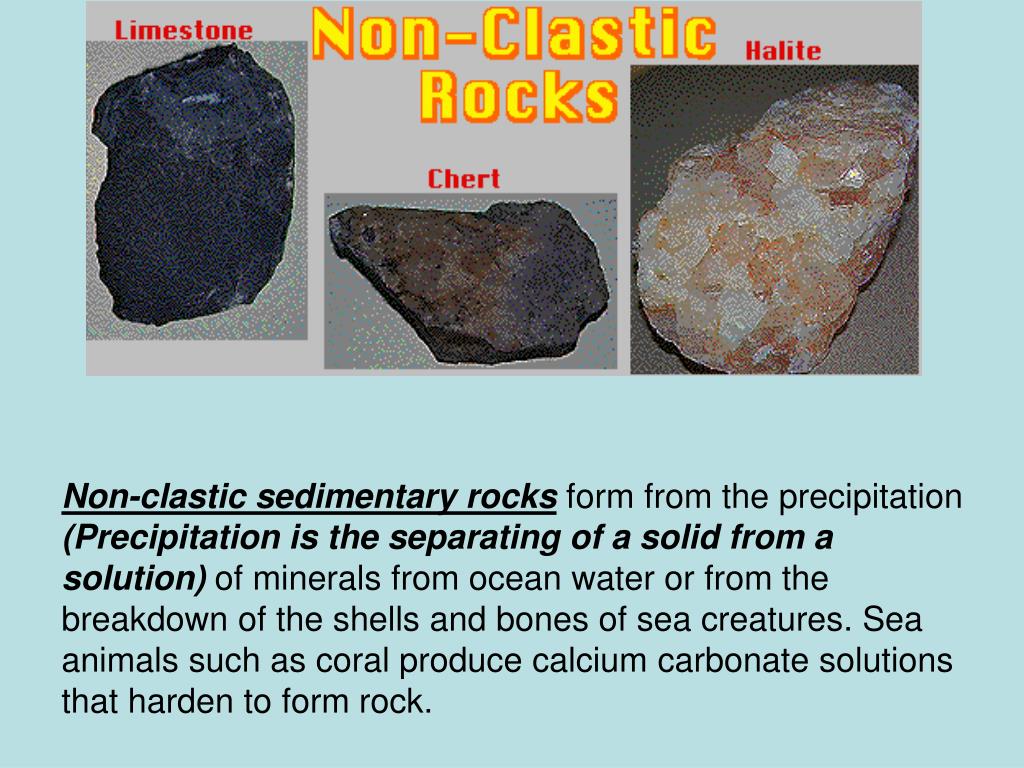

  12. Non-clastic sedimentary rocks form from the precipitation (Precipitation is the separating of a solid from a solution) of minerals from ocean water or from the breakdown of the shells and bones of sea creatures. Sea animals such as coral produce calcium carbonate solutions that harden to form rock.

  13. * As the chemicals, that comes from the mineral or biological precipitation, mix with sediments on the floor of the ocean or lake they crystallize and grow in the spaces around the sediment. When these crystals grow large enough to fill the spaces they harden and form a solid rock. * Some non-clastic rocks are limestone, chert, dolostone, gypsum, halite (rock salt), diatomite, and chalk.

  14. Organic sedimentary rocks form from the build up and decay of plant and animal material. This usually forms in swamp regions in which there is an abundant supply of growing vegetation and low amounts of oxygen. The vegetation builds so quickly that new layers of vegetation bury the dead and decaying material very quickly. The bacteria that decay the vegetation need oxygen to survive. Because these decaying layers are buried so fast the bacteria use up what oxygen there is available and can not finish the decomposition of the vegetation.

  15. Organic Sedimentary rocks • The overlaying layers become so heavy that they squeeze out the water and other compounds that aid in decay. • This compressed vegetation forms coal. The longer and deeper that coal is buried makes it of higher quality. Peat is the first stage of coal formation. Lignite is the next grade of coal followed by bituminous and the highest grade, anthracite. Anthracite is actually a metamorphic rock. It forms during mountain building when compaction and friction are extremely high. This form of coal burns very hot and almost smokeless. It is used in the production of high grade steel.

  16. Shale is one of the most common sedimentary rocks. It is composed of silt or clay that has been compacted or squeezed together to form a solid rock. Shale is usually found in thin layers. The silt or clay that composes shale is made of very small pieces of weathered rock. The pieces are from 1/16 to 1/256 of a millimeter in diameter. The color of a sample of shale is that of the clay or silt that it was formed from.

  17. Limestone is the most abundant of the non-clastic sedimentary rocks. • Limestone is produced from the mineral calcite (calcium carbonate) and sediment. The main source of limestone is the limy ooze formed in the ocean. The calcium carbonate can be precipitated from ocean water or it can be formed from sea creatures that secrete lime such as algae and coral.

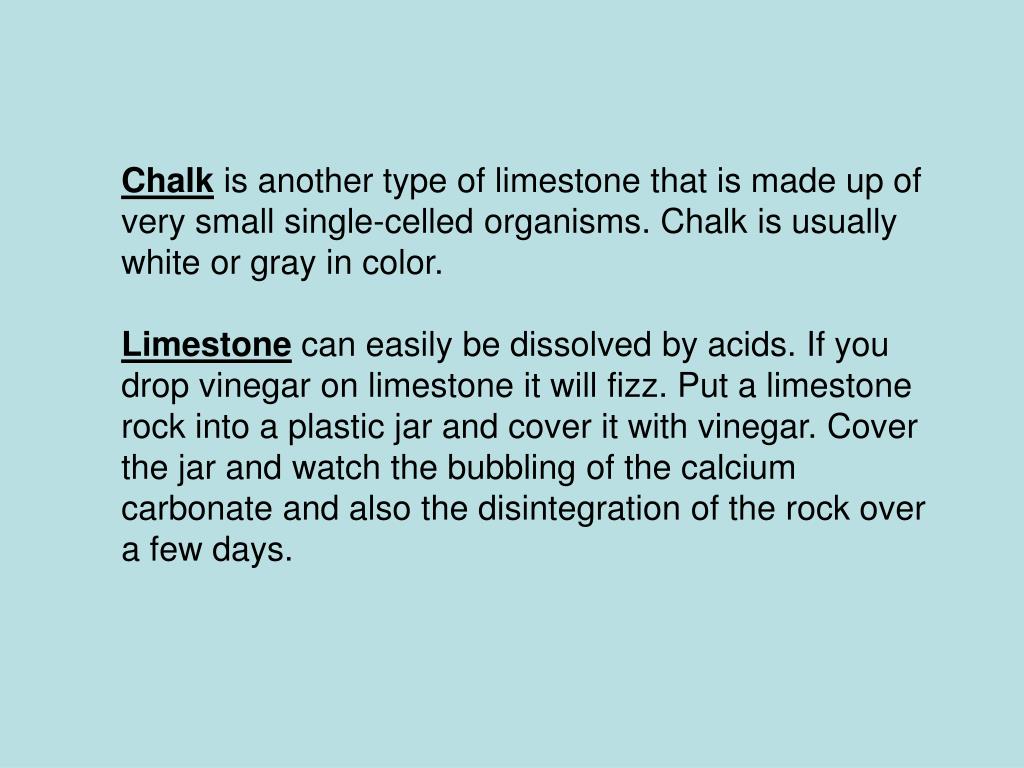

  18. Chalk is another type of limestone that is made up of very small single-celled organisms. Chalk is usually white or gray in color. • Limestone can easily be dissolved by acids. If you drop vinegar on limestone it will fizz. Put a limestone rock into a plastic jar and cover it with vinegar. Cover the jar and watch the bubbling of the calcium carbonate and also the disintegration of the rock over a few days.

  19. The water will find its way into small crack and crevasses. The dripping water will create formations called stalactites and stalagmites. • Stalactites (they grow from the ceiling) and stalagmites (they grow from the floor) are not technically limestone. They form in caves because as the limestone is dissolved calcium carbonate is put into solution in the ground water. This solution drips through crack and slowly forms stalactites and stalagmites.
