Sedimentary Rocks

Sedimentary Rocks. Lithification. Sediments. Deposition. Transport. Erosion. Weathering. From Sediment to Rock. Most sedimentary rocks are formed through a series of processes: erosion, deposition, compaction, and cementation . Weathering.

zanna
Télécharger la présentation

Sedimentary Rocks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

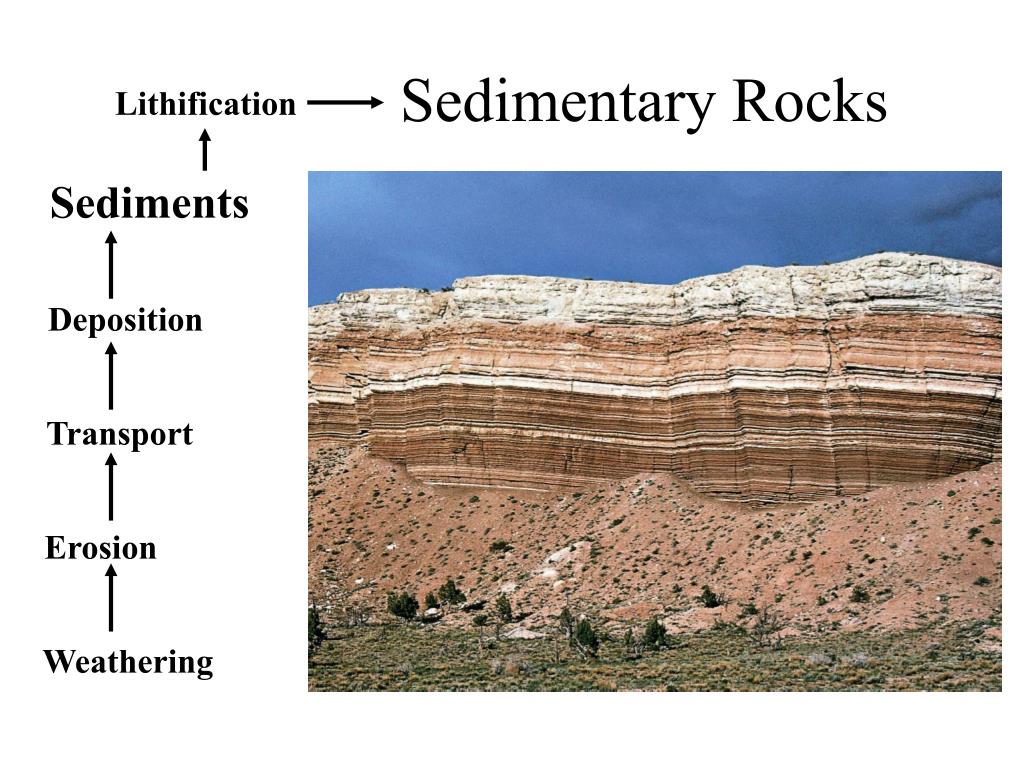

  1. Sedimentary Rocks Lithification Sediments Deposition Transport Erosion Weathering

  2. From Sediment to Rock • Most sedimentary rocks are formed through a series of processes: erosion, deposition, compaction, and cementation.

  3. Weathering The sediments that make up sedimentary rocks are produced by: Mechanical & Chemical Weathering

  4. Mechanical Weathering

  5. Chemical Weathering

  6. MineralStability

  7. Products of Weathering • Lithic (Rock) Fragments(granite, basalt, schist, etc.) • Dissolved Ions(Calcium, Potassium, Sodium, etc.) • Rust Minerals(Hematite, Goertite, etc.) • Clay Minerals(Bentonite, Montmorillonite, etc.) • Residual Minerals(Quartz, Orthoclase, Muscovite, etc.)

  8. Erosion & Transport Water Wind Ice Gravity

  9. Deposition

  10. Lithification Sediment Rock

  11. Cementation • Typical Cement: • Calcite • Quartz

  12. Sedimentary Rocks Identification Note: Use the same terms to describe sediments & sedimentary rocks. Only difference is lithification!

  13. CompositionWhat minerals make up the rock? TextureWhat is the shape, size and orientation of the mineral grains that make up the rock?Major Difference:Crystalline vs. Clastic Rock Identification is based on:

  14. Types of Sedimentary Rocks Detrital Rocks Chemical Rocks vs.

  15. Difference: TextureDetrital (Clastic Texture)vs.Chemical (Crystalline Texture)

  16. Detrital Rock Composition • Detrital Rocks • Lithic Fragments • Quartz • Clay Minerals • Fossil Fragments • Rust Minerals • Orthoclase • Muscovite / Biotite

  17. Clastic Texture Grain Size Grain Sorting Grain Rounding Sediment Maturity Detrital Rock Texture

  18. Grain Size • Gravel2mm • Sand1/16 mm • Mud - Silt1/256 mm • Mud - Clay

  19. Detrital Rock Names(Based Primarily on Grain Size) Gravel Sized: Conglomerate Sand Sized: Sandstone Mud Sized: Mudstone Siltstone Shale

  20. Sorting

  21. Grain Roundness

  22. Gravel Sized Detrital Rocks(Subdivided Based on Grain Roundness) Conglomerate Breccia

  23. Maturity • Immature • Poorly Sorted • Angular grains • Mixed Compositionincluding clay • Mature • Well Sorted • Well Rounded • All Quartz

  24. Sandstones(Subdivided based on maturity) Quartz Sandstone Arkose (Sandstone) Lithic Sandstone Greywacke

  25. Sandstones Under a Scope

  26. Detrital Sedimentary Rock ID

  27. Crystalline Texture Coarse Fine Chemical Rock Texture

  28. Chemical Sedimentary Rocks(Names based primarily on composition) • Composition • Calcite • Quartz (silica) • Halite • Gypsum • “Carbon” / Plant Remains • Basic Rock Name • Limestone • Chert • Rock Salt • Rock Gypsum • Peat or Coal

  29. Chemical Rocks(Names based mainly on composition) Limestones Crystalline Limestone Fossiliferous Limestone Chalk

  30. Chemical Rocks (cont.) Evaportites Chert Rock Salt Rock Gypsum Coal

  31. Chemical Sedimentary Rock ID

  32. Sedimentary Rocks on Earth
