  1. GeometryEditor Crash Course July 11, 2007 Xun Lai Department of Computer Science Kent State University

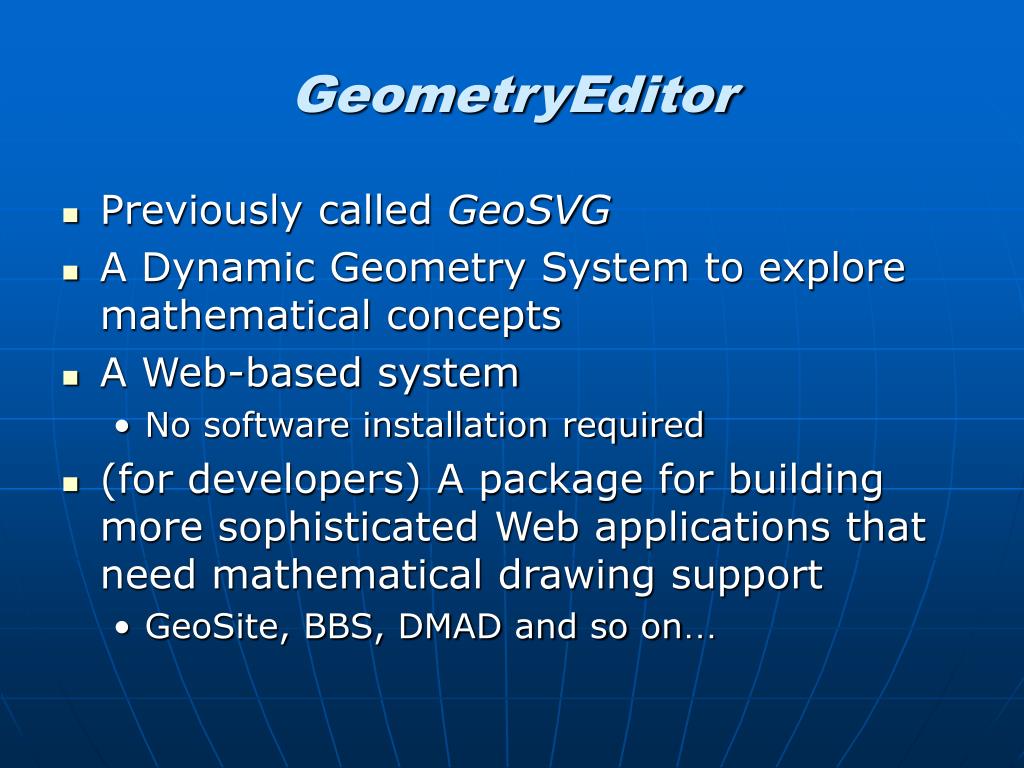

  2. GeometryEditor • Previously called GeoSVG • A Dynamic Geometry System to explore mathematical concepts • A Web-based system • No software installation required • (for developers) A package for building more sophisticated Web applications that need mathematical drawing support • GeoSite, BBS, DMAD and so on…

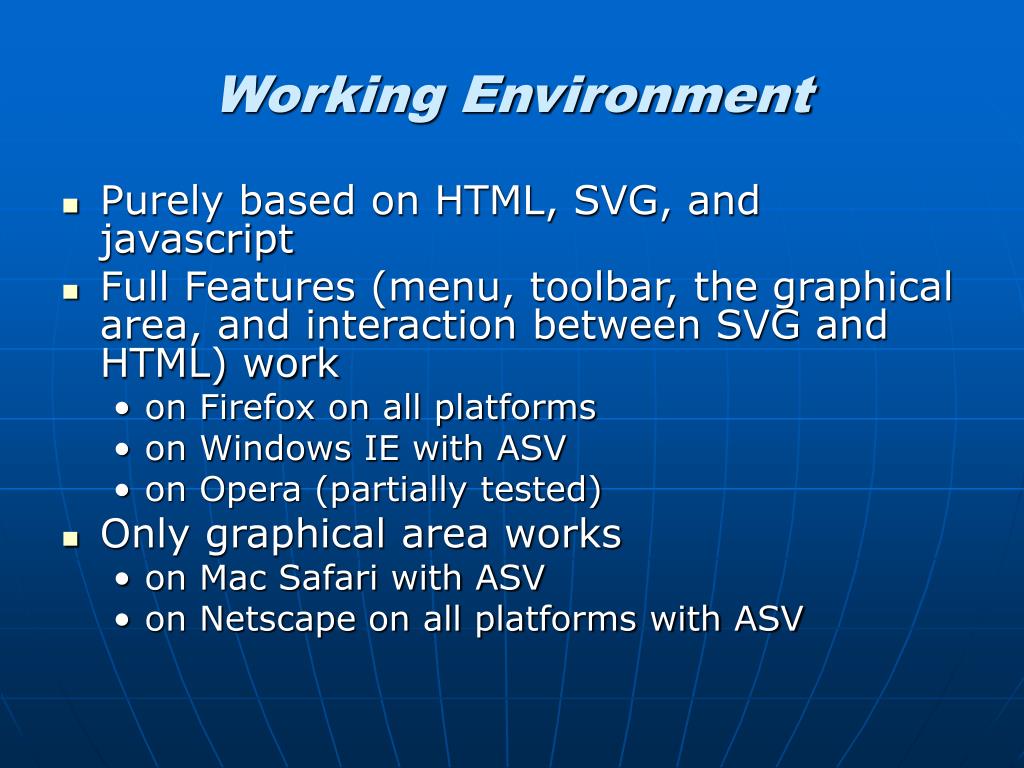

  3. Working Environment • Purely based on HTML, SVG, and javascript • Full Features (menu, toolbar, the graphical area, and interaction between SVG and HTML) work • on Firefox on all platforms • on Windows IE with ASV • on Opera (partially tested) • Only graphical area works • on Mac Safari with ASV • on Netscape on all platforms with ASV

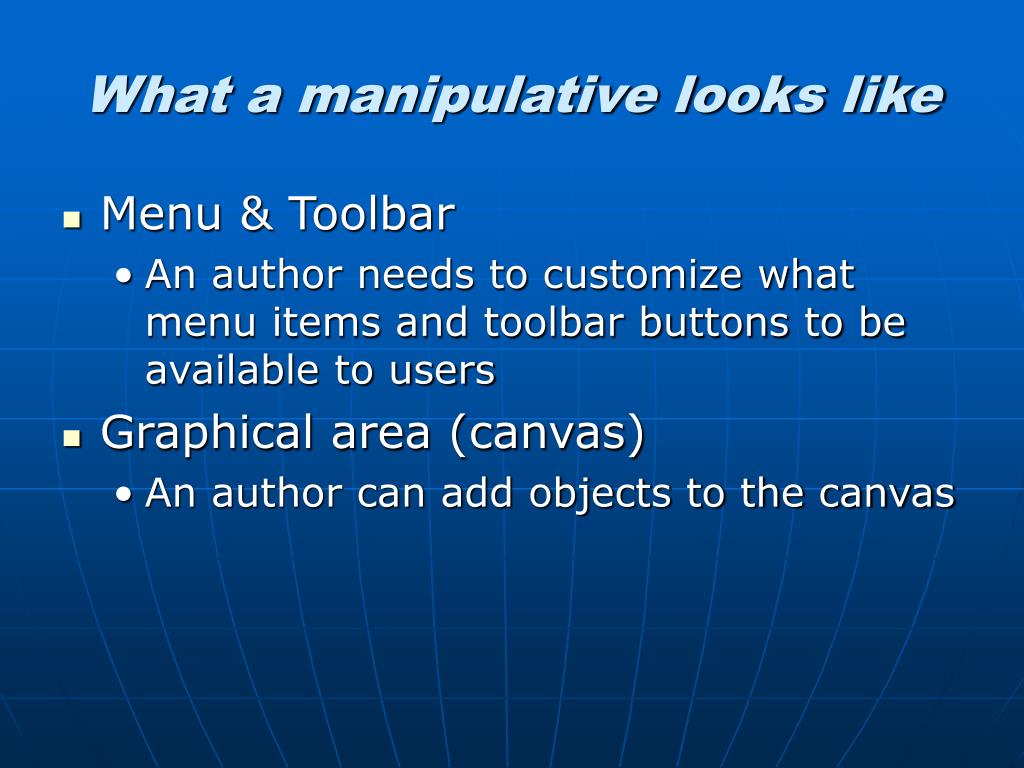

  4. What a manipulative looks like • Menu & Toolbar • An author needs to customize what menu items and toolbar buttons to be available to users • Graphical area (canvas) • An author can add objects to the canvas

  5. What a manipulative looks like

  6. Objects you can author • Implemented • Point • Line/ray/segment • Circle • Polygon • Scratch • Coordinate System • Function graph • Locus • Plain text • User input • Button • Measurement • To be implemented • Vector, regular polygon, arc and conics • Slide bar

  7. Objects you can author

  8. Menu Introduction:Draw Menu • Once a drawing tool in the Draw menu is selected, you can create objects by clicking and moving the mouse • Select or move object(s) • Pencil • Free Point • Line/Ray/Segment • Compass Circle • Macro

  9. Draw Menu

  10. Draw Menu:Macro Support • Grouping several steps as one new tool • Objects involved with a macro are divided into • Givens • Selected by a user from an object on the canvas • Automatically generated • Associated with an object on the canvas (to be finished) • Results • Descendents of the givens • A macro can come from a data string or a URL • A macro can be saved with a manipulative • Examples

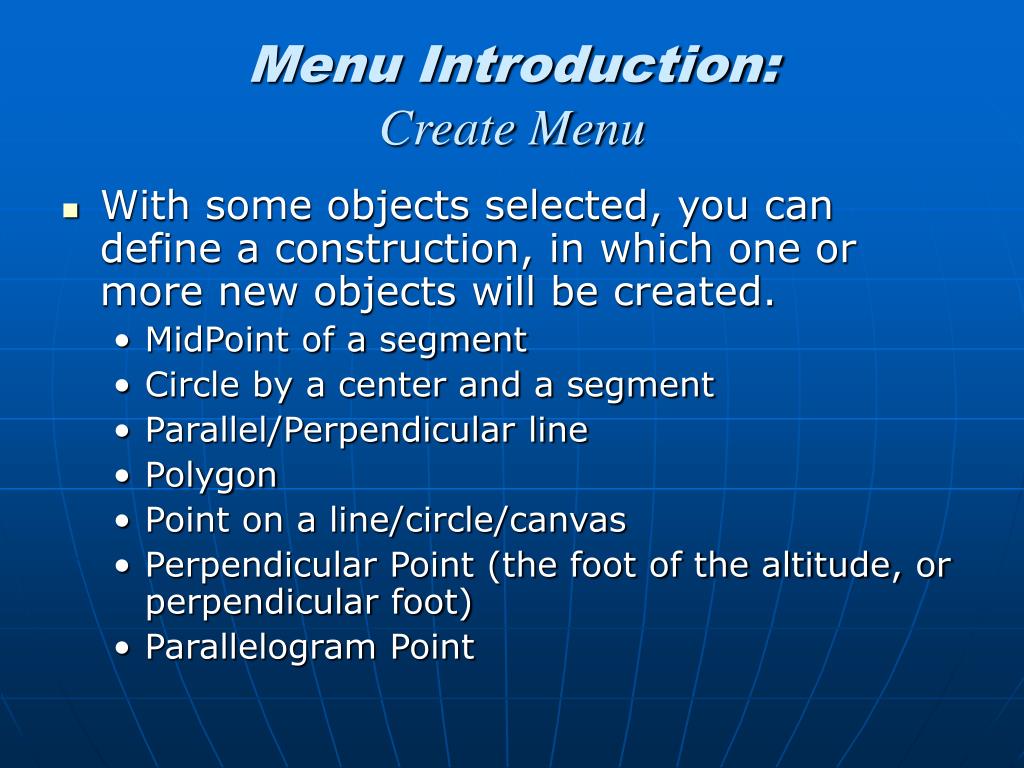

  11. Menu Introduction:Create Menu • With some objects selected, you can define a construction, in which one or more new objects will be created. • MidPoint of a segment • Circle by a center and a segment • Parallel/Perpendicular line • Polygon • Point on a line/circle/canvas • Perpendicular Point (the foot of the altitude, or perpendicular foot) • Parallelogram Point

  12. Create Menu

  13. Things you need to know:Two types of operations • Select an operation from the menu or toolbar, and then begin to draw on the canvas • Select one or more objects, and then go to the menu or toolbar to apply an operation to it (them) • Sometimes, the operation may invoke a dialog

  14. Things you need to know:Menu and Toolbar Enabling and Disabling • Menu items and toolbar buttons are enabled or disabled automatically based on the objects selected and the current system status

  15. Things you need to know:The property dialog • To inspect the relations among objects via the parents/children relation • To see how an object was named and labeled by the system, or to label it yourself • To customize properties of an object • To check if your construction is correct • To study how a manipulative was created

  16. Property Dialog – to inspect relations among objects

  17. Property Dialog – to customize properties of an object

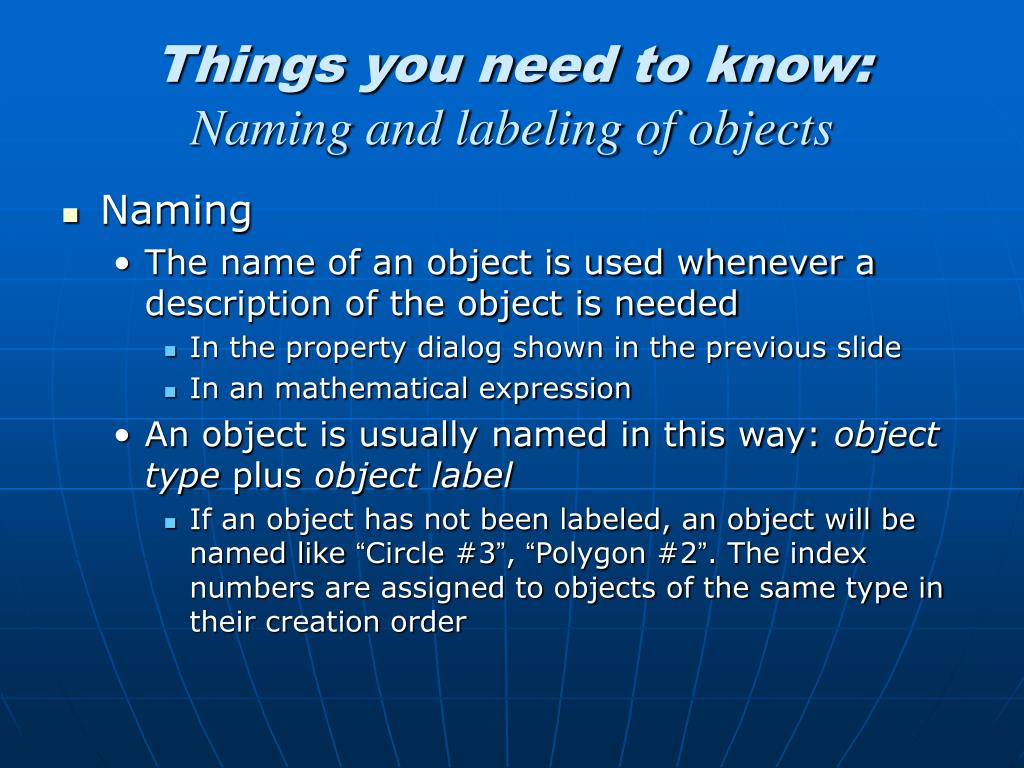

  18. Things you need to know:Naming and labeling of objects • Naming • The name of an object is used whenever a description of the object is needed • In the property dialog shown in the previous slide • In an mathematical expression • An object is usually named in this way: object type plus object label • If an object has not been labeled, an object will be named like “Circle #3”, “Polygon #2”. The index numbers are assigned to objects of the same type in their creation order

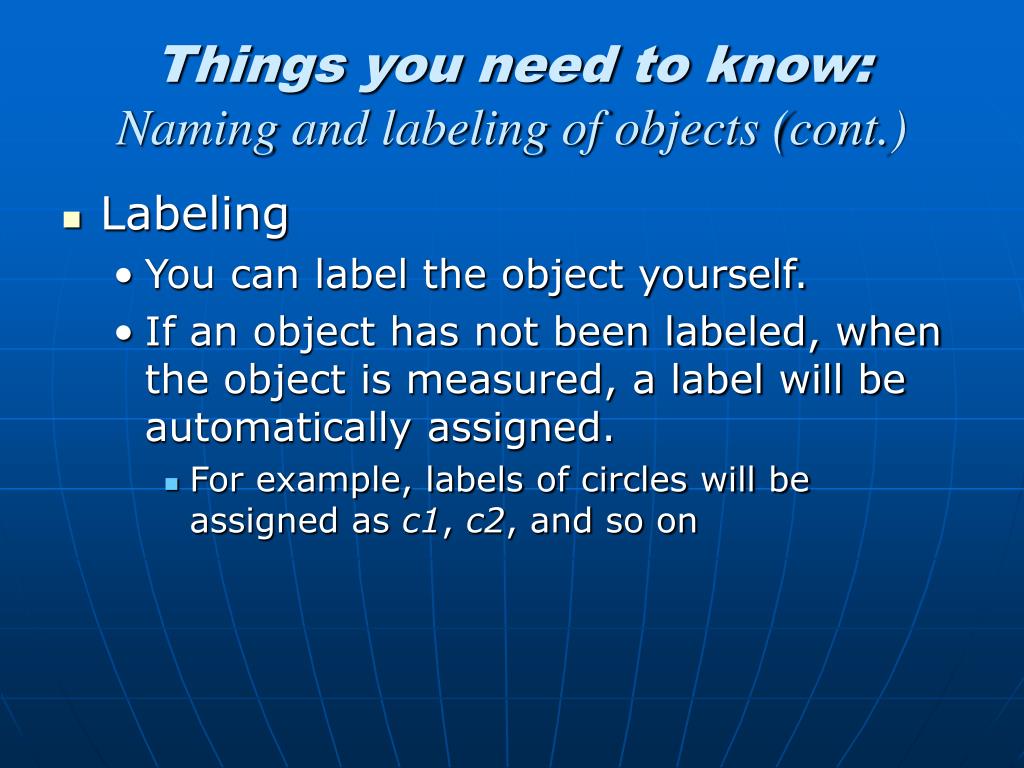

  19. Things you need to know:Naming and labeling of objects (cont.) • Labeling • You can label the object yourself. • If an object has not been labeled, when the object is measured, a label will be automatically assigned. • For example, labels of circles will be assigned as c1, c2, and so on

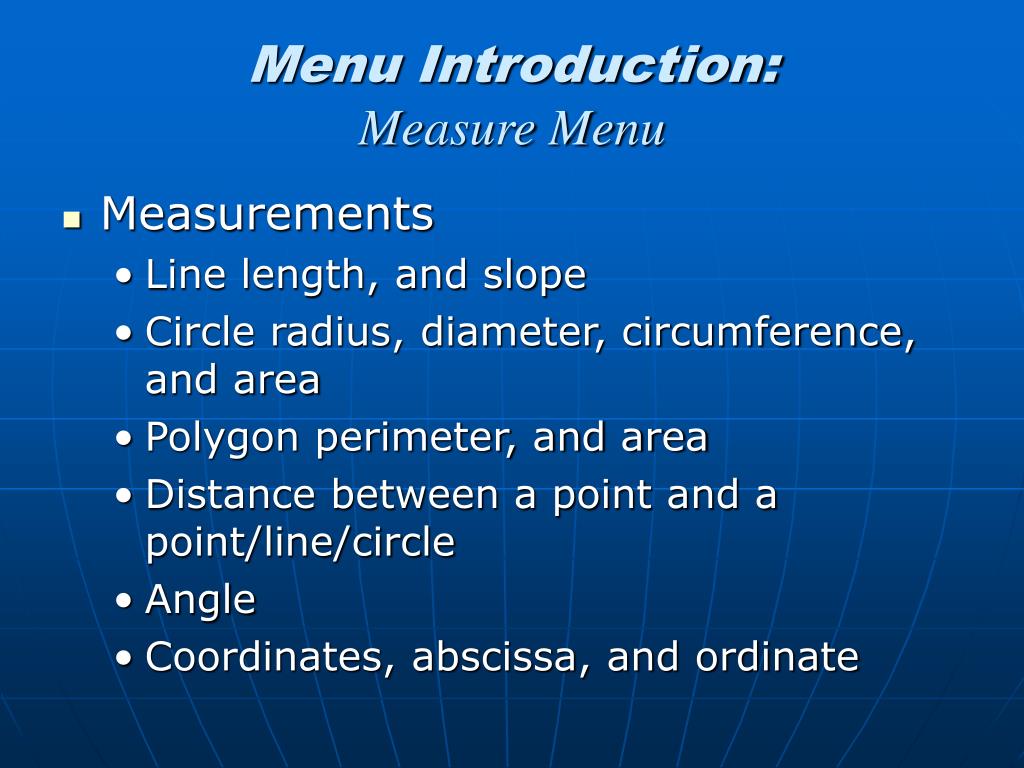

  20. Menu Introduction:Measure Menu • Measurements • Line length, and slope • Circle radius, diameter, circumference, and area • Polygon perimeter, and area • Distance between a point and a point/line/circle • Angle • Coordinates, abscissa, and ordinate

  21. Measure Menu

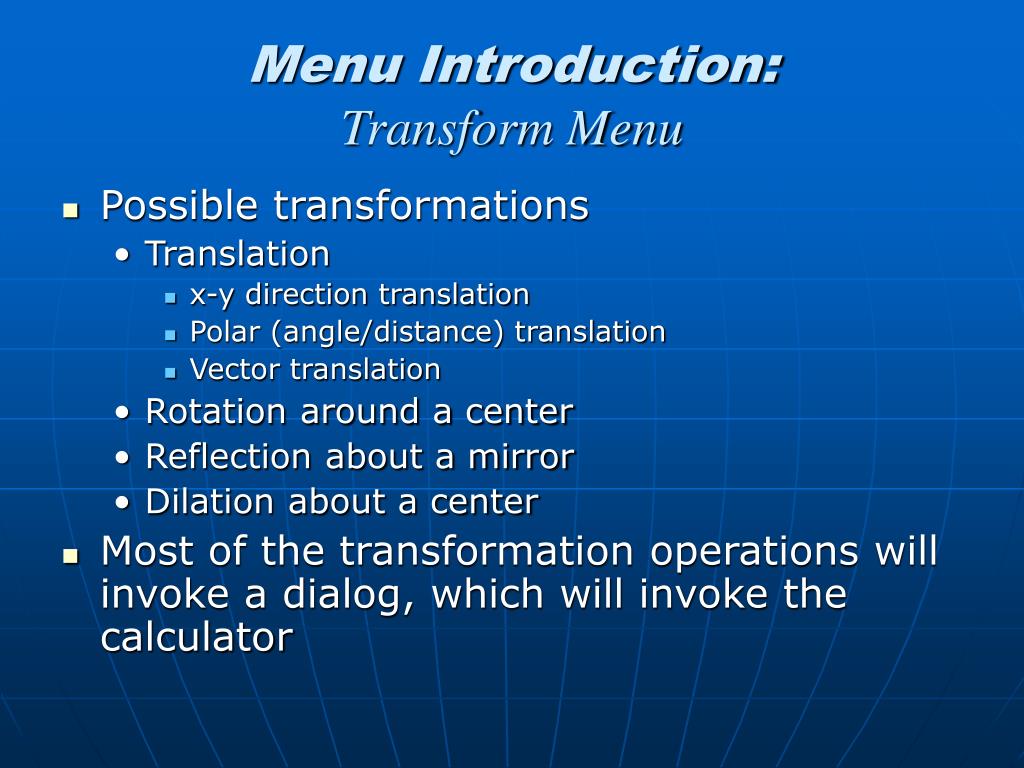

  22. Menu Introduction:Transform Menu • Possible transformations • Translation • x-y direction translation • Polar (angle/distance) translation • Vector translation • Rotation around a center • Reflection about a mirror • Dilation about a center • Most of the transformation operations will invoke a dialog, which will invoke the calculator

  23. Transform Menu

  24. Dialogs invoked by dilation

  25. Result after the dilation

  26. Property of the dilated triangle

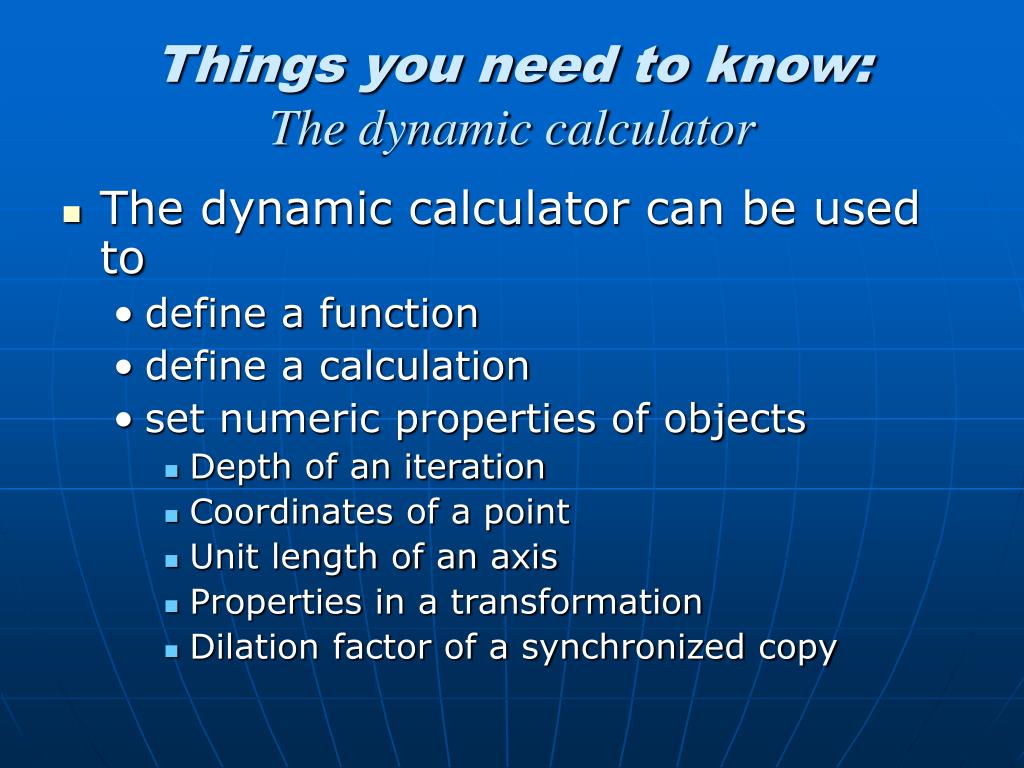

  27. Things you need to know:The dynamic calculator • The dynamic calculator can be used to • define a function • define a calculation • set numeric properties of objects • Depth of an iteration • Coordinates of a point • Unit length of an axis • Properties in a transformation • Dilation factor of a synchronized copy

  28. Calculator for defining a function

  29. Calculator for setting the depth of an iteration

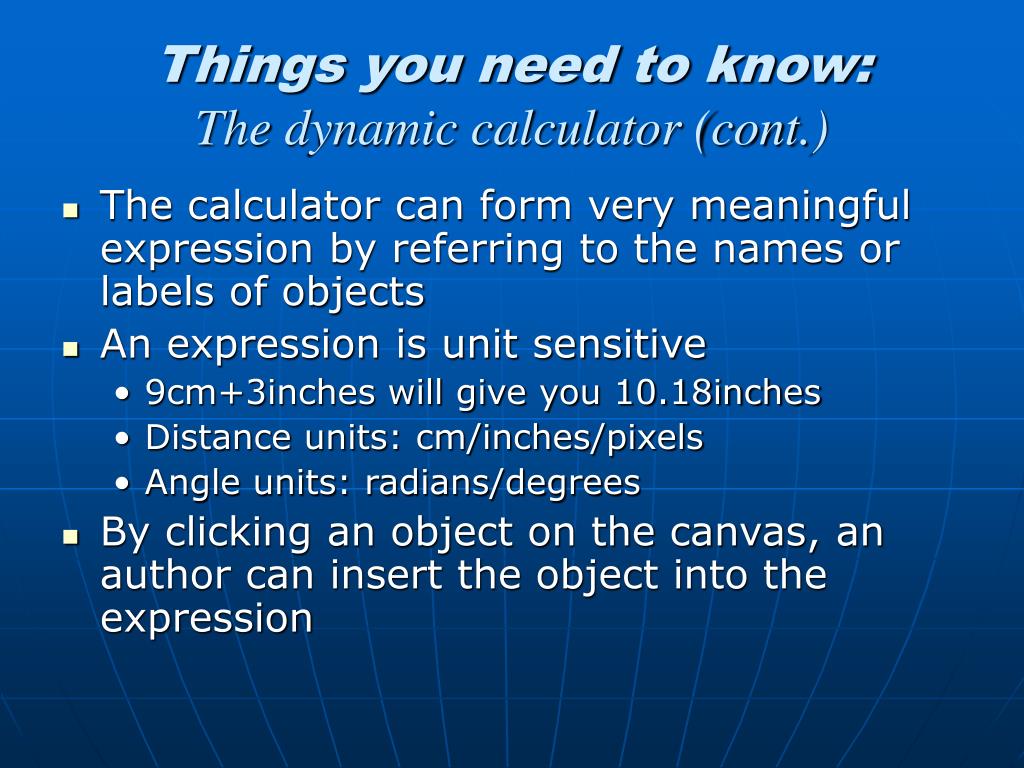

  30. Things you need to know:The dynamic calculator (cont.) • The calculator can form very meaningful expression by referring to the names or labels of objects • An expression is unit sensitive • 9cm+3inches will give you 10.18inches • Distance units: cm/inches/pixels • Angle units: radians/degrees • By clicking an object on the canvas, an author can insert the object into the expression

  31. Things you need to know:The dynamic calculator (cont.) • An expression is entered in infix format, and it will be parsed and evaluated immediately. Invalid expression won’t be allowed. • The expression for a numeric property of an object can be changed even after the object is created.

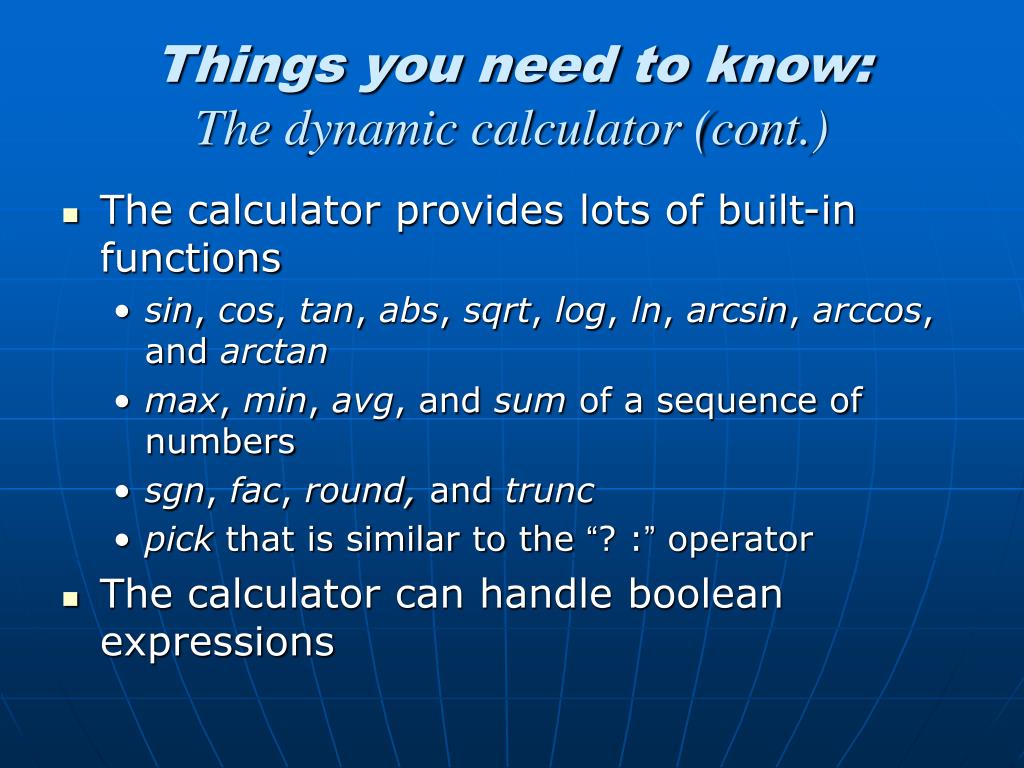

  32. Things you need to know:The dynamic calculator (cont.) • The calculator provides lots of built-in functions • sin, cos, tan, abs, sqrt, log, ln, arcsin, arccos,and arctan • max, min, avg, and sum of a sequence of numbers • sgn, fac, round, and trunc • pick that is similar to the “? :” operator • The calculator can handle boolean expressions

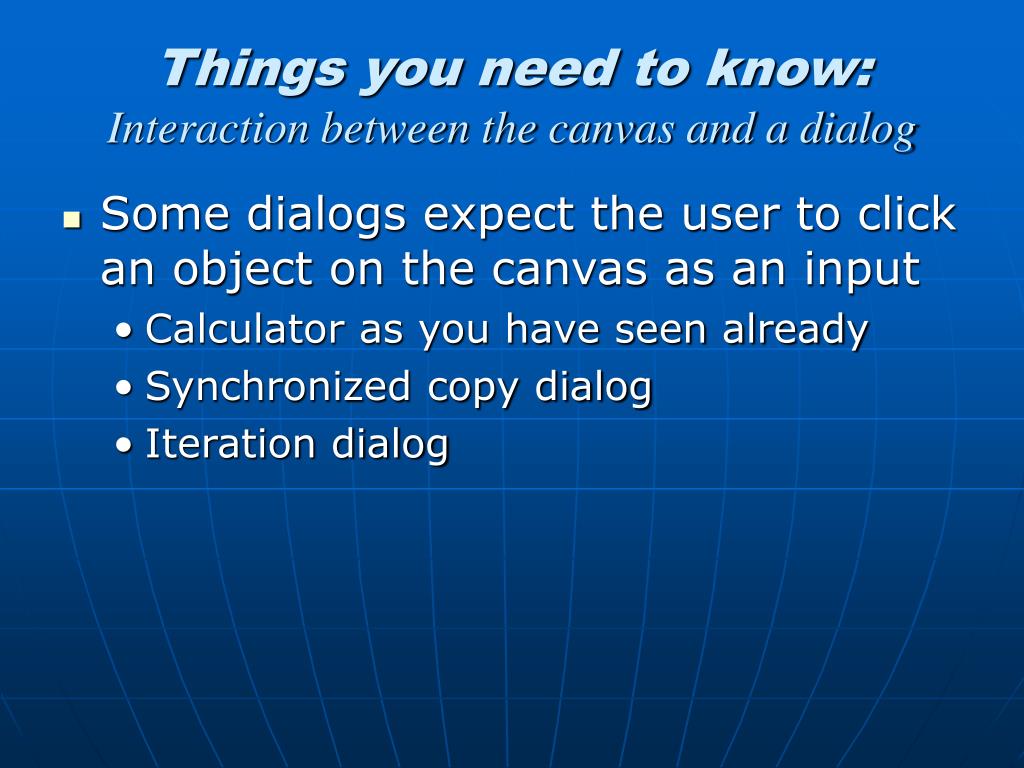

  33. Things you need to know:Interaction between the canvas and a dialog • Some dialogs expect the user to click an object on the canvas as an input • Calculator as you have seen already • Synchronized copy dialog • Iteration dialog

  34. Menu Introduction:Graph Menu • Coordinate system • Point plotting • Function definition and plotting

  35. Graph Menu

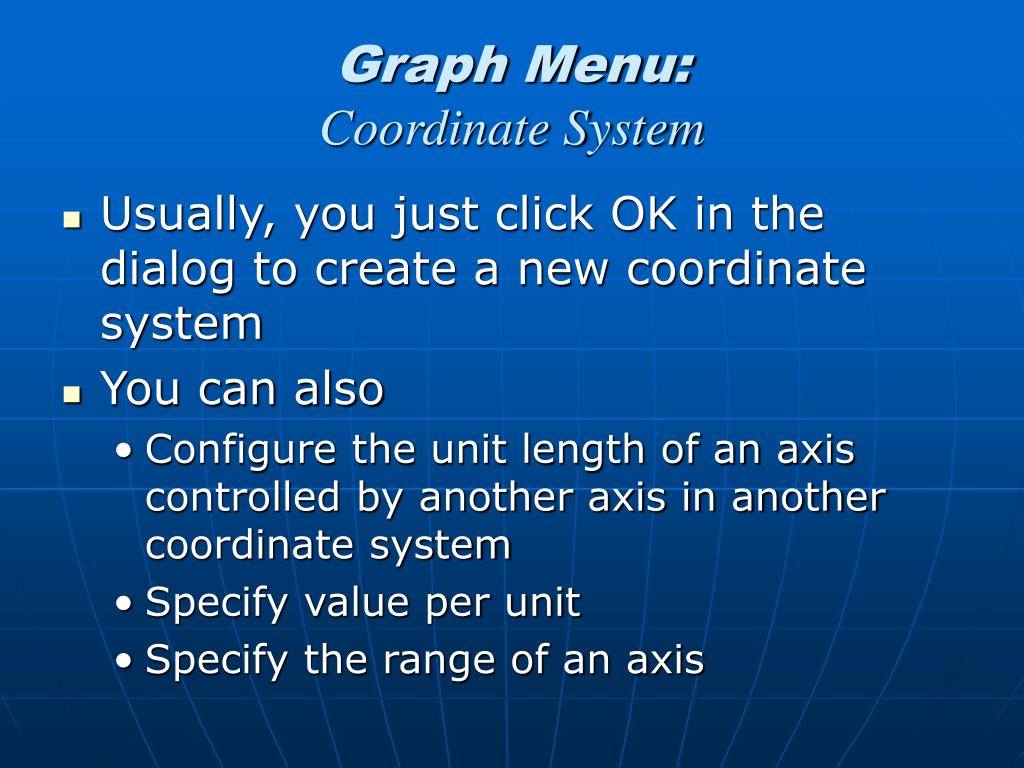

  36. Graph Menu:Coordinate System • Usually, you just click OK in the dialog to create a new coordinate system • You can also • Configure the unit length of an axis controlled by another axis in another coordinate system • Specify value per unit • Specify the range of an axis

  37. A coordinate system

  38. The coordinate system dialog

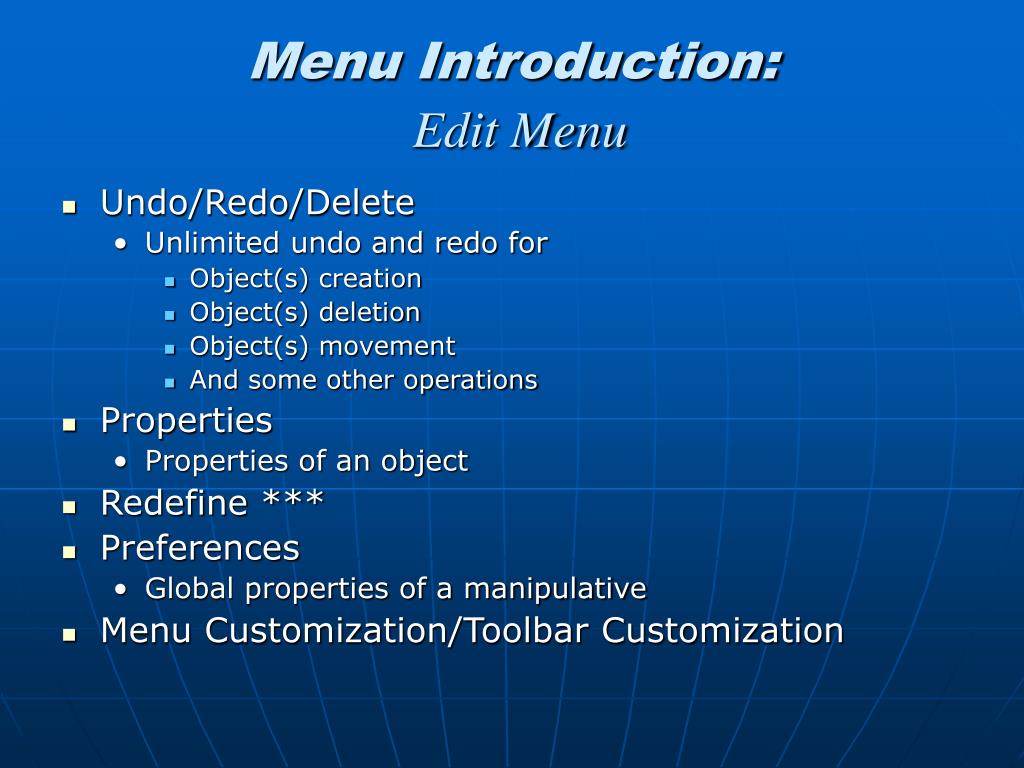

  39. Menu Introduction:Edit Menu • Undo/Redo/Delete • Unlimited undo and redo for • Object(s) creation • Object(s) deletion • Object(s) movement • And some other operations • Properties • Properties of an object • Redefine *** • Preferences • Global properties of a manipulative • Menu Customization/Toolbar Customization

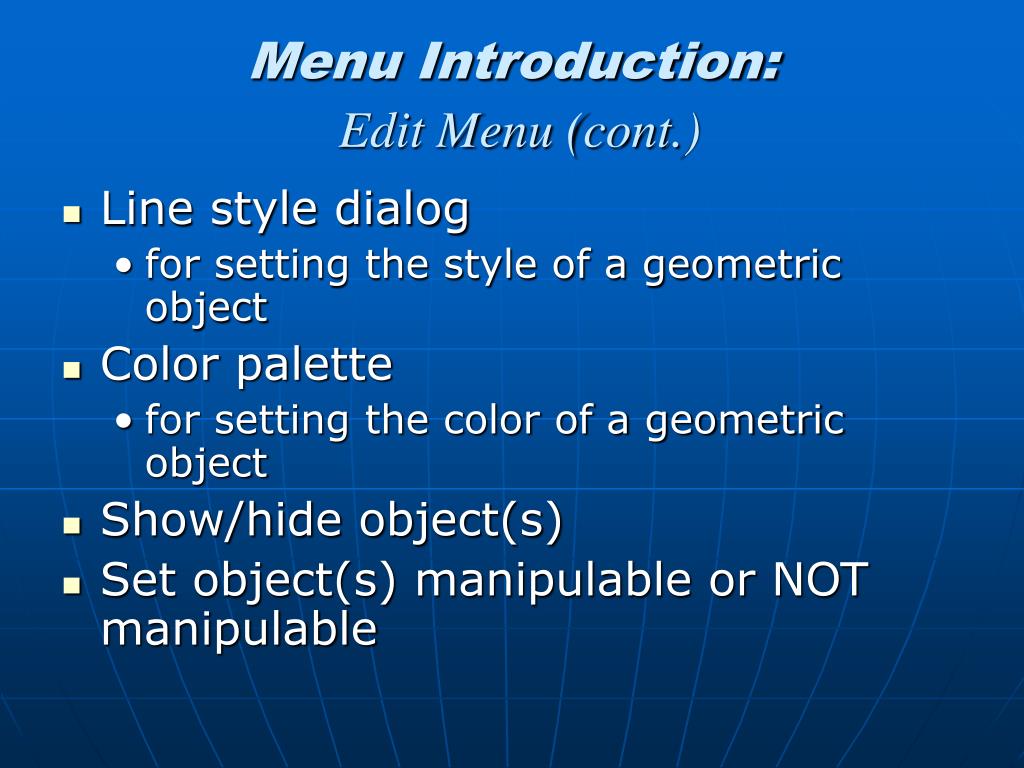

  40. Menu Introduction:Edit Menu (cont.) • Line style dialog • for setting the style of a geometric object • Color palette • for setting the color of a geometric object • Show/hide object(s) • Set object(s) manipulable or NOT manipulable

  41. Edit Menu

  42. Line Style Dialog and Color Palette

  43. The preferences dialog

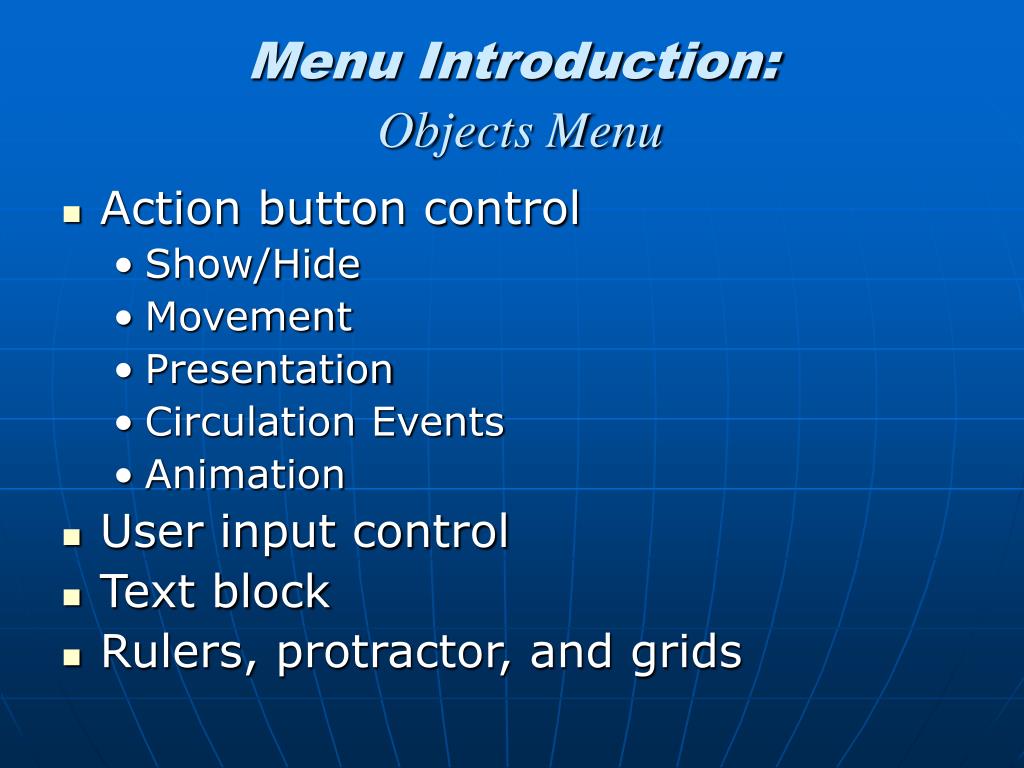

  44. Menu Introduction:Objects Menu • Action button control • Show/Hide • Movement • Presentation • Circulation Events • Animation • User input control • Text block • Rulers, protractor, and grids

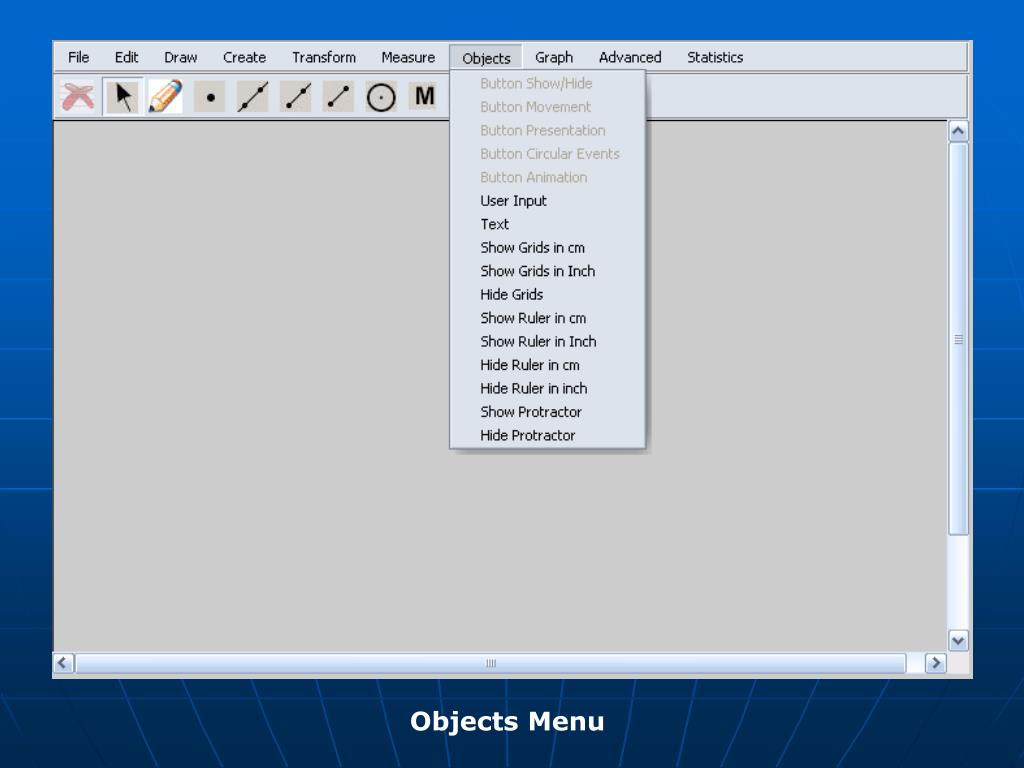

  45. Objects Menu

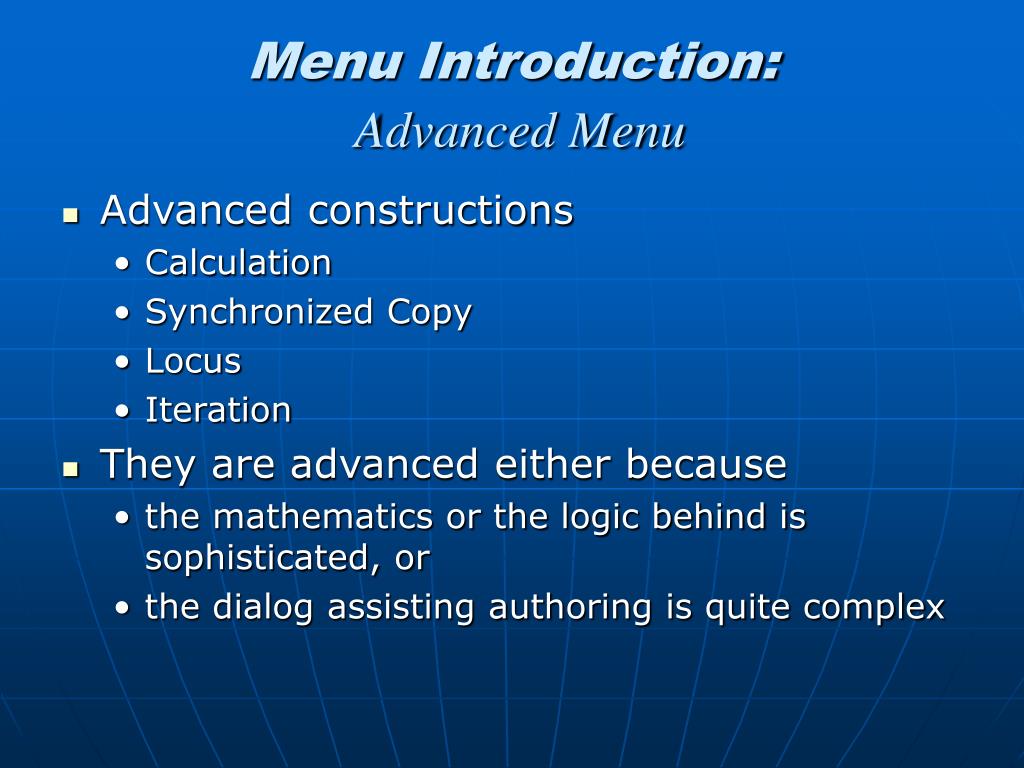

  46. Menu Introduction:Advanced Menu • Advanced constructions • Calculation • Synchronized Copy • Locus • Iteration • They are advanced either because • the mathematics or the logic behind is sophisticated, or • the dialog assisting authoring is quite complex

  47. Advanced Menu

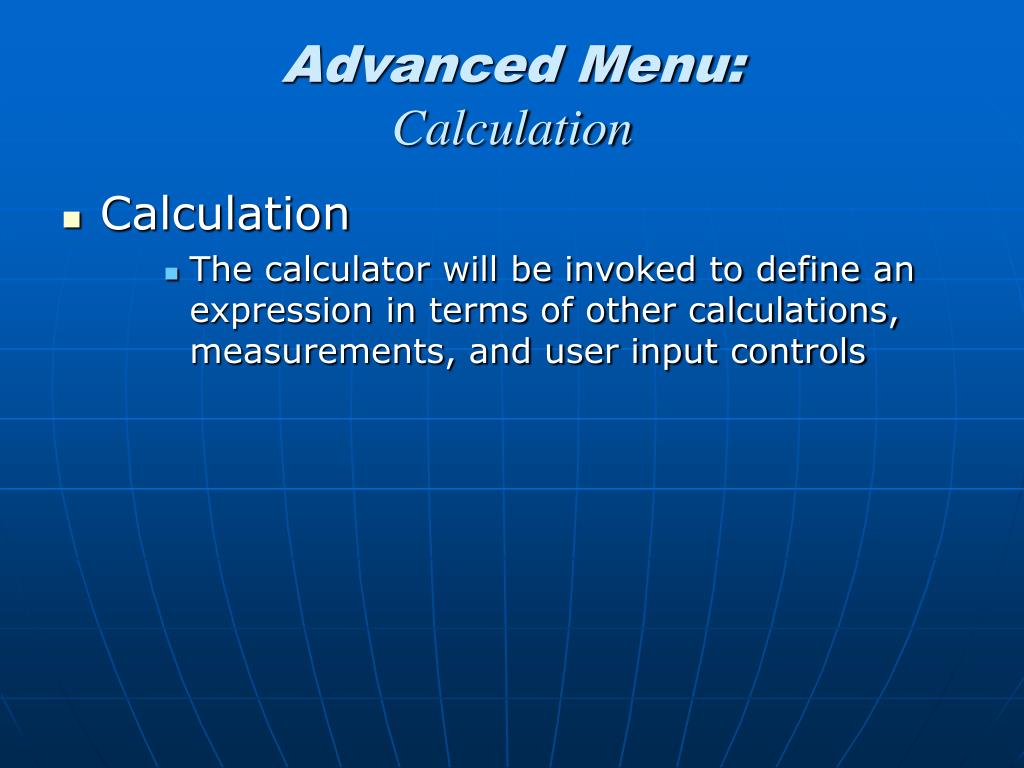

  48. Advanced Menu:Calculation • Calculation • The calculator will be invoked to define an expression in terms of other calculations, measurements, and user input controls

  49. Advanced Menu:Synchronized Copy • Synchronized copy dialog • The mathematical relations among copied objects are always the same as the source objects

  50. One triangle is a synchronized copy of another triangle
