ATOMIC SCALE AND SINGLE MOLECULE LOGIC GATE TECHNOLOGIES

Objective 8.7: « Molecular Scale Devices and Systems ». ICT Call 6 FP7-ICT-2009-6. ATOMIC SCALE AND SINGLE MOLECULE LOGIC GATE TECHNOLOGIES. (January 2011- December 2014). Coordinator : C. Joachim. Project Number : 270028. 40 nm. Atome-molécule « Concept Chip ». 100 m m.

andie
Télécharger la présentation

ATOMIC SCALE AND SINGLE MOLECULE LOGIC GATE TECHNOLOGIES

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Objective 8.7: « Molecular Scale Devices and Systems » ICT Call 6 FP7-ICT-2009-6 ATOMIC SCALE AND SINGLE MOLECULE LOGIC GATE TECHNOLOGIES (January 2011- December 2014) Coordinator: C. Joachim Project Number : 270028

  2. 40 nm Atome-molécule « Concept Chip » 100 mm

  3. Total budget: 9 642 K€ + 4 000 K€ EU: 6 899 K€

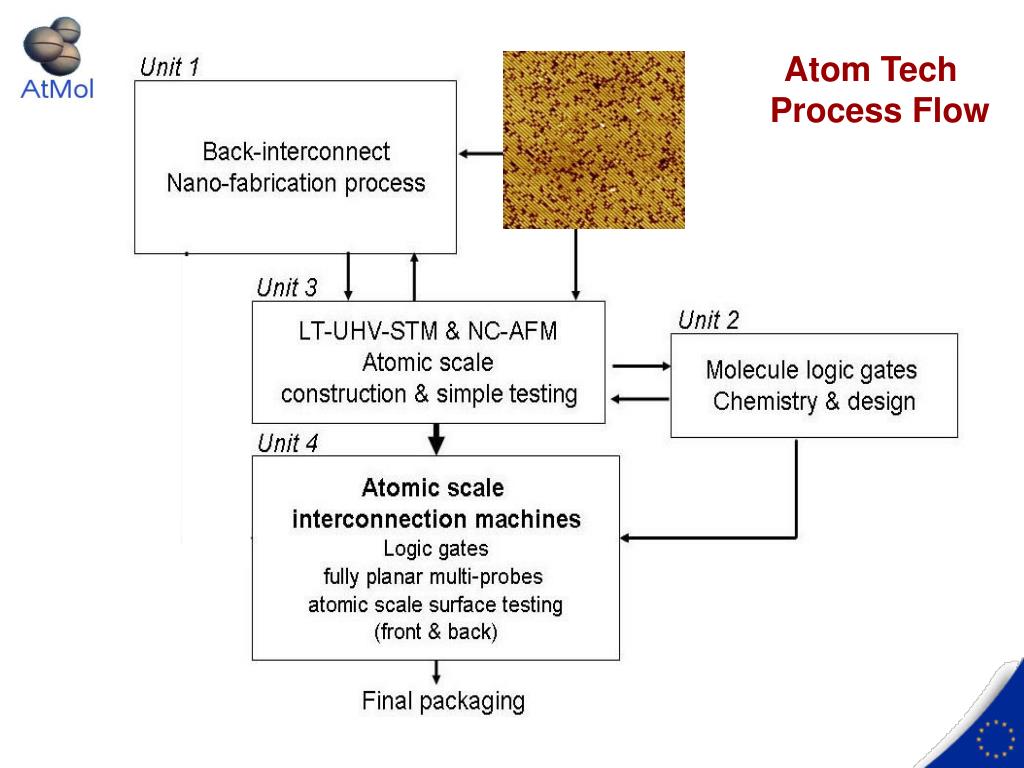

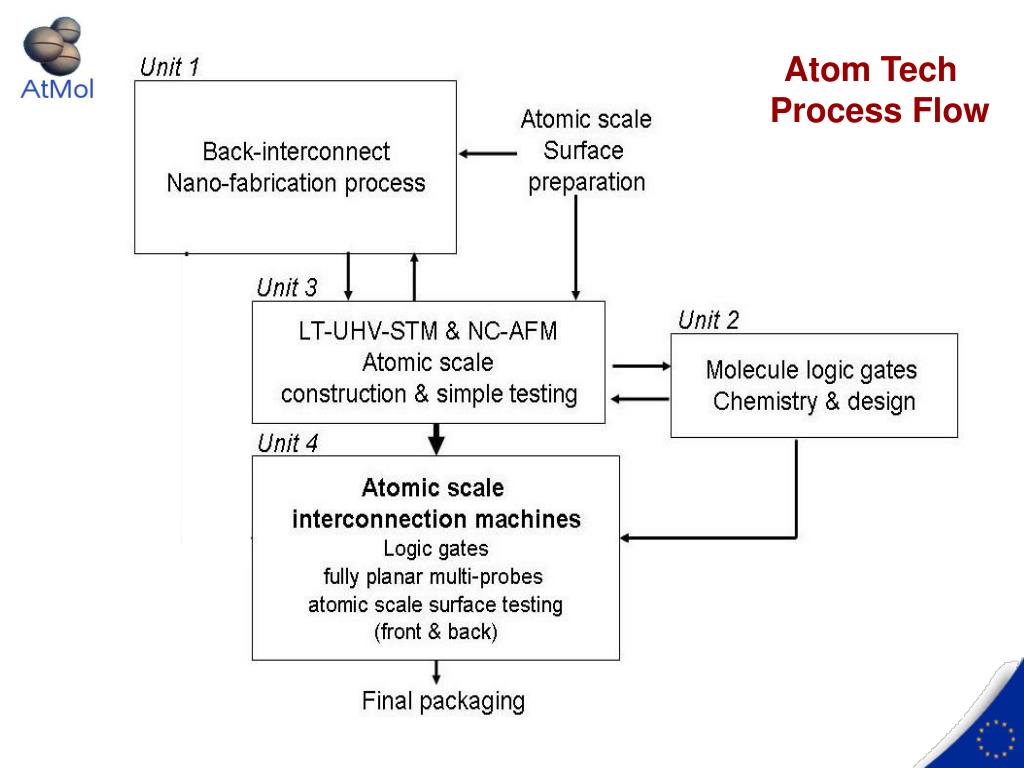

  4. Atom Tech Process Flow

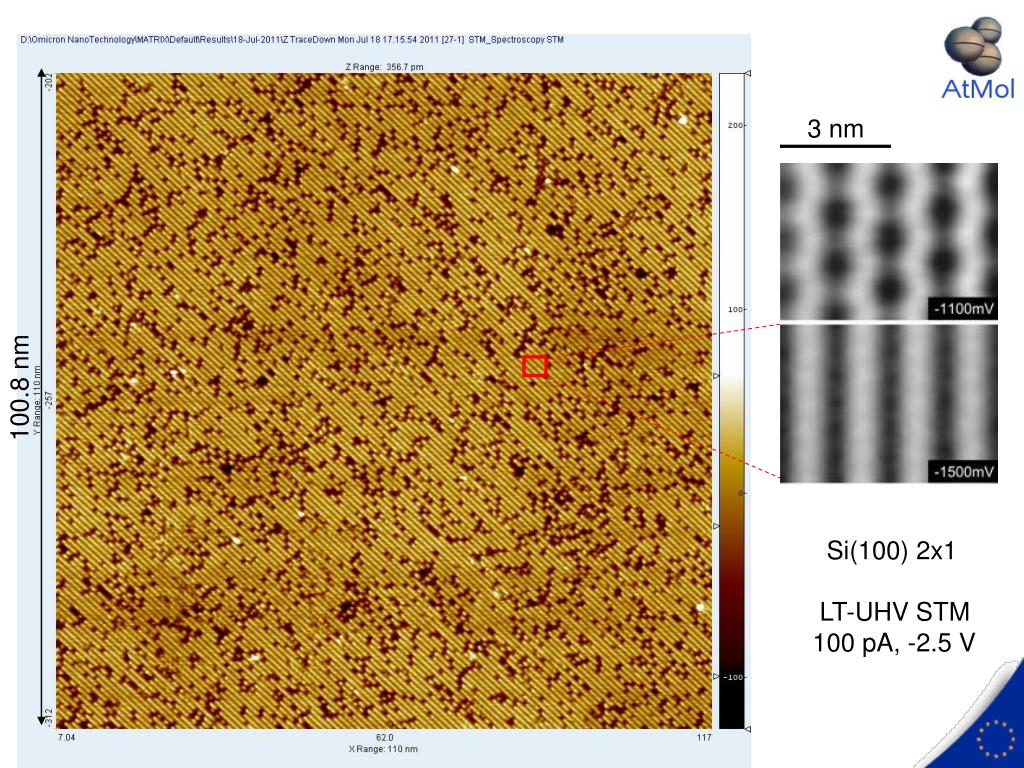

  5. 3 nm 100.8 nm Si(100) 2x1 LT-UHV STM 100 pA, -2.5 V

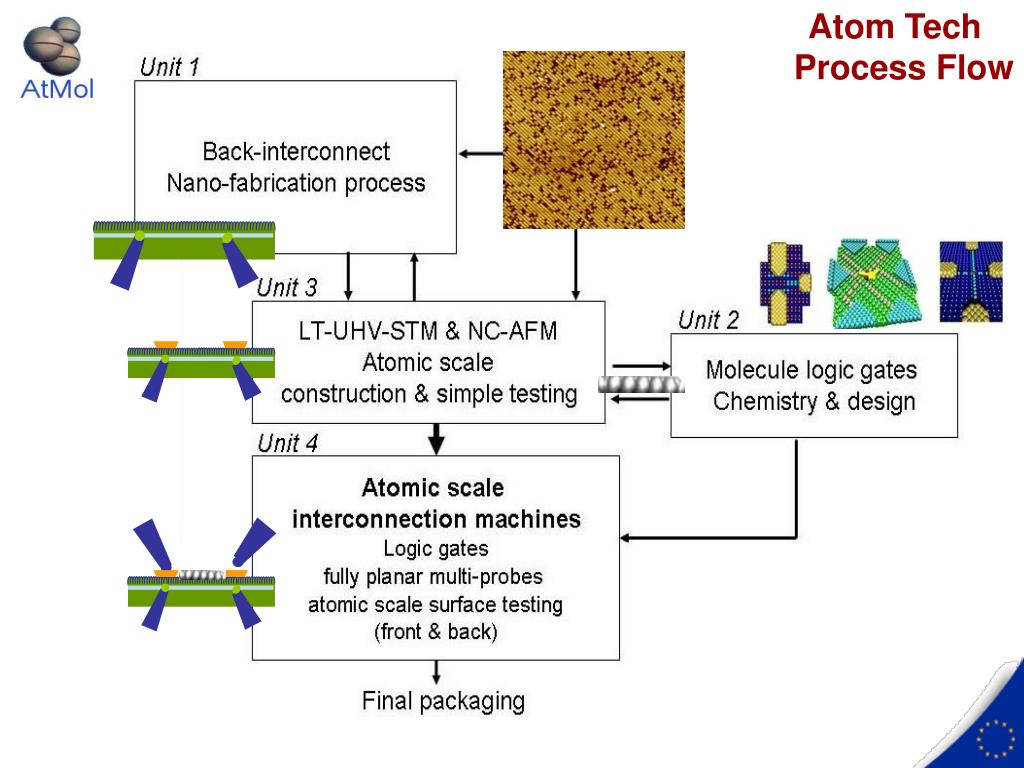

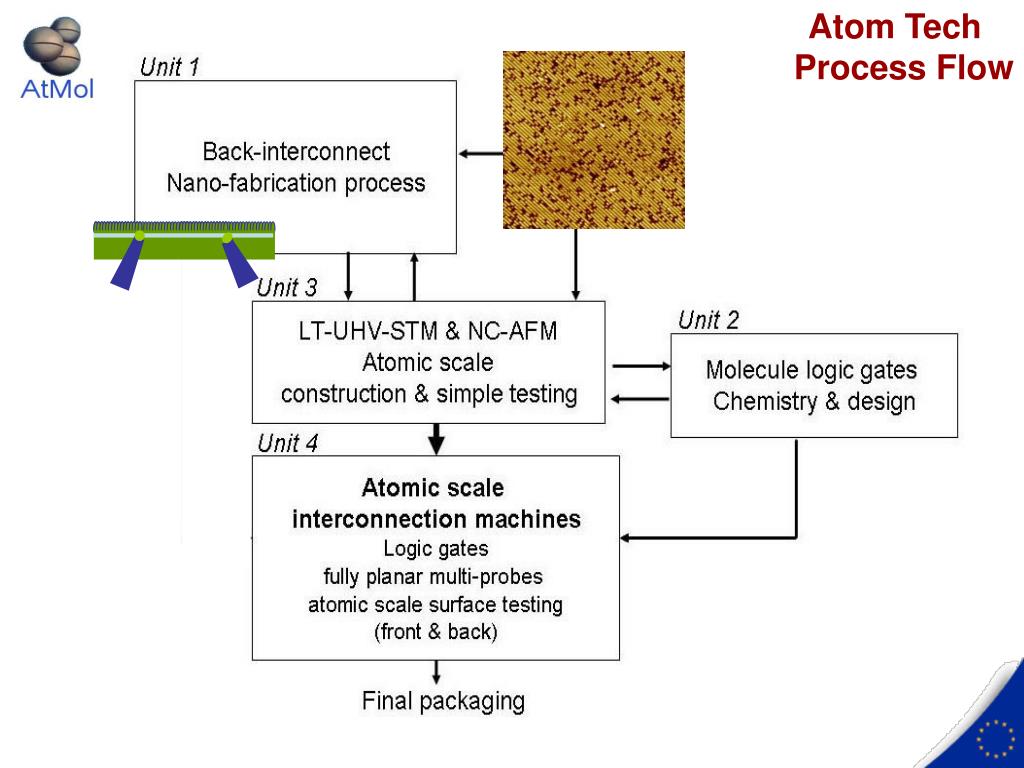

  6. Atom Tech Process Flow

  7. Interconnexion face arrière (compatible UHV)

  8. Atom Tech Process Flow

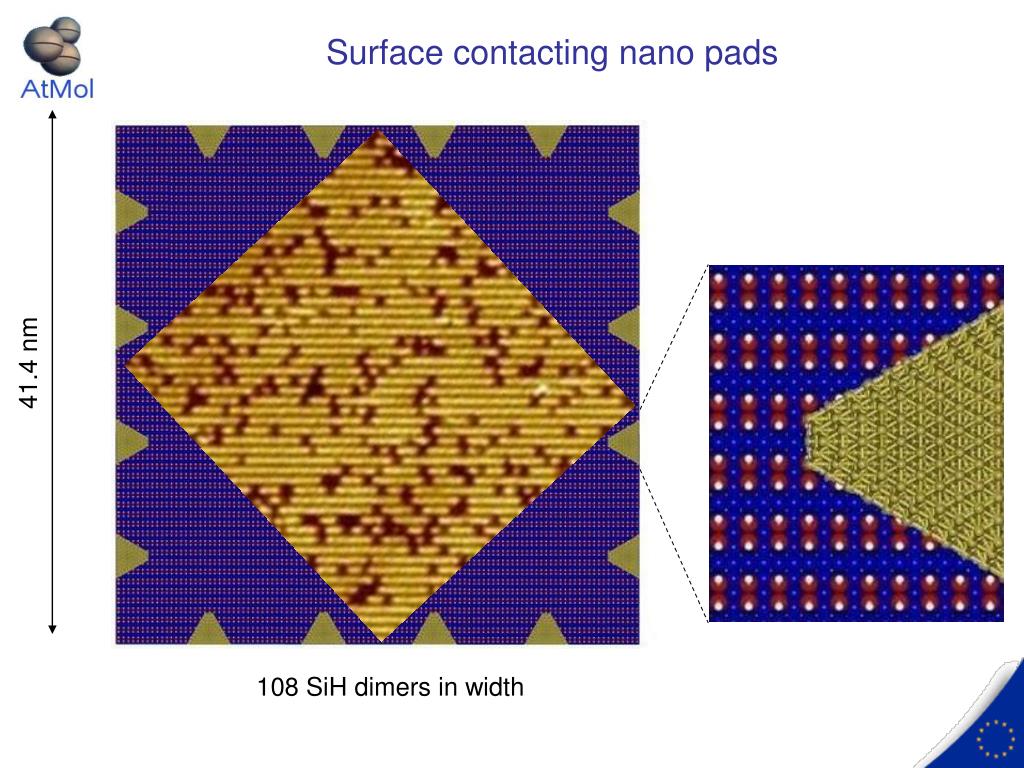

  9. Surface contacting nano pads 41.4 nm 108 SiH dimers in width

  10. 100 nm UHV STM MoS2 UHV SEM Si(100)H UHV Transfer Printer A B 10nm TEM cross section 15 0 0 10 20 30 40 50 Pa

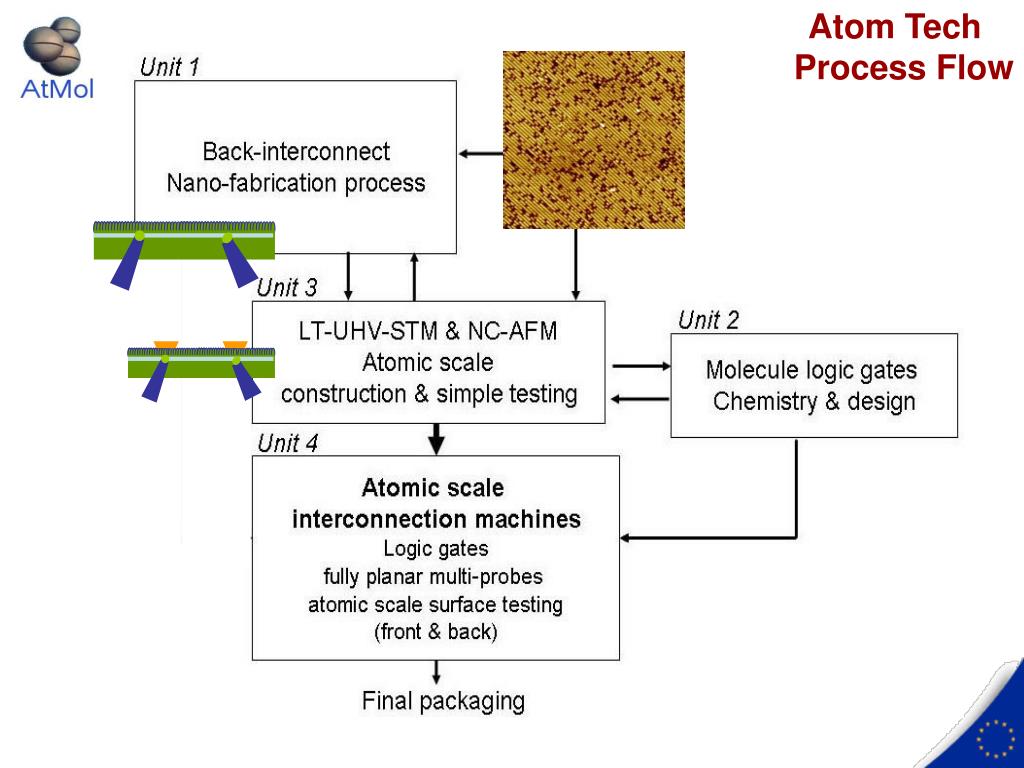

  11. Atom Tech Process Flow

  12. ? Design à l’échelle atomique?

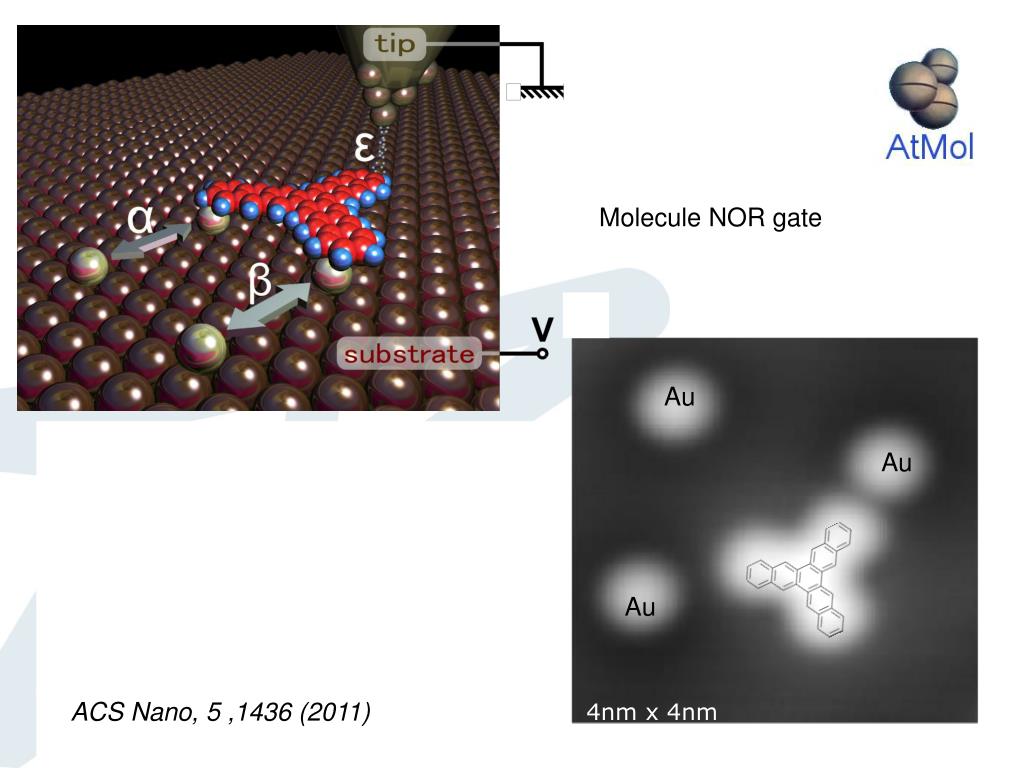

  13. Au Au Au 4nm x 4nm Molecule NOR gate ACS Nano, 5 ,1436 (2011)

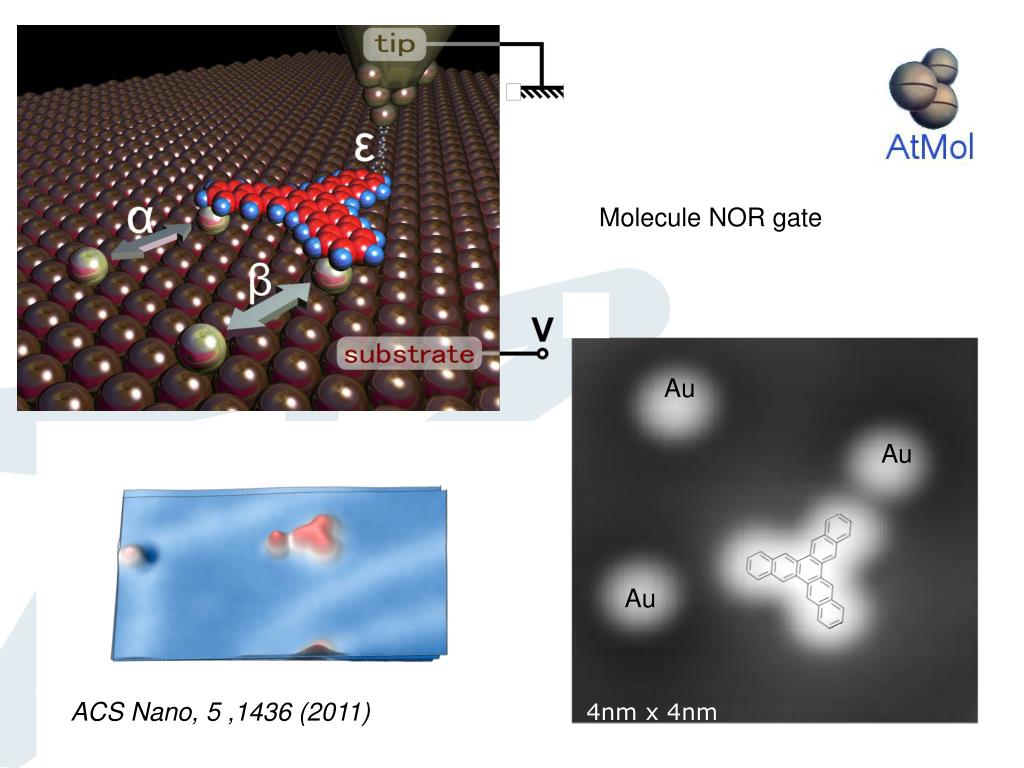

  14. Au Au Au 4nm x 4nm Molecule NOR gate ACS Nano, 5 ,1436 (2011)

  15. Atom Tech Process Flow

  16. Atom Tech Process Flow

  17. P10 (Krakow) and P11 (Singapore) Atomic scale interconnection machine

  18. Omicron UHV LT 4 STM system

  19. 4 UHV-STM tips positionned under an UHV SEM

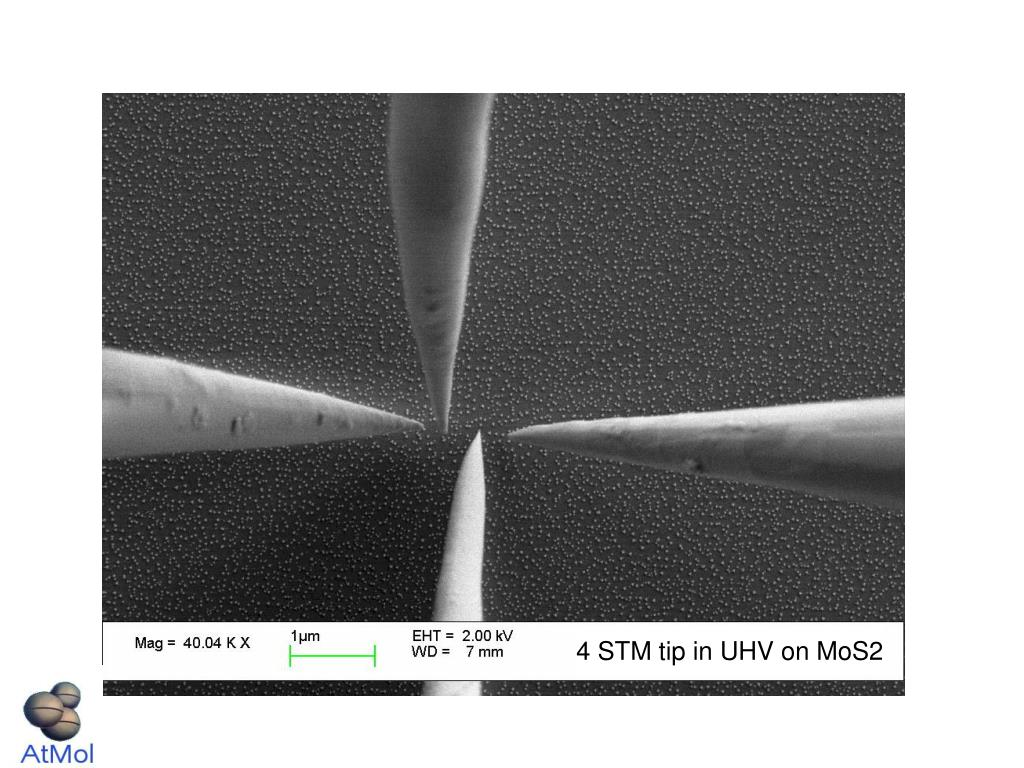

  20. 4 STM tip in UHV on MoS2

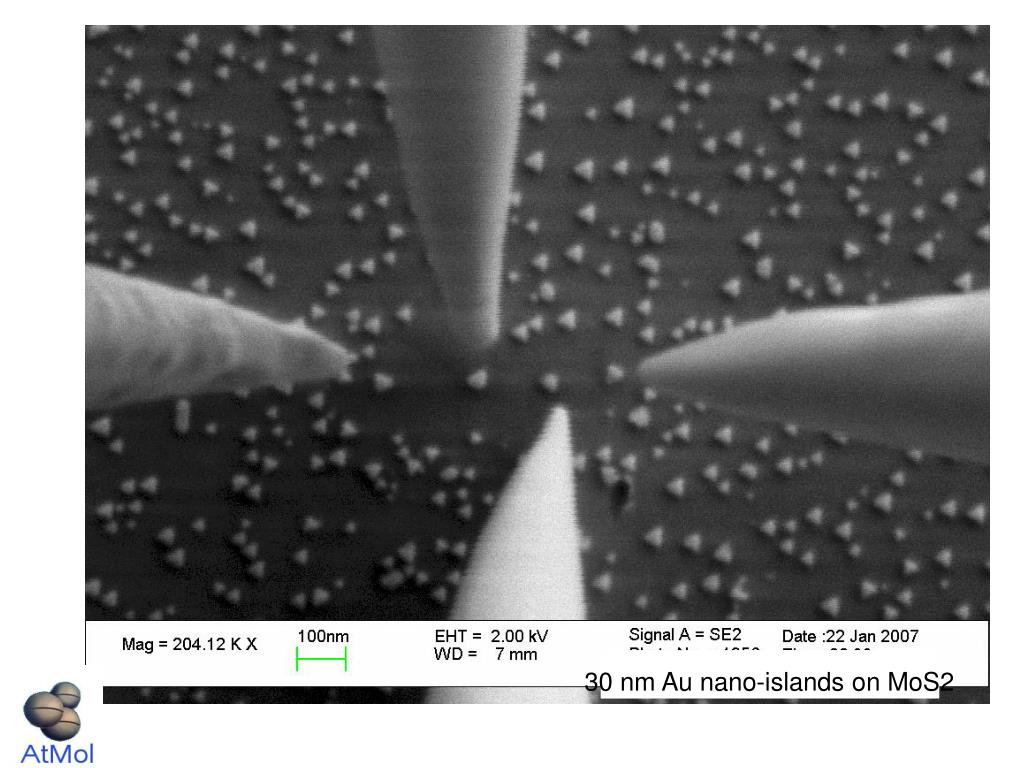

  21. 30 nm Au nano-islands on MoS2

  22. 10nm 15 0 40 0 10 20 30 50 17 nm

  23. P1 (Toulouse (PicoLab / CEMES-CNRS) ) Atomic scale Interconnection machine DUF

  24. Atom Tech Process Flow

  25. Atome-molécule « Concept Chip »

  26. Objective 8.7: « Molecular Scale Devices and Systems » Thanks for your attention ICT Call 6 FP7-ICT-2009-6 Proposal Number : 270028

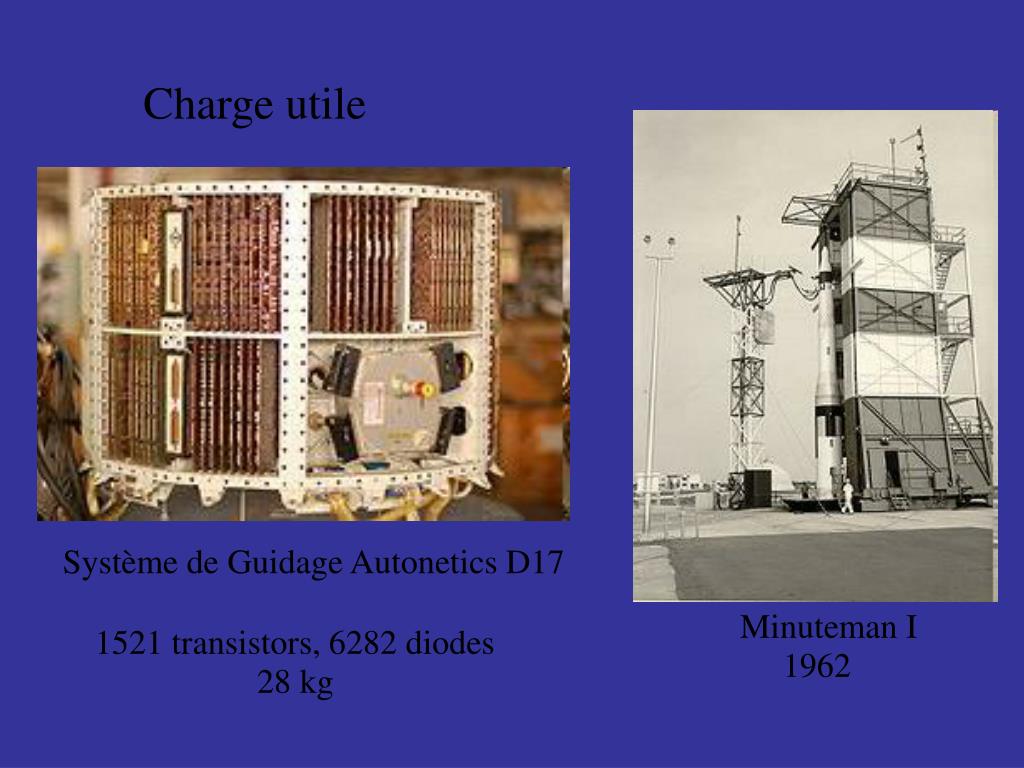

  27. Charge utile Système de Guidage Autonetics D17 Minuteman I 1962 1521 transistors, 6282 diodes 28 kg

  28. Horloges atomiques

  29. Horloge atomique Giove B 2007 18 kg 1 ns/jour

  30. Horloge atomique J. Kitching Puce à atomes NIST 2004 75 mW, 1s/300 ans Vapeur de Rb
