  1. Sedimentary Rocks

  2. Sediment any loose, solid particles that originate from either weathering and erosion of rock, or the chemical precipitation of rock from solution.

  3. Gravel: particles >2mm Boulder: basketball sized and up Cobble: between a tennis ball and a basketball Pebble: between a tennis ball and the thickness of a nickel

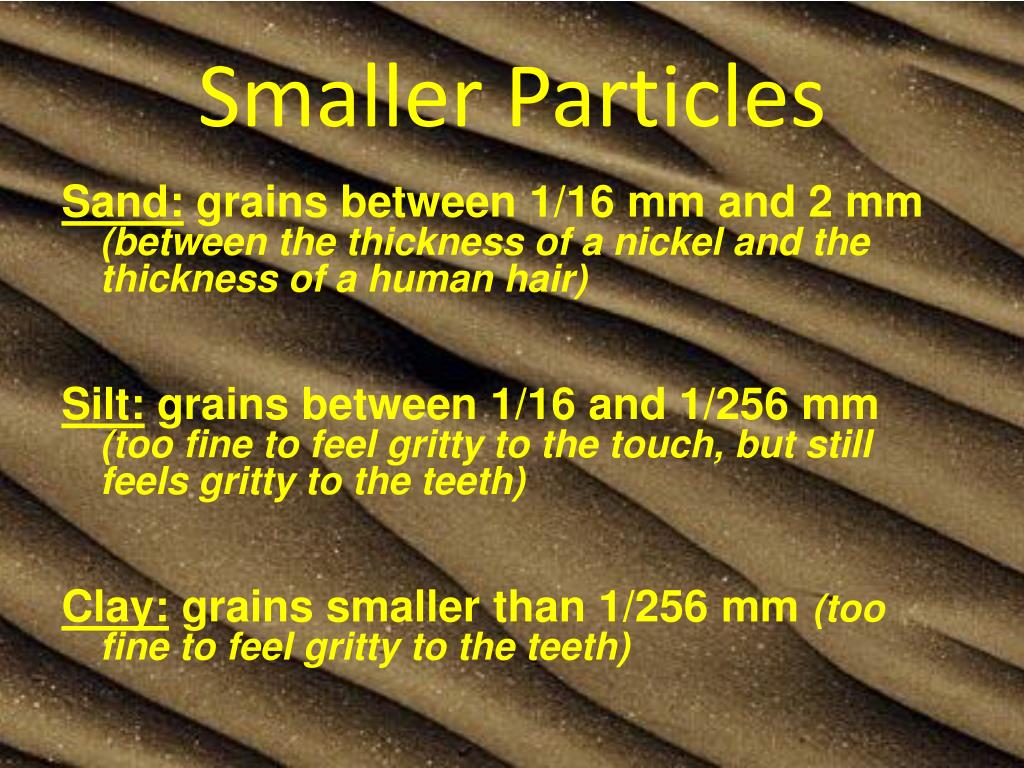

  4. Smaller Particles Sand: grains between 1/16 mm and 2 mm (between the thickness of a nickel and the thickness of a human hair) Silt: grains between 1/16 and 1/256 mm (too fine to feel gritty to the touch, but still feels gritty to the teeth) Clay: grains smaller than 1/256 mm (too fine to feel gritty to the teeth)

  5. vocabulary • Weathering- destructive processes that change the chemical and physical character of rock near the Earth’s surface. • Erosion- is the picking up or physical removal of rock particles by water, wind, ice, etc.

  6. mechanical vs. chemical weathering

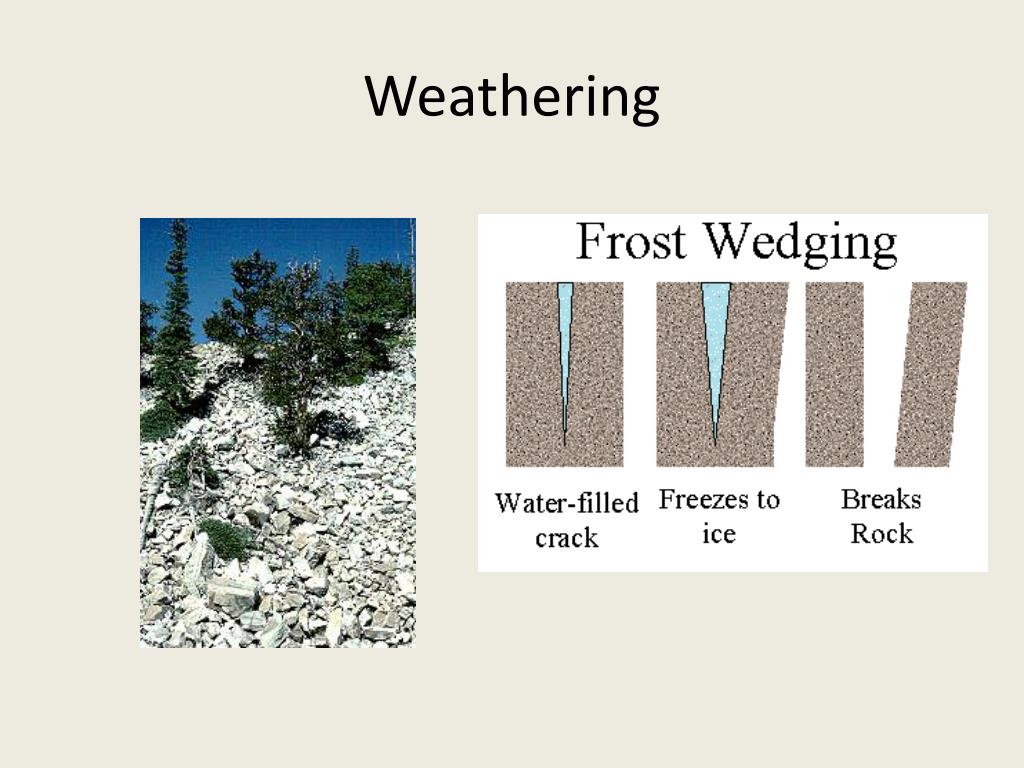

  7. Weathering

  8. Soil Erosion Madison County, AR 2004 Southwestern Arkansas 2005

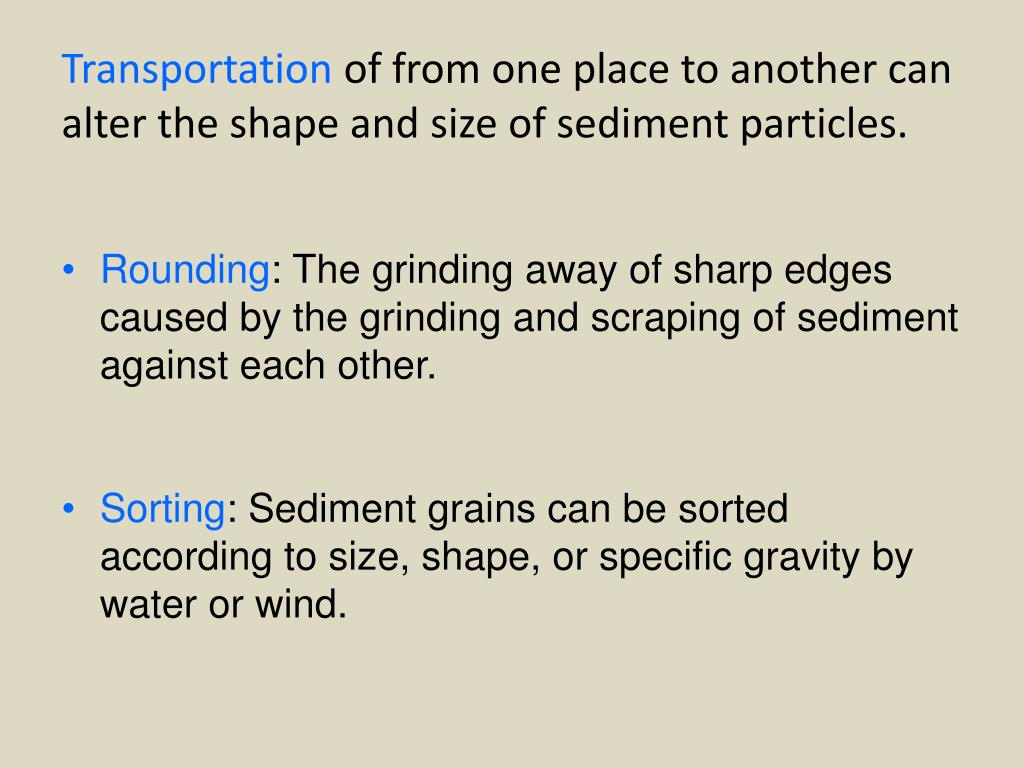

  9. Transportation of from one place to another can alter the shape and size of sediment particles. • Rounding: The grinding away of sharp edges caused by the grinding and scraping of sediment against each other. • Sorting: Sediment grains can be sorted according to size, shape, or specific gravity by water or wind.

  10. Sorting

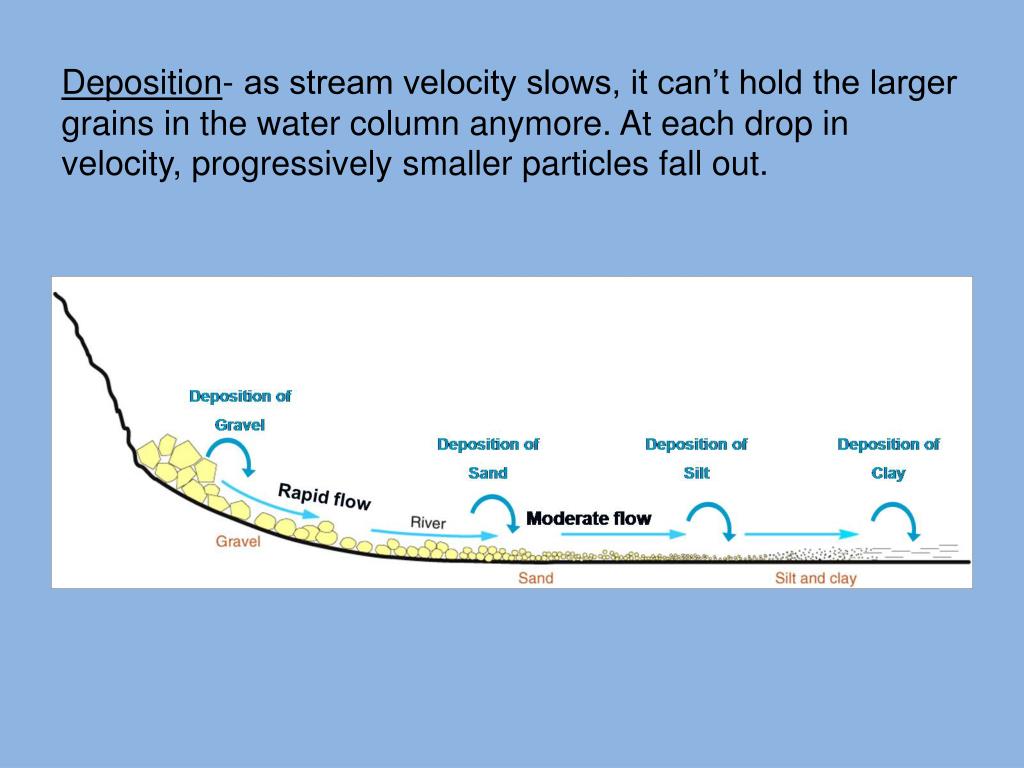

  11. Deposition- as stream velocity slows, it can’t hold the larger grains in the water column anymore. At each drop in velocity, progressively smaller particles fall out.

  12. Lithification:The process that compacts, cements, and/or crystallizes loose sediment together to form a rock. note:Not all sediments are preserved where they are first deposited. For example, a river can deposit sand along its banks, but a large flood can later remove that sand before it is preserved as a rock.

  13. The processes of Lithification Compaction: The rearranging of sediment so there is much less open space between the grains. Cementation: The precipitation of a mineral between the grains that holds the grains together to make a solid rock. Calcite and silica (quartz) are common cements.

  14. Sedimentary rocks are split into two groups: clastic and non-clastic. • Clastic: rocks formed from the weathered fragments of existing rock. • Fragments can be large (pebbles) or tiny grains of a mineral (quartz sand).

  15. non-clastic sedimentary rocks rocks formed from: • the chemical precipitation of minerals from solution (rock salt) • the formation of rock by living organisms (coral reef) • the accumulated and compressed remains of soft bodied organisms (coal).

  16. clastic sedimentary rocks

  17. marine carbonate deposition

  18. non-clastic sedimentary rocks fossiliferous limestone evaporites (rock salt)

  19. Some features found in sedimentary rock that are formed during or just after deposition, but before lithification.

  20. Bedding:Individual layers of (mostly) parallel sedimentary rock. Some beds are easy to see because of the color differences, others are a distinguished by a change in texture or weathering patterns.

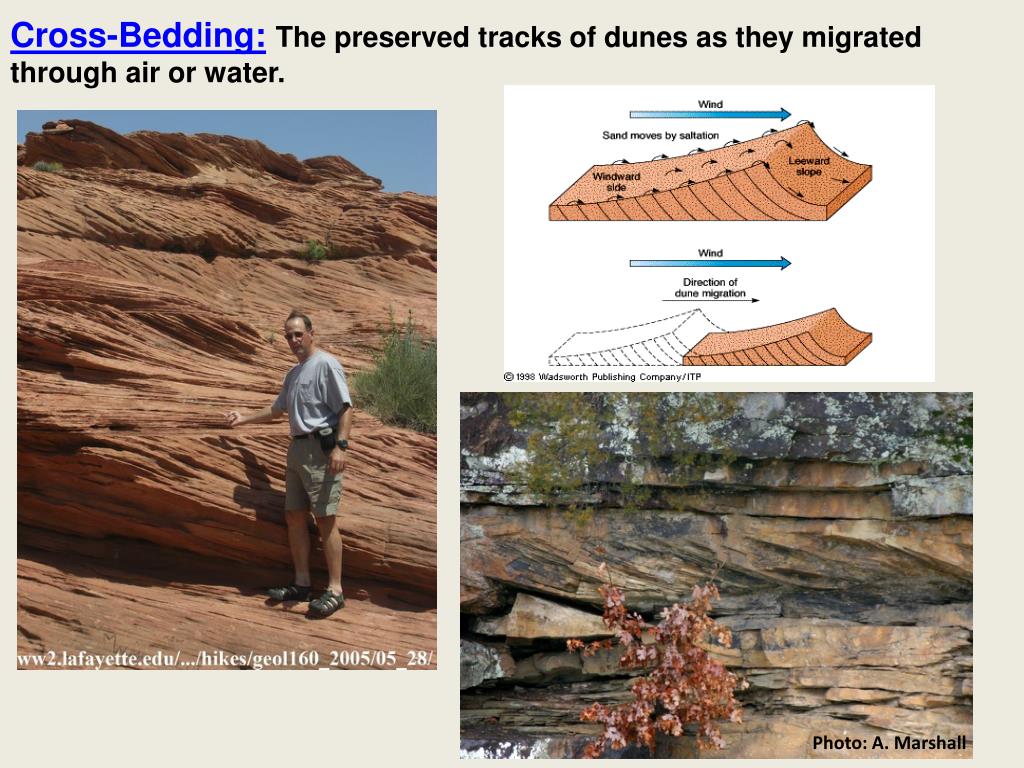

  21. Cross-Bedding:The preserved tracks of dunes as they migrated through air or water. Photo: A. Marshall

  22. Graded Bedding:A single bed that has grain sizes sorted vertically from large to small.

  23. Photo: A. Marshall Ripple Marks:Ripples that have been preserved as a rock.

  24. Sedimentary Conglomerate Identified by the presence of rounded pebbles in a fine grained matrix. Formation: Forms from the lithification of rounded, but not sorted rock fragments. Depositional environment(s): Rock that falls into pounding surf or a fast moving river could be rounded but not sorted. Outcrops are usually the small scale you would expect from this kind of depositional history.

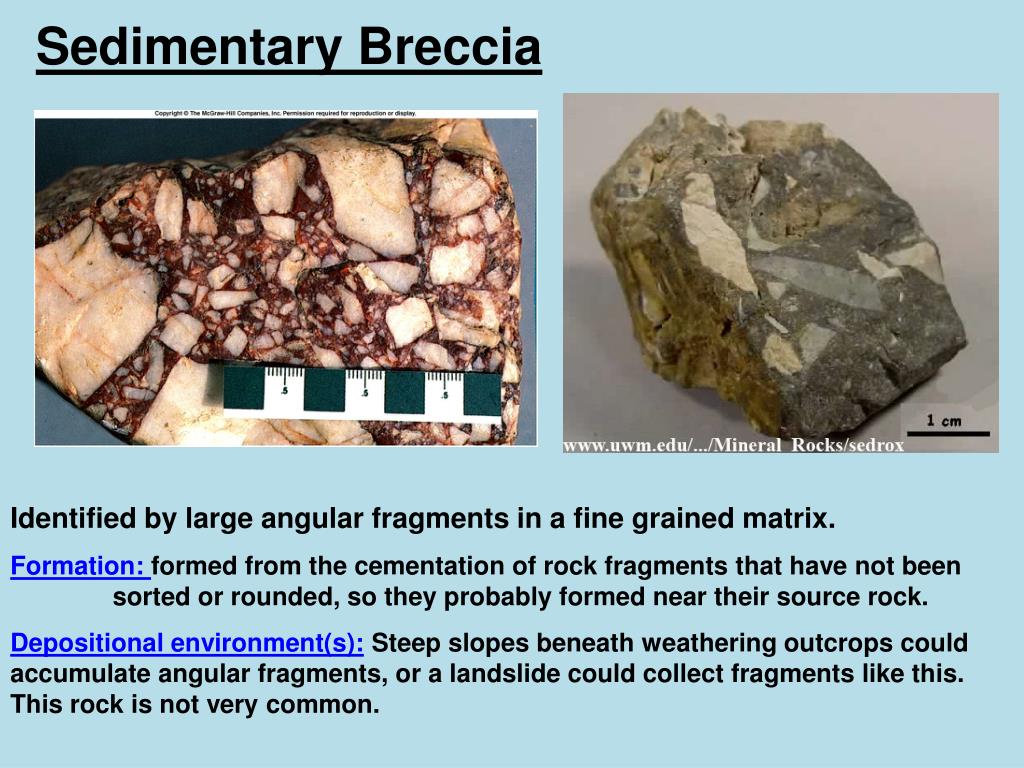

  25. Sedimentary Breccia Identified by large angular fragments in a fine grained matrix. Formation: formed from the cementation of rock fragments that have not been sorted or rounded, so they probably formed near their source rock. Depositional environment(s): Steep slopes beneath weathering outcrops could accumulate angular fragments, or a landslide could collect fragments like this. This rock is not very common.

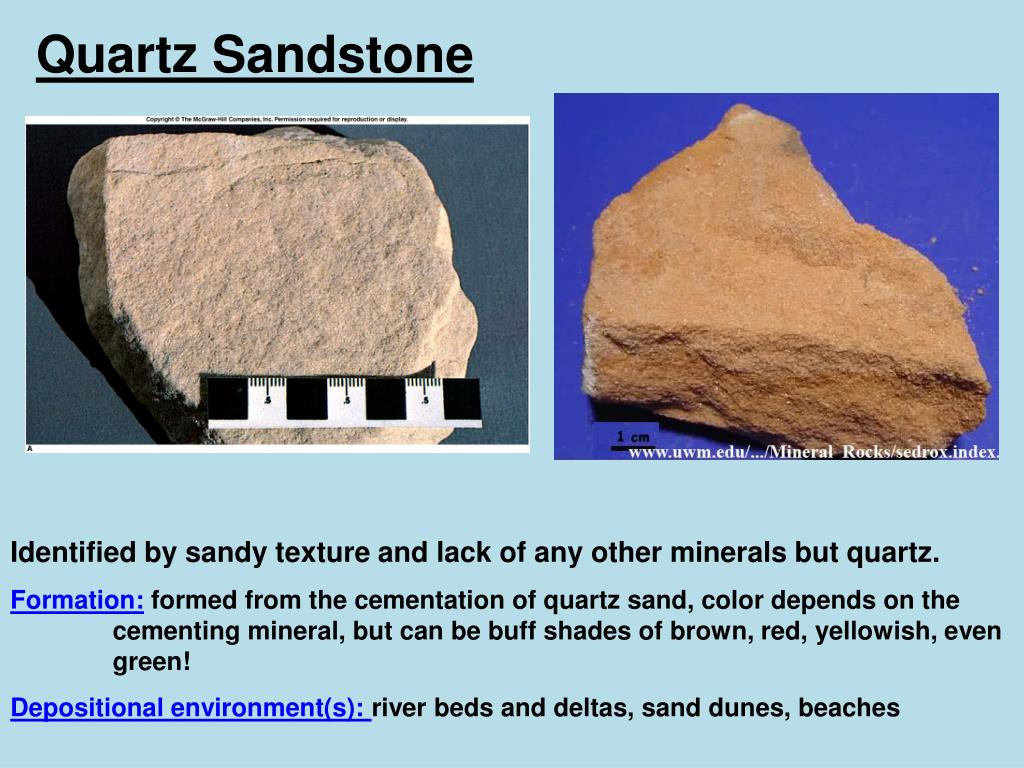

  26. Quartz Sandstone Identified by sandy texture and lack of any other minerals but quartz. Formation:formed from the cementation of quartz sand, color depends on the cementing mineral, but can be buff shades of brown, red, yellowish, even green! Depositional environment(s): river beds and deltas, sand dunes, beaches

  27. Siltstone Identified by the very fine grain size without the plated look of shale. Formation: forms from the cementation of very fine quartz grains. Color is usually shades of brown or gray, sometimes yellowish. Depositional environment(s): transitional zones between moving waters such as rivers, and still, quiet waters such as lakes, and river flood plains.

  28. Shale Identified by grains too small to be seen with the eye and fissle property. Formation: forms from very fine grain sediment being compacted and cemented. Color is usually shades of gray and black, can also be brown, yellowish or green. Depositional environment(s): very still, quiet waters such as deep ocean basins, river flood plains, and lakes.

  29. Fossiliferous Limestone Identified by the abundance of fossils, and strong reaction with HCl acid. Formation: formed by the cementing of the hard parts of organisms by calcite. Colors range from white to tan, brown, and gray, sometimes yellowish. Depositional environment(s):marine setting, warm, shallow water offshore

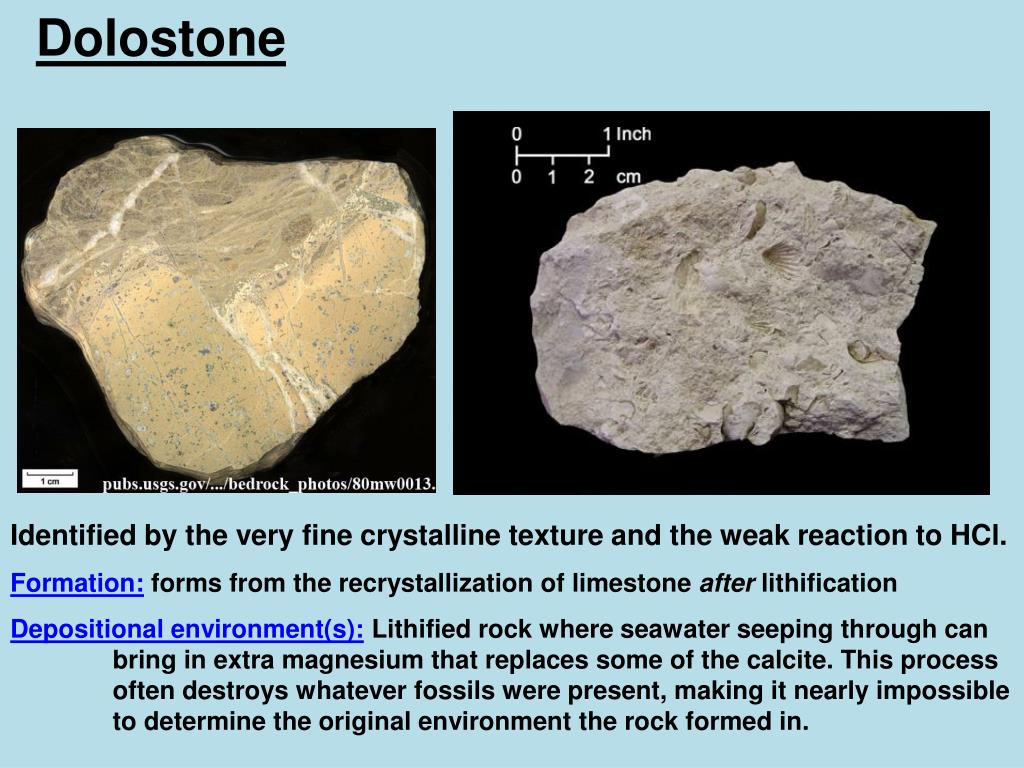

  30. Dolostone Identified by the very fine crystalline texture and the weak reaction to HCl. Formation: forms from the recrystallization of limestone after lithification Depositional environment(s): Lithified rock where seawater seeping through can bring in extra magnesium that replaces some of the calcite. This process often destroys whatever fossils were present, making it nearly impossible to determine the original environment the rock formed in.

  31. Chalk Identified by the powdery texture that comes off on your hands. Formation: forms from the compaction of microfossils Depositional environment(s): microorganisms in the water column die and pile up on the ocean floor. Eventually they are compacted together to form a rock.

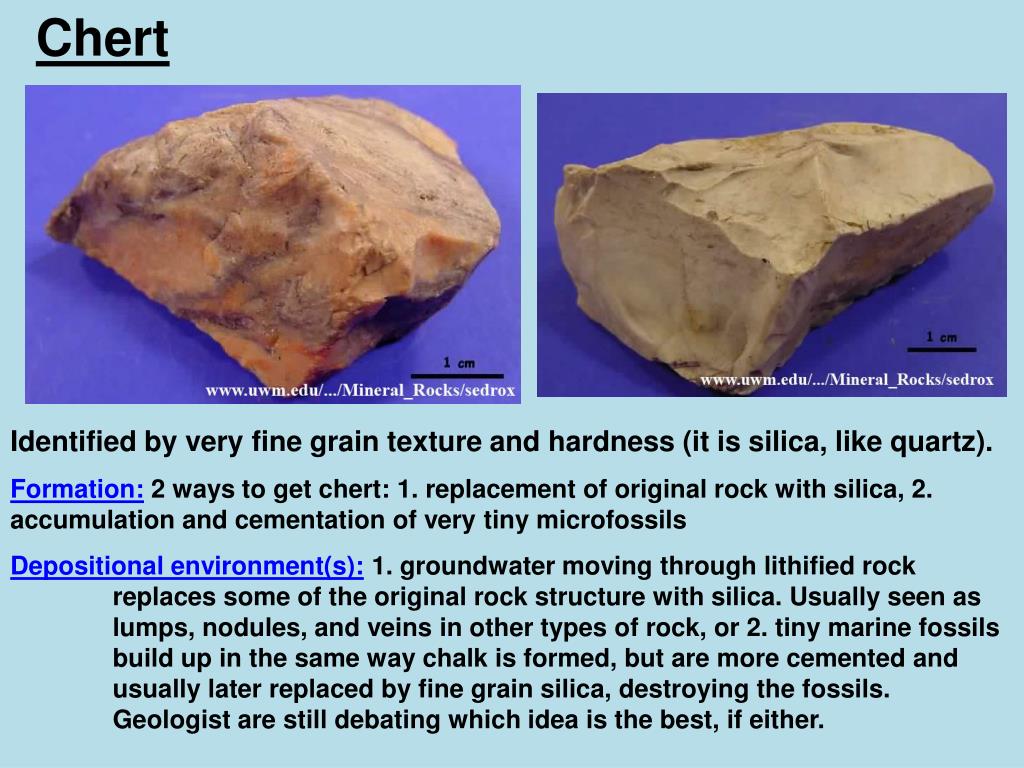

  32. Chert Identified by very fine grain texture and hardness (it is silica, like quartz). Formation: 2 ways to get chert: 1. replacement of original rock with silica, 2. accumulation and cementation of very tiny microfossils Depositional environment(s): 1. groundwater moving through lithified rock replaces some of the original rock structure with silica. Usually seen as lumps, nodules, and veins in other types of rock, or 2. tiny marine fossils build up in the same way chalk is formed, but are more cemented and usually later replaced by fine grain silica, destroying the fossils. Geologist are still debating which idea is the best, if either.

  33. Coal Identified by black color, light weight and softness (hardness of 1.5-2.5). Formation: formed by the compaction of organic material that has not completely decayed. Color is black. Anthracite coal is more shiny due to extra heat and pressure after formation, and bituminous is more dull. Depositional environment(s): an environment with vigorous organic production and water with a low oxygen content are needed. So the best environment to form coal is in a bog or swamp.
