  1. Plant Structures Original PowerPoint crated by Mr. Morgan Modified by Georgia Agriculture Education Curriculum Office June 2002

  2. What Are primary parts of plants? • Leaves • Stems • Roots • Flowers

  3. What are the functions of leaves? • Capture light • Exchange gases • Provide a site for photosynthesis • Some leaves store food and water • Some form new plants and provide support

  4. What is photosynthesis? • It is a process by which plants combine water and carbon dioxide in the presence of chlorophyll and sunlight and produce carbohydrates and release oxygen.

  5. Why is photosynthesis important? • Light is the most important source of energy for living things. Photosynthesis converts light into nutrients that can be used by plants and animals. • Releases oxygen

  6. Photosynthesis • Light+6CO2+12H20-Sunlight-> C6H1206+6O2+6H20

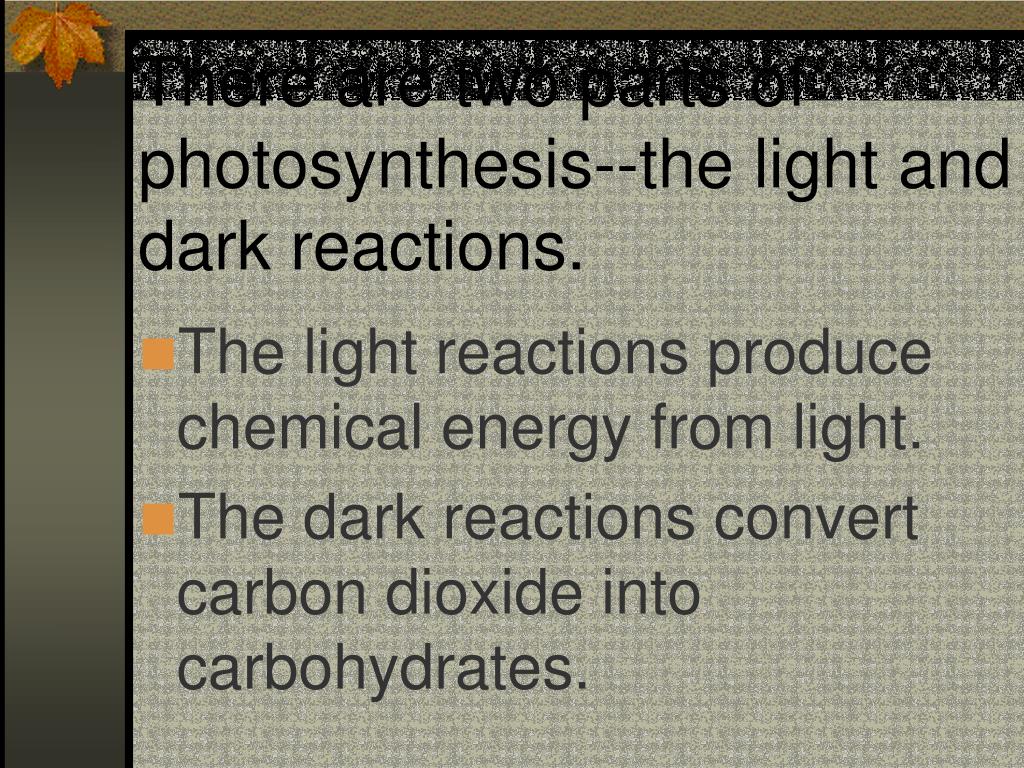

  7. There are two parts of photosynthesis--the light and dark reactions. • The light reactions produce chemical energy from light. • The dark reactions convert carbon dioxide into carbohydrates.

  8. Leaves in gas exchange • Oxygen, Carbon Dioxide, and Water exchanged from Stomata • Pores open in day to transpire H2O and allow gases to enter • Close during dry conditions to prevent H2O loss.

  9. External Parts of Leaves • Petiole- Stalk of leaf that attaches to stem • Midrib- Main vein of vascular tissue • Blade- Photosynthetic site of leaf

  10. Stomata • Openings on the epidermis • allows air into leaf • allows H2O and oxygen out of leaf

  11. Stems • Water and mineral transport by capillary action and cohesion to the leaves. • Transport food to the roots • Gas exchange • Produce and support new leaves, branches, and flowers

  12. Internal parts of stem • Phloem • Xylem • Cambium • Pith • Cortex

  13. Functions • Phoem-Sugar and carbohydrates to roots • Xylem- Water and nutrients • Cambium- Growing part of stem

  14. Function Cont’ • Pith-Occupies the central area of the stem • Cortex- Composed of several layers of thick-walled cells

  15. External parts of stem • Buds • Nodes • Internodes

  16. Modified Stems • Rhizomes- Horizontal underground stems(Bermuda Grass • Stolons- Horizontal above ground stems(strawberries) • Tubers- Greatly enlarged tip of underground stem

  17. Cont. • Bulbs- budlike structure consisting of a small stem (onion) • Corms- Fleshly leaves underground stems with few nodes(gladiolus)

  18. Functions of Roots • Anchor plants in soil • Absorb water and nutrients • Some store reserves for future uses(Potato) • Propagation

  19. Advantages Penetrates deeper Obtain water from other levels Anchor plant Disadvantages Difficult to remove or harvest do not stabilize well Taproots

  20. Advantages Shallower, better for fertilization & Water Stabilize in soil better Disadvantage Less drought resistant Tend to get exposed during cultivation Fibrous

  21. Primary Roots • Grow down into the soil and may branch repeatedly into lateral roots • Taproot is a primary root

  22. Lateral Roots • Called Secondary roots • grow horizontally away from the primary root • Some grow downward

  23. Adventitious • Came from stems or leaves instead of another root • Prop root of corn and grapes are examples that give support

  24. Fibrous Root • Root structures in which the primary and lateral roots develop equally so there is not a definite taproot.

  25. Storage Roots • Are structures such as those of carrots and sweet potatoes which are used for food storage.

  26. What do stems and roots have in common? • Both have xylem and phloem cells for transport.

  27. Male flowers and their parts and functions. • Stamen- has two parts- filament and antherFilament- supports the anther • Anther- Produces pollen grains

  28. Female parts and their functions • Ovule-develops into a seed • Ovary- surrounds the ovule, later becomes the fruit • Style-supports the stigma • Stigma- receives the pollen grain • Pistil- All three female parts together

  29. Other parts of flower • Receptacle- enlarged part of the flower stalk where floral part is. • Sepals- outer protective parts of buds • Petals- the colored part of the flower used to attract insects

  30. Complete Flower • Both have Male and Female parts

  31. Incomplete Flowers • Have either male or female parts but not both

  32. Monoecious • Plants that have male and female flower parts on separate plants

  33. Dioecious • Have both parts on the same plant.

  34. Pollination • The transfer of pollen from one anther to anther stigma. • Two ways- self-pollination & Cross-pollination • Bees and Wind

  35. The End
