  1. Charybdis : dynamic micro-CT with CNT x-ray

  2. a b mouse lung tumor model acquired with prospective gating (a). Multiple tumors within the lung parenchyma are identified. The largest tumor 1.1 mm Repeat imaging of the mouse 20 days later demonstrates interval growth of the same tumor to1.6 mm in diameter (b). (lung model from Billy Kim, UNC) Charybdis : dynamic micro-CT with CNT x-ray Micro-CT images of a mouse heart by prospectively gated imaging

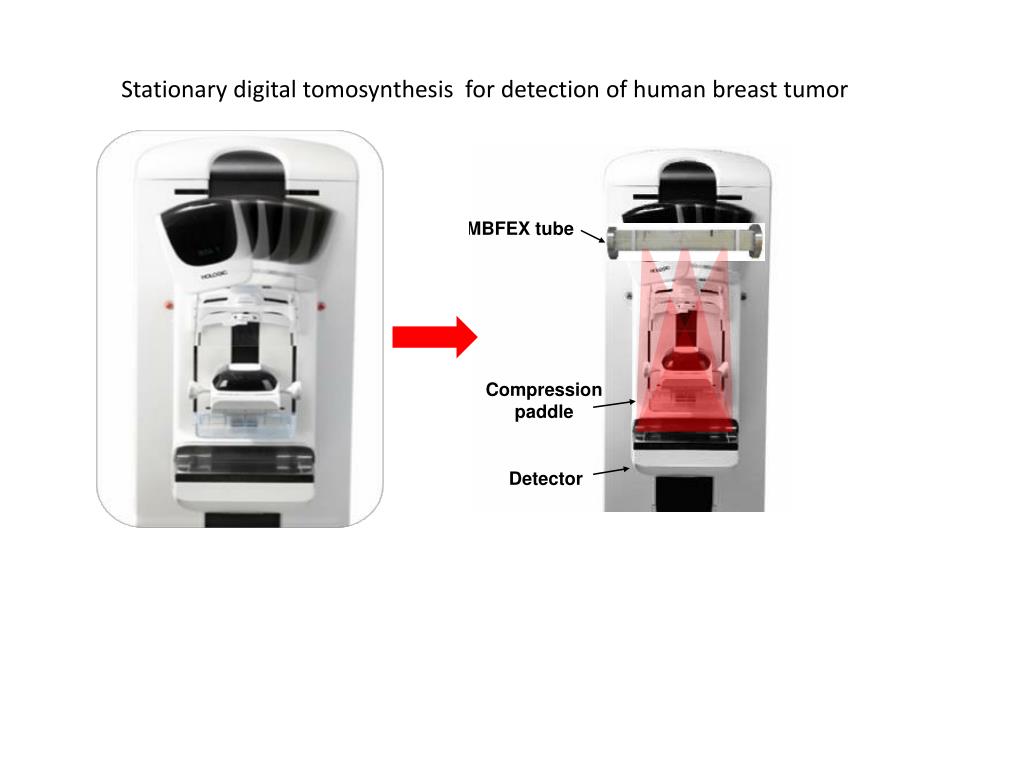

  3. Stationary digital tomosynthesis for detection of human breast tumor

  4. Comparison study using a breast phantom DBT S-DBT

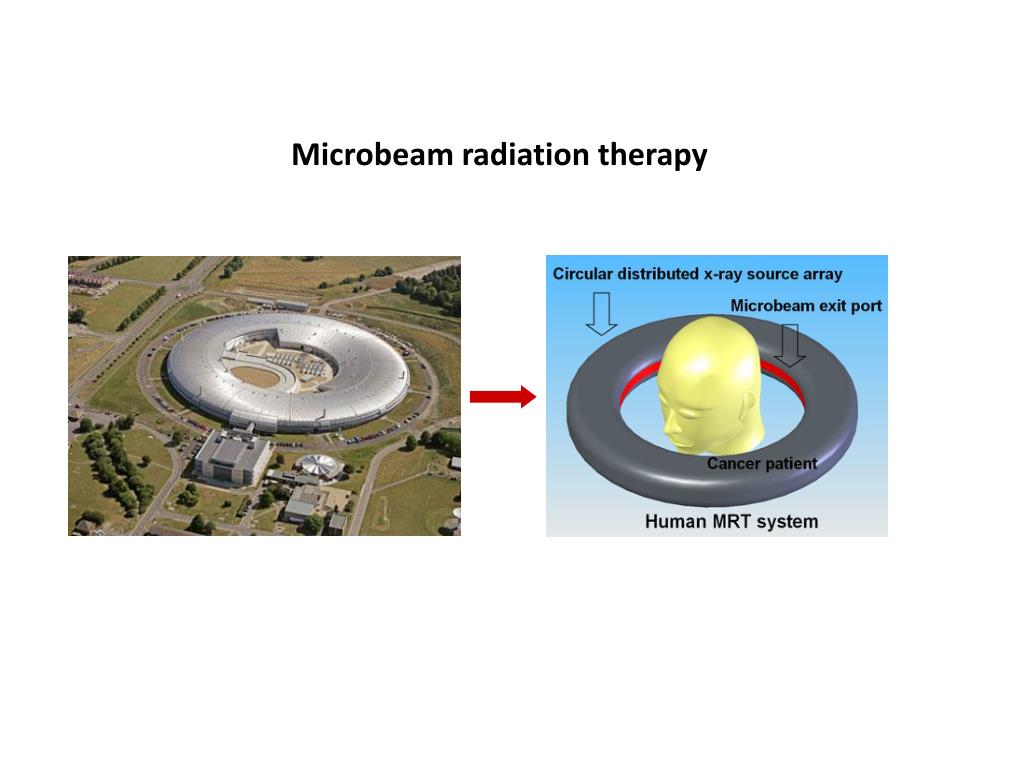

  5. Microbeam radiation therapy
