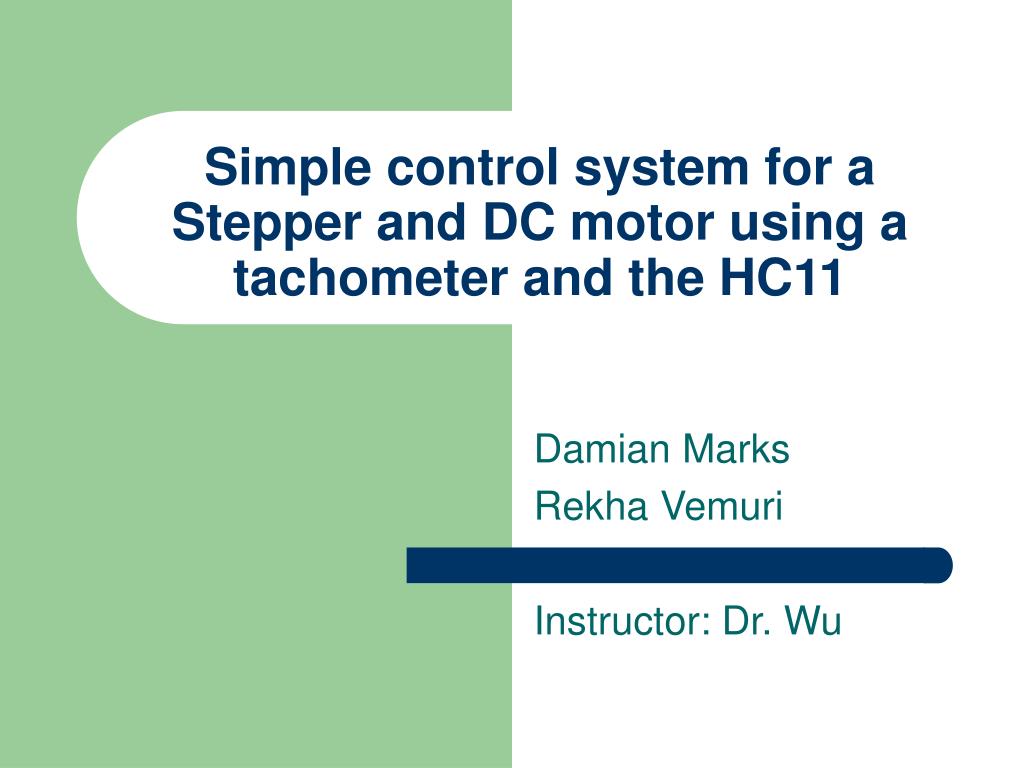

  1. Simple control system for a Stepper and DC motor using a tachometer and the HC11 Damian Marks Rekha Vemuri Instructor: Dr. Wu

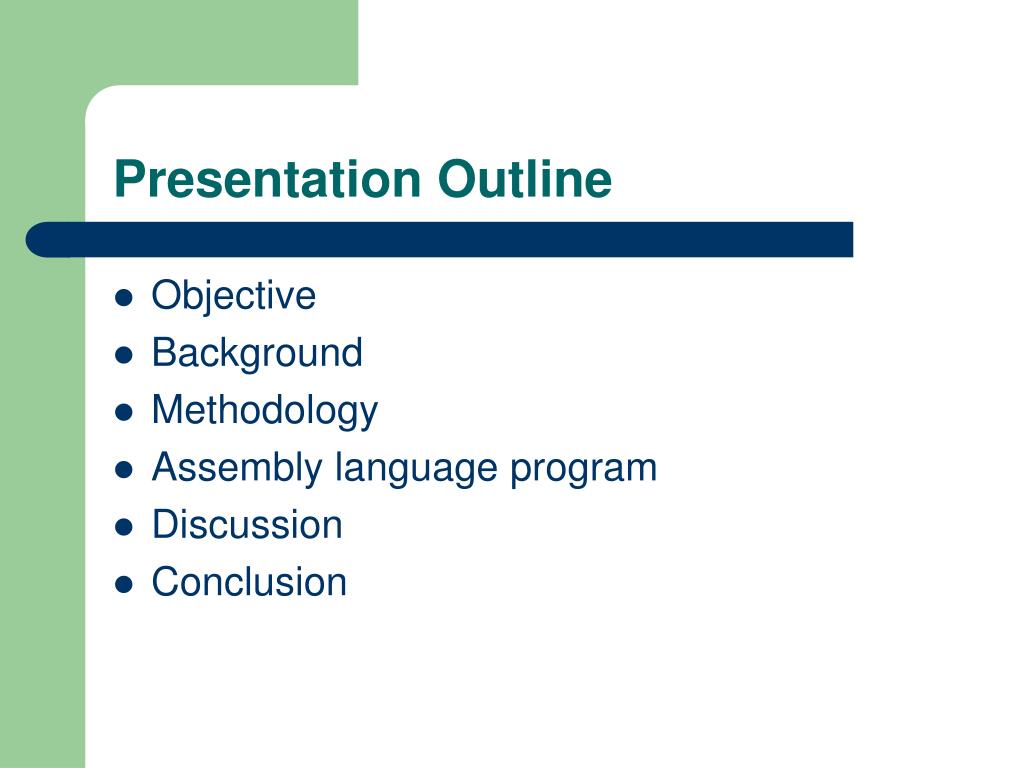

  2. Presentation Outline • Objective • Background • Methodology • Assembly language program • Discussion • Conclusion

  3. Objective • The objective of the project is to control and measure the speed of a motor

  4. Background • This project effectively utilizes both software and hardware. • DC Motor • Stepper motor • Counter • SKAMP light sensor • HC11 Evaluation Board (EVB)

  5. Hardware Description • DC motor • Runs on Direct Current • Speed can be controlled by changing the voltage

  6. Hardware Description (cont) • DC Motor • The motor converts electrical energy to mechanical work as the output shaft turns • DC motors consist of one set of coils, called an armature, inside another set of coils or a set of permanent magnets, called the stator. • Applying a voltage to the coils produces a torque in the armature, resulting in motion.

  7. Hardware Description • Stepper Motor • Converts electrical pulses into discrete mechanical rotational movements. • Has no brushes, or contacts • Stepper motor receives a rectangular pulse train and responds by rotating its shaft.

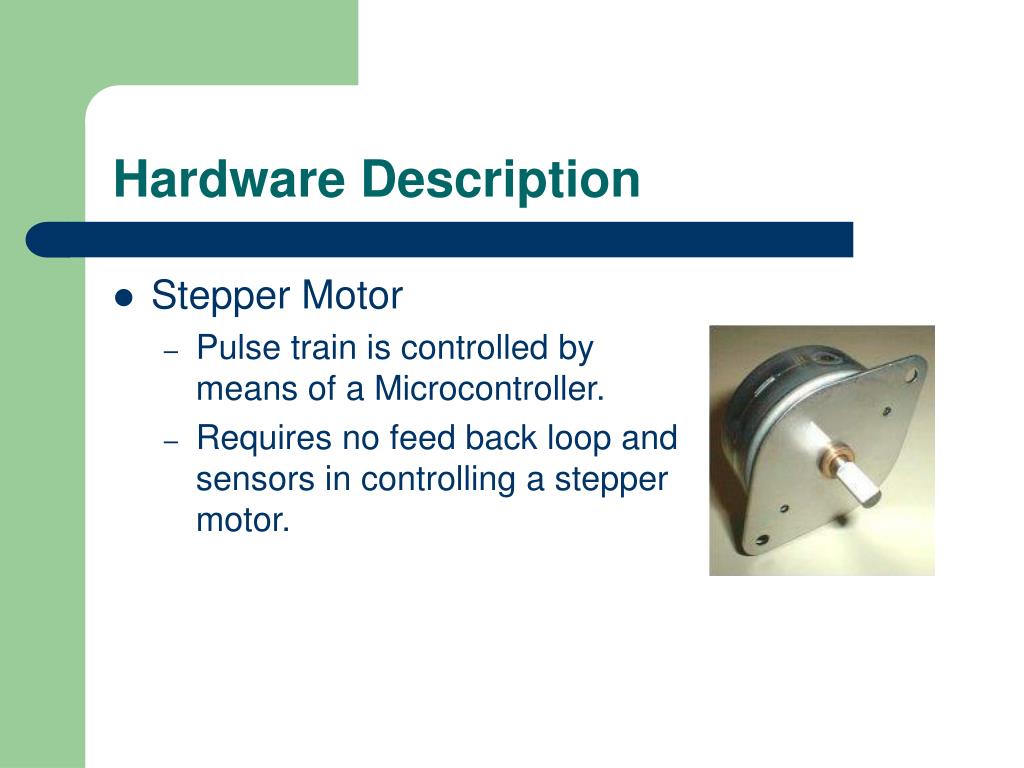

  8. Hardware Description • Stepper Motor • Pulse train is controlled by means of a Microcontroller. • Requires no feed back loop and sensors in controlling a stepper motor.

  9. Hardware Description • Stepper Motor Applications • Film advance

  10. Hardware Description • Stepper Motor Applications • Conveyor

  11. Hardware Description • Stepper Motor Applications • Labeling Machine

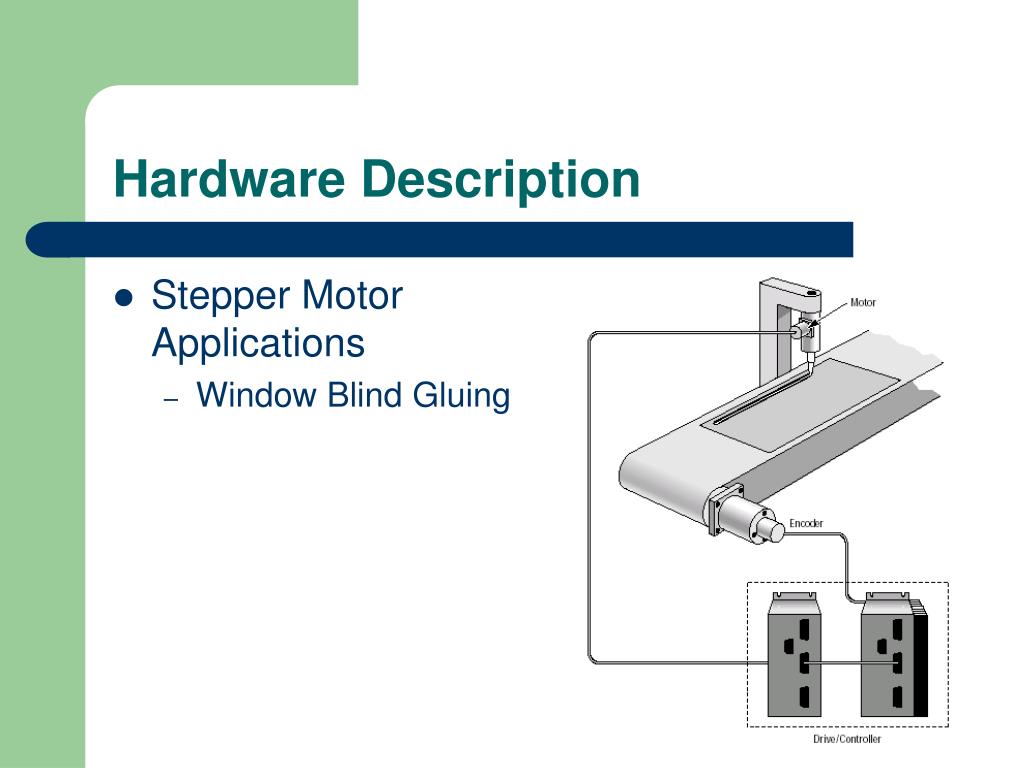

  12. Hardware Description • Stepper Motor Applications • Window Blind Gluing

  13. Hardware Description • Stepper Motor Applications • Tube Cutter

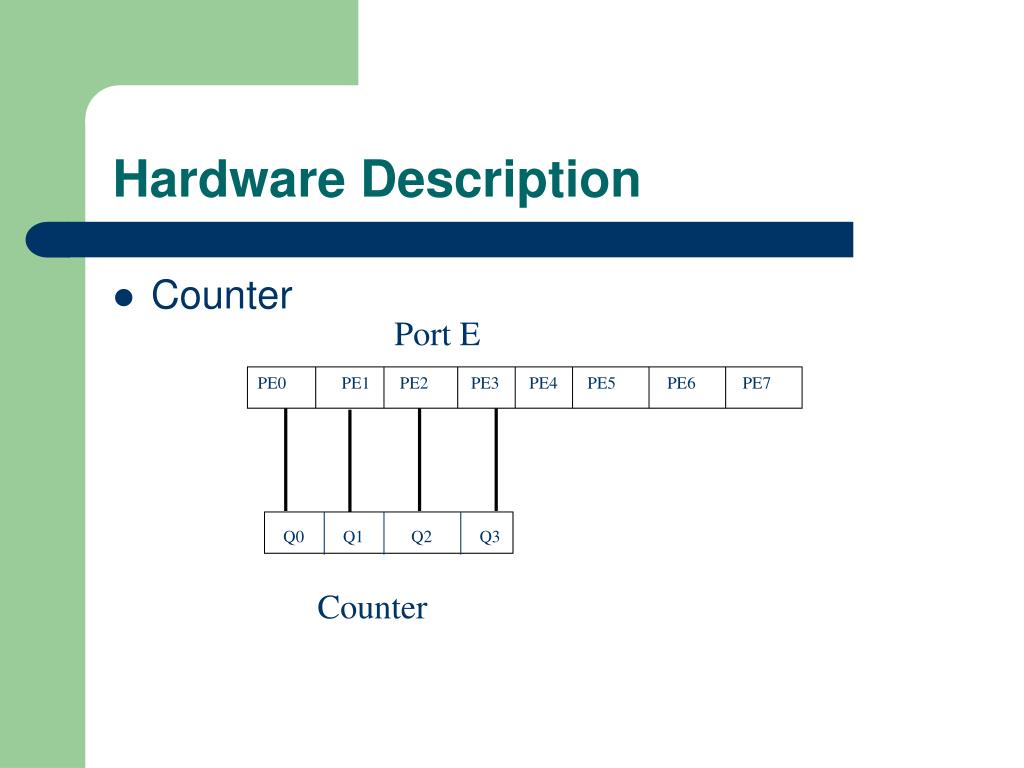

  14. Hardware Description • Counter Port E PE0 PE1 PE2 PE3 PE4 PE5 PE6 PE7 Q0 Q1 Q2 Q3 Counter

  15. Hardware Description • Skan-A-Matic SKAMP light sensor

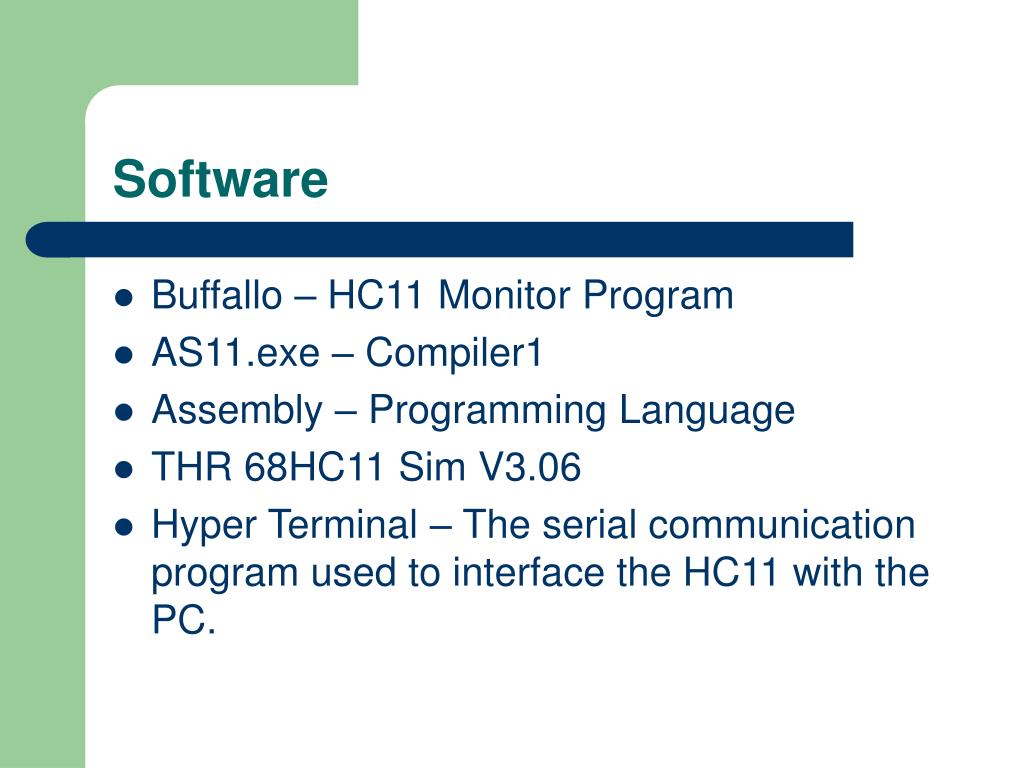

  16. Software • Buffallo – HC11 Monitor Program • AS11.exe – Compiler1 • Assembly – Programming Language • THR 68HC11 Sim V3.06 • Hyper Terminal – The serial communication program used to interface the HC11 with the PC.

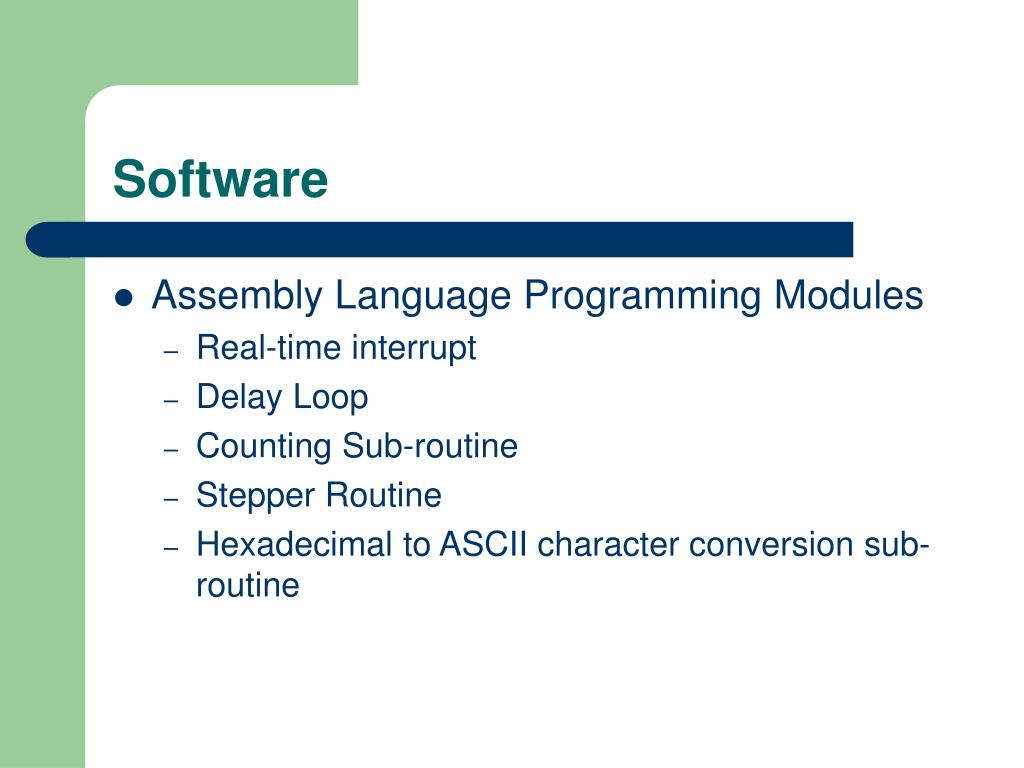

  17. Software • Assembly Language Programming Modules • Real-time interrupt • Delay Loop • Counting Sub-routine • Stepper Routine • Hexadecimal to ASCII character conversion sub-routine

  18. Real-time Flow Chart

  19. Delay Sub-routine

  20. Rotate Sub- Routine Flow chart

  21. Counter Sub-Routine Flowchart

  22. Problems Faced • Limited Memory on EVB Board • Limited Ports on EVB Board • Real-time Interrupts

  23. Conclusions

  24. Questions?
