Pathway Networks. The following pictures indicate how the models associated the different pathways. The larger the arrow connecting two pathways, the greater the correlation, according to the p-values. Random Forest. Comparing Pathway 1 and 2. MAP Kinase. Huntington's Disease. Glutathione.

avongara
Télécharger la présentation

Pathway Networks

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

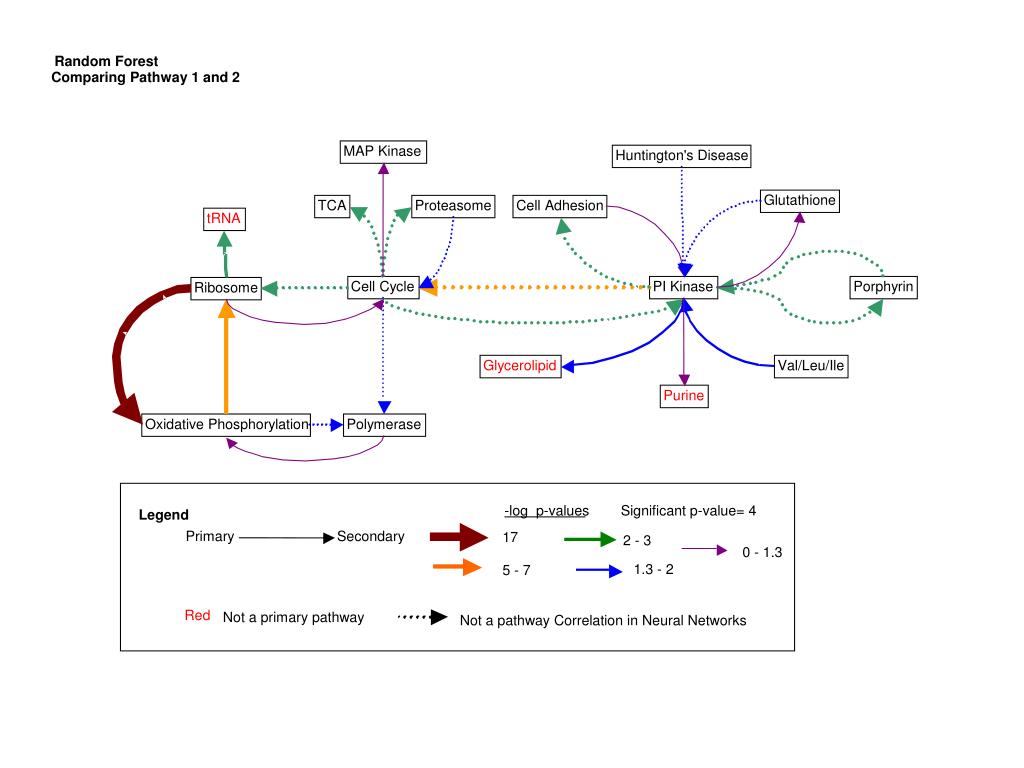

  1. Pathway Networks The following pictures indicate how the models associated the different pathways. The larger the arrow connecting two pathways, the greater the correlation, according to the p-values.

  2. Random Forest Comparing Pathway 1 and 2 MAP Kinase Huntington's Disease Glutathione TCA Proteasome Cell Adhesion tRNA Cell Cycle PI Kinase Porphyrin Ribosome Glycerolipid Val/Leu/Ile Purine Oxidative Phosphorylation Polymerase -log p-values Significant p-value= 4 Legend Primary Secondary 17 2 - 3 0 - 1.3 1.3 - 2 5 - 7 Red Not a primary pathway Not a pathway Correlation in Neural Networks
