  1. METEOROLOGY GEL-1370

  2. Chapter Nine Weather Forecasting

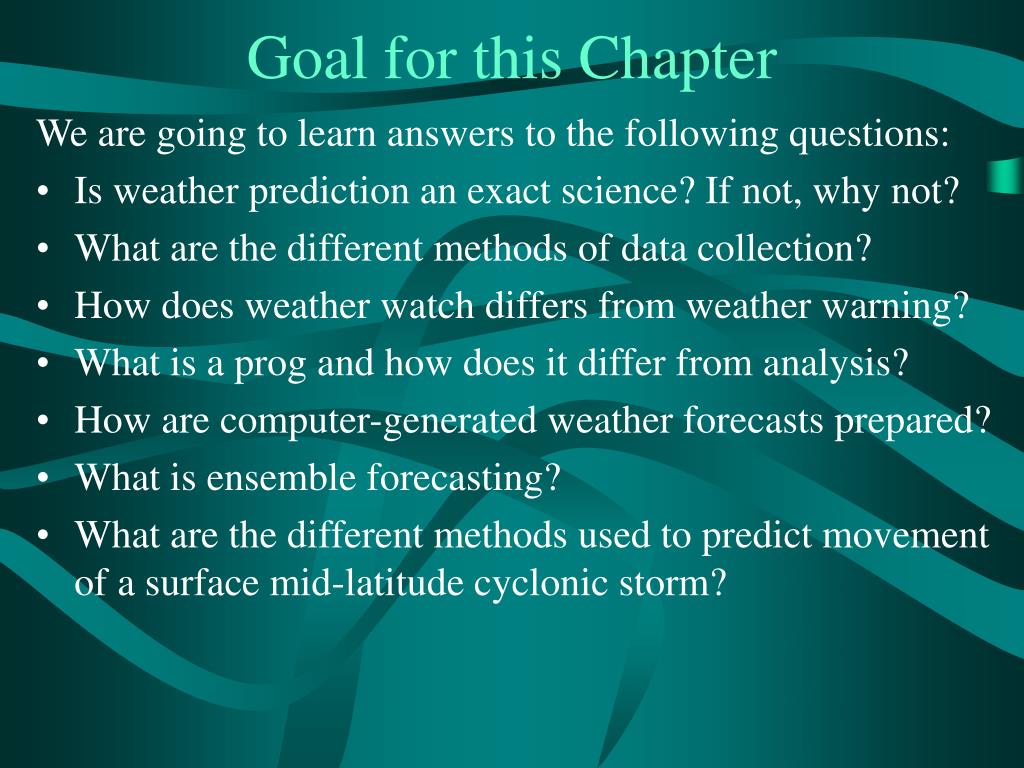

  3. Goal for this Chapter We are going to learn answers to the following questions: • Is weather prediction an exact science? If not, why not? • What are the different methods of data collection? • How does weather watch differs from weather warning? • What is a prog and how does it differ from analysis? • How are computer-generated weather forecasts prepared? • What is ensemble forecasting? • What are the different methods used to predict movement of a surface mid-latitude cyclonic storm?

  4. Acquisition of weather information • Weather forecasting is not an exact science • Over 10,000 land-based stations and hundreds of ships provide surface weather info 4 times/day; major airports conditions hourly • WMO: World Meteorological Organization; over 130 nations; responsible for the international exchange of weather data • NCEP:National Center for Environmental Prediction (NCEP) formerly called National Meteorological Center, in Camp Springs, MD – all meteorological data is analyzed, prepare weather maps and charts and prediction of weather on a global and national scale begins (this transmitted to private & public agencies)

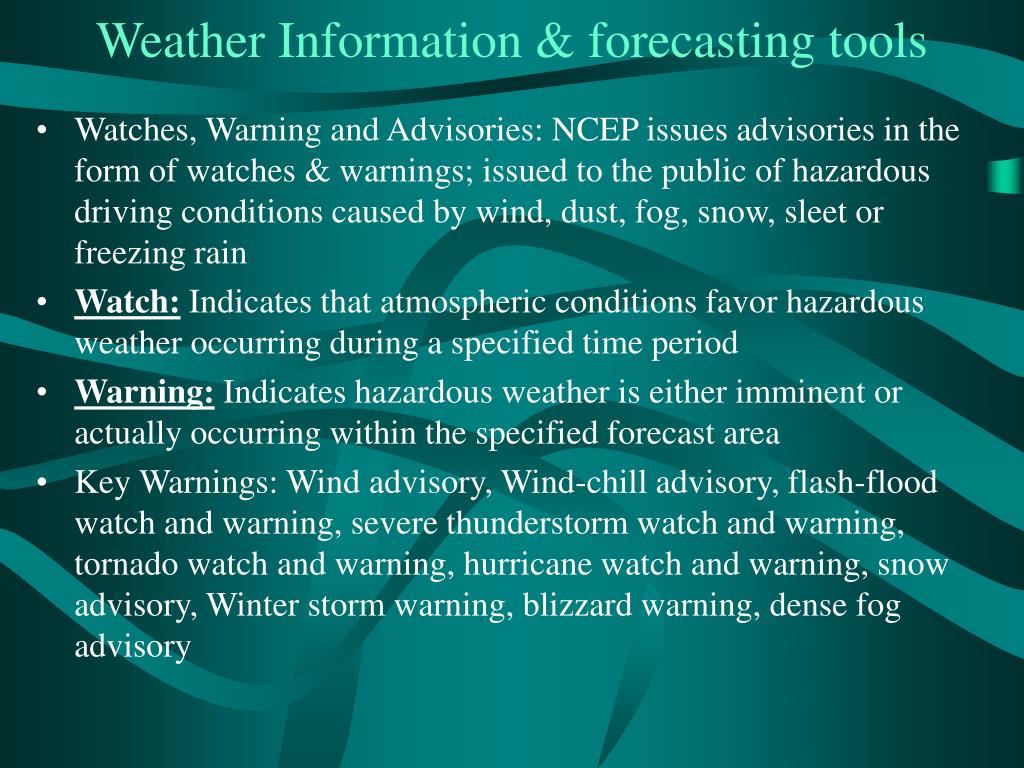

  5. Weather Information & forecasting tools • Watches, Warning and Advisories: NCEP issues advisories in the form of watches & warnings; issued to the public of hazardous driving conditions caused by wind, dust, fog, snow, sleet or freezing rain • Watch: Indicates that atmospheric conditions favor hazardous weather occurring during a specified time period • Warning: Indicates hazardous weather is either imminent or actually occurring within the specified forecast area • Key Warnings: Wind advisory, Wind-chill advisory, flash-flood watch and warning, severe thunderstorm watch and warning, tornado watch and warning, hurricane watch and warning, snow advisory, Winter storm warning, blizzard warning, dense fog advisory

  6. Watches, warnings & Advisories • Wind Advisory: Issued when sustained winds reach 25 to 39 mi/hr or when wind gusts are up to 57 mi/hr • High wind warning: Sustained winds are >40 mi/hr or wind gusts >57 mi/hr • Wind-chill advisory: When wind-chill temp < -30 to -35°F • Flash-flood watch & warning: May result in flash flooding (warning) & is occurring or is imminent in the specified area (watch) • Severe thunderstorm watch & warning: winds >57 mi/hr and/or hail >3/4 inch diameter & have been visually sighted or indicated by radar

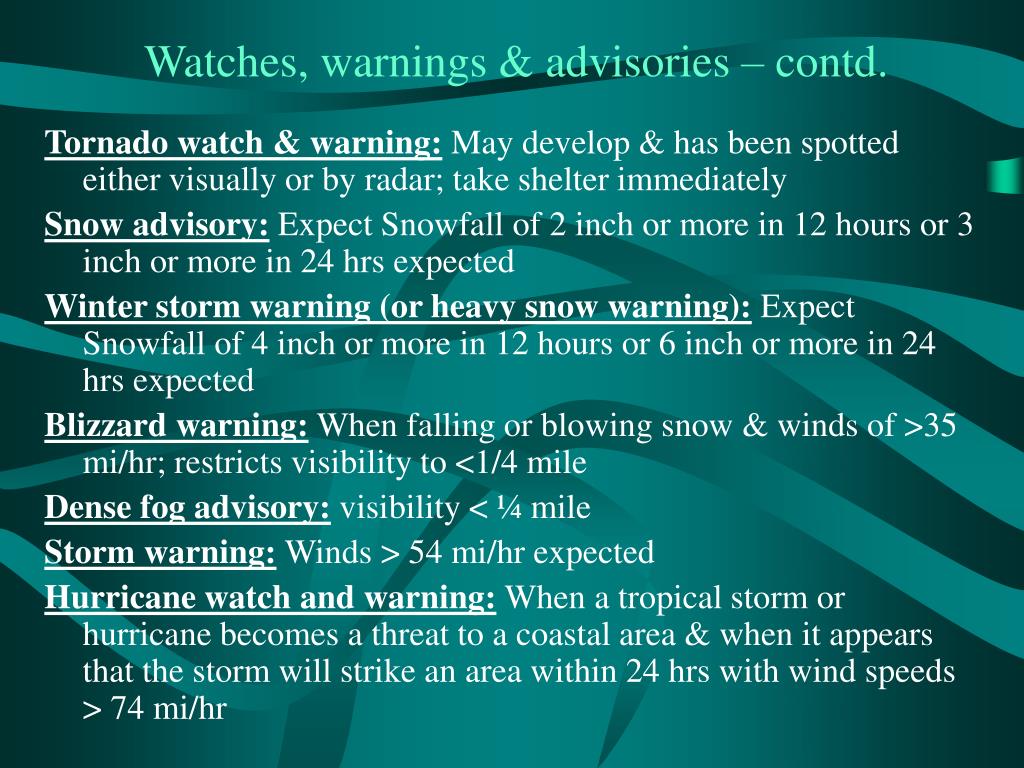

  7. Watches, warnings & advisories – contd. Tornado watch & warning: May develop & has been spotted either visually or by radar; take shelter immediately Snow advisory: Expect Snowfall of 2 inch or more in 12 hours or 3 inch or more in 24 hrs expected Winter storm warning (or heavy snow warning): Expect Snowfall of 4 inch or more in 12 hours or 6 inch or more in 24 hrs expected Blizzard warning: When falling or blowing snow & winds of >35 mi/hr; restricts visibility to <1/4 mile Dense fog advisory: visibility < ¼ mile Storm warning: Winds > 54 mi/hr expected Hurricane watch and warning: When a tropical storm or hurricane becomes a threat to a coastal area & when it appears that the storm will strike an area within 24 hrs with wind speeds > 74 mi/hr

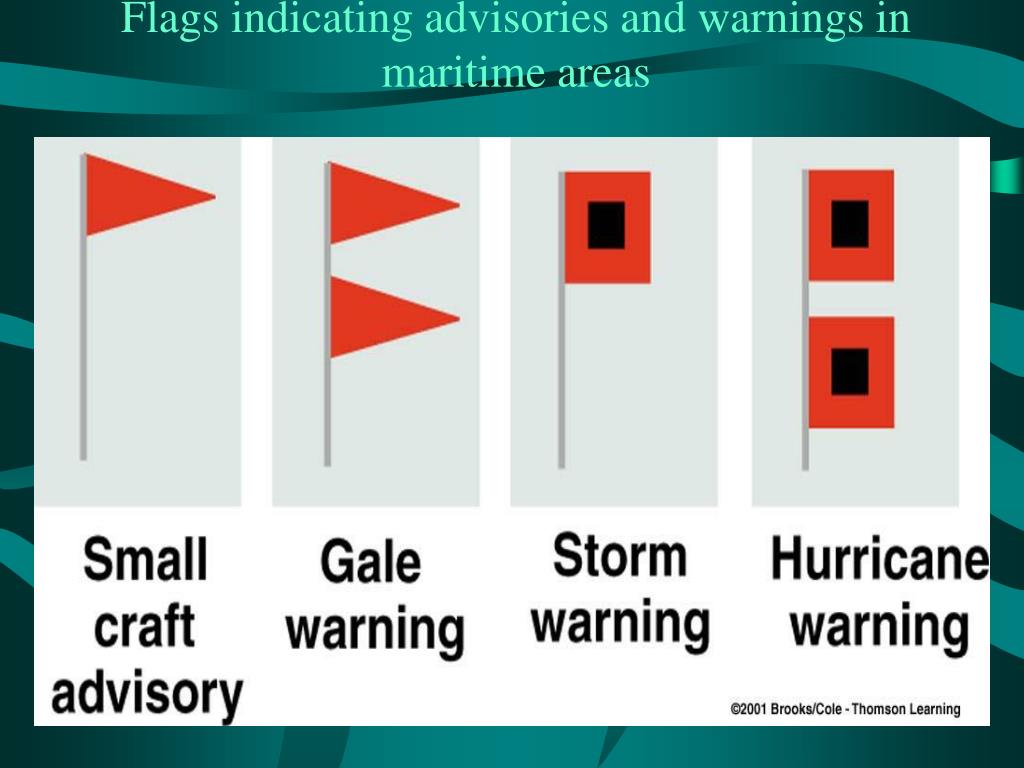

  8. Flags indicating advisories and warnings in maritime areas

  9. Computer and Weather Forecasting: Numerical weather prediction • Analysis: The drawing & interpretation of the pattern of various weather elements on a surface or upper-air chart • Numerical weather prediction: Daily forecasting of weather based upon the solutions of mathematical equations by high-speed computers • Atmospheric models: Simulation of the atmosphere’s behavior by mathematical equations or by physical models • Method of solution: dozens of equations describe how atmospheric parameters (temp, pressure, humidity, wind speed & direction) change with time ---each equation is solved a future Dt & for a large number of locations – “grid points” --- Each equation is solved for many (50) levels in the atmosphere; calculated values are put back in to those equations and calculated for the next interval of time and so on for 12, 24, 36, 48, 120 hours & so on.

  10. Computer & Weather forecasting – contd. • Prognostic Chart (Prog): A chart showing expected or forecasted atmospheric conditions (pressure patterns, frontal positions, and so on); forecasters use prog as a guide to predict the weather • Variability in weather prediction: Variety of models, each produce slightly different interpretation of the weather mainly due to the way the models are used, what model is used, distance of grid points, etc. Some models are better than others for a specific task (such as predicting the position of the trough on upper-level chart, position of surface lows, etc)

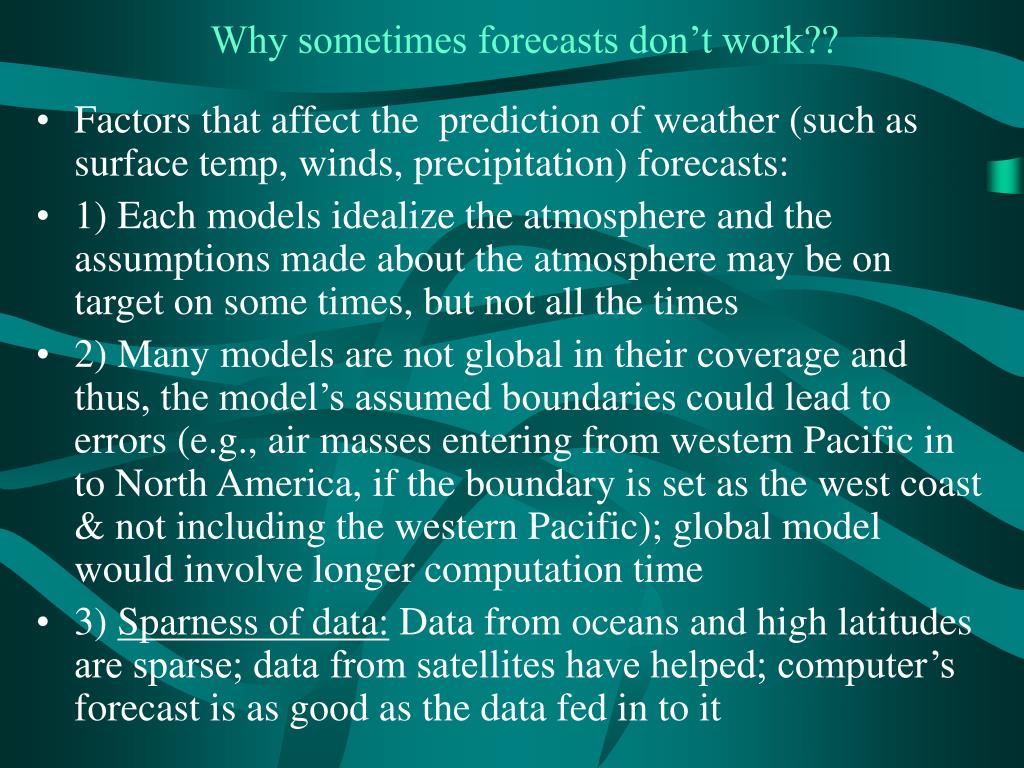

  11. Why sometimes forecasts don’t work?? • Factors that affect the prediction of weather (such as surface temp, winds, precipitation) forecasts: • 1) Each models idealize the atmosphere and the assumptions made about the atmosphere may be on target on some times, but not all the times • 2) Many models are not global in their coverage and thus, the model’s assumed boundaries could lead to errors (e.g., air masses entering from western Pacific in to North America, if the boundary is set as the west coast & not including the western Pacific); global model would involve longer computation time • 3) Sparness of data: Data from oceans and high latitudes are sparse; data from satellites have helped; computer’s forecast is as good as the data fed in to it

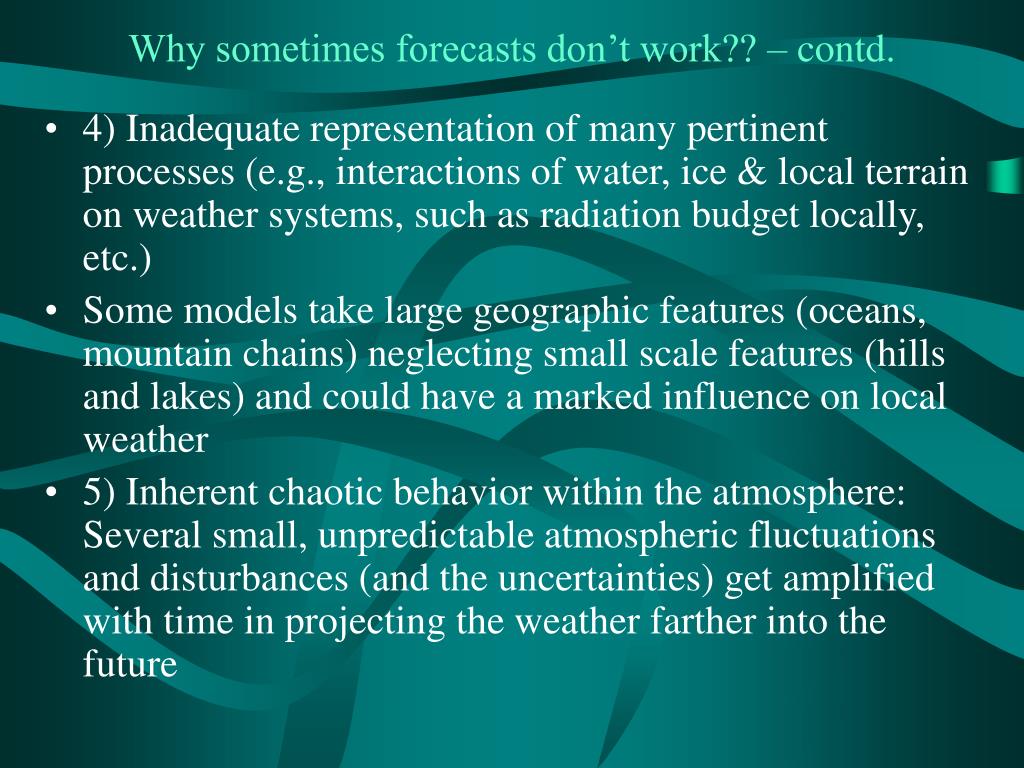

  12. Why sometimes forecasts don’t work?? – contd. • 4) Inadequate representation of many pertinent processes (e.g., interactions of water, ice & local terrain on weather systems, such as radiation budget locally, etc.) • Some models take large geographic features (oceans, mountain chains) neglecting small scale features (hills and lakes) and could have a marked influence on local weather • 5) Inherent chaotic behavior within the atmosphere: Several small, unpredictable atmospheric fluctuations and disturbances (and the uncertainties) get amplified with time in projecting the weather farther into the future

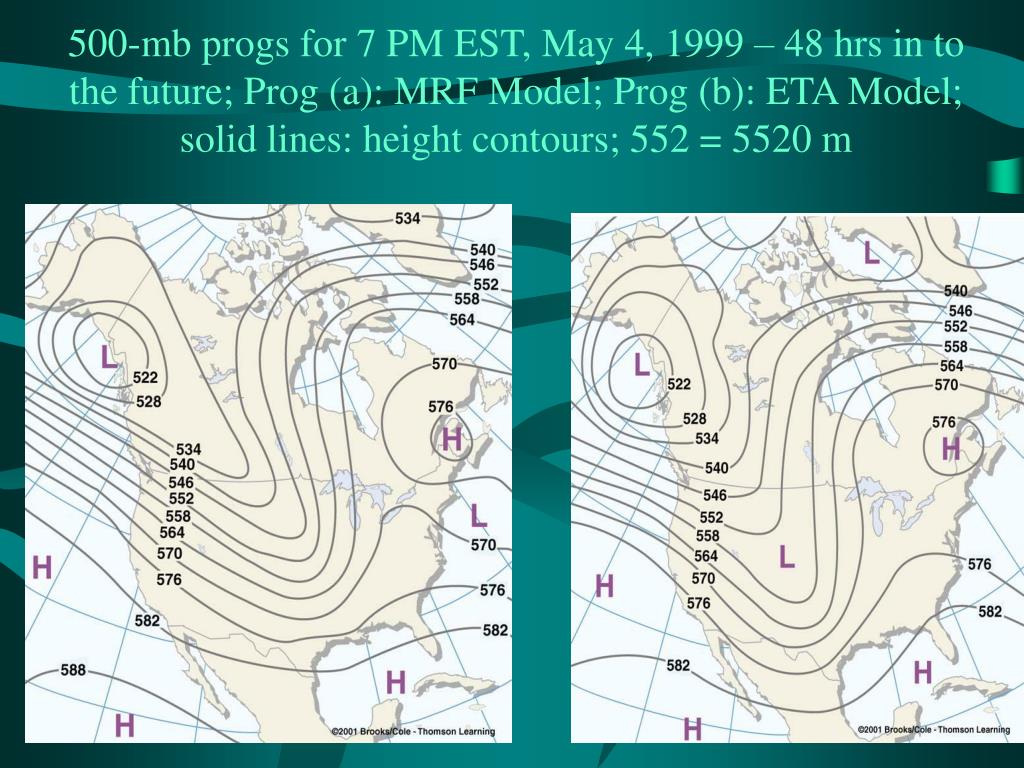

  13. 500-mb progs for 7 PM EST, May 4, 1999 – 48 hrs in to the future; Prog (a): MRF Model; Prog (b): ETA Model; solid lines: height contours; 552 = 5520 m

  14. Tools for Forecasting the Weather • High-speed data modeling systems are used • AWIPS (Advanced Weather Interactive Processing System) processes information received from the Doppler radar system and the Automated Surface Observing System (ASOS) operated in airports; ASOS systems provide continuous information on wind, temp, pressure, cloud-base height, & runway visibility • Soundings: A two-dimensional vertical profile of temperature, dew point & winds • Several meteorological indexes can aid in determining the likelihood of thunderstorms, tornadoes & hail

  15. The AWIPS work station provides various weather maps

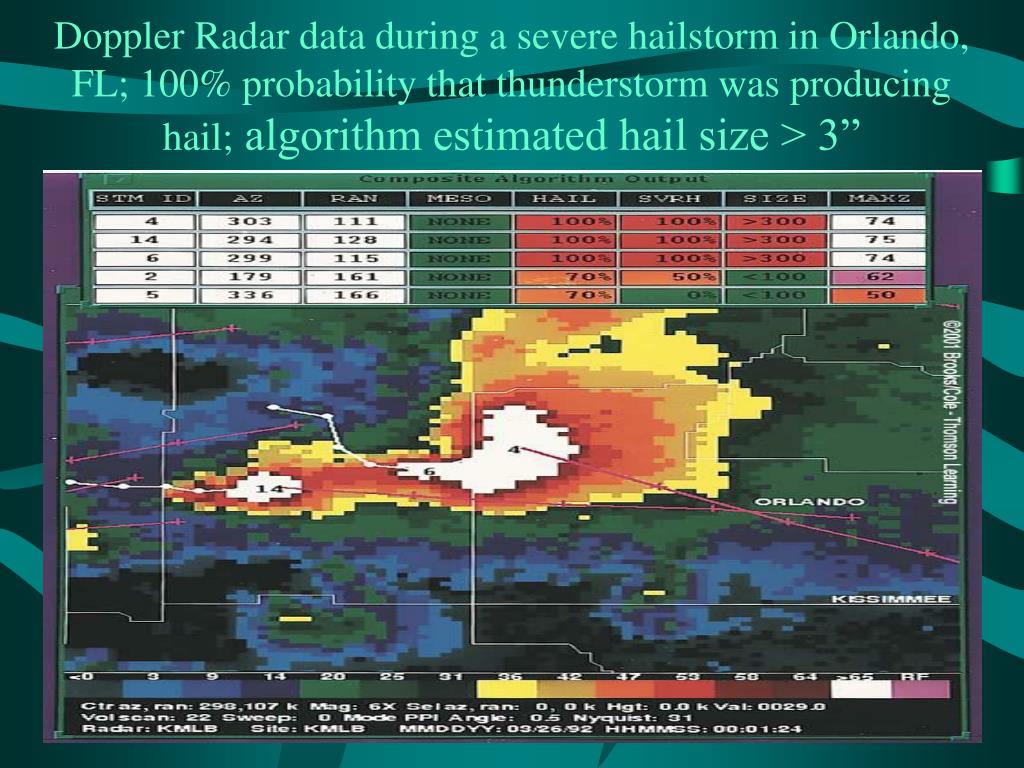

  16. Doppler Radar data during a severe hailstorm in Orlando, FL; 100% probability that thunderstorm was producing hail; algorithm estimated hail size > 3”

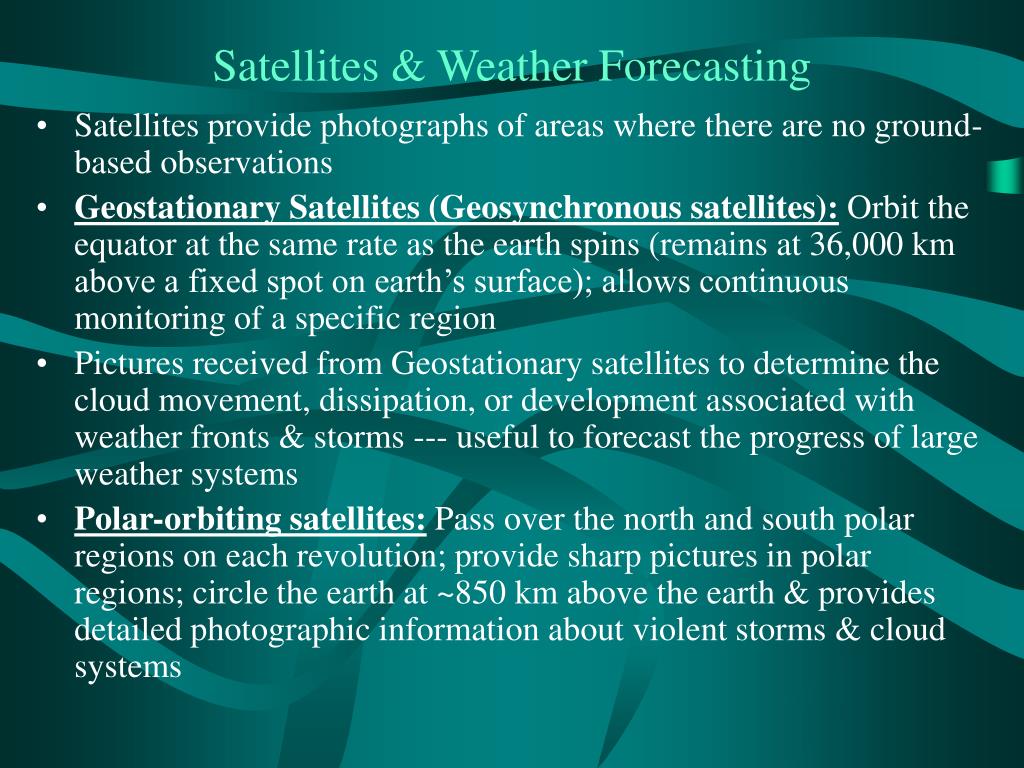

  17. Satellites & Weather Forecasting • Satellites provide photographs of areas where there are no ground-based observations • Geostationary Satellites (Geosynchronous satellites): Orbit the equator at the same rate as the earth spins (remains at 36,000 km above a fixed spot on earth’s surface); allows continuous monitoring of a specific region • Pictures received from Geostationary satellites to determine the cloud movement, dissipation, or development associated with weather fronts & storms --- useful to forecast the progress of large weather systems • Polar-orbiting satellites: Pass over the north and south polar regions on each revolution; provide sharp pictures in polar regions; circle the earth at ~850 km above the earth & provides detailed photographic information about violent storms & cloud systems

  18. Geostationary satellite – monitors one area constantly, as it remains stationary with respect to an observer on earth’s surface

  19. Polar Orbiting satellites – scan from north to south

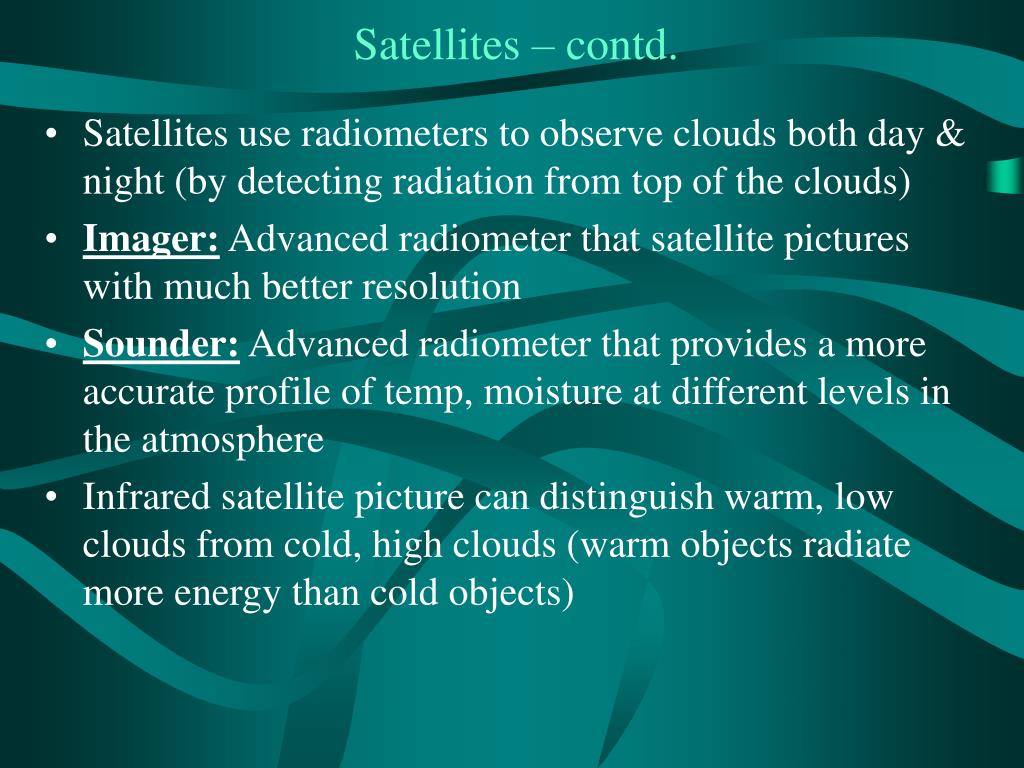

  20. Satellites – contd. • Satellites use radiometers to observe clouds both day & night (by detecting radiation from top of the clouds) • Imager: Advanced radiometer that satellite pictures with much better resolution • Sounder: Advanced radiometer that provides a more accurate profile of temp, moisture at different levels in the atmosphere • Infrared satellite picture can distinguish warm, low clouds from cold, high clouds (warm objects radiate more energy than cold objects)

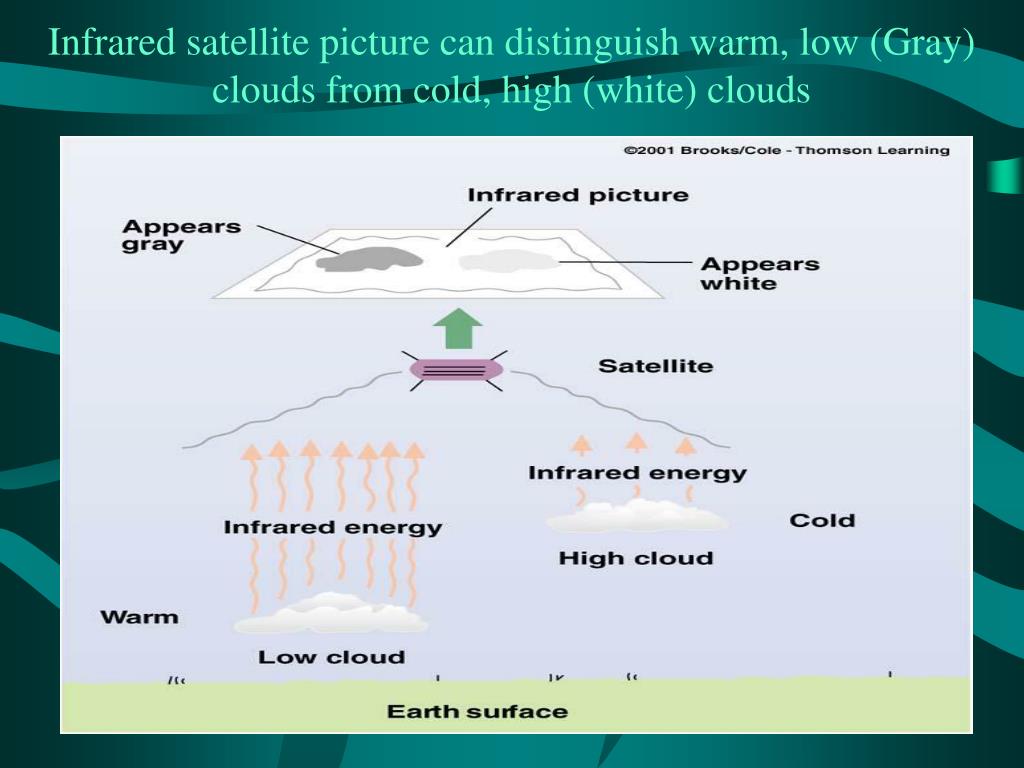

  21. Infrared satellite picture can distinguish warm, low (Gray) clouds from cold, high (white) clouds

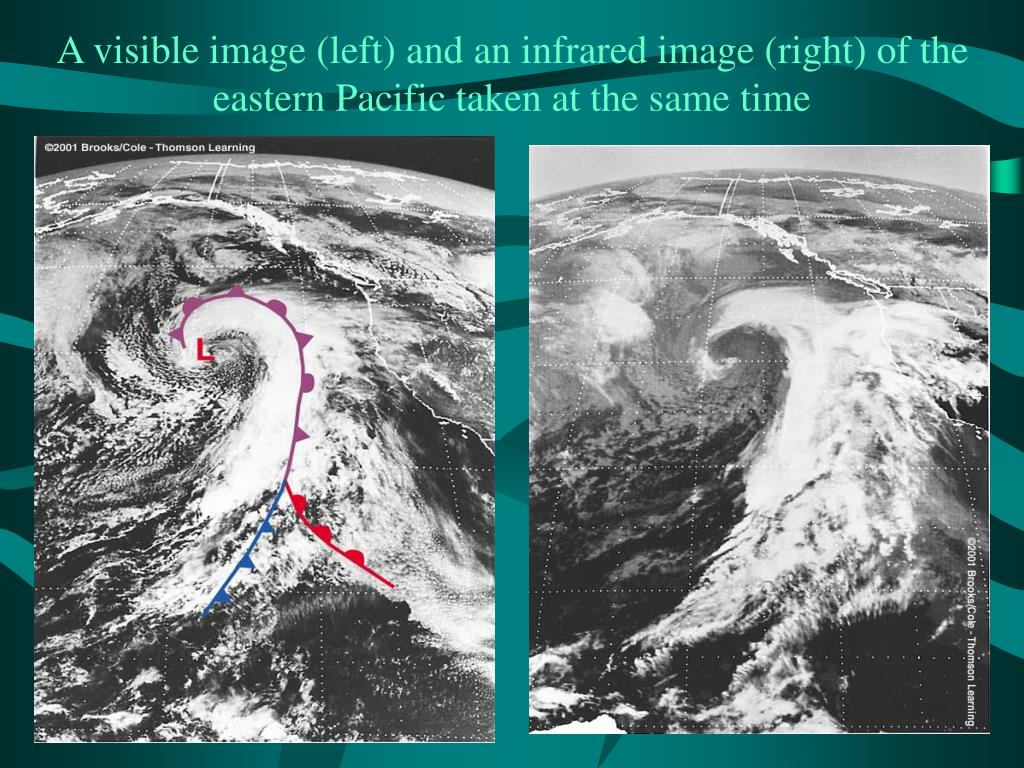

  22. A visible image (left) and an infrared image (right) of the eastern Pacific taken at the same time

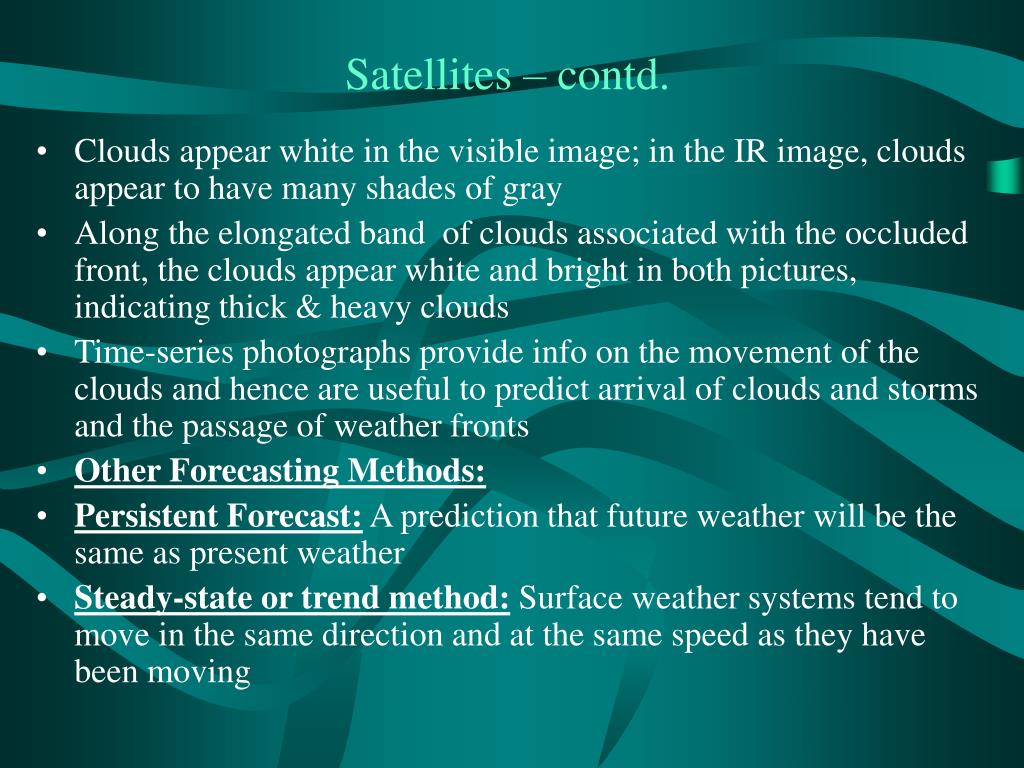

  23. Satellites – contd. • Clouds appear white in the visible image; in the IR image, clouds appear to have many shades of gray • Along the elongated band of clouds associated with the occluded front, the clouds appear white and bright in both pictures, indicating thick & heavy clouds • Time-series photographs provide info on the movement of the clouds and hence are useful to predict arrival of clouds and storms and the passage of weather fronts • Other Forecasting Methods: • Persistent Forecast: A prediction that future weather will be the same as present weather • Steady-state or trend method: Surface weather systems tend to move in the same direction and at the same speed as they have been moving

  24. Other forecasting methods – contd. • Nowcasting: Extension of trend method from minutes to a few hours • Analog Method: Existing features on a weather chart may strongly resemble features that produced certain weather conditions • Weather types can be used to long-range weather forecasting; do not adequately predict specific weather elements • Ensemble forecasting: A technique based on running several forecast models (or different versions of a single model), each beginning with slightly different weather info to reflect errors in the measurements – agreement – forecasters can place a high degree of confidence in the forecast; low degree of confidence means that the models do not agree

  25. Forecasting – contd. • Climatological Forecast: Forecast based on the climatology of a particular region; e.g., in LA, rainfall amounts more than a trace occur once in 90 days (~1% of the time); we can predict with 99% confidence of what can happen! • What does it mean 70% chance of rainfall? • 60% of the forecast area, it will rain?? • 60% chance it will rain within the forecast area?? • 60% chance that any random place in the forecast area will receive measurable rainfall

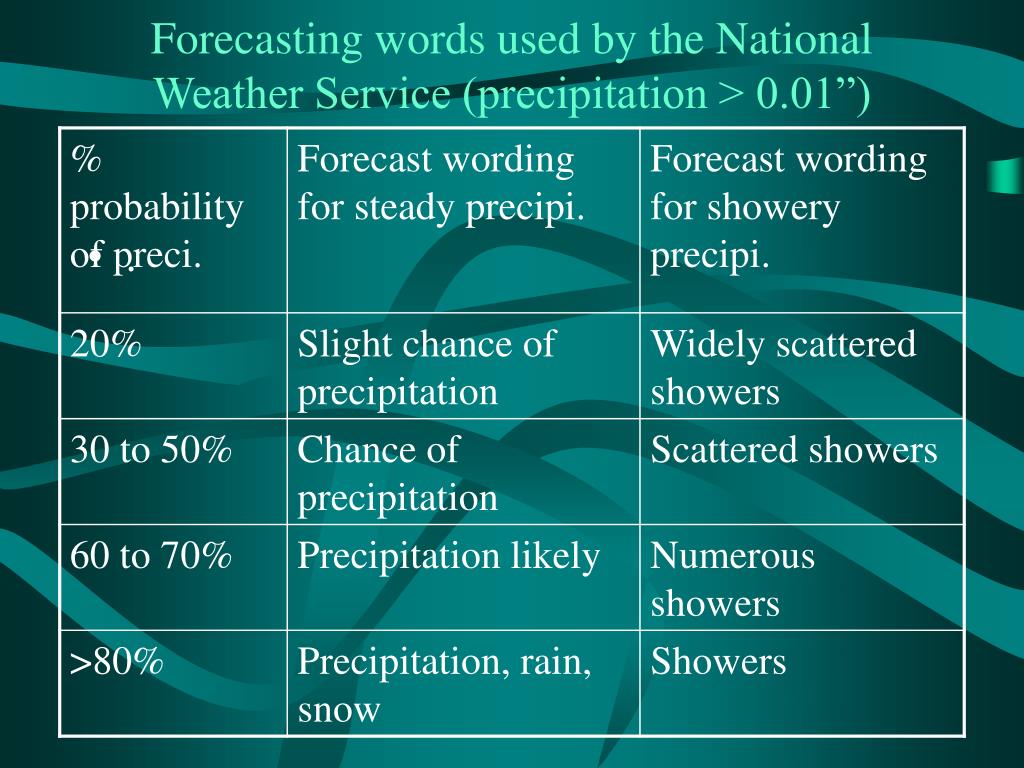

  26. Forecasting words used by the National Weather Service (precipitation > 0.01”) • .

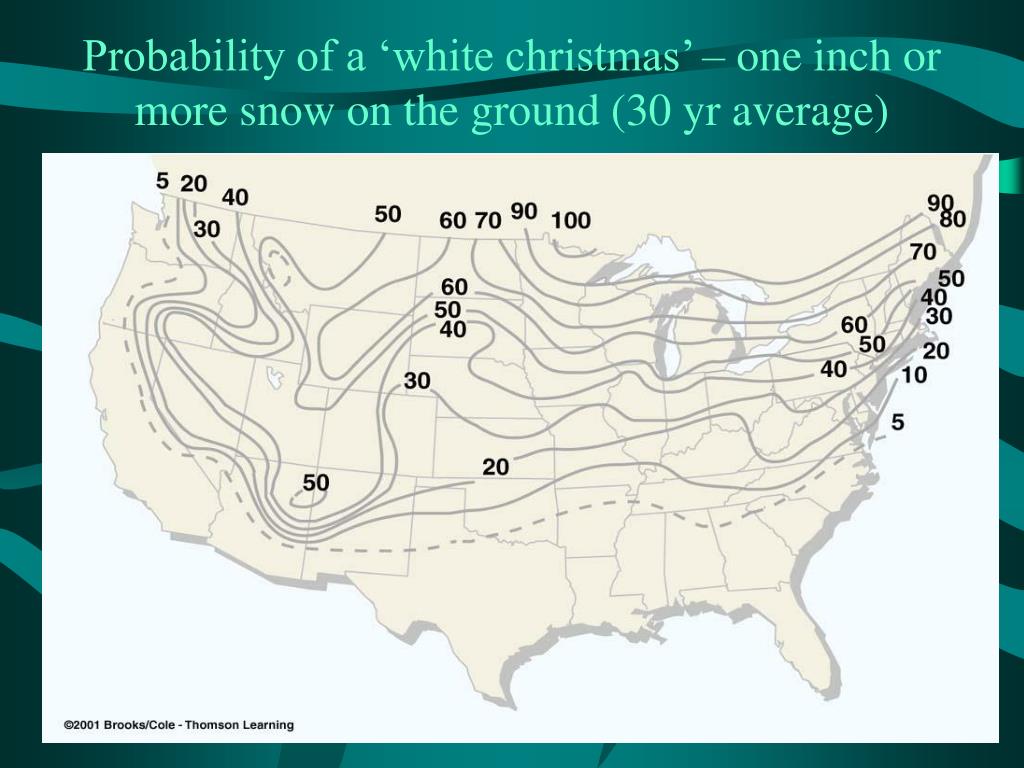

  27. Probability of a ‘white christmas’ – one inch or more snow on the ground (30 yr average)

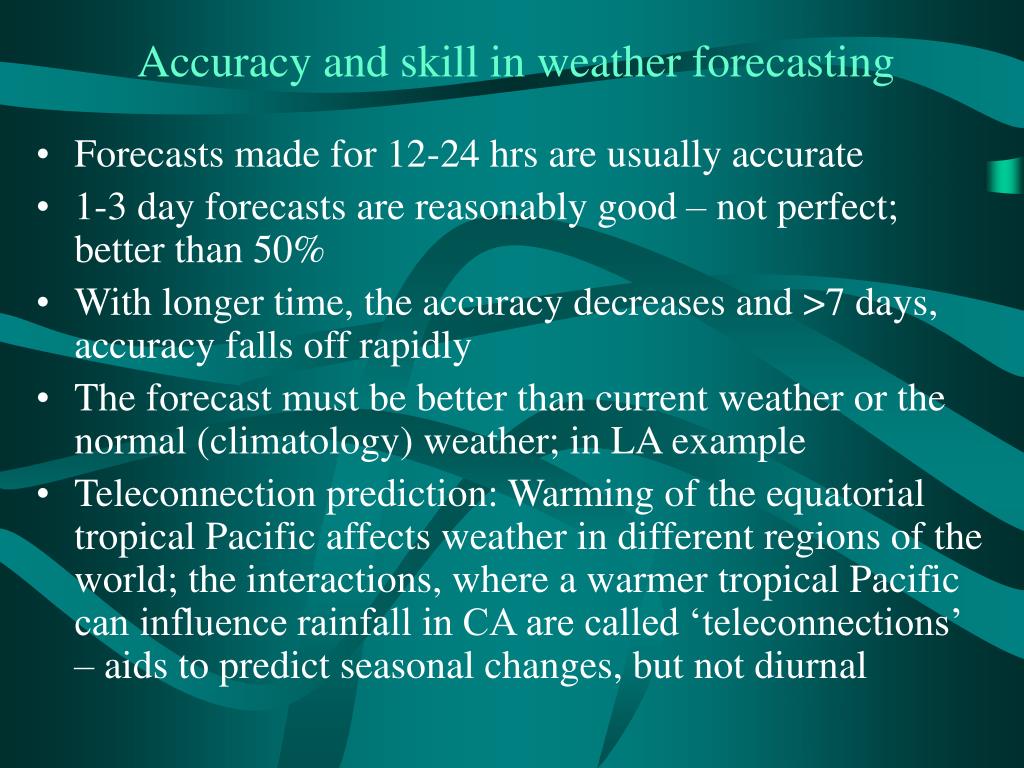

  28. Accuracy and skill in weather forecasting • Forecasts made for 12-24 hrs are usually accurate • 1-3 day forecasts are reasonably good – not perfect; better than 50% • With longer time, the accuracy decreases and >7 days, accuracy falls off rapidly • The forecast must be better than current weather or the normal (climatology) weather; in LA example • Teleconnection prediction: Warming of the equatorial tropical Pacific affects weather in different regions of the world; the interactions, where a warmer tropical Pacific can influence rainfall in CA are called ‘teleconnections’ – aids to predict seasonal changes, but not diurnal

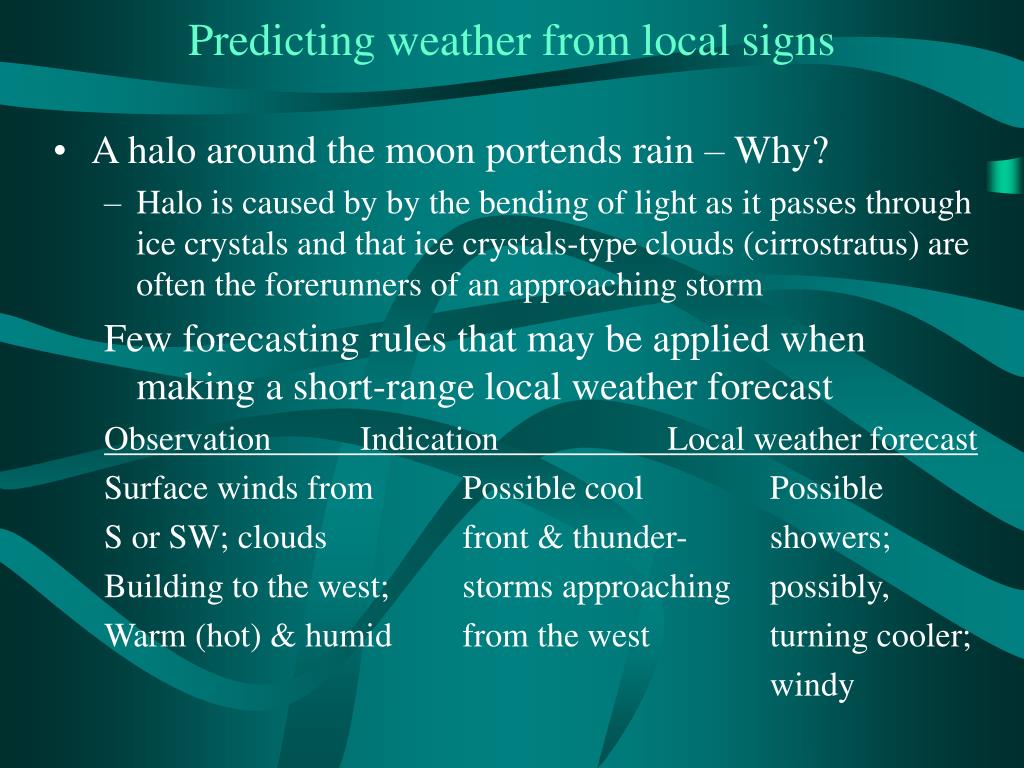

  29. Predicting weather from local signs • A halo around the moon portends rain – Why? • Halo is caused by by the bending of light as it passes through ice crystals and that ice crystals-type clouds (cirrostratus) are often the forerunners of an approaching storm Few forecasting rules that may be applied when making a short-range local weather forecast Observation Indication Local weather forecast Surface winds from Possible cool Possible S or SW; clouds front & thunder- showers; Building to the west; storms approaching possibly, Warm (hot) & humid from the west turning cooler; windy

  30. Forecasting from weather signs • .

  31. Contd.

  32. Weather forecasting using surface charts • Thumb Rules for forecasting: • 1) Storms & fronts tend to move in the same direction and speed during the previous 6 hrs, over a short-time intervals • 2) Lows tend to move in a direction that parallels the isobars in the warm air ahead of the cold front • 3) Lows tend to move toward the region of greatest surface pressure drop, whereas highs tend to move toward the region of greatest surface pressure rise • 4) Surface pressure systems tend to move in the same direction as the wind at 500 mb level. Speed at the surface ~ ½ the speed at aloft

  33. Forecast example • Projection of pressure systems, fronts and current weather in to the future by assuming steady-state conditions (12- 24 hours projection) • The storm center over the Central Plains and should move northeast; the 500-mb chart suggests that the surface low should move northeast at a speed of 25 knots • Six Cities: • Augusta (GA), Washington D.C., Chicago, Memphis, Dallas, and Denver

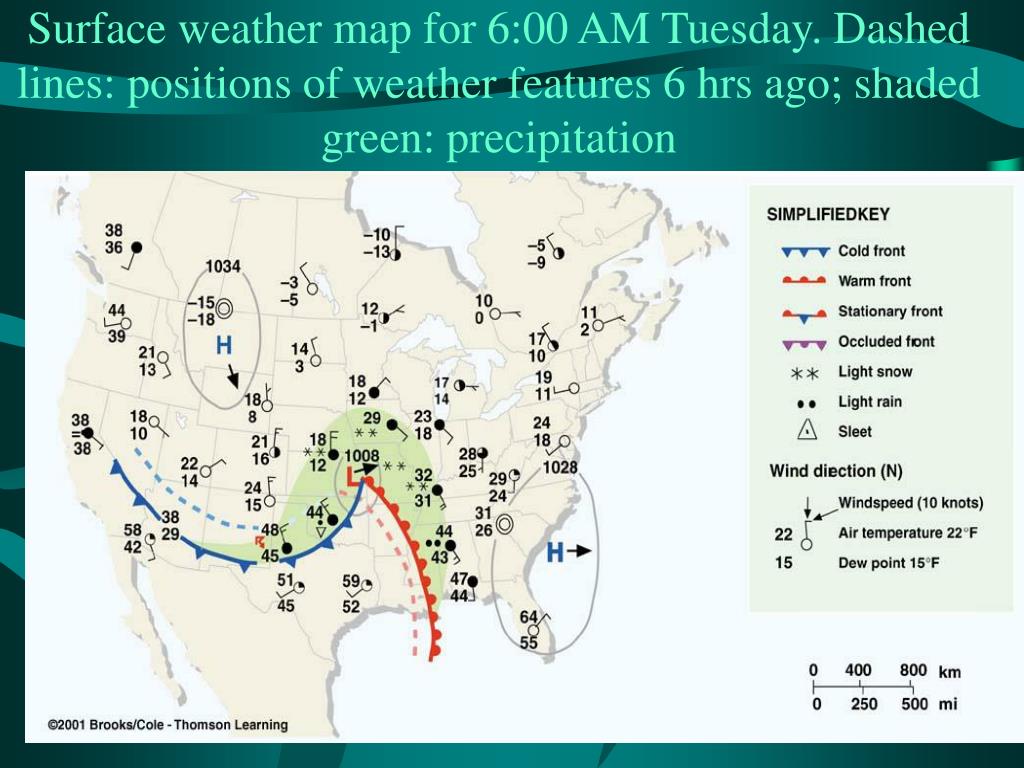

  34. Surface weather map for 6:00 AM Tuesday. Dashed lines: positions of weather features 6 hrs ago; shaded green: precipitation

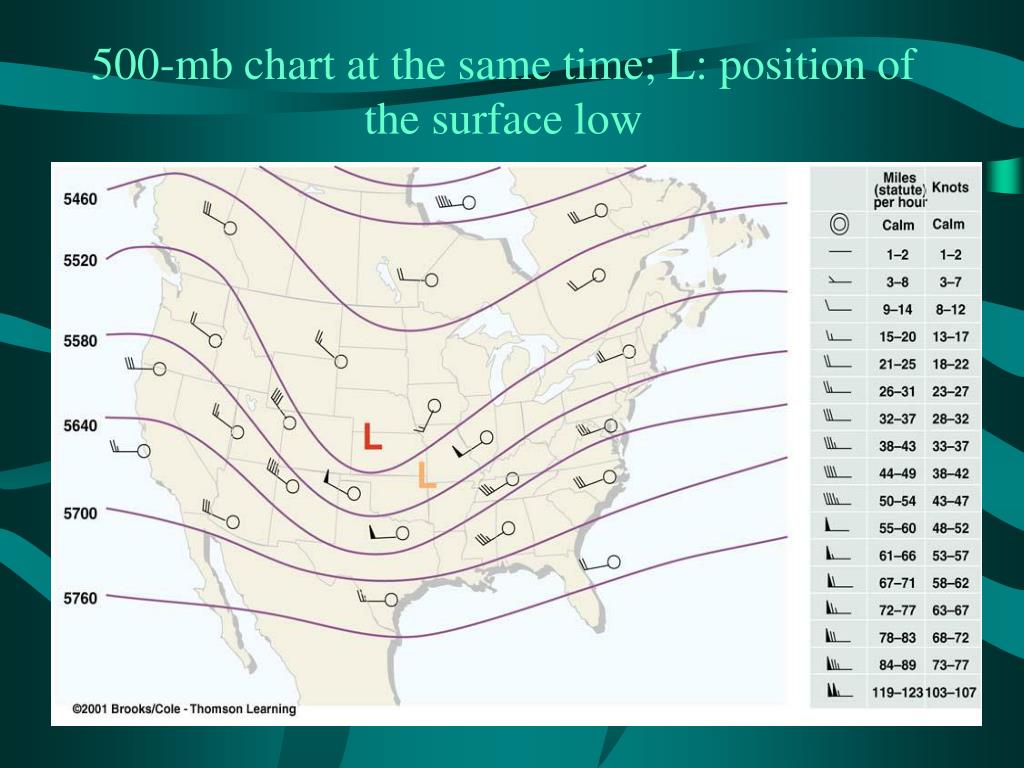

  35. 500-mb chart at the same time; L: position of the surface low

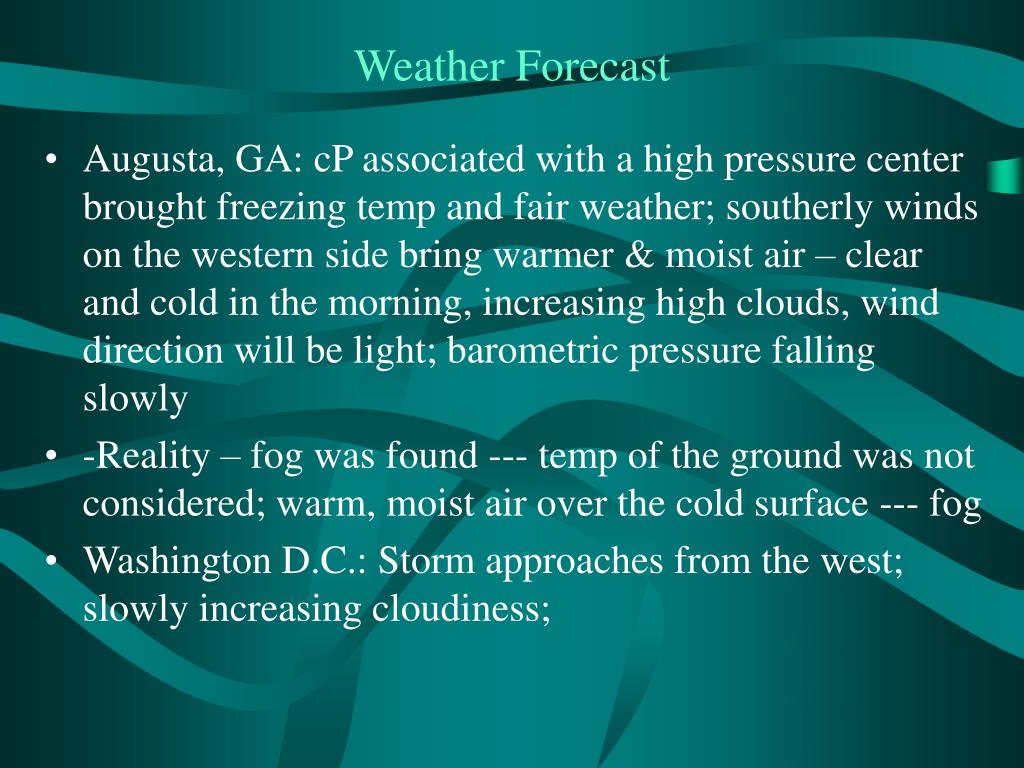

  36. Weather Forecast • Augusta, GA: cP associated with a high pressure center brought freezing temp and fair weather; southerly winds on the western side bring warmer & moist air – clear and cold in the morning, increasing high clouds, wind direction will be light; barometric pressure falling slowly • -Reality – fog was found --- temp of the ground was not considered; warm, moist air over the cold surface --- fog • Washington D.C.: Storm approaches from the west; slowly increasing cloudiness;

  37. Weather prediction – contd.

  38. Weather prediction – contd. • Sleet was found – not predicted – Why?? Intensification of the storm; influx of warmer air from the ocean slowly raised the surface temp and the sleet soon became rain • Chicago: Major snowstorm – total snowfall is 12 inches – actual snowfall is 13 inch – problem storm system slowed as it became occluded • Memphis, TN: Predicted thunderstorm did not materialize; winds were not strong enough to mix the cold, moist air that had settled in the valleys with the warm air above

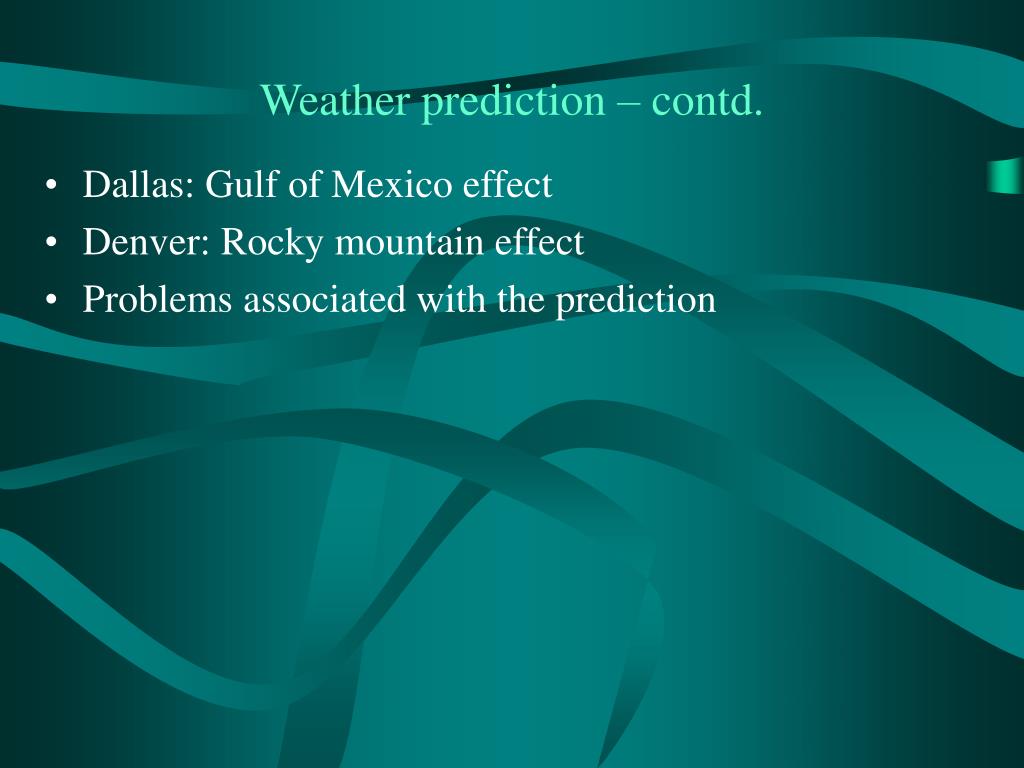

  39. Weather prediction – contd. • Dallas: Gulf of Mexico effect • Denver: Rocky mountain effect • Problems associated with the prediction

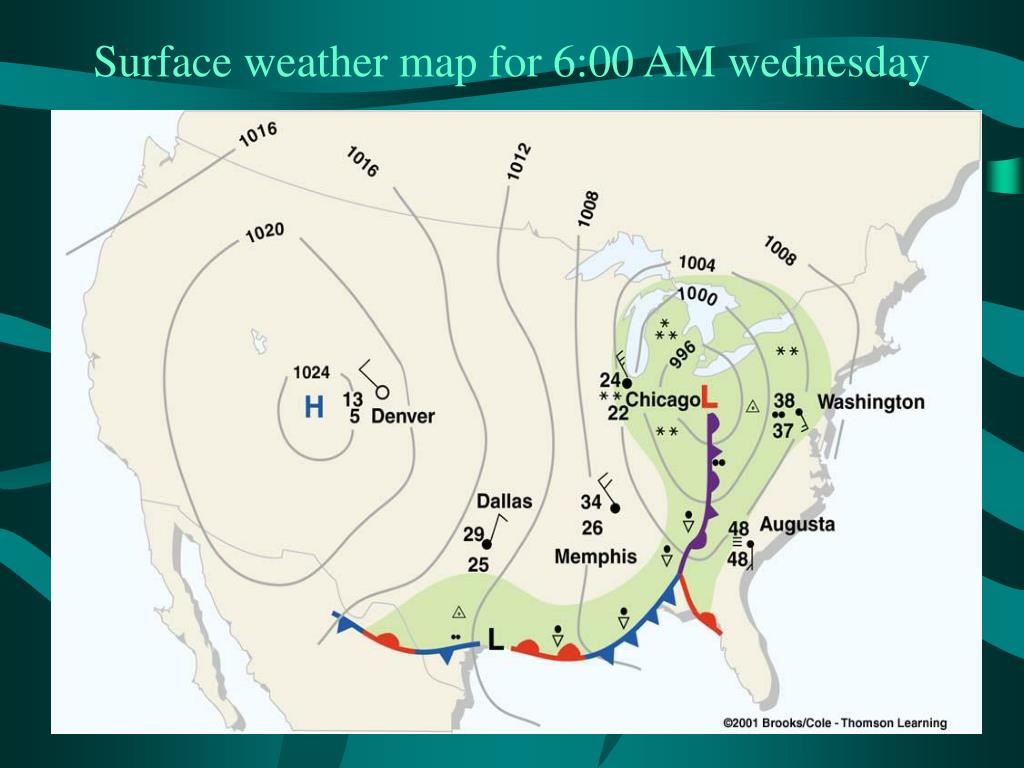

  40. Surface weather map for 6:00 AM wednesday

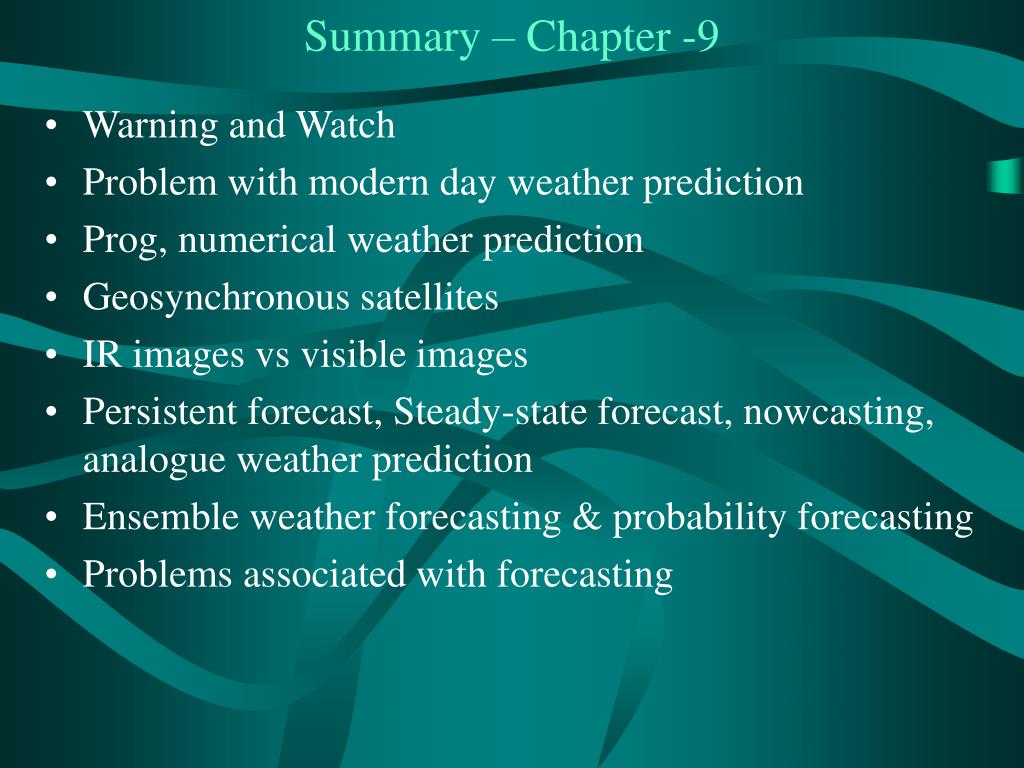

  41. Summary – Chapter -9 • Warning and Watch • Problem with modern day weather prediction • Prog, numerical weather prediction • Geosynchronous satellites • IR images vs visible images • Persistent forecast, Steady-state forecast, nowcasting, analogue weather prediction • Ensemble weather forecasting & probability forecasting • Problems associated with forecasting
