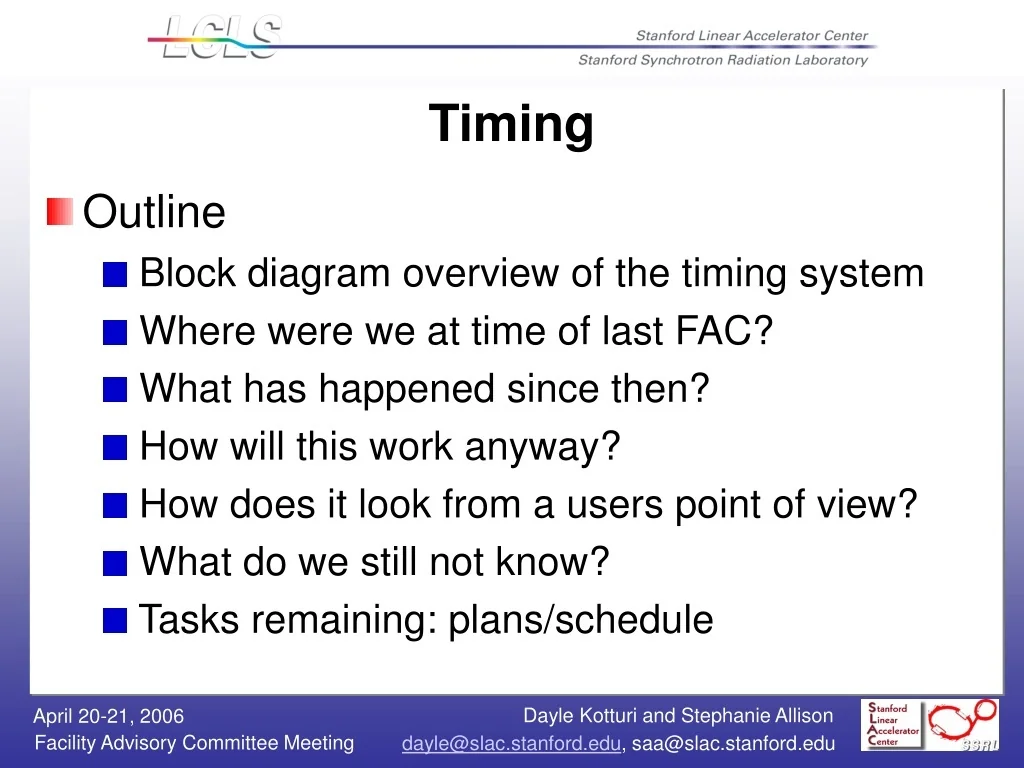

  1. Timing • Outline • Block diagram overview of the timing system • Where were we at time of last FAC? • What has happened since then? • How will this work anyway? • How does it look from a users point of view? • What do we still not know? • Tasks remaining: plans/schedule

  2. Timing System

  3. Where were we at time of last FAC? • PNET driver done • EVG/EVR 100 series hardware in house • could send events from EVG to EVR but not PNET data • Working with other labs and Micro-Research Finland (MRF) to consolidate our requests for a new version of the hardware

  4. What has happened since then? • Received the EVG/EVR 200 series VME hardware (which sends up to 2K data buffer) • Adapted driver and device support to: • send the PNET data buffer (measured 66 µs transfer) • be OSI (running on mvme6100, RTEMS4.7) • with help from Till Straumann, Eric Bjorklund, Timo Korhonen, Jukka Pietarinen and Bob Dalesio • Wrote Timing Trigger System Engineering Manual • Received the EVR 200 series PMC module • Installed fiber optic network in Bldg 280 for testing

  5. What has happened since then? (2) • Stephanie is setting up a hardware teststand with separate IOCs for EVG and EVR in Bldg 34 for CPE engineers to do: • Timing comparison with existing CAMAC timing system (MPG/PDU) • Timing measurements – jitter, etc • Shakedown by the experts • Test stand to include: • EVG, PNET, EVR, EVR transition module, EVG fanout later • Inputs: PNET pattern from CAMAC timing system, fiducial trigger, and 476Mhz clock • Outputs: EVR front panel and back transition module • Infrastructure: VME crates, dedicated terminal server, dedicated PC, fiber between EVG and EVR • EPICS: test databases and displays, EVR done, EVG in-progress

  6. How will this work anyway?

  7. EVG/EVR data sources by type

  8. Timescale for event code transfer Event Code 1 Hz event 10 Hz event Beam On Laser event BPM event RF event 360 Hz fiducial 0 . 5 1 . 0 1 . 5 2 . 0 0 . 0 2 . 5 Time after fiducial that event code is sent ( millisec ) LCLS timeslot shown

  9. Timescale for event buffer transfer Time to send 16 byte event buffer from EVG to EVR: 66.4 µs

  10. Timescale for MPS data transfer

  11. How does it look to a user?

  12. PNET data display

  13. EVR diagnostics for h/w engineers

  14. EVR event diagnostics for h/w engs

  15. What do we still not know? • Verify jitter • Verify fiber optic performance (multi vs single mode) • Licensing agreement with MRF

  16. Tasks remaining: plans • Finish PMC-EVR driver • EVG sequence RAM programming at 360 Hz • EVG rules definition • MPS hardware interface • Migrate PNET receiver data records to EVR data records • Full-integration of PMC-EVR with VME-EVR software for easier maintenance • Operator interface – panels to set rate limits, do single shot • Fanout and transition module integration and testing • Installation at sector 20

  17. Tasks remaining: high-level s/w plans • Interface Control Document + review, May • EVG input and output • HW and SW trigger list per subsystem • Applications using the timing pattern • Record (maybe IOC) timestamping • Beam-synchronous acquisition and control • Use writeup provided by Bob Dalesio • Design Document + review, June • Beam-Synchronous Control: rules and algorithm for creating EVG trigger sequences on a pulse-to-pulse basis – algorithm changes based on user requests • Beam-Synchronous Acquisition: mechanism for users to request pulse-by-pulse acquisition (single-shot or buffered) across multiple IOCs based on specified conditions • Proper timing pattern in-place before a fiducial for record processing after fiducial • Implementation of above design plus: • Integration with SLC-aware BPM acquisition • Missing functionality in existing EVG and EVR records for HW upgrade • User-friendly database layer on top of low-level EVR records

  18. Tasks remaining: schedule • We’re in the process of redoing/updating the work breakdown schedule. A draft is due by end of April and final version in May.
