Temporomandibular joint

Temporomandibular joint. Type…. Articulating bones Capsule Synovial membrane Articular disc Ligaments. Movements. TMJ. articulation. Type :- synovial,condylar. Articulating bones :-articular surfaces are covered by fibro-cartilage. Mandibular head. Mandibular fossa &tubercle.

cale
Télécharger la présentation

Temporomandibular joint

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Temporomandibular joint

  2. Type…. Articulating bones Capsule Synovial membrane Articular disc Ligaments. Movements. TMJ

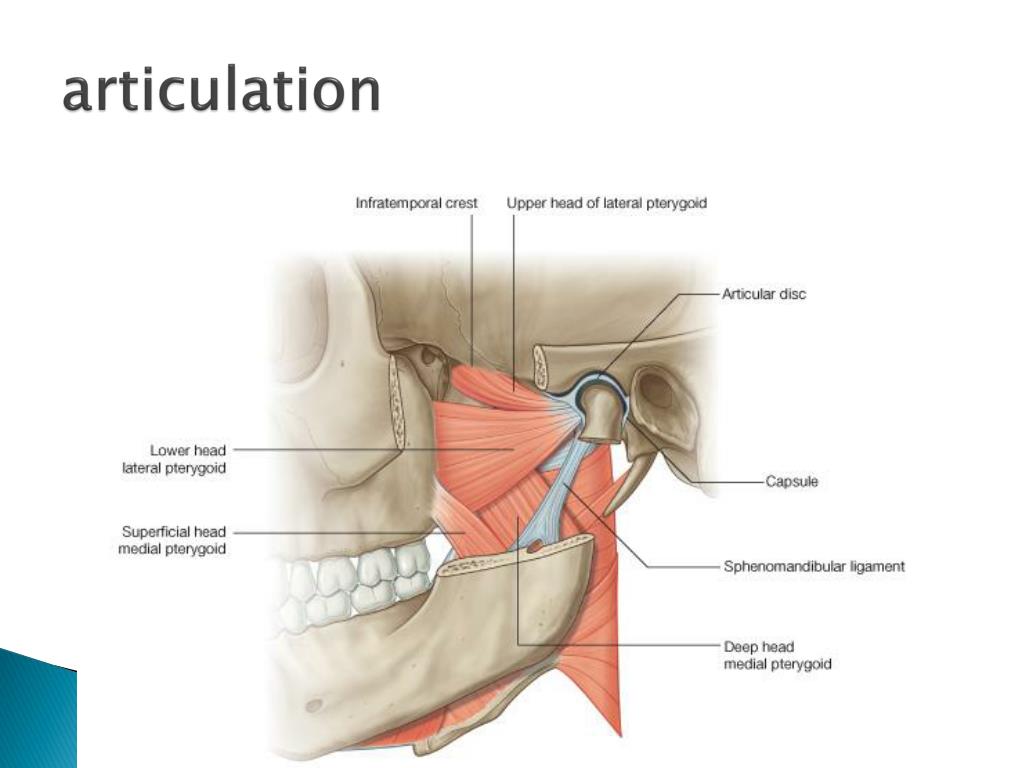

  3. articulation

  4. Type:- synovial,condylar. • Articulating bones :-articular surfaces are covered by fibro-cartilage. • Mandibular head • Mandibular fossa &tubercle

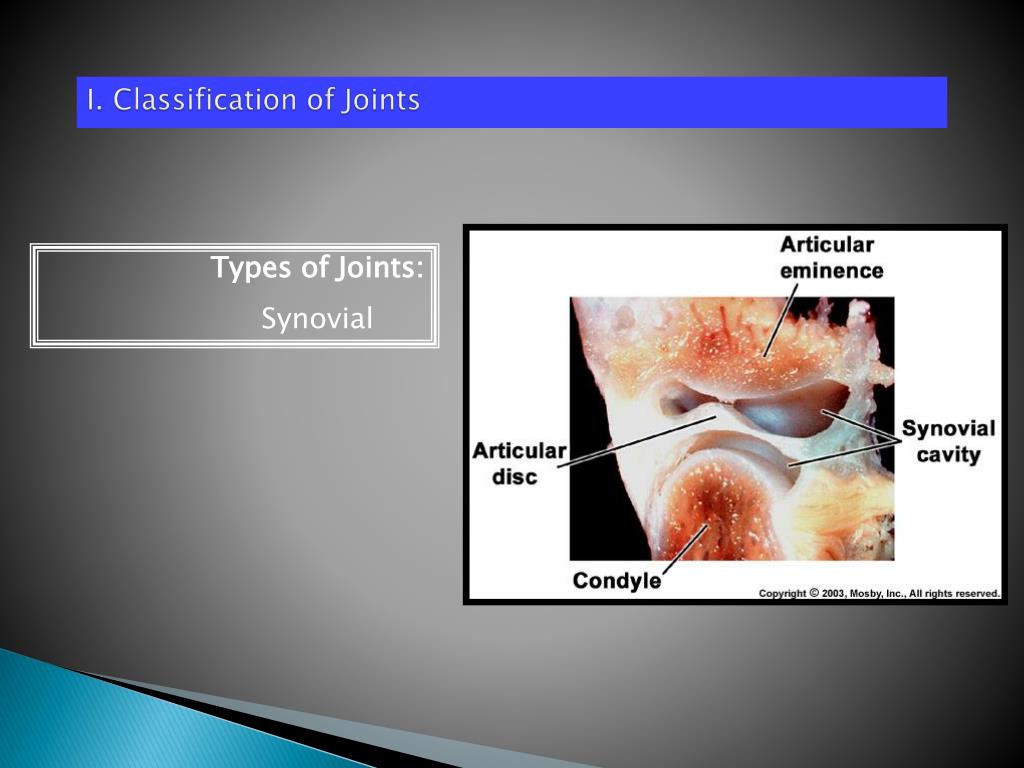

  5. I. Classification of Joints Types of Joints: • Synovial

  6. Type: *synovial but articular surfaces covered by fibrocartilage*contain articular disc (shape) *capsule attached to the articular surface

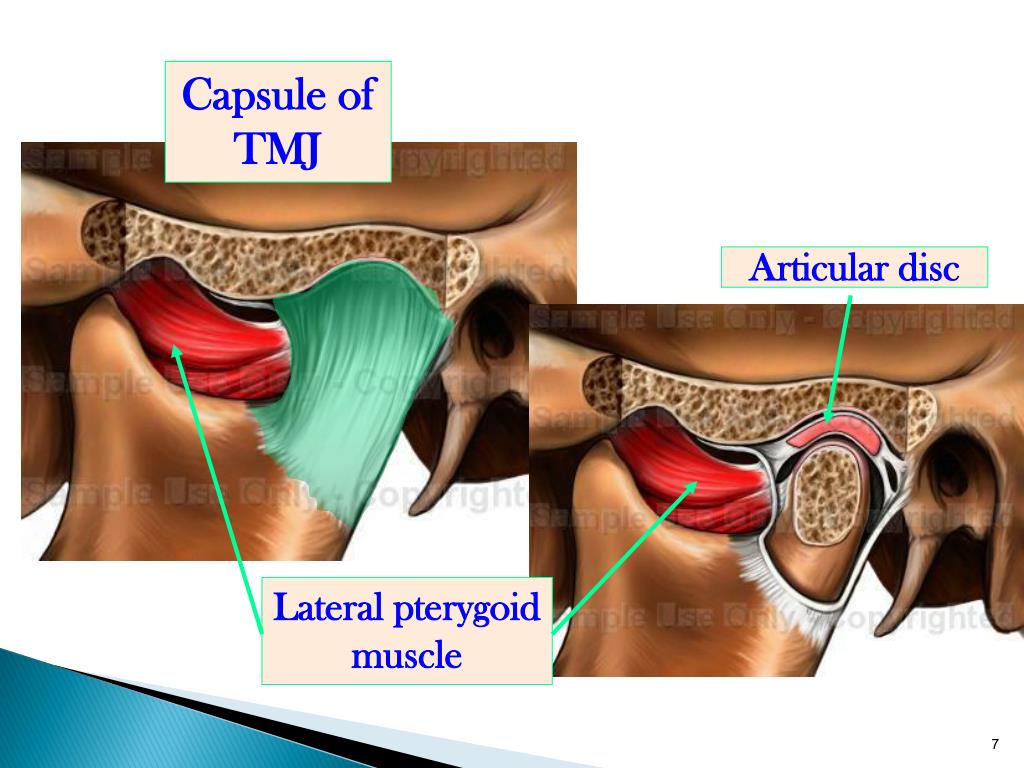

  7. Capsule of TMJ Articular disc Lateral pterygoid muscle

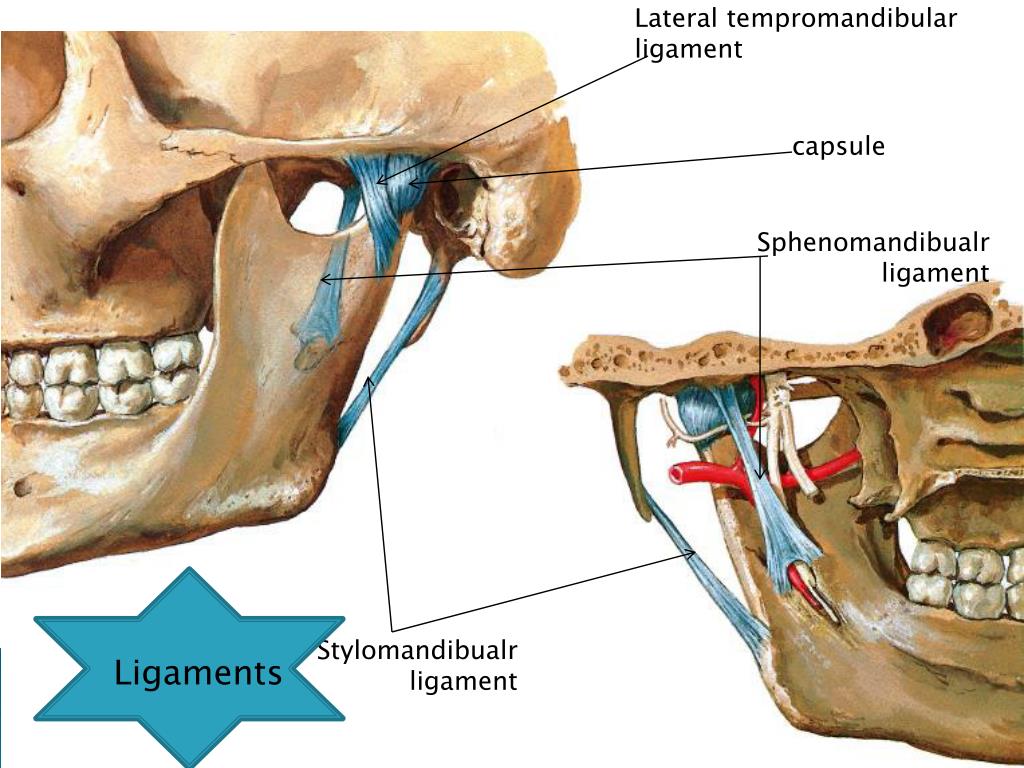

  8. Lateral tempromandibular ligament ligaments capsule • The lateral tempromandibular ligament Sphenomandibualr ligament Stylomandibualr ligament Ligaments

  9. Important relations of tmj Anterior posterior

  10. Medial lateral

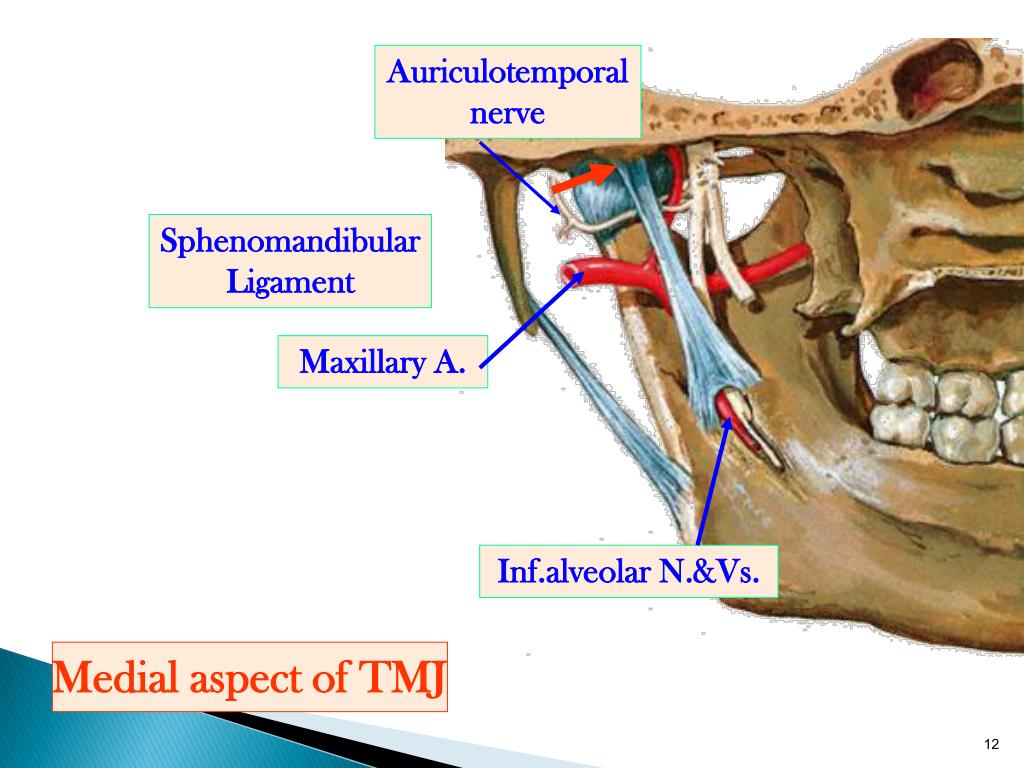

  11. Auriculotemporal nerve Sphenomandibular Ligament Maxillary A. Inf.alveolar N.&Vs. Medial aspect of TMJ

  12. Nerve supply

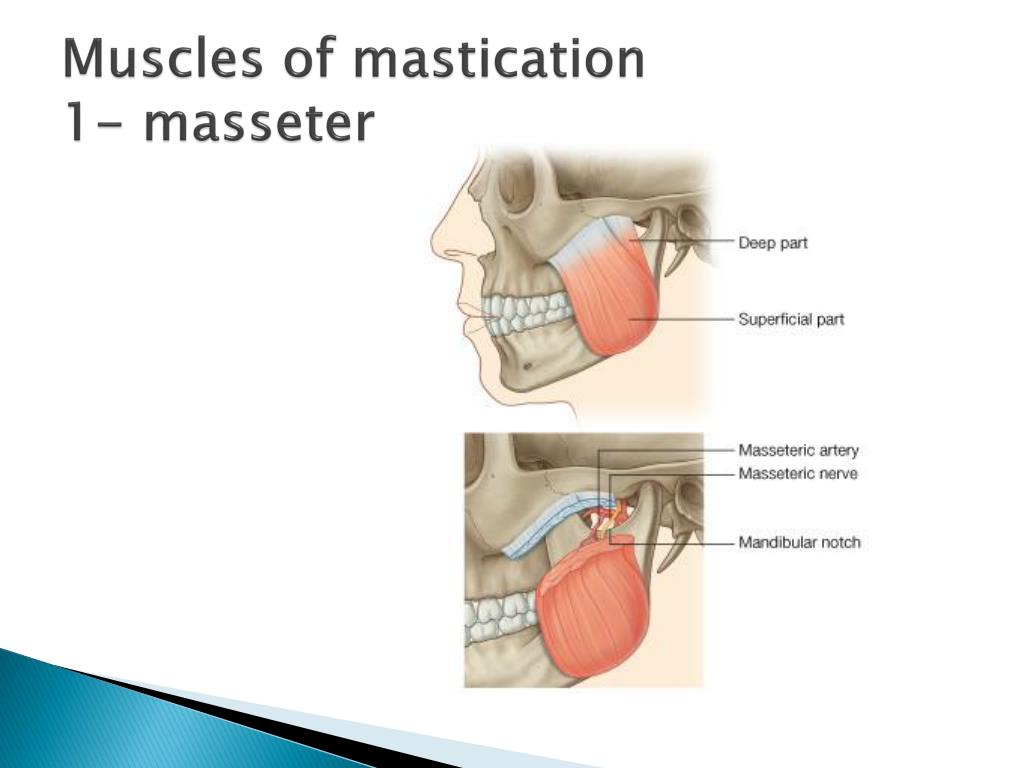

  13. Muscles of mastication1- masseter

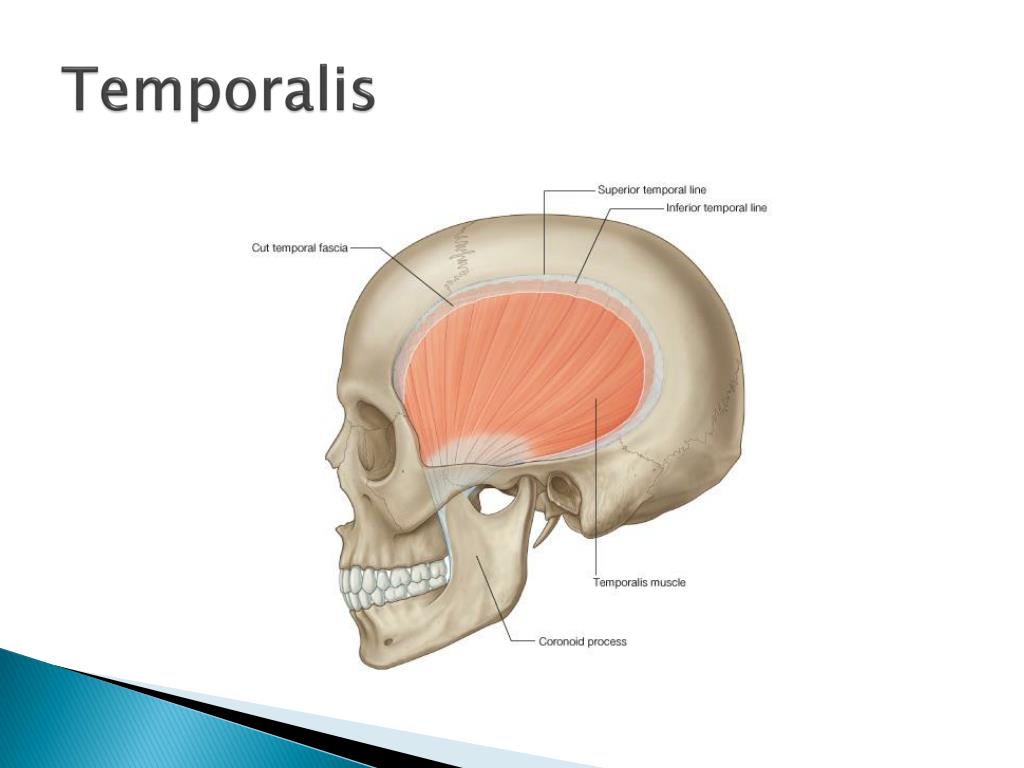

  14. Temporalis

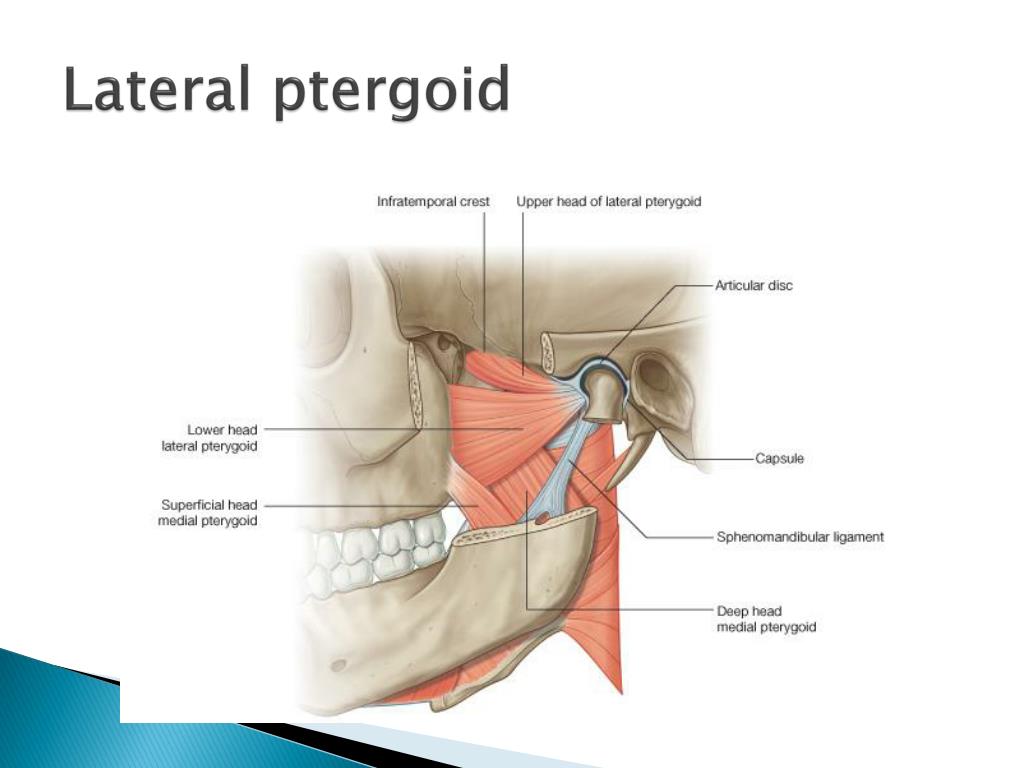

  15. Lateral ptergoid

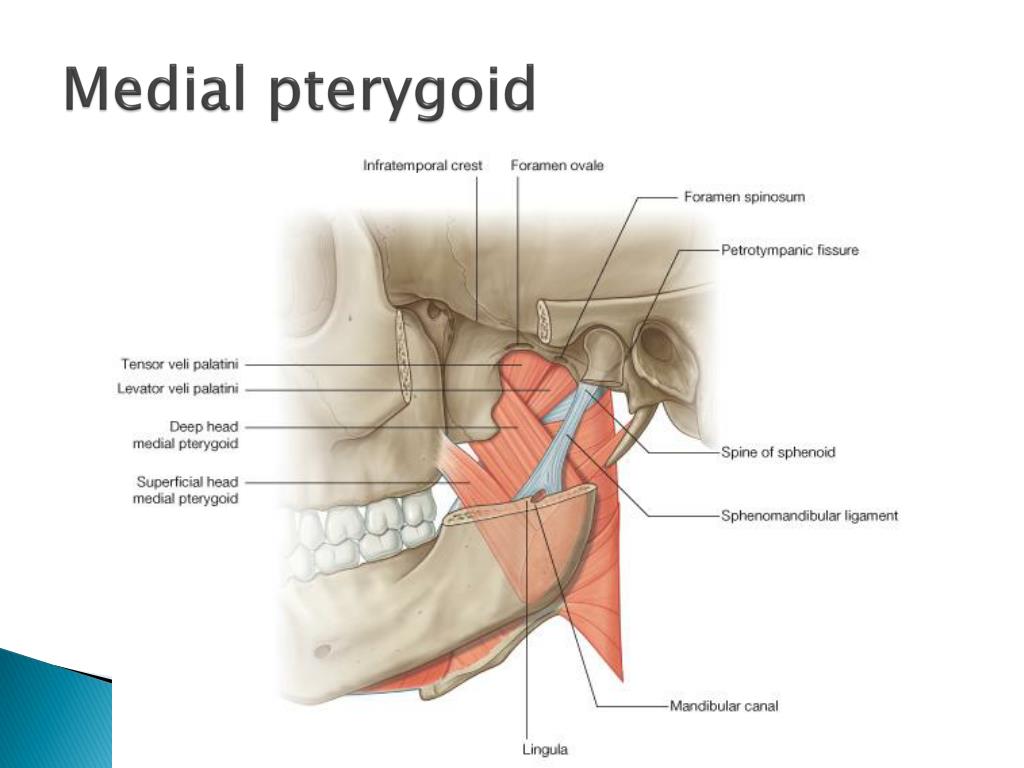

  16. Medial pterygoid

  17. Movements

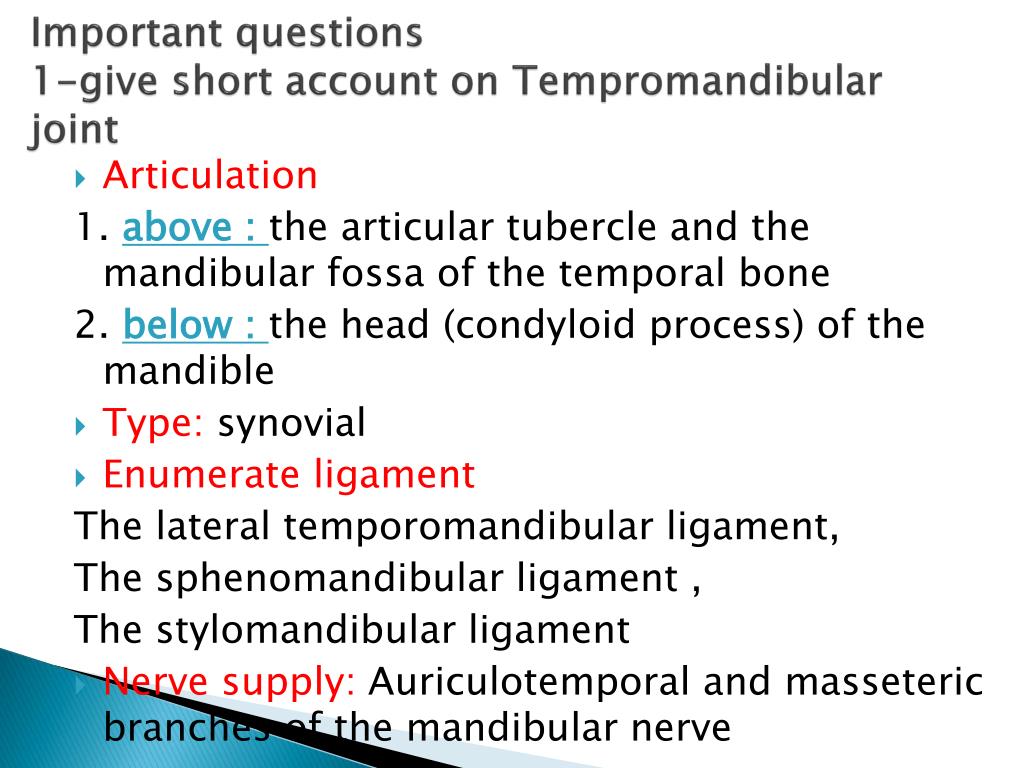

  18. Important questions1-give short account on Tempromandibular joint • Articulation 1. above : the articular tubercle and the mandibular fossa of the temporal bone 2. below : the head (condyloid process) of the mandible • Type: synovial • Enumerate ligament The lateral temporomandibular ligament, The sphenomandibular ligament , The stylomandibular ligament • Nerve supply: Auriculotemporal and masseteric branches of the mandibular nerve

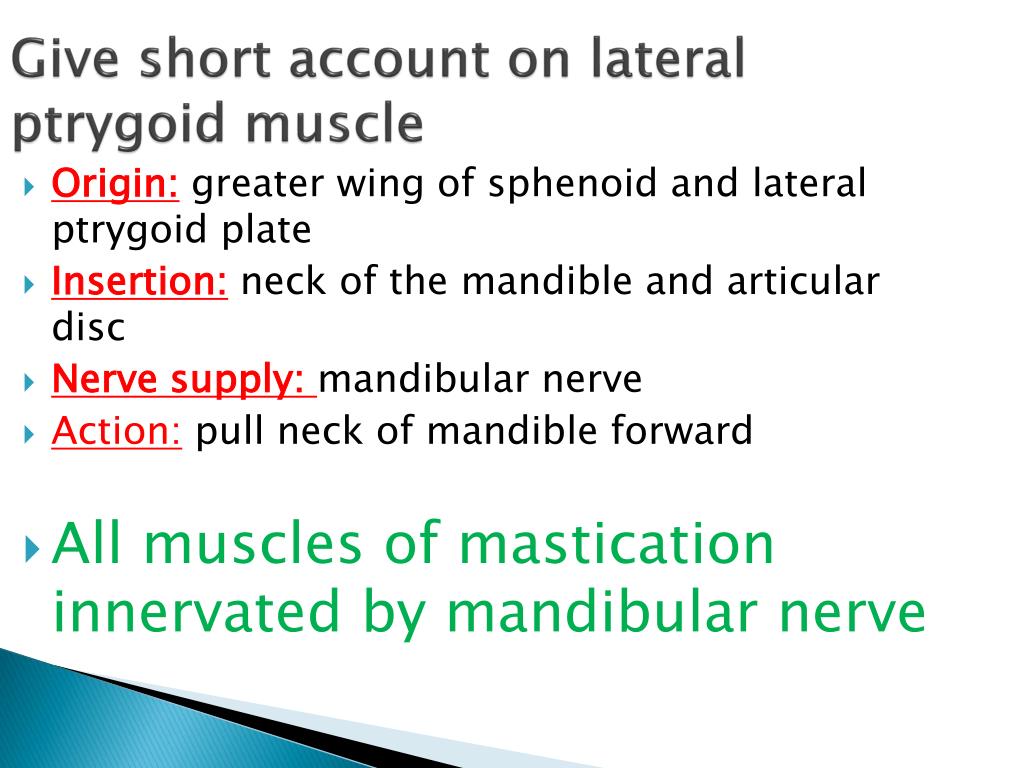

  19. Give short account on lateral ptrygoid muscle • Origin: greater wing of sphenoid and lateral ptrygoid plate • Insertion: neck of the mandible and articular disc • Nerve supply: mandibular nerve • Action: pull neck of mandible forward • All muscles of mastication innervated by mandibular nerve

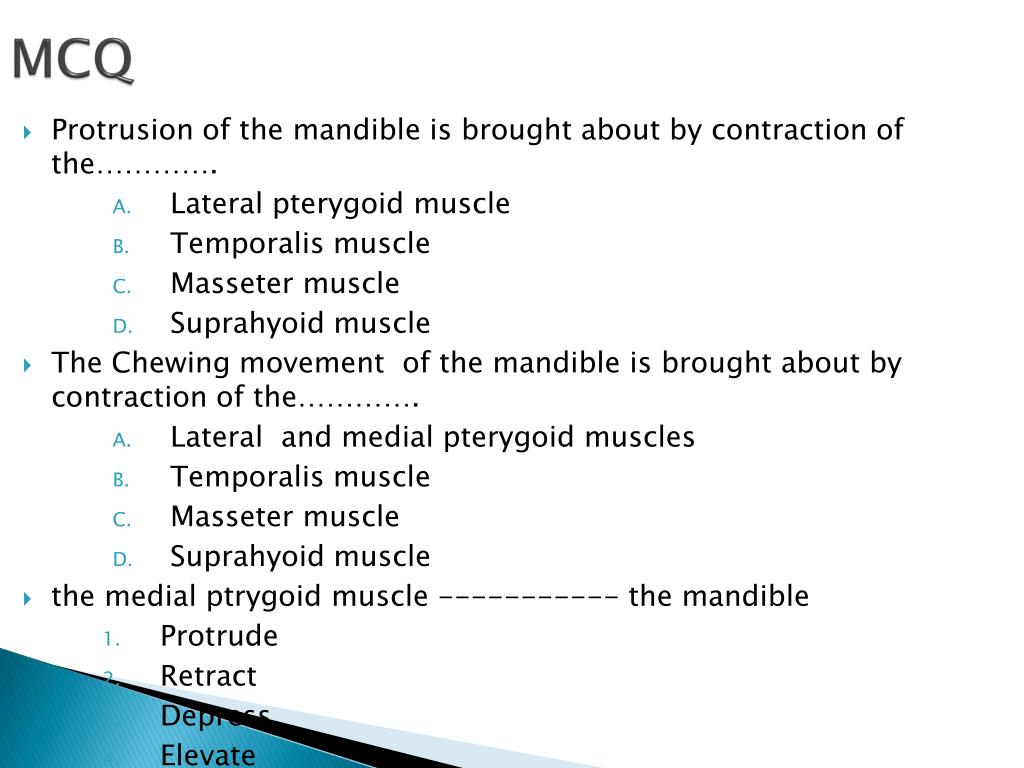

  20. MCQ • Protrusion of the mandible is brought about by contraction of the…………. • Lateral pterygoid muscle • Temporalis muscle • Masseter muscle • Suprahyoid muscle • The Chewing movement of the mandible is brought about by contraction of the…………. • Lateral and medial pterygoid muscles • Temporalis muscle • Masseter muscle • Suprahyoid muscle • the medial ptrygoid muscle ----------- the mandible • Protrude • Retract • Depress • Elevate

  21. the lateral ptrygoid muscle ----------- the mandible • Protrude • Retract • Depress • Elevate • the posterior fibers of temporalis muscle ----------- the mandible • Protrude • Retract • Depress • Elevate • the masseter muscle ----------- the mandible • Protrude • Retract • Depress • Elevate • the digastric and geniohyoid muscles ----------- the mandible • Protrude • Retract • Depress • Elevate
